Brake Pads Replacement - Front

Removal Procedure





1. Remove two-thirds of the brake fluid from the master cylinder.
2. Raise the vehicle and suitably support. Refer to Vehicle Lifting.
3. Remove the Wheel. Refer to Tire and Wheel Removal and Installation.

Important: Do not use a screwdriver or pry bar to compress the caliper piston into the caliper. Any damage to the piston boot could cause corrosive elements to enter the piston sealing area and lead to the piston seizing in the caliper bore.

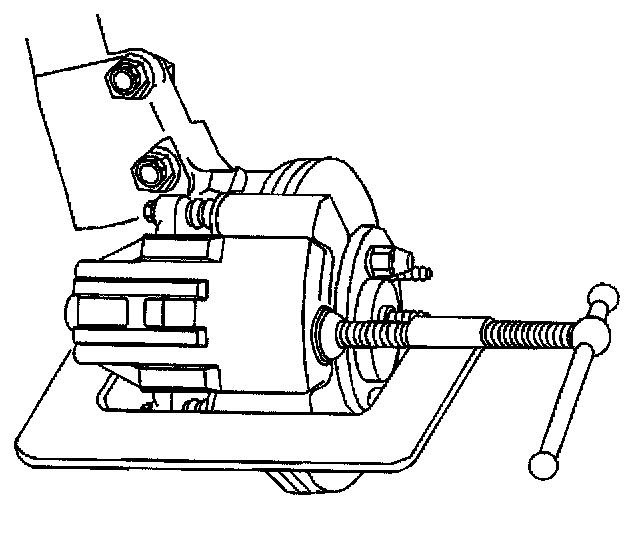

4. Using a large C clamp compress the caliper piston into the caliper bore completely.

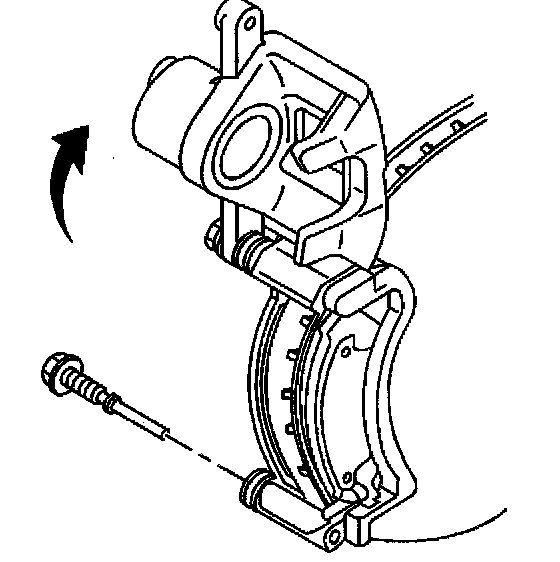

5. Remove the bottom caliper slide pin (1).





6. Pivot the caliper body upward.

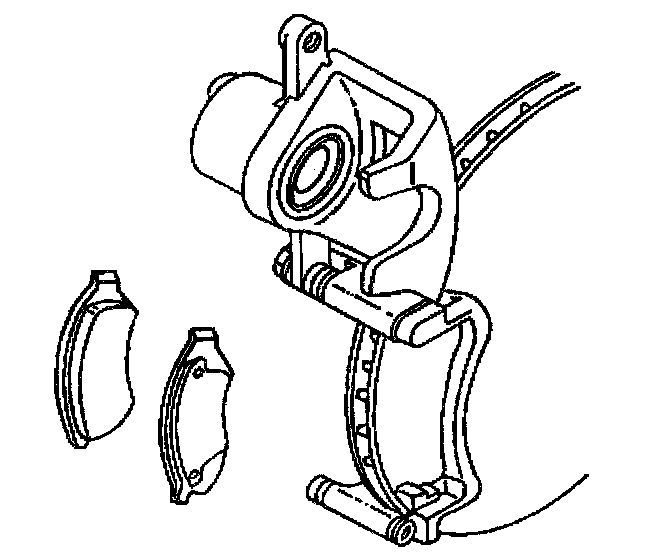

7. Remove the inboard and outboard pads from the anchor bracket.

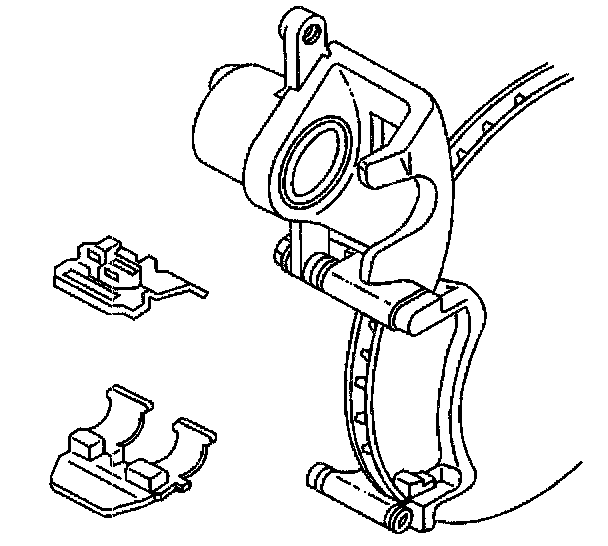

8. Remove and inspect the pad retainers.

Installation Procedure

Important: Inspect the caliper bolt suspension boots for cuts, tears, or deterioration. If damaged, replace the pin boots. Inspect the caliper pin bolts for damage or corrosion. Replace if damaged or corroded. Do not attempt to clean away corrosion. Corrosion is typically caused by damaged pin boots. Refer to Brake Caliper Bracket Overhaul. Inspect the piston boot for deterioration, replace if damaged. Refer to Brake Caliper Overhaul - Front.





1. Install the brake pad retainers into the caliper anchor bracket.





2. Install both brake pads into the caliper anchor bracket.





Important: The caliper piston boot must lay flat. Make sure convolutions are tucked into place.

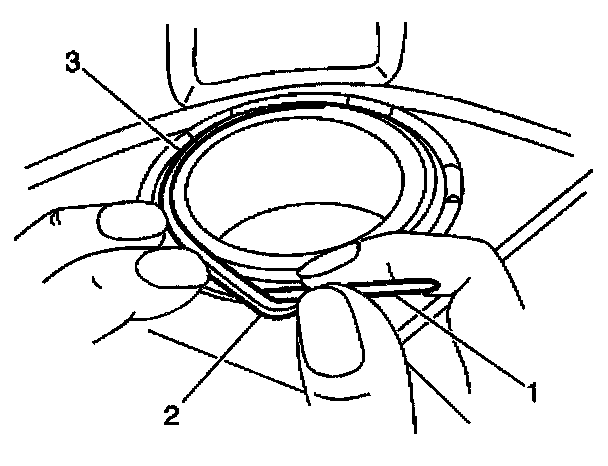

3. Use a small plastic or wooden too[ (1) to lift the inner edge of the boot next to the piston (2), and press out any trapped air.

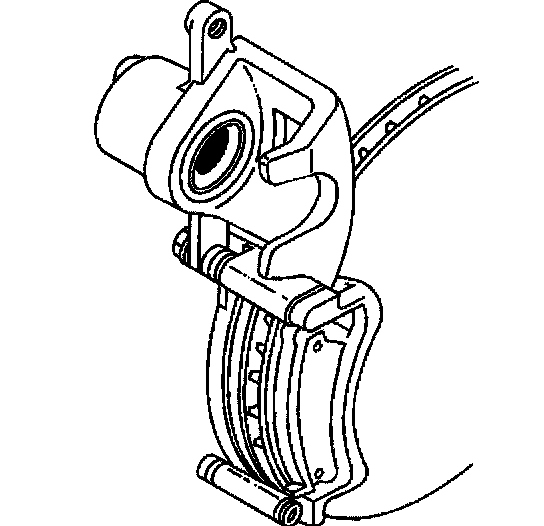

4. Pivot the caliper down over the brake pads and into the anchor bracket.





Notice: Refer to Fastener Notice in Service Precautions.

5. Insert the lower caliper slide pin (1).
^ Tighten the caliper slide pin to 27 Nm (20 ft. lbs.).
6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
7. Lower the vehicle.
8. Start the vehicle and apply approximately 778 N (175 lb) of force three times to the brake pedal to seat the brake caliper piston and brake pads.
9. Refill the brake fluid. Refer to Master Cylinder Reservoir Replacement.
10. Burnish the pads and rotors. Refer to Burnishing Pads and Rotors.
