Heat Shield: Service and Repair

Removal Procedure





1. Raise the vehicle. Refer to Vehicle Lifting.

Notice: The Heated Oxygen Sensor (H02S) uses a permanently attached pigtail and connector. Do not remove this pigtail from the Heated Oxygen Sensor. Damage or the removal of the pigtail or the connector could affect the proper operation of the sensor.

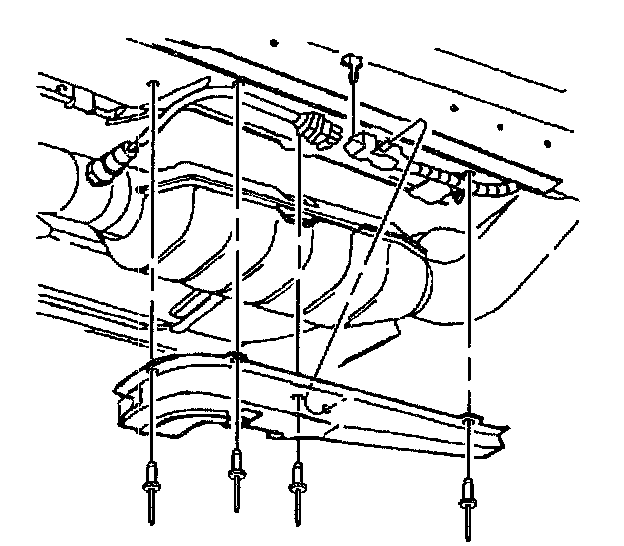

2. Drill out the heat shield rivets.
3. Remove the oxygen sensor connector from the shield.

Installation Procedure





1. Install the oxygen sensor connector on the shield.
2. Install heat shield rivets on the vehicle.
3. Lower the vehicle.
