Canister Purge Control Valve: Service and Repair

REMOVAL PROCEDURE




1. Turn OFF the ignition.
2. Remove the fuel injector sight shield.

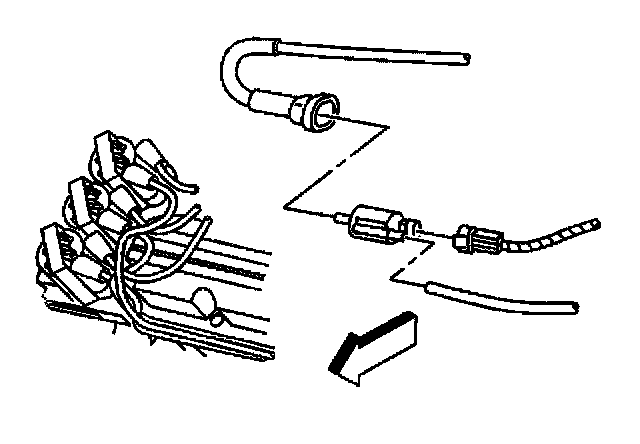

3. Disconnect the electrical connector and the hoses from the EVAP canister purge valve.
4. Disconnect the hoses to the EVAP canister purge valve.

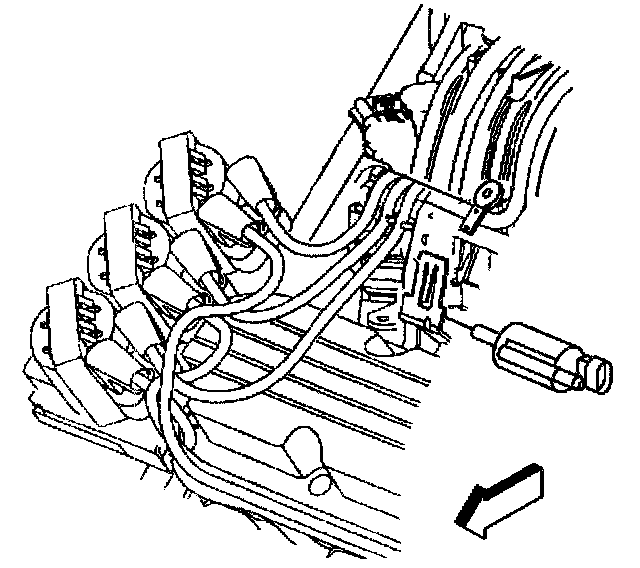

5. Bend the tab on the purge valve bracket to remove the valve.
6. Remove the EVAP canister purge valve.

INSTALLATION PROCEDURE




1. Bend the tab on the purge valve mounting bracket to install the valve.
2. Install the EVAP canister purge valve.




3. Connect the hoses to the EVAP canister purge valve.
4. Connect the electrical connector to the [1][2]EVAP purge valve.
5. Install the fuel injector sight shield.
