Forward Servo Replacement

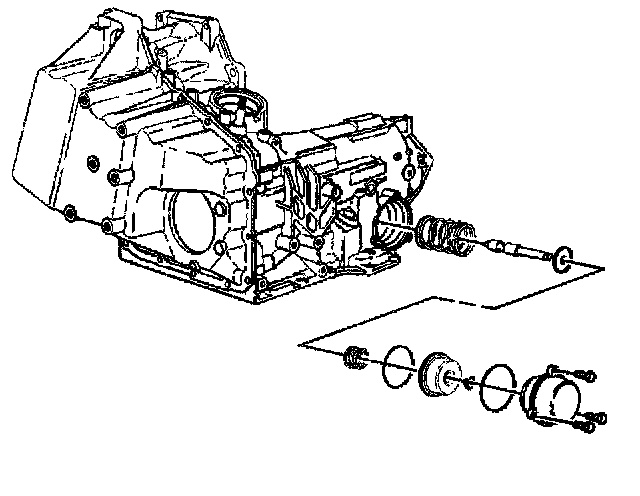

Removal Procedure






1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the power steering gear heat shield.
3. Support the transaxle.
4. Remove the transaxle rear mount. Refer to Automatic Transmission Mount Replacement (Rear) or Automatic Transmission Mount Replacement (Right).
5. Position a drain pan under the forward servo cover.
6. Remove the bolts and/or screws attaching the servo cover to the transaxle case.
7. Remove the forward servo cover.
8. Remove the forward servo cover O-ring.
9. Remove the servo piston assembly.
10. Remove the servo spring.
11. For disassembly and inspection, refer to Transmission Unit Repair.

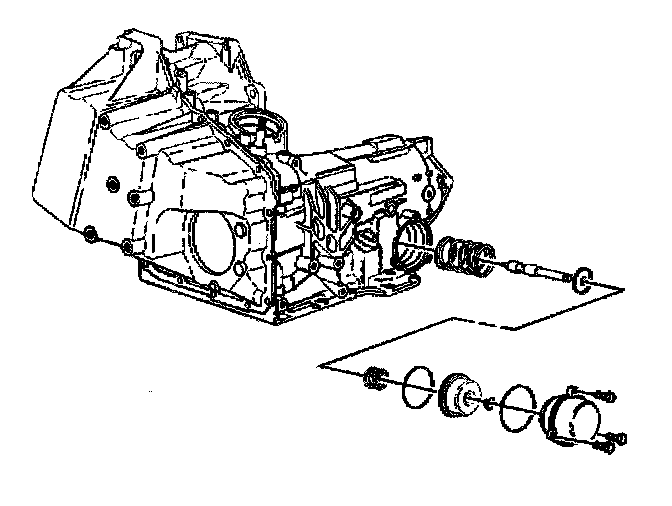

Installation Procedure






1. Install the servo spring.
2. Install the servo piston assembly.
3. Install the forward servo cover O-ring.
4. Install the forward servo cover.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the forward servo cover attaching bolts.

^ Tighten the forward servo cover attaching bolts to 12 Nm (106 inch lbs.).

6. Remove the drain pan from under the forward servo cover.
7. Install the transaxle rear mount. Refer to Automatic Transmission Mount Replacement (Rear) or Automatic Transmission Mount Replacement (Right).
8. Install the power steering gear heat shield.
9. Lower the vehicle.
