Transmission Pressure Test Port: Service and Repair

Removal Procedure






1. Remove the throttle body air inlet duct. Refer to Air Cleaner Intake Duct Replacement in Powertrain Management.

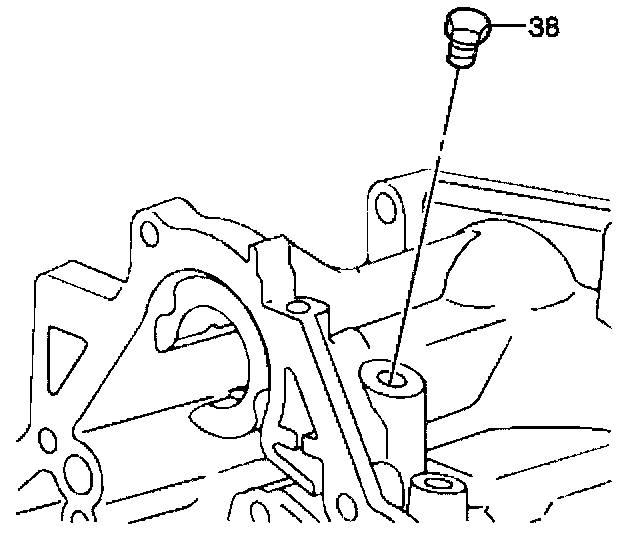

2. Remove the oil pressure hole test plug (38).

Installation Procedure






Notice: Refer to Fastener Notice in Service Precautions.

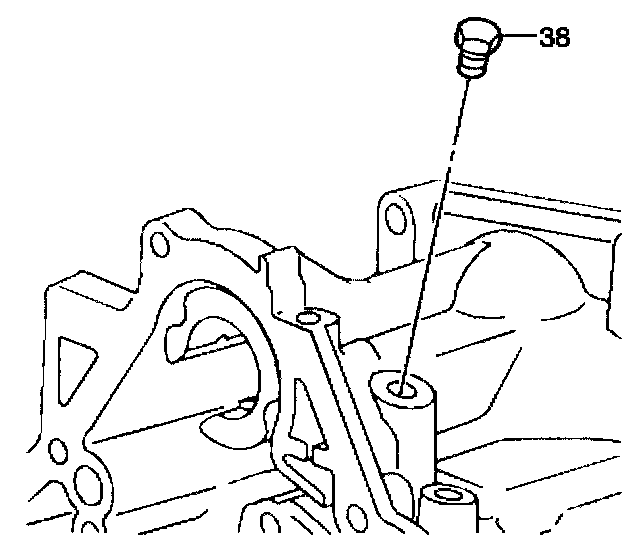

1. Install the oil pressure hole test plug (38).

^ Tighten the oil pressure hole test plug (38) to 12 Nm (106 inch lbs.).

2. Install the throttle body air inlet duct. Refer to Air Cleaner Intake Duct Replacement in Powertrain Management.
