Wiring Harness: Service and Repair

Wiring Harness Replacement
Removal Procedure





1. Remove the case side cover.

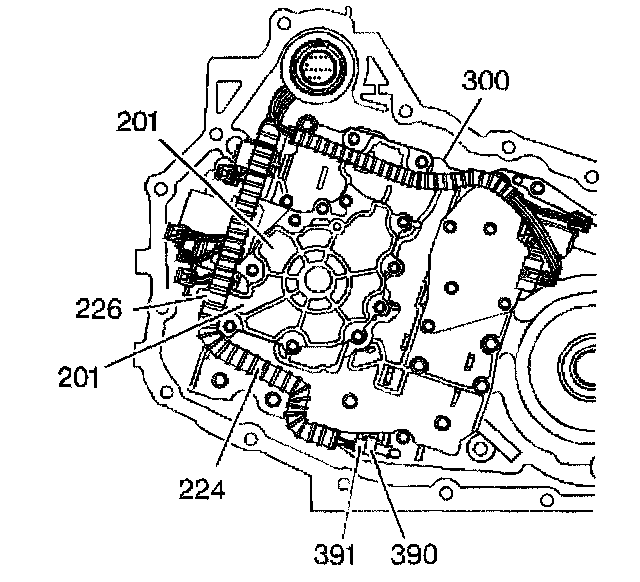

2. Use a small flat-bladed tool in order to disconnect the wiring harness from the solenoid valves (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and the temperature sensor (391).

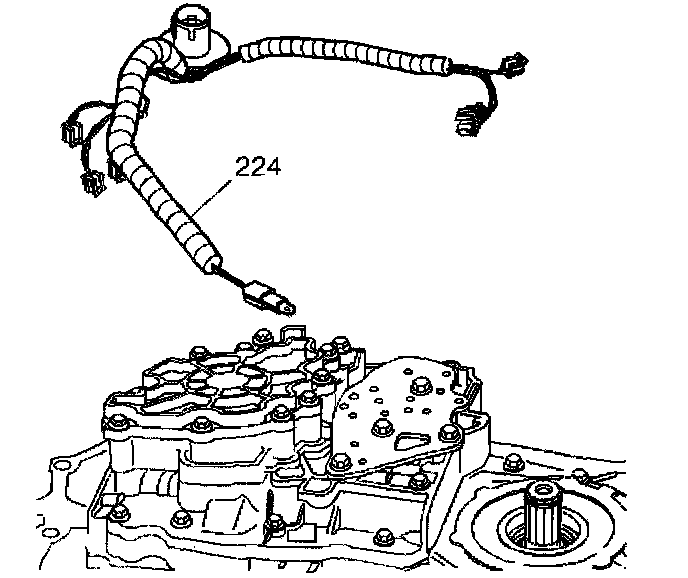

3. Remove the wiring harness (224).

Installation Procedure

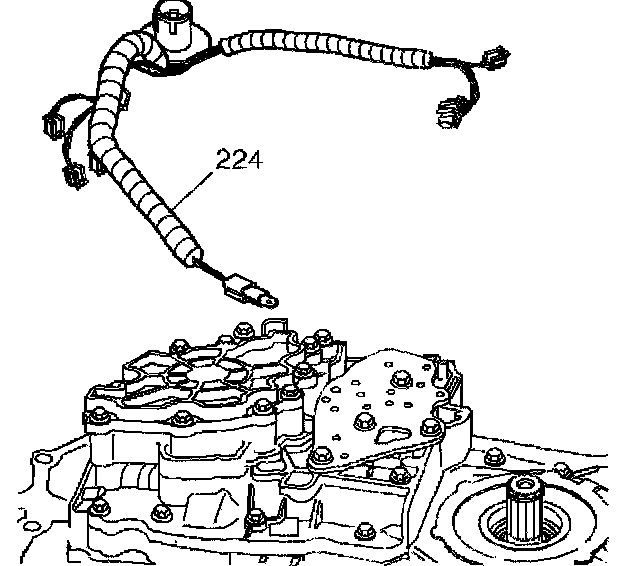

1. Install the wiring harness (224).

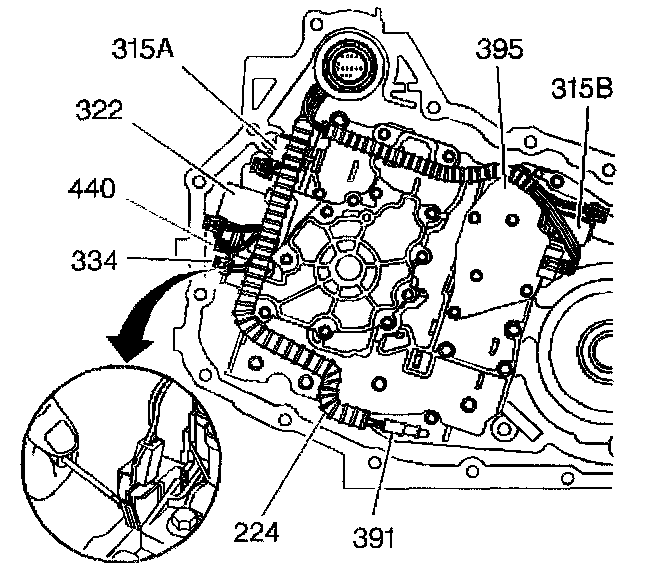

2. Connect the wiring harness to the solenoid valves (31 5A, 31 5B, 322, 334 and/or 440), TFP manual valve position switch (395) and the temperature sensor (391).
3. Install the case side cover.
