Steering Column

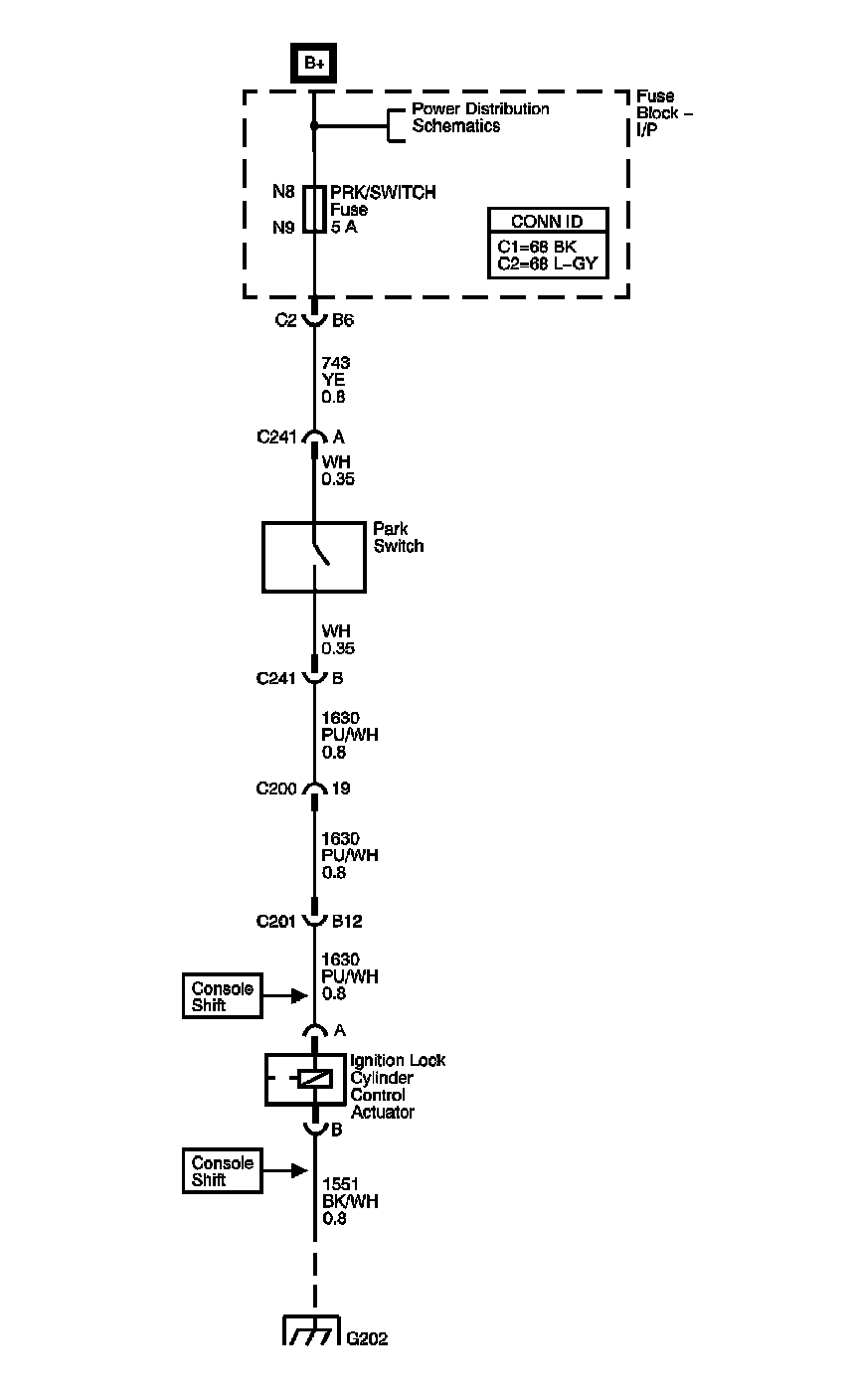

Column/Ignition Lock Diagram:

Locations: The locations for connectors, Ground, Splices, and Grommets shown within these diagrams can found via their numbers at Vehicle Locations. Locations
