Home >> Buick >> 2005 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Front Seat Horizontal Motor

Front Seat Horizontal Motor

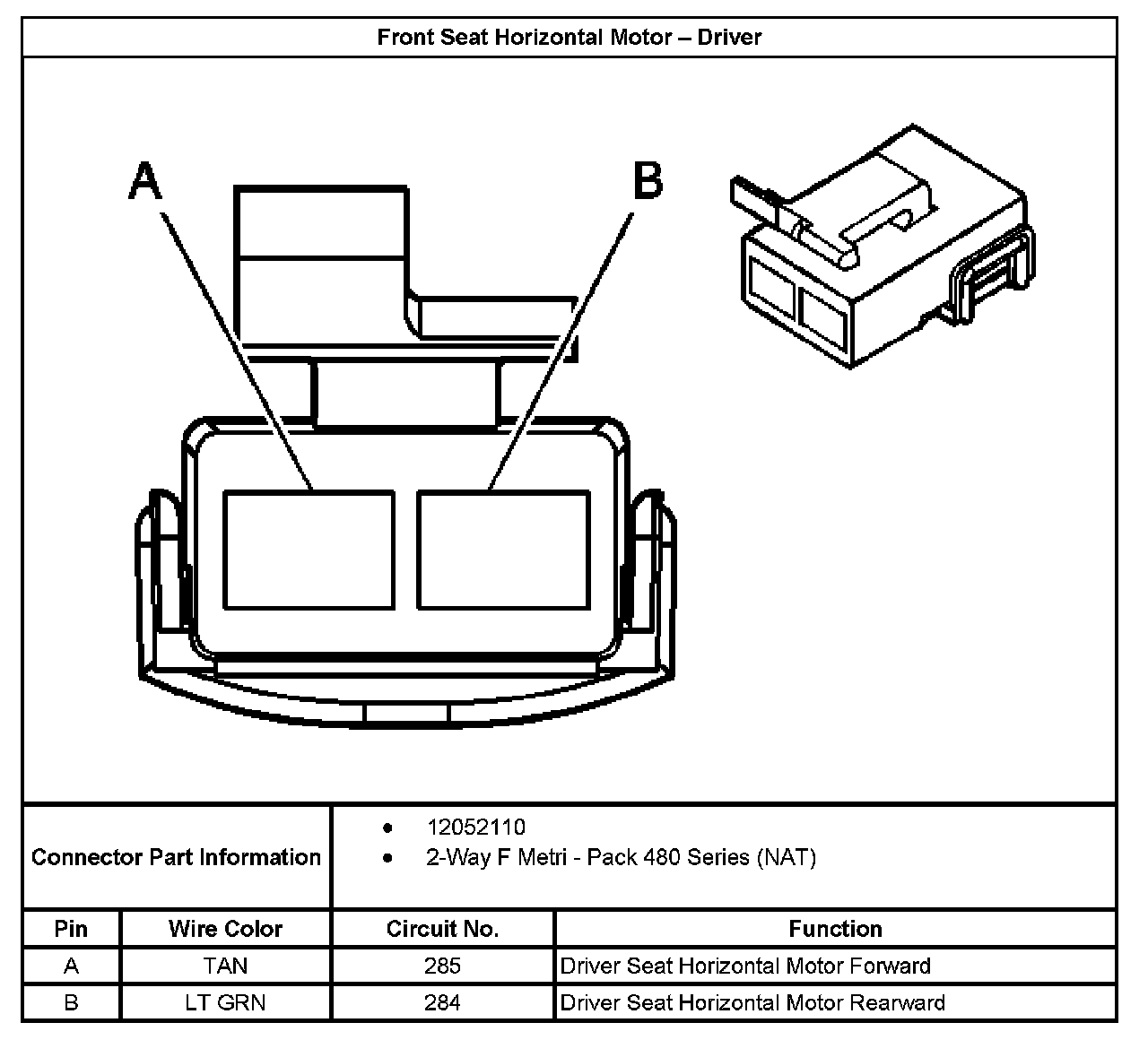

Front Seat Horizontal Motor - Driver:
