Antilock Brakes / Traction Control Systems: Locations



Antilock Brake System Component Views

Left Rear of Engine Compartment:





1 - Master Cylinder Reservoir
2 - Brake Fluid Level Switch
3 - Electronic Brake Control Module (EBCM)

Power Steering Components:





1 - Steering Angle Sensor (JL4)
2 - Electronic Brake Control Module (EBCM)
3 - Variable Effort Steering Actuator
4 - Power Steering Rack
5 - Steering Column Assembly

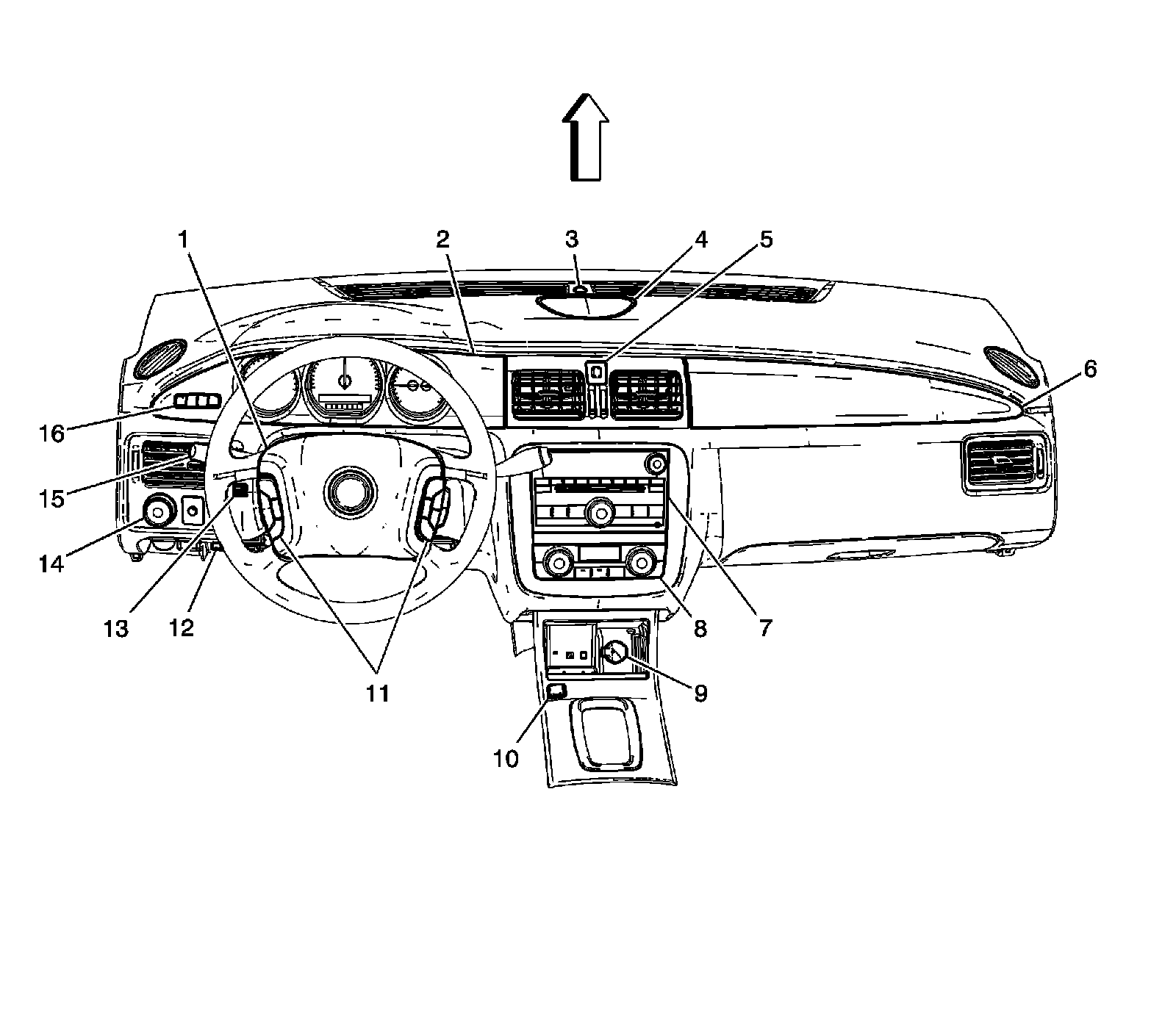

Instrument Panel (I/P) Components:





1 - Inflatable Restraint Steering Wheel Module
2 - Instrument Panel Cluster (IPC)
3 - Sunload Twilight Sensor
4 - Front Speaker
5 - Hazard Switch
6 - Inflatable Restraint I/P Module
7 - Radio
8 - HVAC Control Module
9 - Auxiliary Power Outlet-Console
10 - Traction Control Switch
11 - Steering Wheel Controls
12 - Data Link Connector (DLC)
13 - Air Temperature Sensor-Inside
14 - Headlamp Dimmer Switch
15 - Turn Signal/Multifunction Switch
16 - Driver Information Display Switch

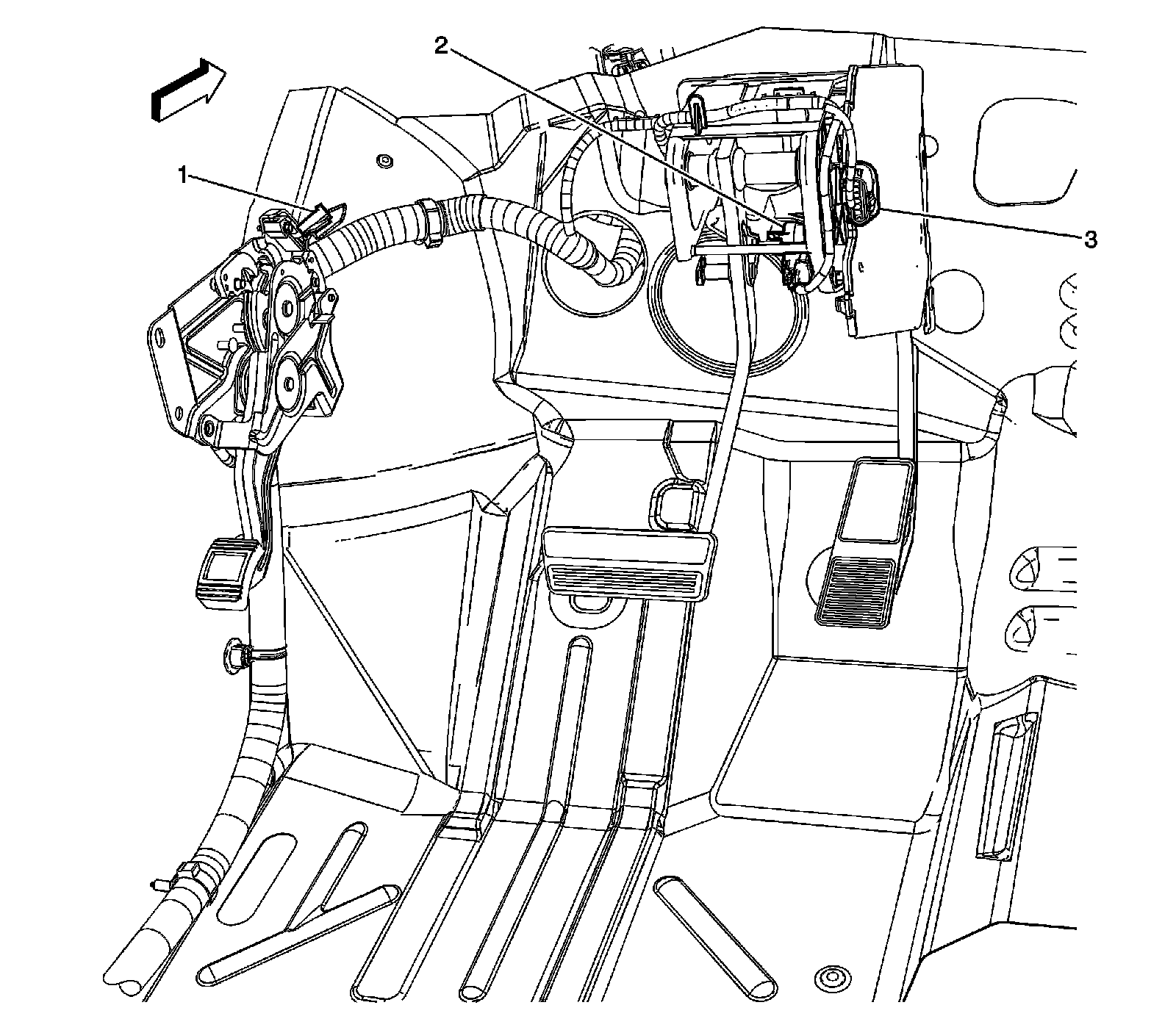

Lower Left Side of I/P:





1 - Park Brake Switch
2 - Brake Pedal Position Sensor
3 - Accelerator Pedal Position (APP) Sensor

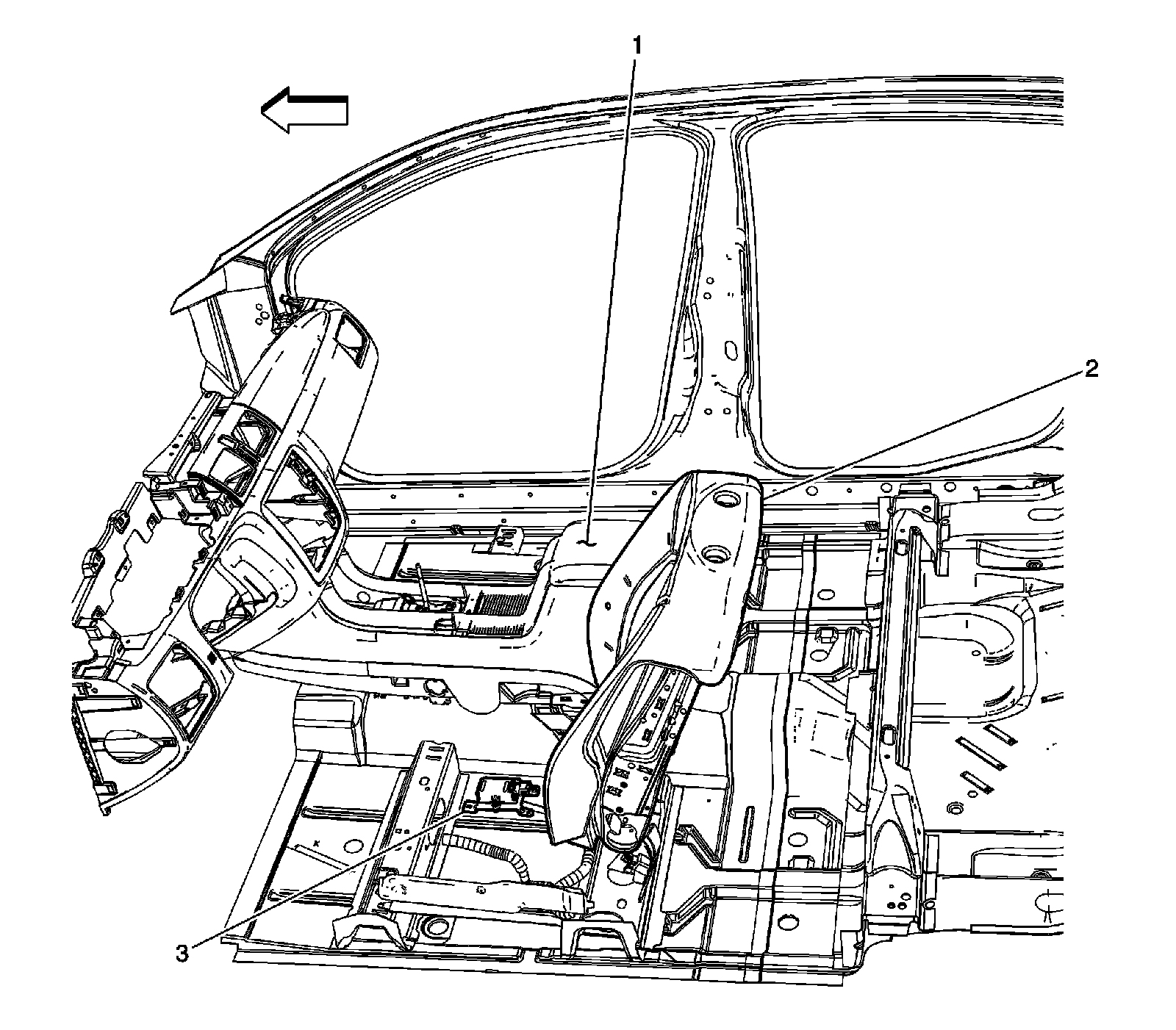

Underneath Drivers Seat:





1 - Floor Console
2 - Driver Seat Back Cushion
3 - Yaw and Lateral Acceleration Sensor (JL4)

Front Wheel Speed Sensors:





1 - Wheel Speed Sensor (WSS)-LF
2 - Wheel Speed Sensor (WSS)-RF
3 - Front Fascia

Rear Wheel Speed Sensors:





1 - Wheel Speed Sensor (WSS)-LR
2 - Wheel Speed Sensor (WSS)-RR
