System Diagram
>>
Starting and Charging Schematics
Starting and Charging Schematics
Starting and Charging Schematics

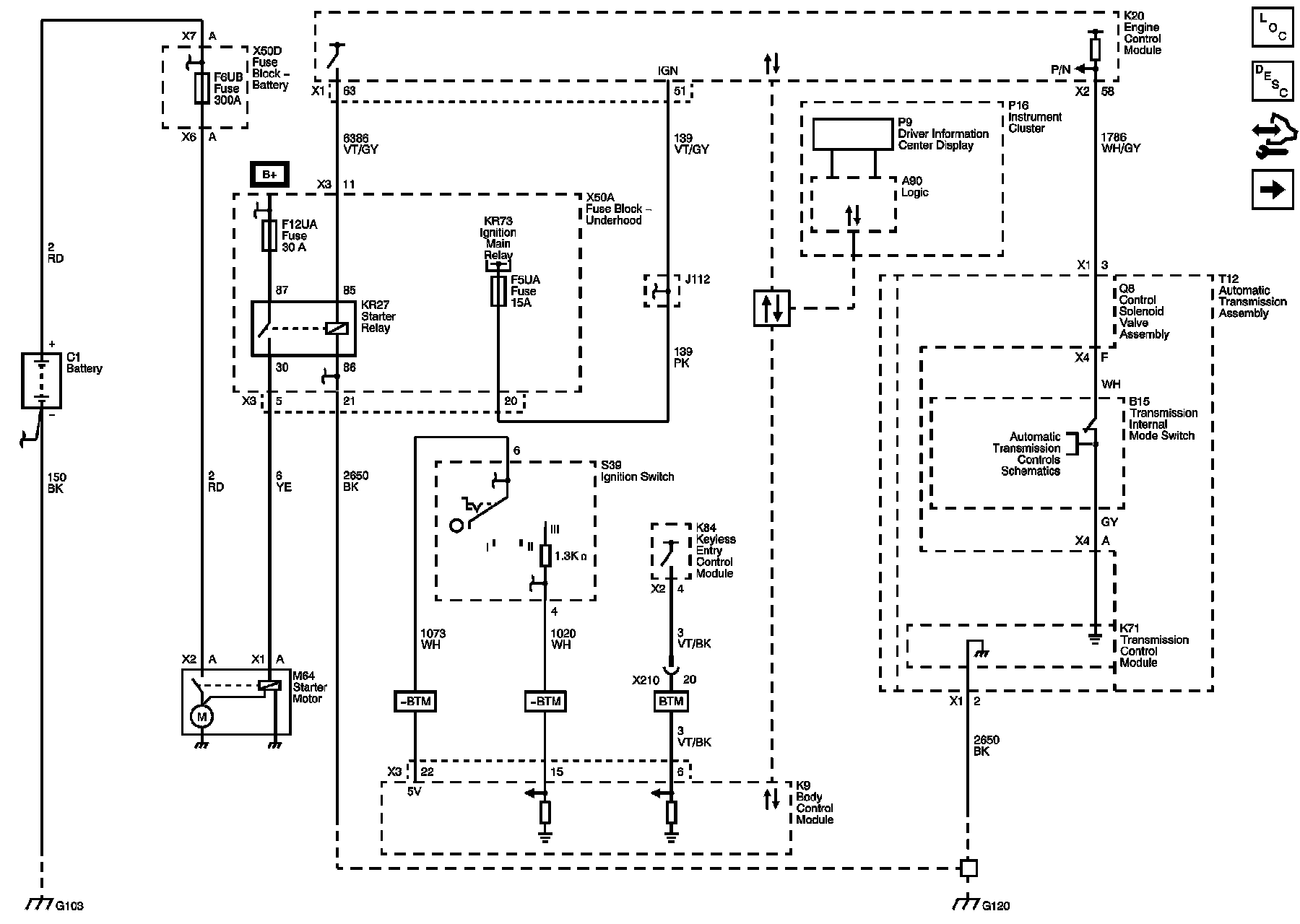

Starting (HP6)

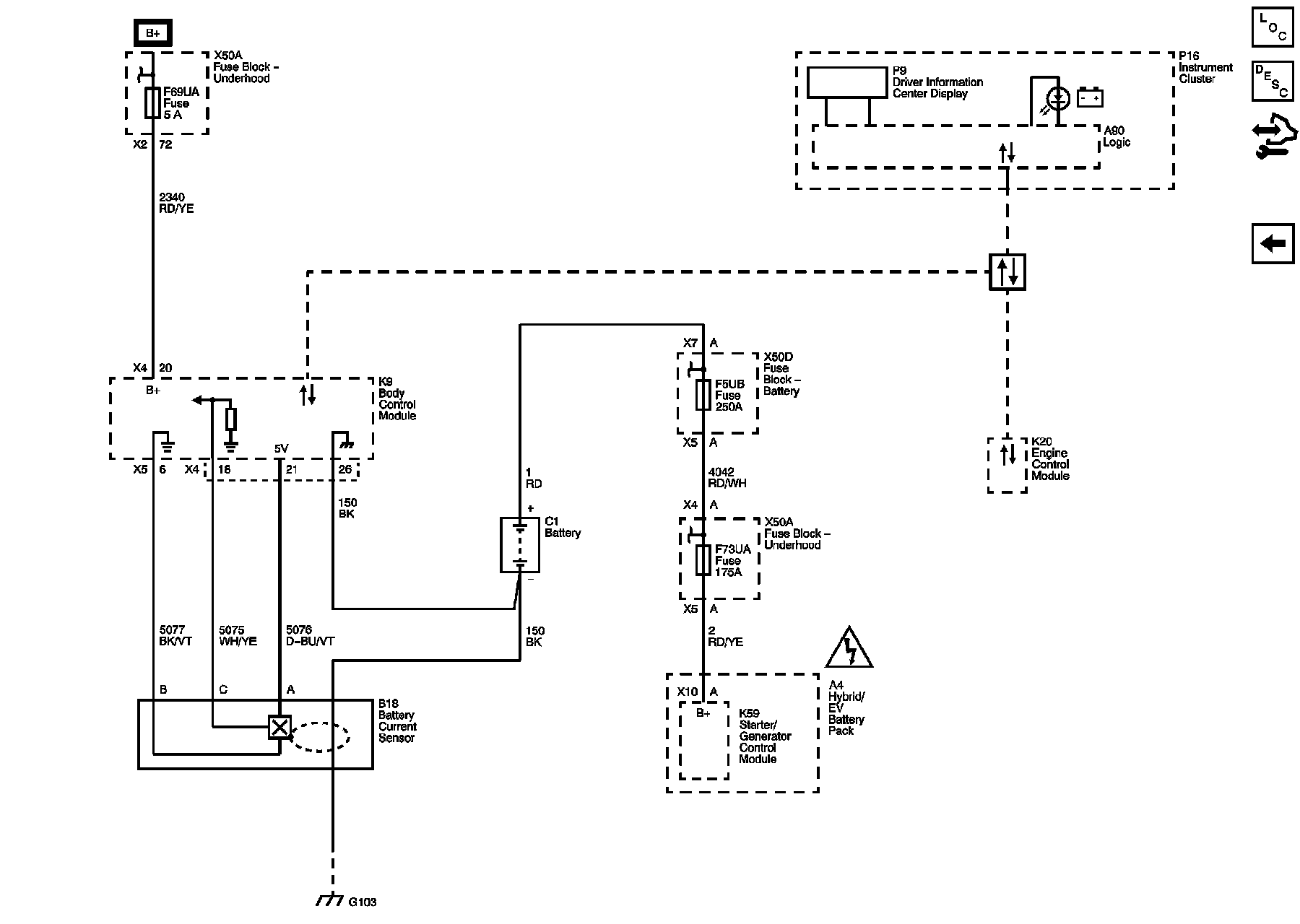

Charging (HP6)
