Power Trunk / Liftgate Control Module: Locations

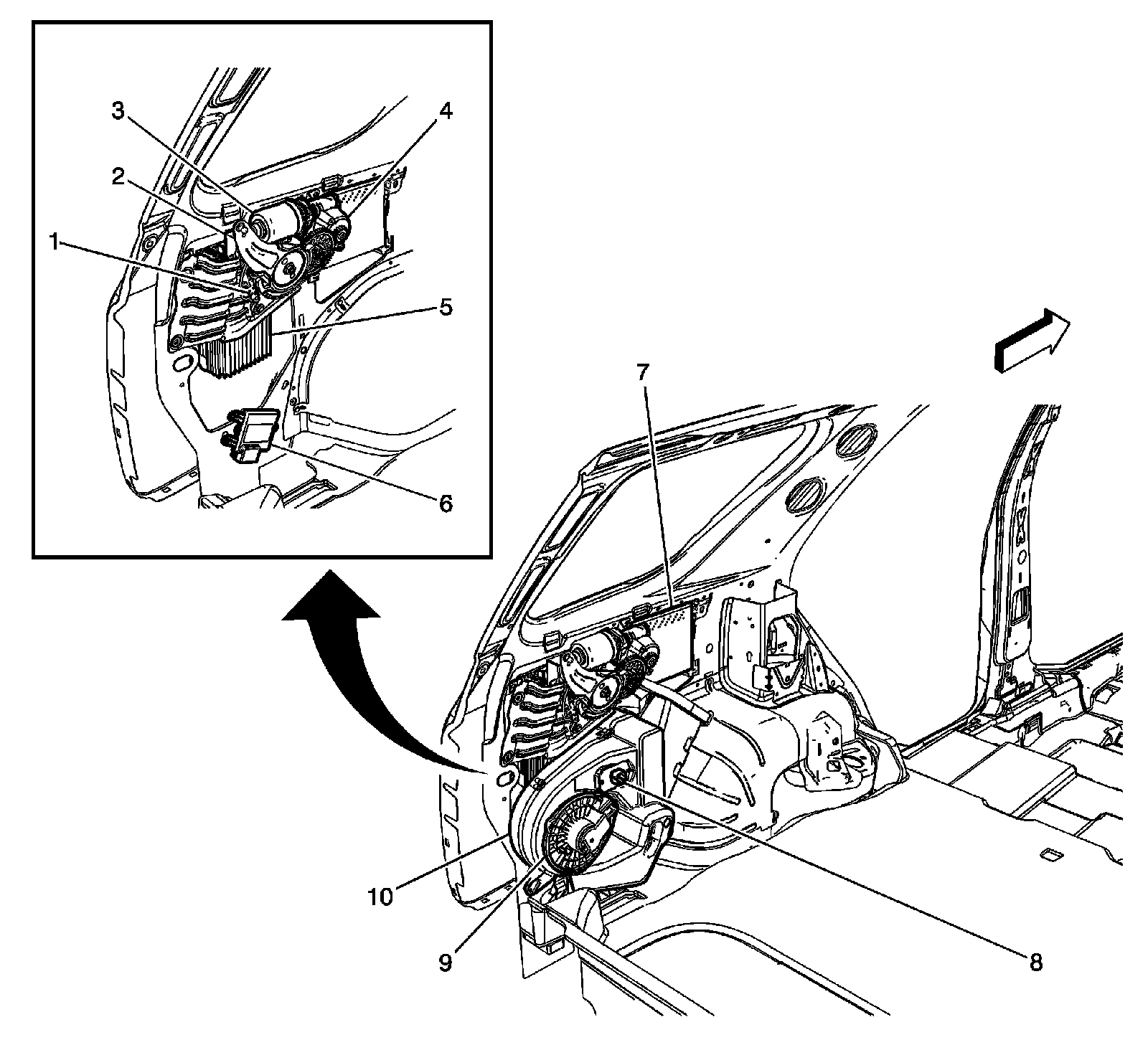

Luggage Compartment/Rear of Vehicle Component Views

Left Rear Cargo Area




1 - Liftgate Ajar Switch
2 - Liftgate Module (LGM)
3 - Liftgate Motor Assembly
4 - Power Liftgate Clutch (PLC)
5 - Audio Amplifier (UQA/UQS)
6 - Rear Object Sensor Control Module
7 - Television Antenna Module (U2Y/U2X)
8 - Blower Motor Resistor Auxiliary (C57)
9 - Blower Motor-Auxiliary (C57)
10 - HVAC Control Module-Auxiliary (C57)
