Front of Vehicle/Engine Compartment Component Views
Front of Vehicle/Engine Compartment Component Views

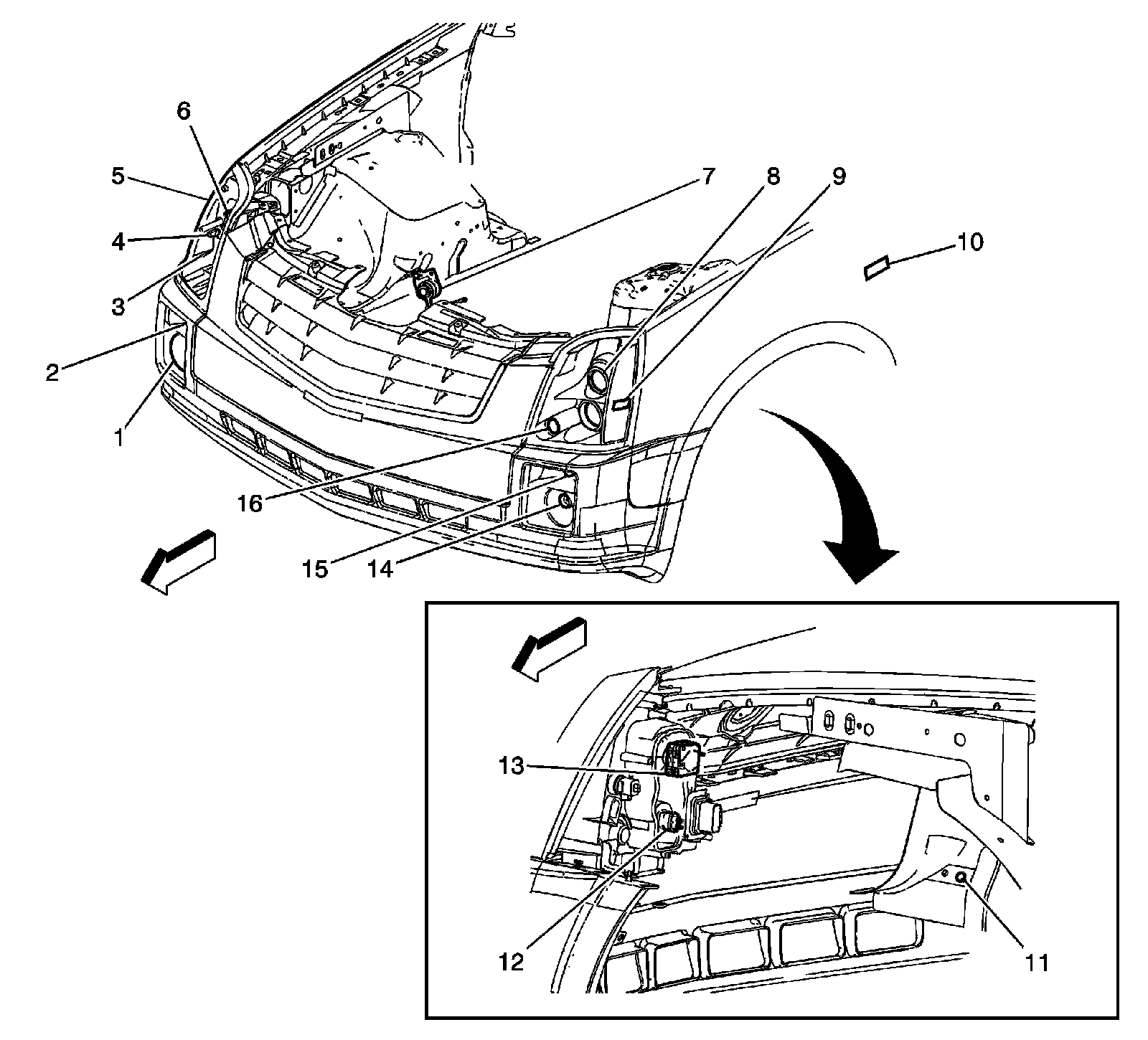

Front Fascia Lighting Components (without HID)
1 - Marker Lamp - Right Front
2 - Headlamp - Right Low Beam (without HID)
3 - Headlamp - Right High Beam (without HID)
4 - Park Lamp - Right Front
5 - Turn Signal Lamp - Right Front
6 - Fog Lamp - Right Front
7 - Marker Lamp - Left Front
8 - Headlamp - Left Low Beam (without HID)
9 - Headlamp - Left High Beam (without HID)
10 - Fog Lamp - Left Front
11 - Turn Signal Lamp - Left Front
12 - Park Lamp - Left Front

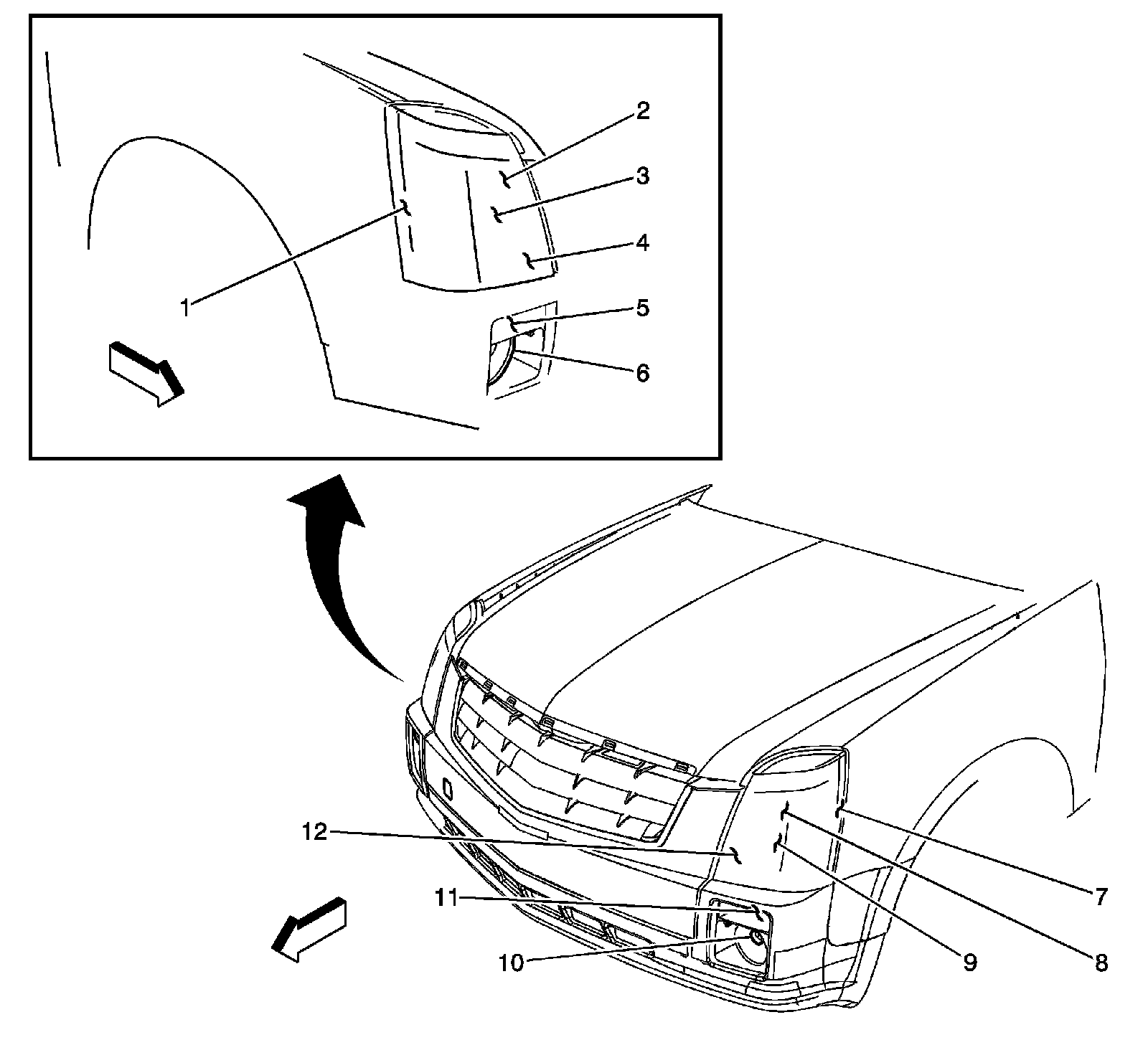

Front Fascia Lighting Components (HID)
1 - Fog Lamp - Right Front
2 - Turn Signal Lamp - Right Front
3 - Park Lamp - Right Front
4 - Headlamp - Right High Beam
5 - Marker Lamp - Right Front
6 - Headlamp - Right Low Beam
7 - Headlamp Leveling Actuator - Right (TR7)
8 - Headlamp - Left Low Beam
9 - Marker Lamp - Left Front
10 - Repeater Lamp - Left (T90)
11 - Headlamp Leveling Actuator- Left (TR7)
12 - Headlamp Starter/Arc Tube
13 - Headlamp Ballast - Left, Right Side Similar
14 - Fog Lamp - Left Front
15 - Turn Signal Lamp - Left Front
16 - Park Lamp - Left Front

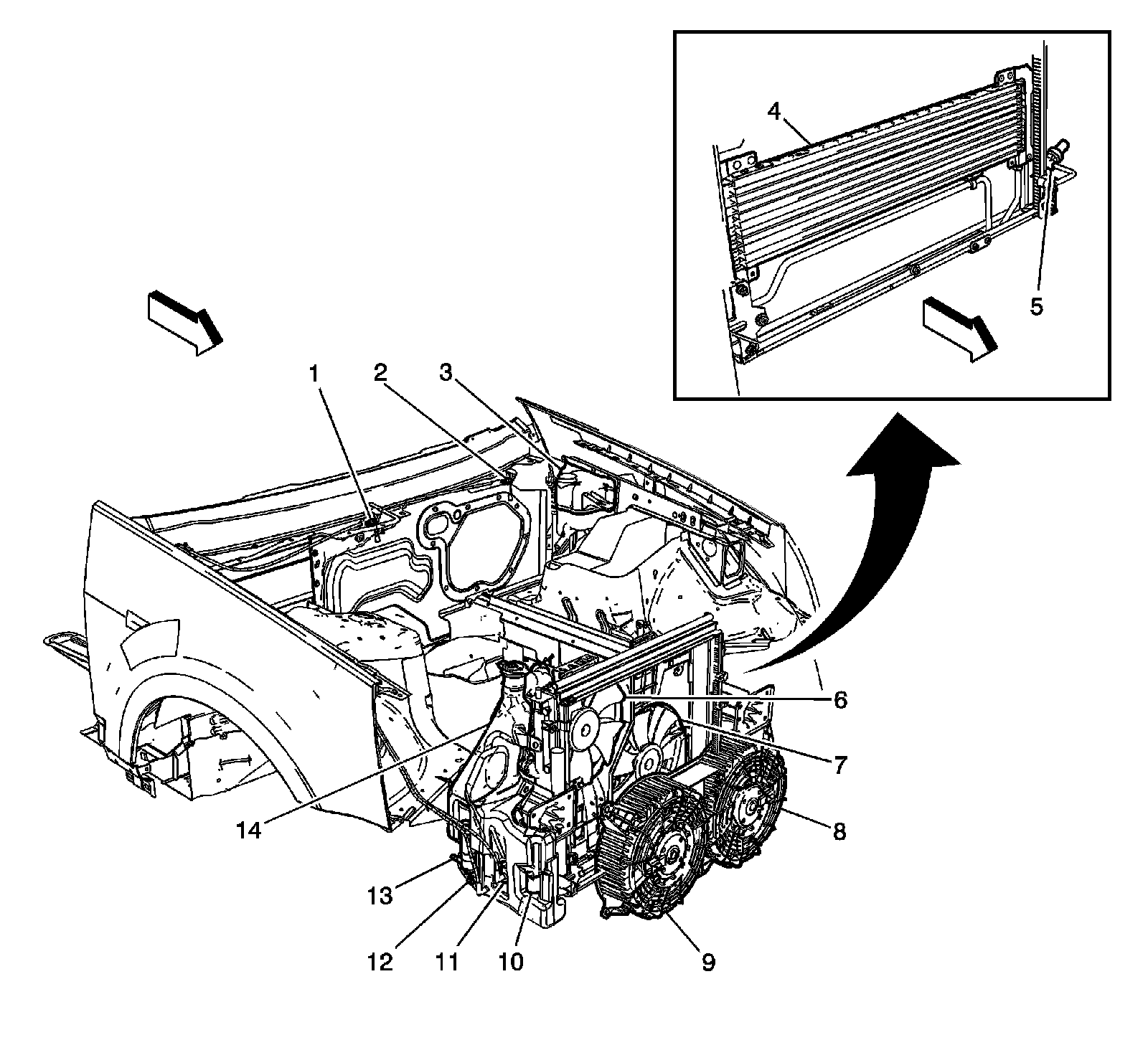

Front Engine Compartment Components - LHD (1 of 2)
1 - Heated Washer Nozzle - Right (XA7)
2 - Heated Washer Nozzle - Left (XA7)
3 - Coolant Surge Tank
4 - Automatic Transmission Cooler
5 - A/C Refrigerant Pressure Sensor
6 - Engine Cooling Fan (LY7 or LH2 without V92)
7 - Engine Cooling Fan (LY7 or LH2 without V92)
8 - Engine Cooling Fan - Left (LH2 with V92)
9 - Engine Cooling Fan - Right (LH2 with V92)
10 - Rear Window Washer Fluid Pump
11 - Windshield Washer Fluid Pump
12 - Windshield Washer Fluid Level Switch
13 - Headlamp Washer Fluid Pump (CE4)
14 - Washer Solvent Container

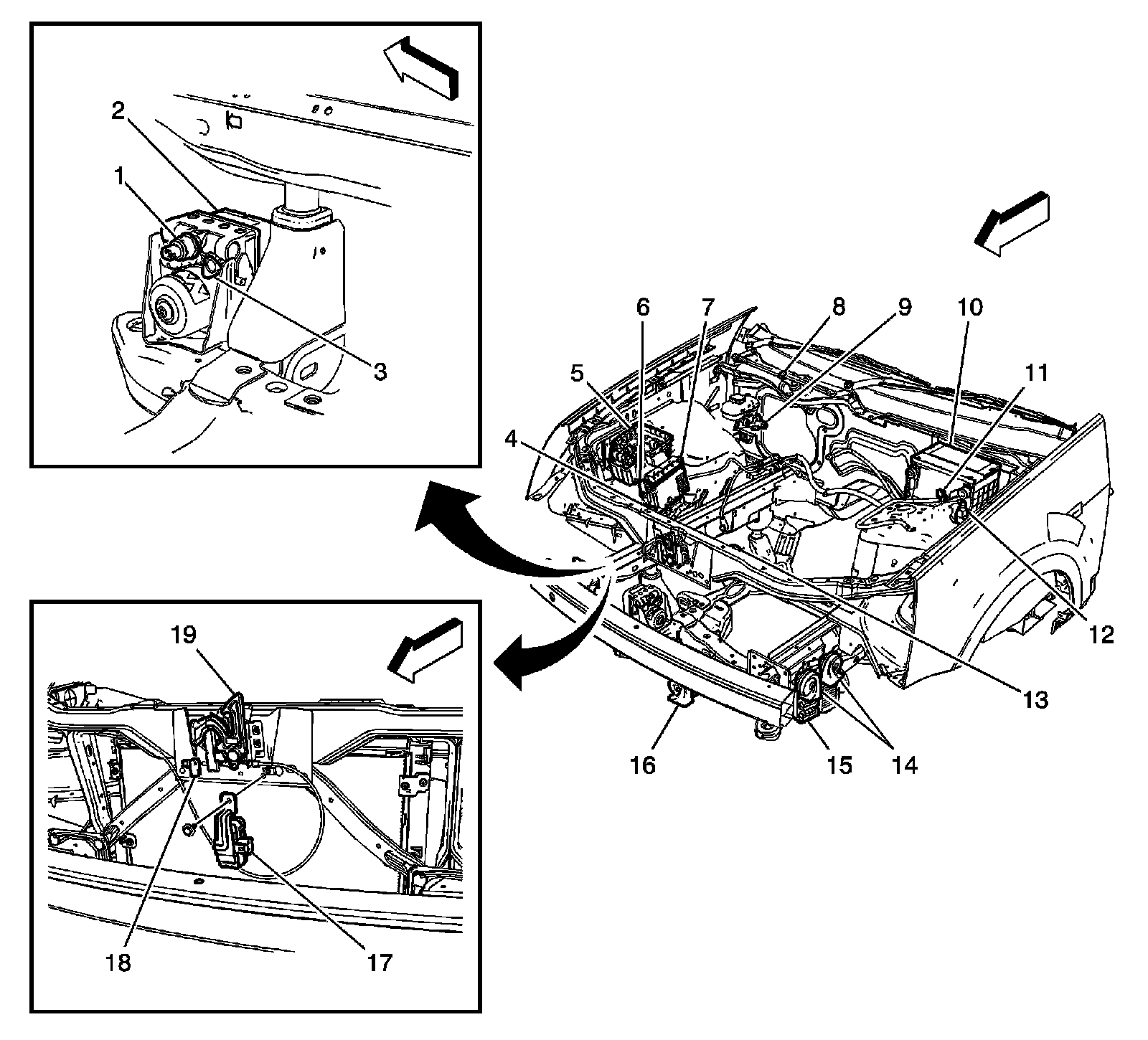

Front Engine Compartment Components - LHD (2 of 2)
1 - Brake Fluid Pressure Sensor
2 - Electronic Brake Control Module (EBCM)
3 - Brake Pressure Modulator Valve (BPMV)
4 - Inflatable Restraint Front End Sensor - Right
5 - Transmission Control Module (TCM) (5L40-E)
6 - Fuse Block - Underhood
7 - Engine Control Module (ECM) (LY7)
8 - Battery
9 - Battery Current Sensor
10 - Windshield Wiper Motor
11 - Brake Fluid Level Switch
12 - Hood Ajar Switch (UA6/UTA/UTC)
13 - Inflatable Restraint Front End Sensor - Left
14 - Horn Assembly (without U03)
15 - Engine Control Module (ECM) (LH2)
16 - Horn - Right (U03)
17 - Air Quality Sensor (K14)
18 - Ambient Air Temperature Sensor
19 - Hood Latch Assembly

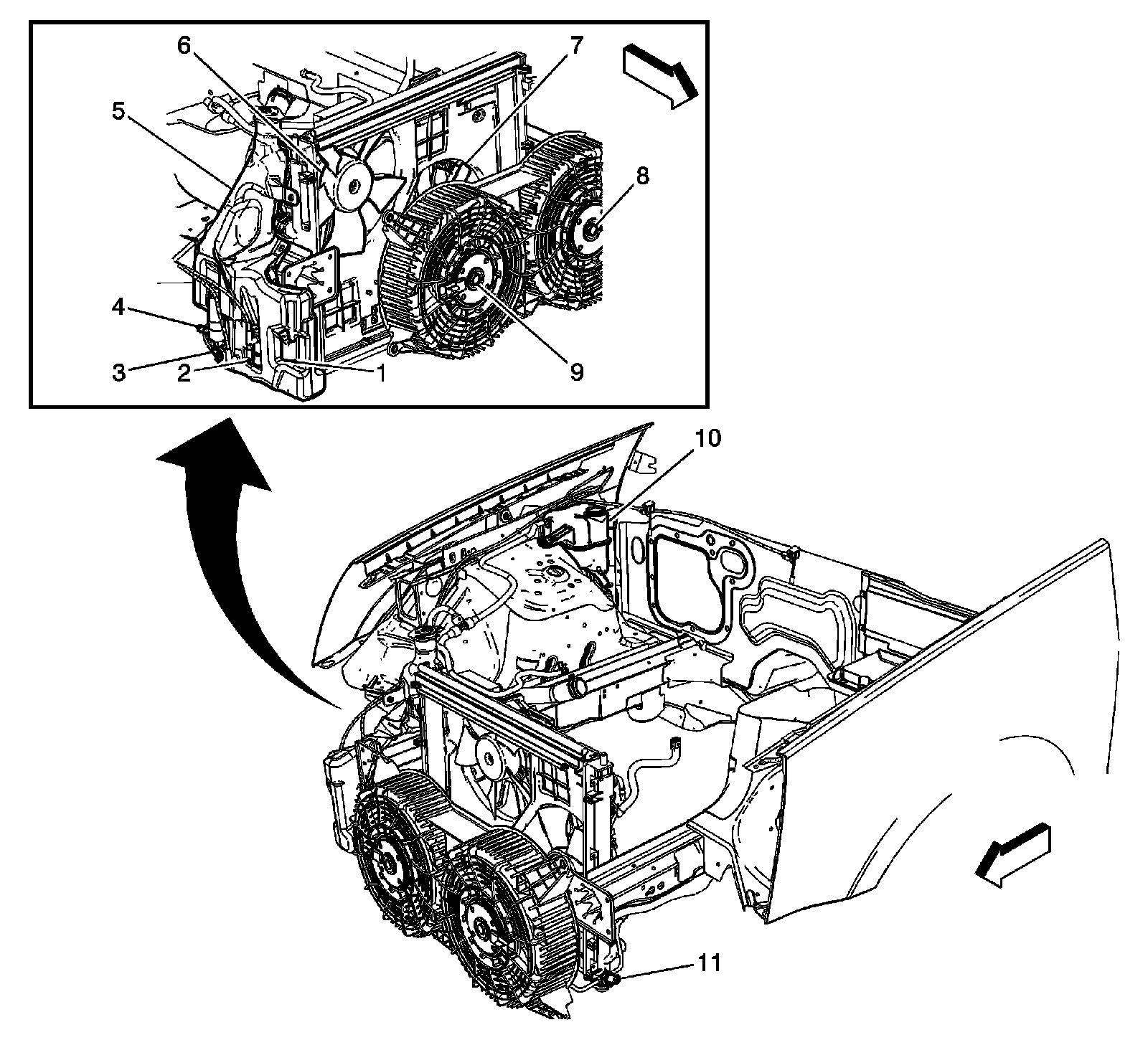

Front Engine Compartment Components - RHD (1 of 2)
1 - Rear Window Washer Fluid Pump
2 - Windshield Washer Fluid Pump
3 - Windshield Washer Fluid Level Switch
4 - Headlamp Washer Fluid Pump (CE4)
5 - Washer Solvent Container
6 - Engine Cooling Fan (LY7 or LH2 without V92)
7 - Engine Cooling Fan (LY7 or LH2 without V92)
8 - Engine Cooling Fan - Left (LH2 with V92)
9 - Engine Cooling Fan - Right (LH2 with V92)
10 - Coolant Surge Tank (RHD)
11 - A/C Refrigerant Pressure Sensor
Front Engine Compartment Components - RHD (2 of 2)
1 - Brake Fluid Pressure Sensor
2 - Electronic Brake Control Module (EBCM)
3 - Brake Pressure Modulator Valve (BPMV)
4 - Inflatable Restraint Front End Sensor - Right
5 - Fuse Block - Underhood
6 - Transmission Control Module (TCM) (5L40-E)
7 - Engine Control Module (ECM) (LY7)
8 - Battery
9 - Battery Current Sensor
10 - Windshield Wiper Motor
11 - Brake Fluid Level Switch
12 - Hood Ajar Switch (UA6/UTA/UTC)
13 - Inflatable Restraint Front End Sensor - Left
14 - Horn Assembly (without U03)
15 - Engine Control Module (ECM) (LH2)
16 - Horn - Right (U03)
17 - Air Quality Sensor (K14)
18 - Ambient Air Temperature Sensor
19 - Hood Latch Assembly

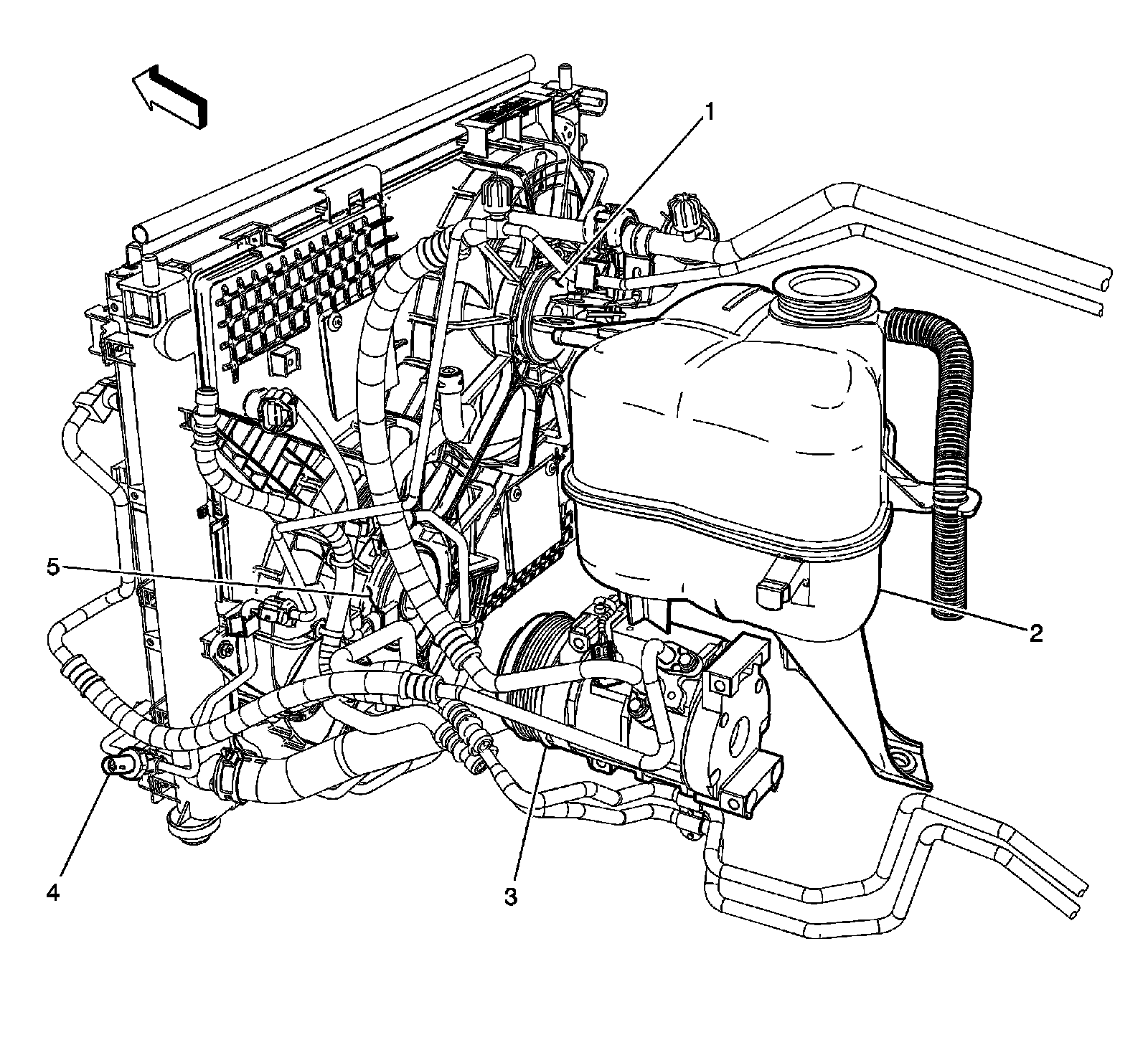

Fans, Tank and A/C Compressor (LY7)
1 - Engine Cooling Fan
2 - Coolant Surge Tank
3 - A/C Compressor Clutch
4 - A/C Refrigerant Pressure Sensor
5 - Engine Cooling Fan

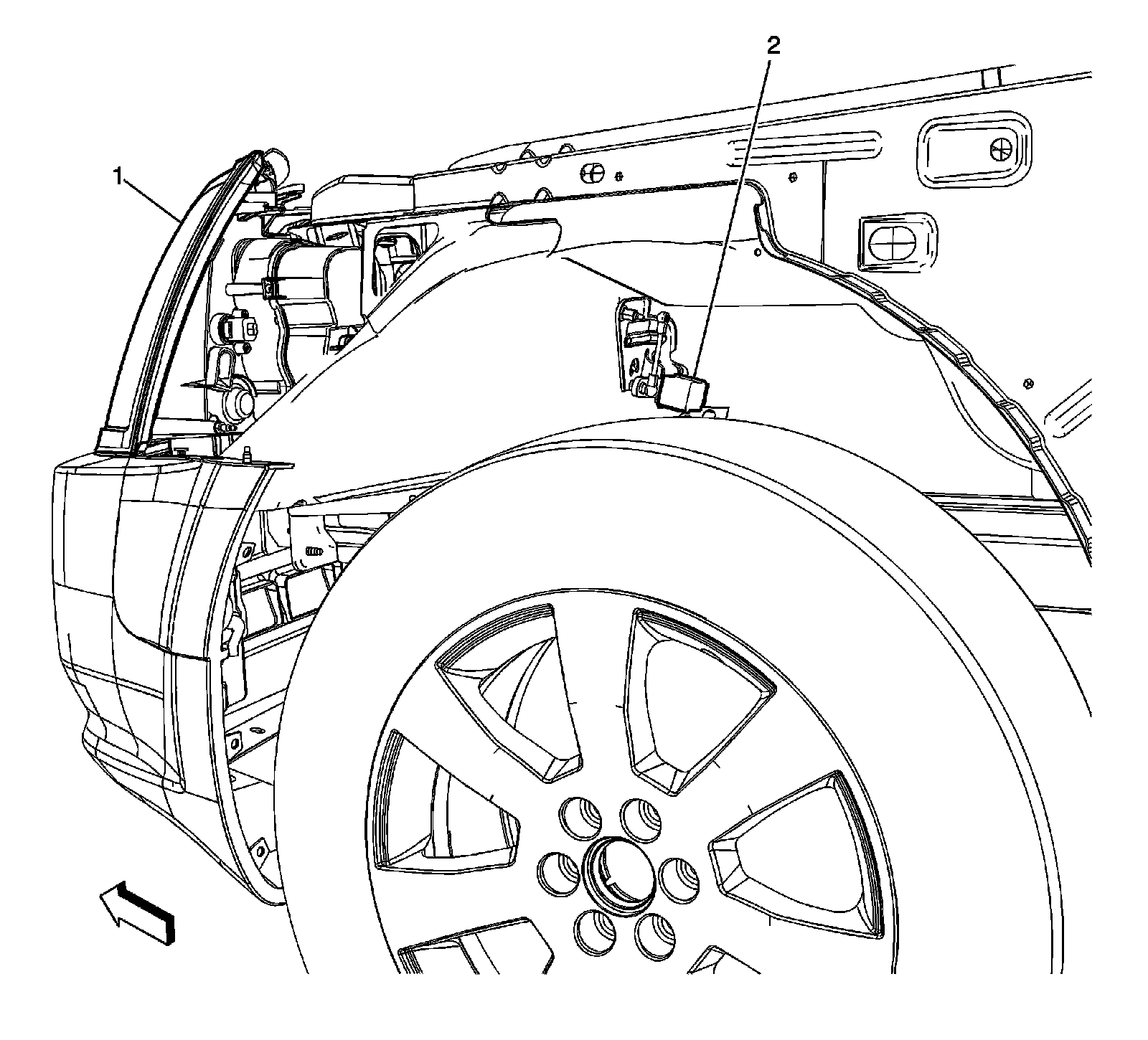

Left Front Wheel Well Components
1 - Headlamp Assembly
2 - Headlamp Leveling Sensor - Front (TR7)
Mass Air Flow (MAF) Sensor and Air Cleaner
1 - Air Cleaner
2 - Mass Air Flow (MAF) Sensor

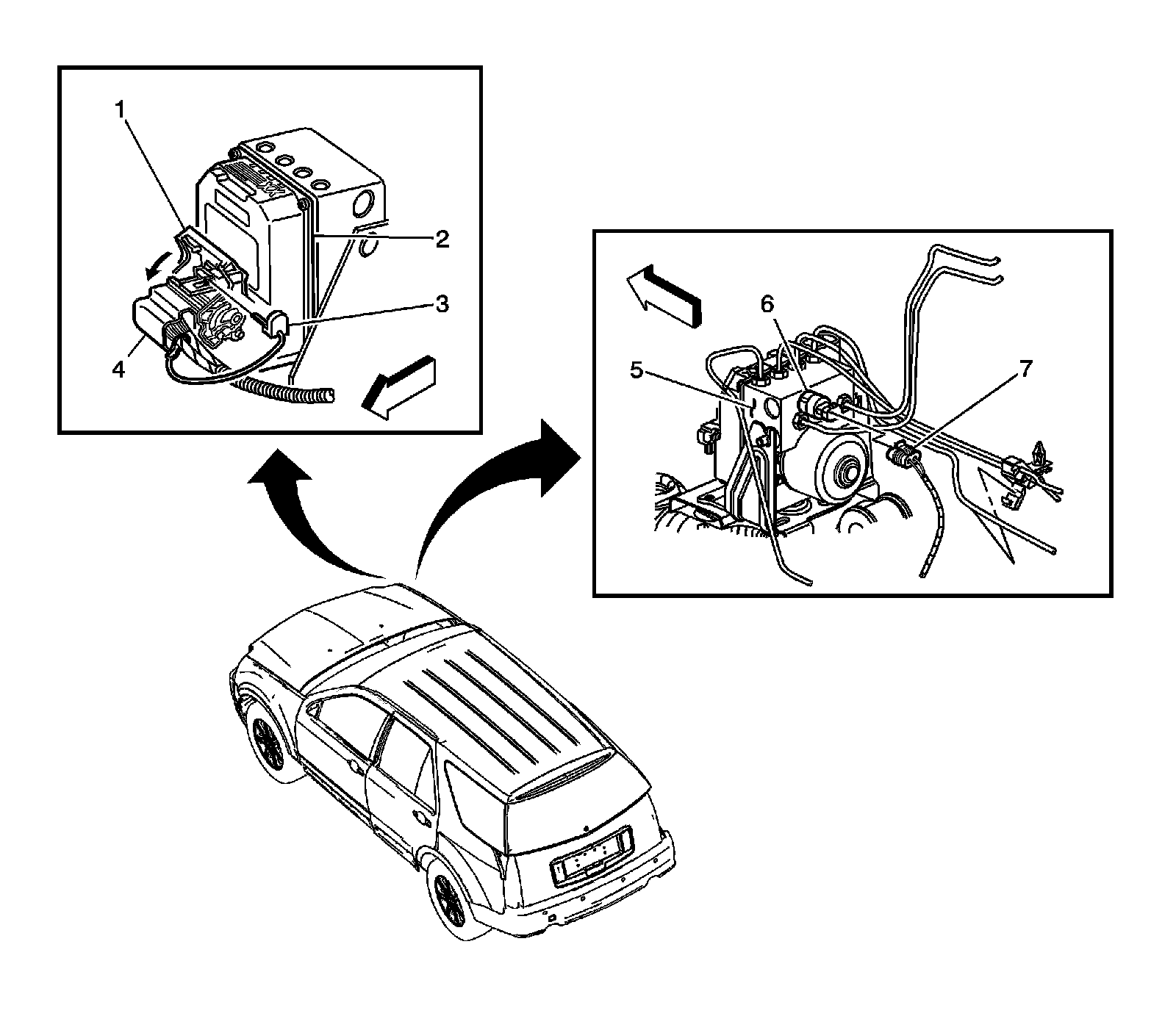

EBCM, Brake Pressure Modulator Valve and Brake Fluid Pressure Sensor
1 - Electronic Brake Control Module (EBCM) Connector Lock
2 - Electronic Brake Control Module (EBCM)
3 - Electronic Brake Control Module (EBCM) Connector Position Assurance Retainer
4 - Electronic Brake Control Module (EBCM) Connector
5 - Brake Pressure Modulator Valve (BPMV)
6 - Brake Fluid Pressure Sensor
7 - Brake Fluid Pressure Sensor Connector

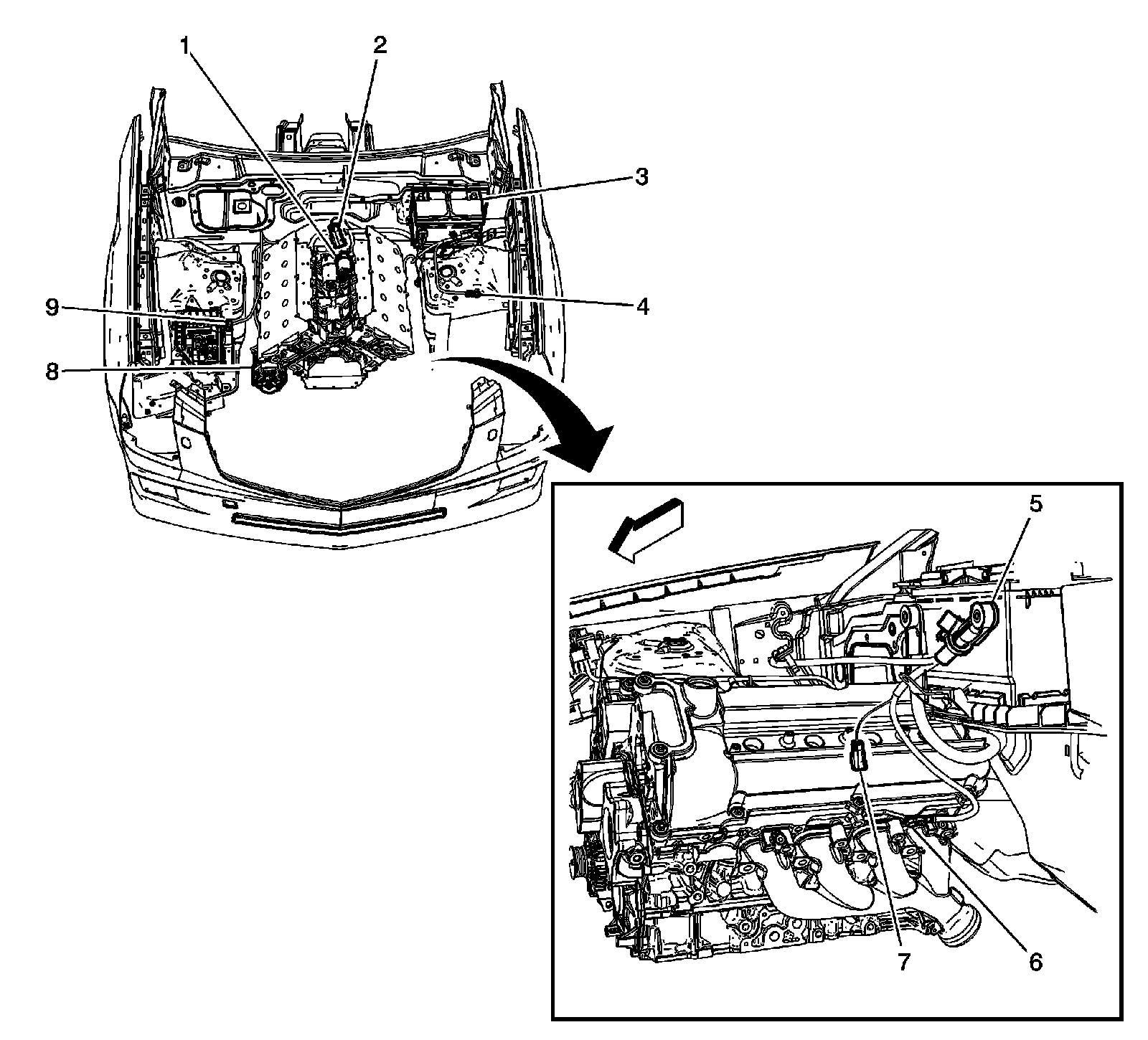

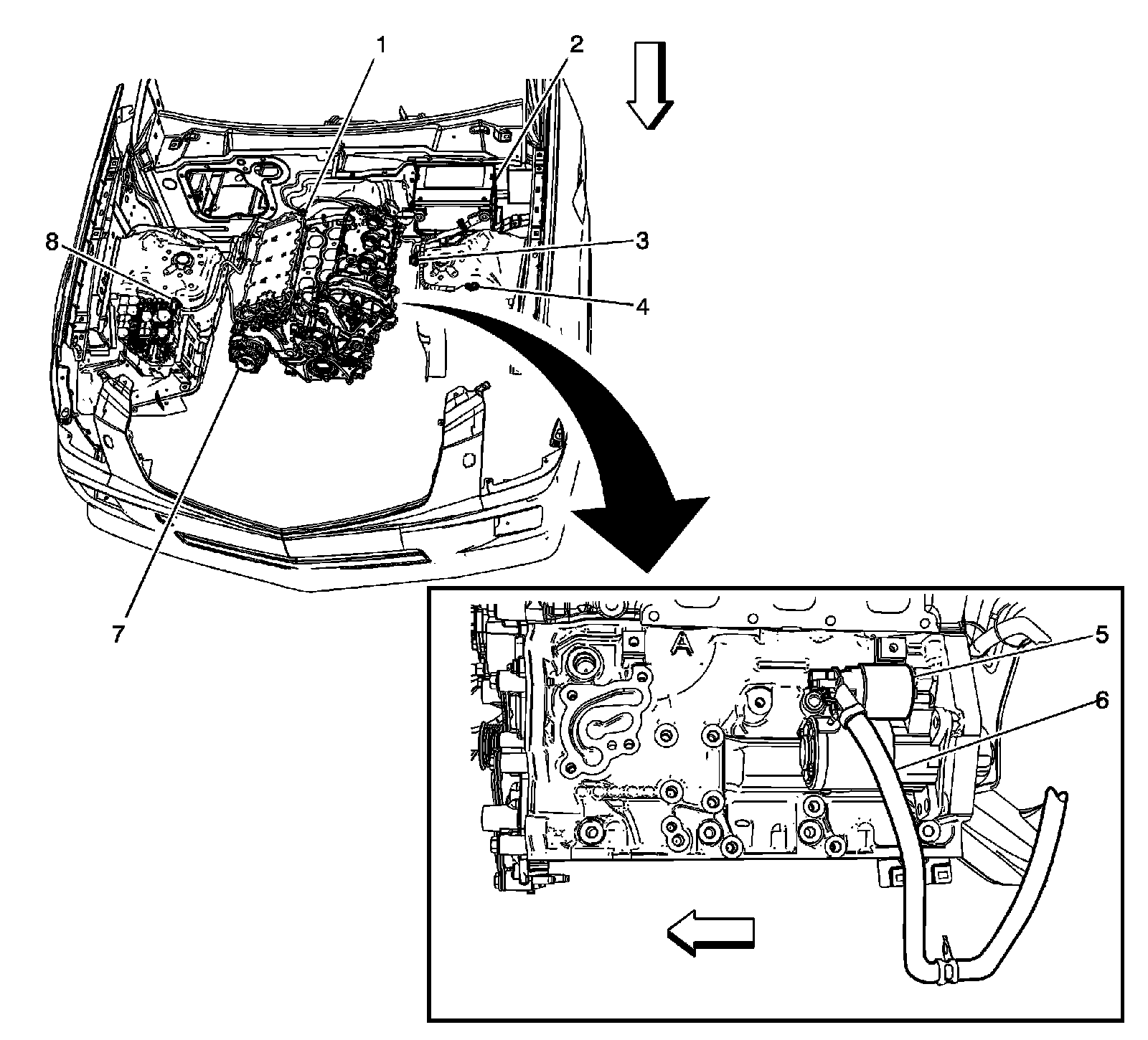

Engine Electrical Components - LH2
1 - Starter Motor
2 - X107
3 - Battery
4 - G105
5 - Battery Current Sensor
6 - G102
7 - X103
8 - Generator
9 - Fuse Block - Underhood Positive Voltage Studs
Engine Electrical Components - LY7
1 - G102
2 - Battery
3 - X103
4 - G105
5 - Starter Motor
6 - Positive Battery Cable
7 - Generator
8 - Fuse Block - Underhood Positive Voltage Studs

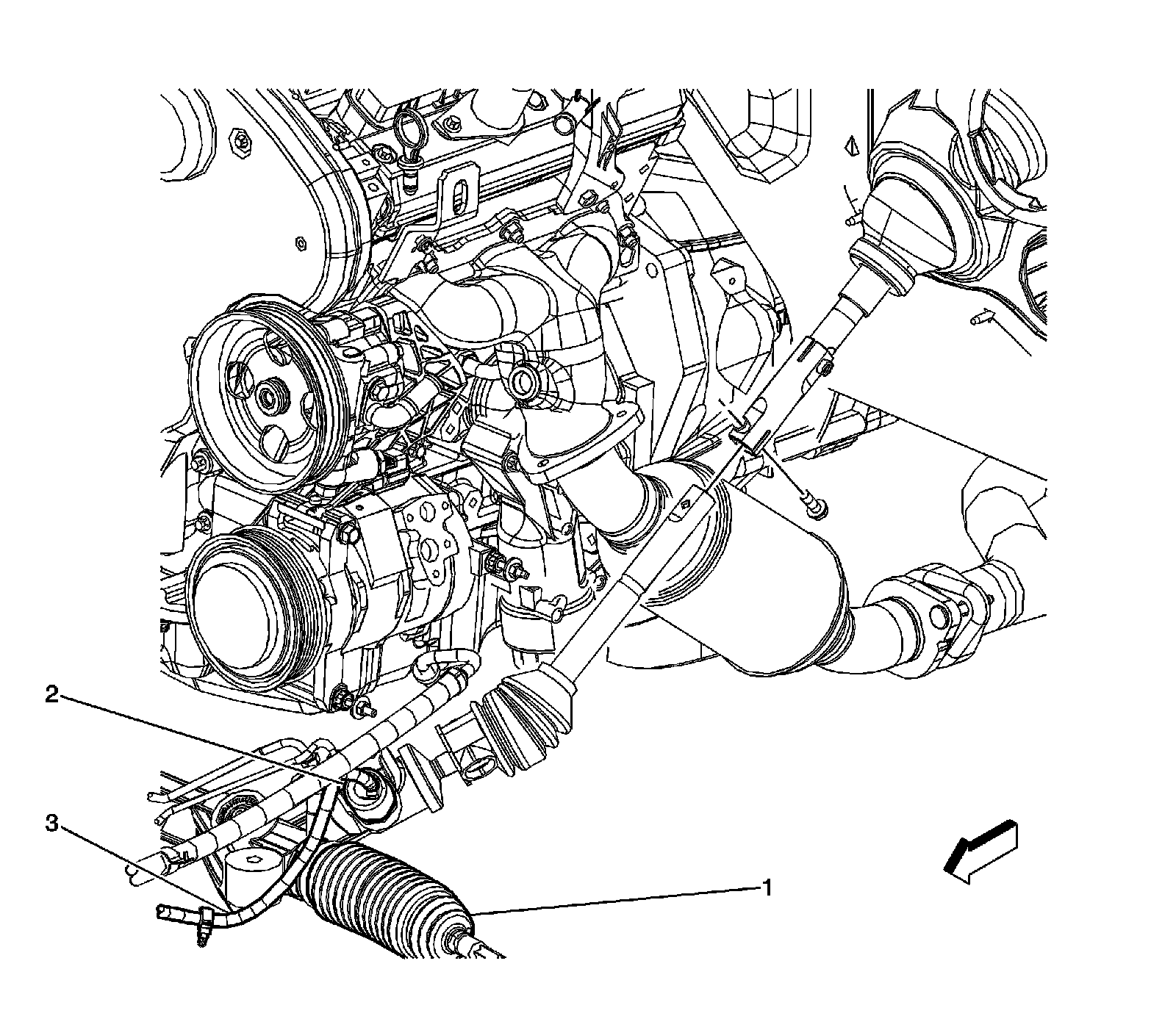

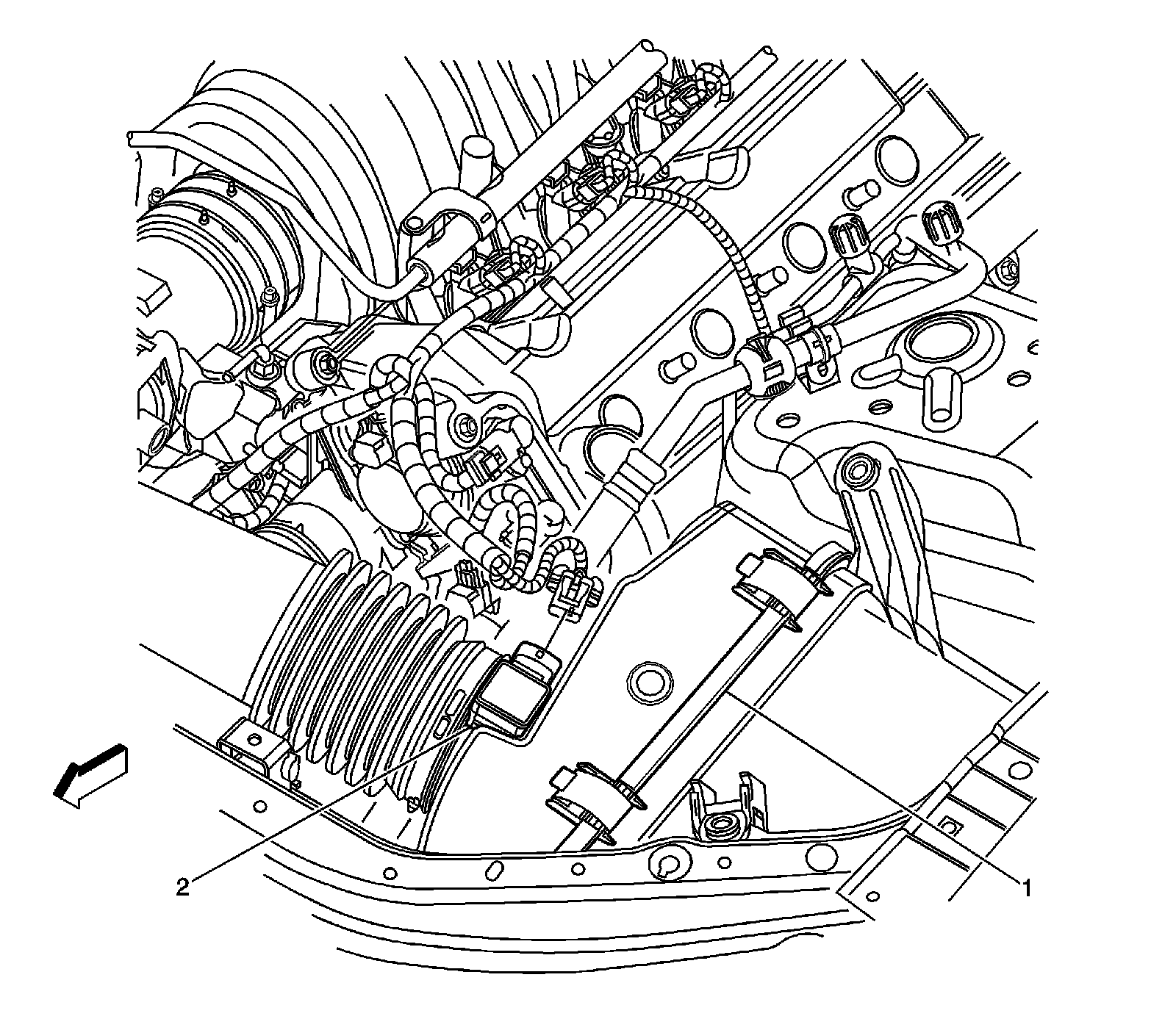

Variable Effort Steering Actuator (LHD)
1 - Power Steering Rack
2 - Variable Effort Steering Actuator
3 - Engine Harness
