Passenger Compartment/Roof Component Views
Passenger Compartment/Roof Component Views

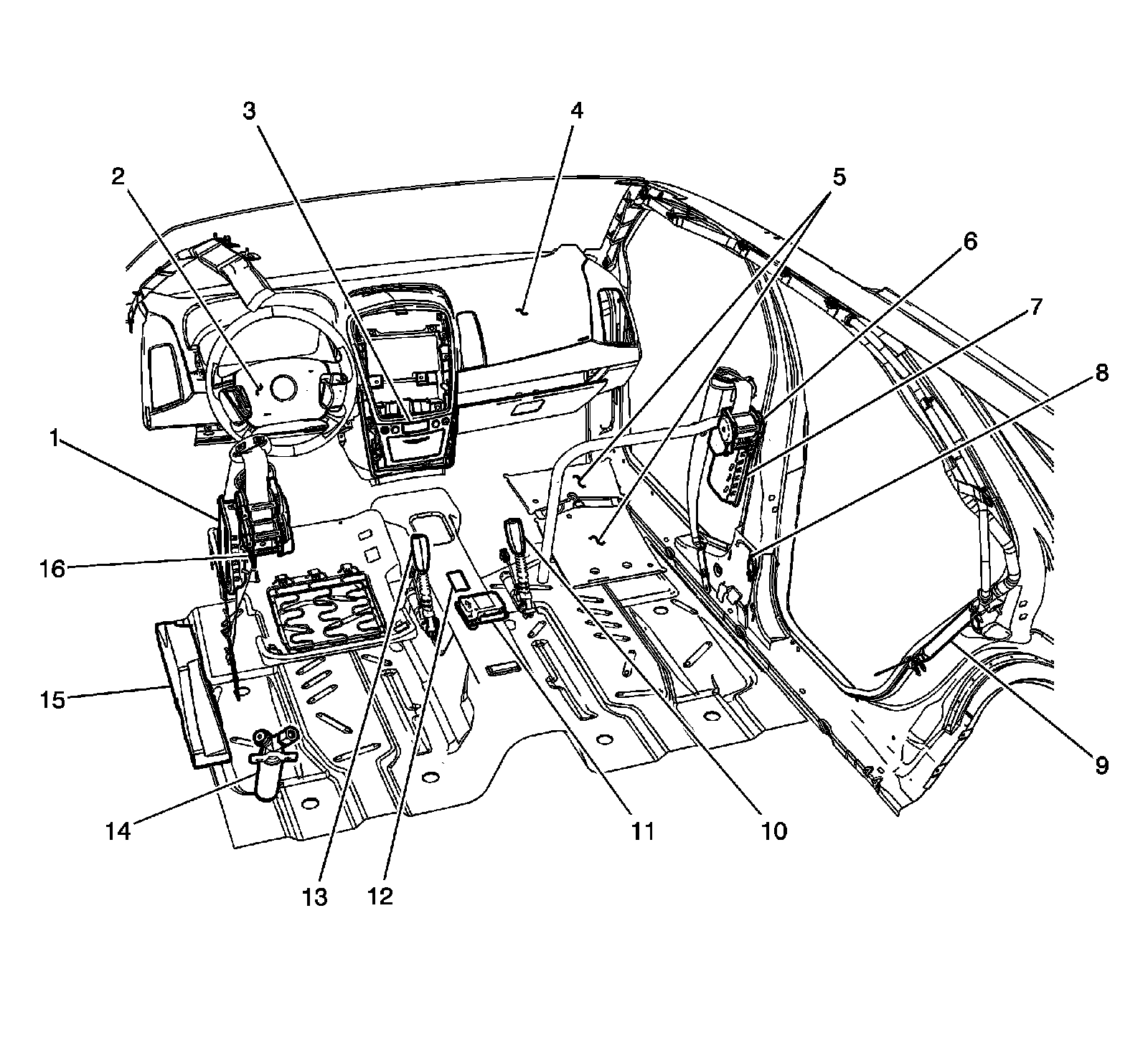

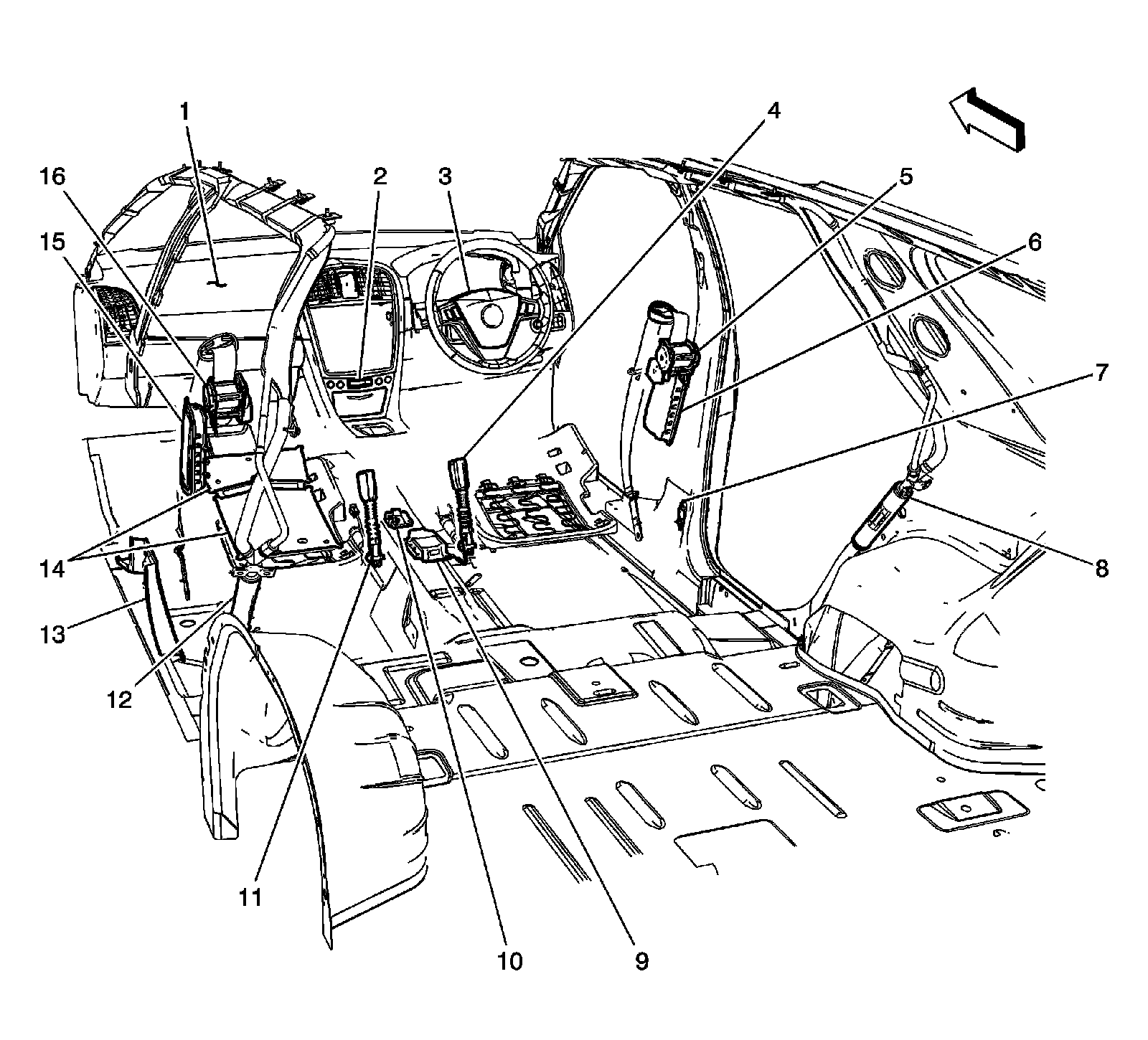

Passenger Compartment SIR Components (LHD)
1 - Inflatable Restraint Side Impact Module - Left
2 - Inflatable Restraint Steering Wheel Module
3 - Inflatable Restraint I/P Module Indicator
4 - Inflatable Restraint I/P Module
5 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor
6 - Seat Belt Pretensioner - Passenger
7 - Inflatable Restraint Side Impact Module - Right
8 - Inflatable Restraint Side Impact Sensor (SIS) - Right
9 - Inflatable Restraint Roof Rail Module - Right Rear (AY0)
10 - Seat Belt Switch - Passenger
11 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
12 - Inflatable Restraint Vehicle Rollover Sensor
13 - Seat Belt Switch - Driver
14 - Inflatable Restraint Roof Rail Module - Left Rear (AY0)
15 - Inflatable Restraint Side Impact Sensor (SIS) - Left
16 - Seat Belt Pretensioner - Driver
Passenger Compartment SIR Components (RHD)
1 - Inflatable Restraint I/P Module
2 - Inflatable Restraint I/P Module Indicator
3 - Inflatable Restraint Steering Wheel Module
4 - Seat Belt Switch - Driver
5 - Seat Belt Pretensioner - Driver
6 - Inflatable Restraint Side Impact Module - Right
7 - Inflatable Restraint Side Impact Sensor (SIS) - Right
8 - Inflatable Restraint Roof Rail Module - Right Rear (AY0)
9 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
10 - Inflatable Restraint Vehicle Rollover Sensor
11 - Seat Belt Switch - Passenger
12 - Inflatable Restraint Roof Rail Module - Left Rear (AY0)
13 - Inflatable Restraint Side Impact Sensor (SIS) - Left
14 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor
15 - Inflatable Restraint Side Impact Module - Left
16 - Seat Belt Pretensioner - Passenger

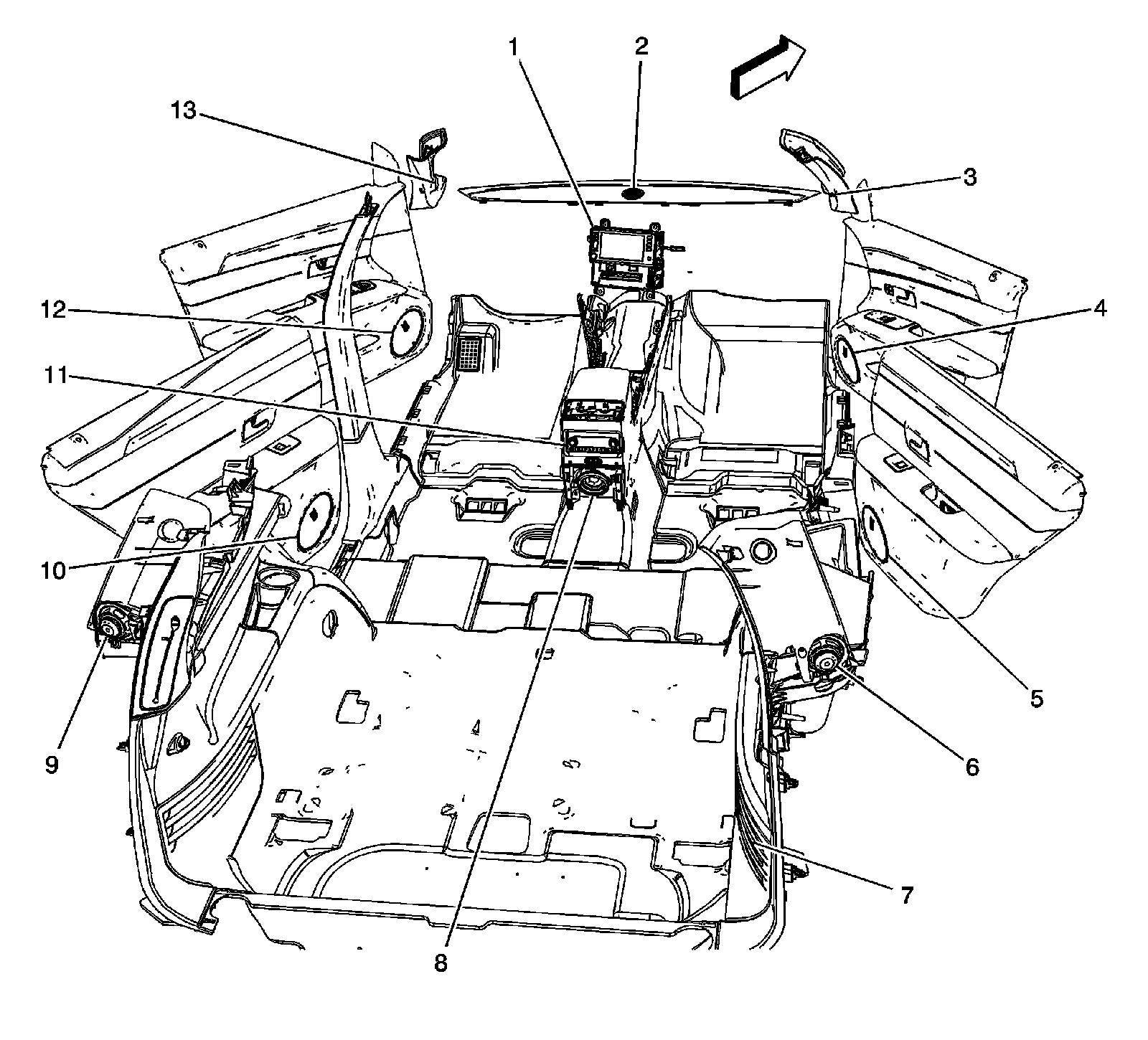

Entertainment System Components
1 - Radio
2 - Speaker - Center I/P
3 - Speaker - Right Front Tweeter
4 - Speaker - Right Front
5 - Speaker - Right Rear
6 - Speaker - Right D-Pillar (UQS)
7 - Speaker - Subwoofer
8 - Speaker - Center Console (UQS)
9 - Speaker - Left D-Pillar (UQS)
10 - Speaker - Left Rear
11 - Video Display (U42)
12 - Speaker - Left Front
13 - Speaker - Left Front Tweeter

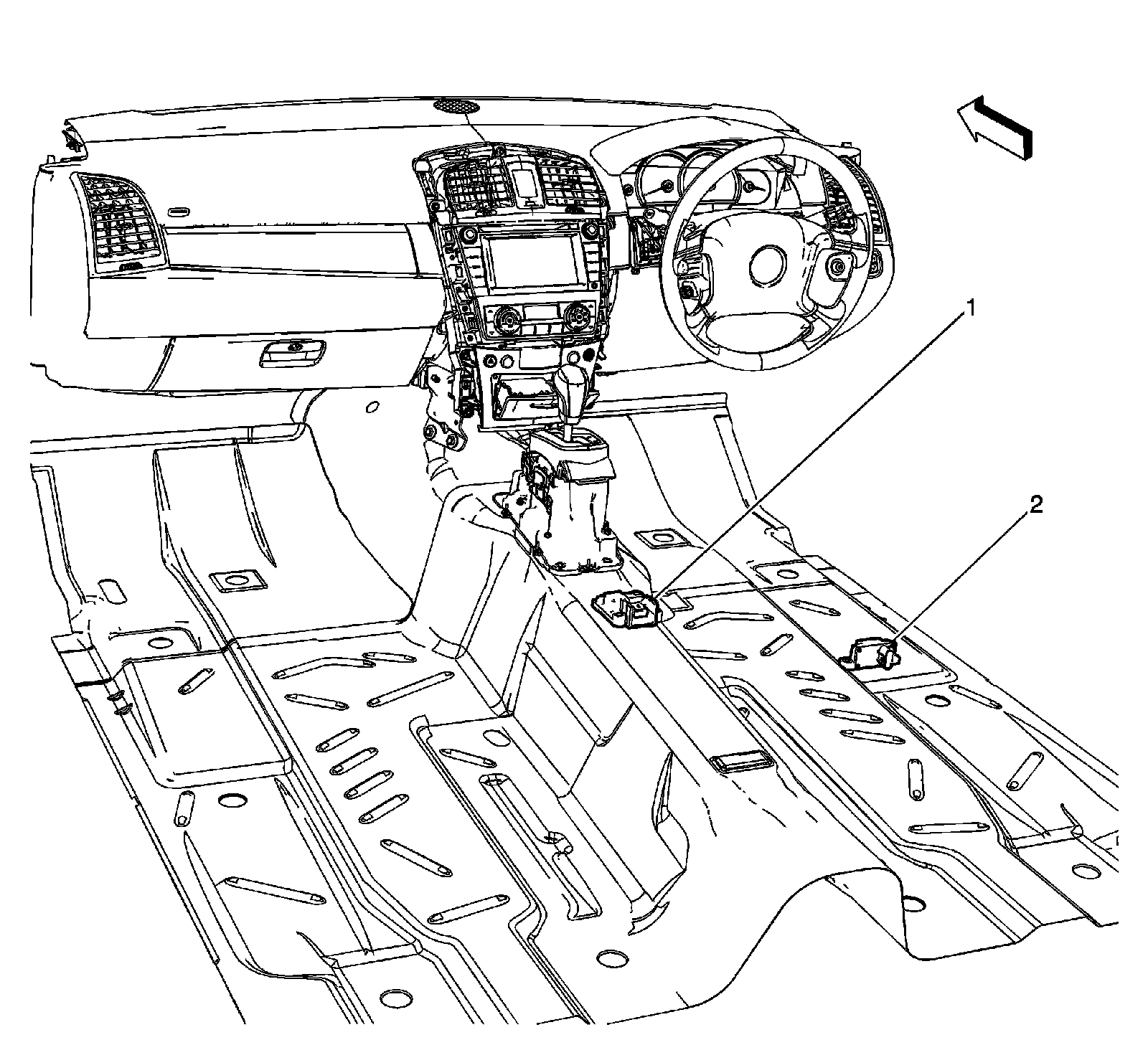

Right Front Floor Pan Components (RHD)
1 - Inflatable Restraint Vehicle Rollover Sensor
2 - Yaw and Lateral/Accelerometer Sensor

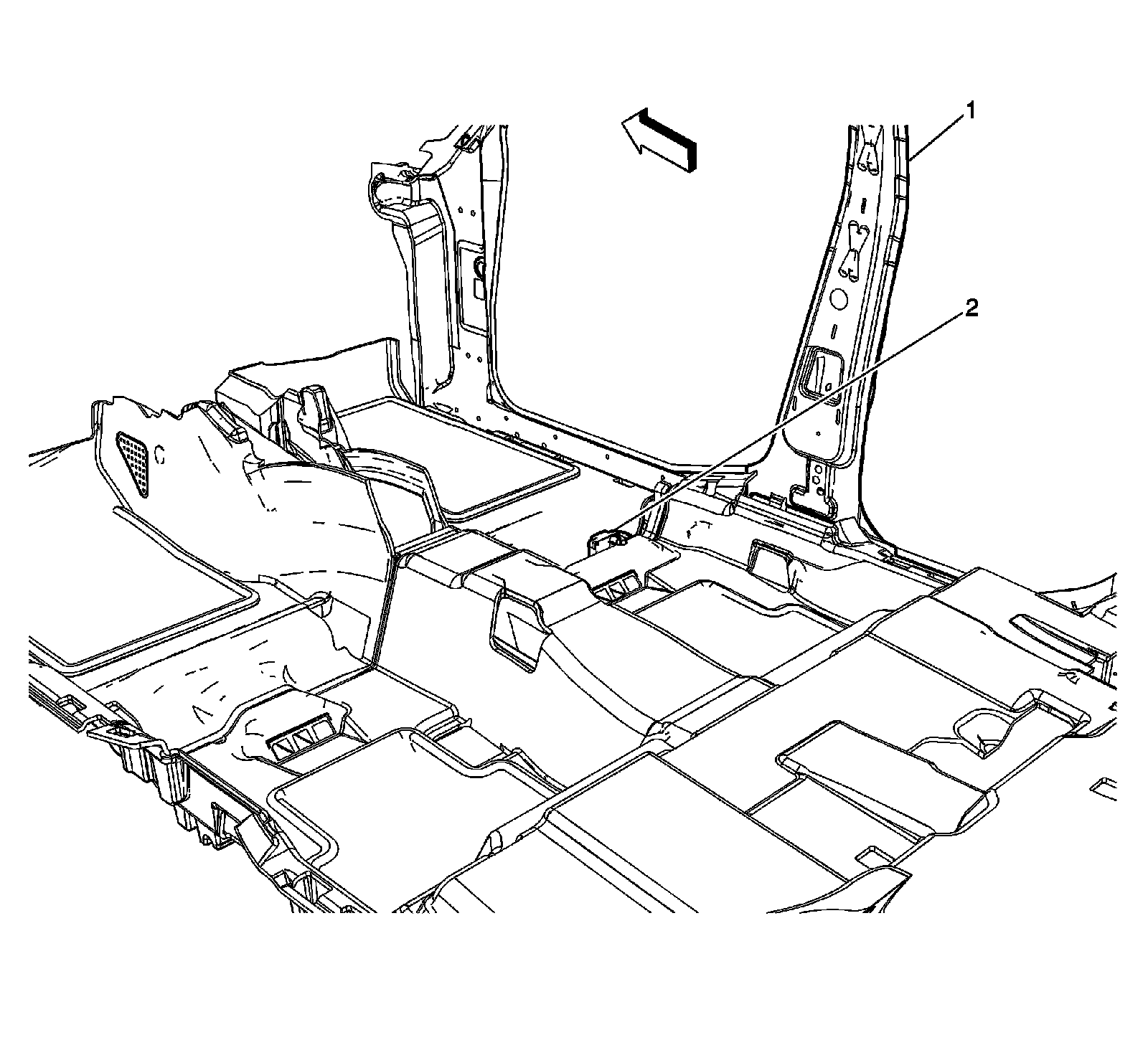

Below Front Passenger Seat (JL9)
1 - C-Pillar
2 - Yaw and Lateral Accelerometer Sensor

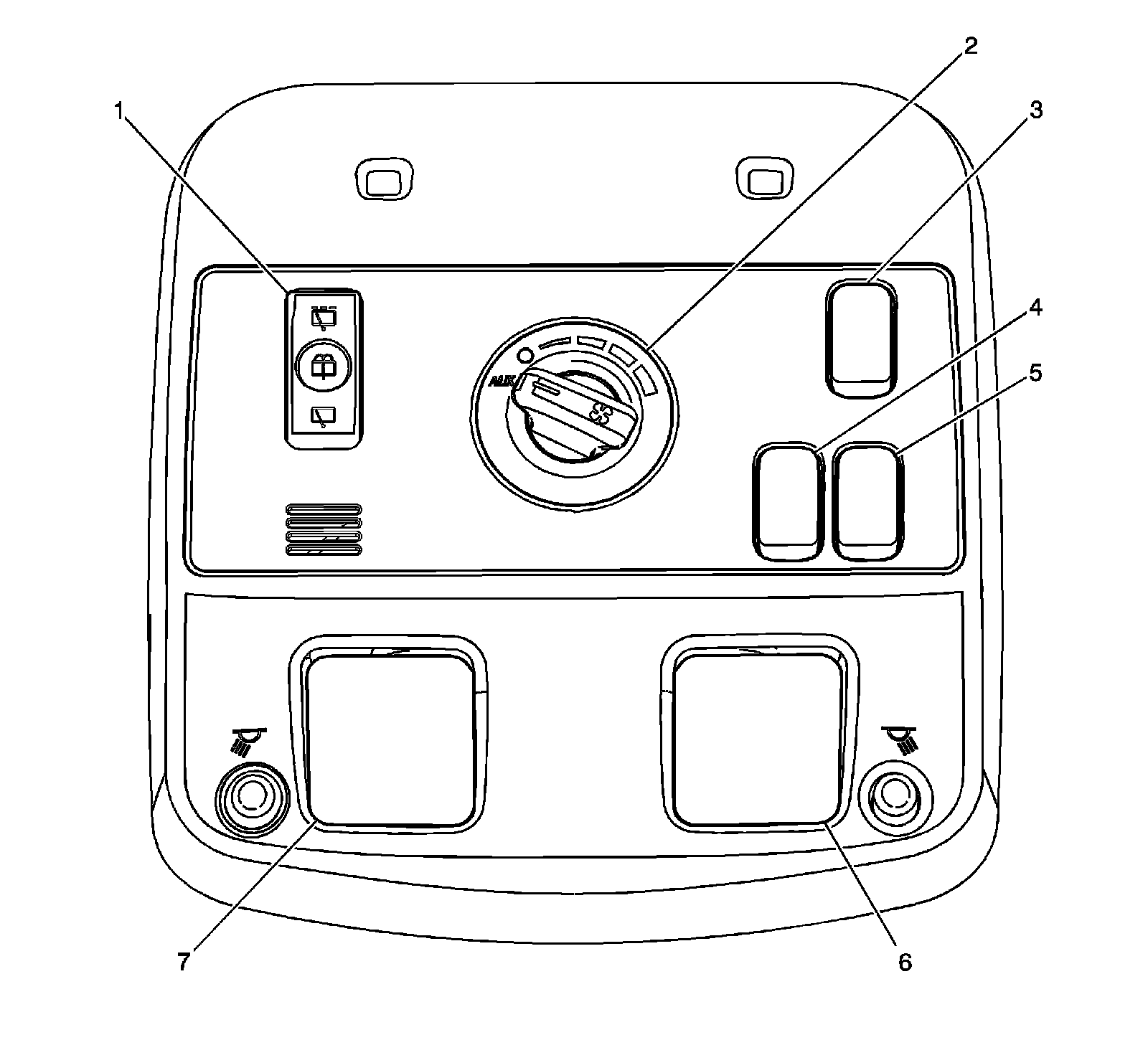

Overhead Console Components
1 - Window Wiper/Washer Switch - Rear
2 - Blower Motor Switch - Auxiliary Front (C57)
3 - Overhead Console
4 - Sunroof Switch (CF5)
5 - Sunroof Shade Switch (CF5)
6 - Overhead Console Courtesy/Reading Lamps
7 - Overhead Console Courtesy/Reading Lamps

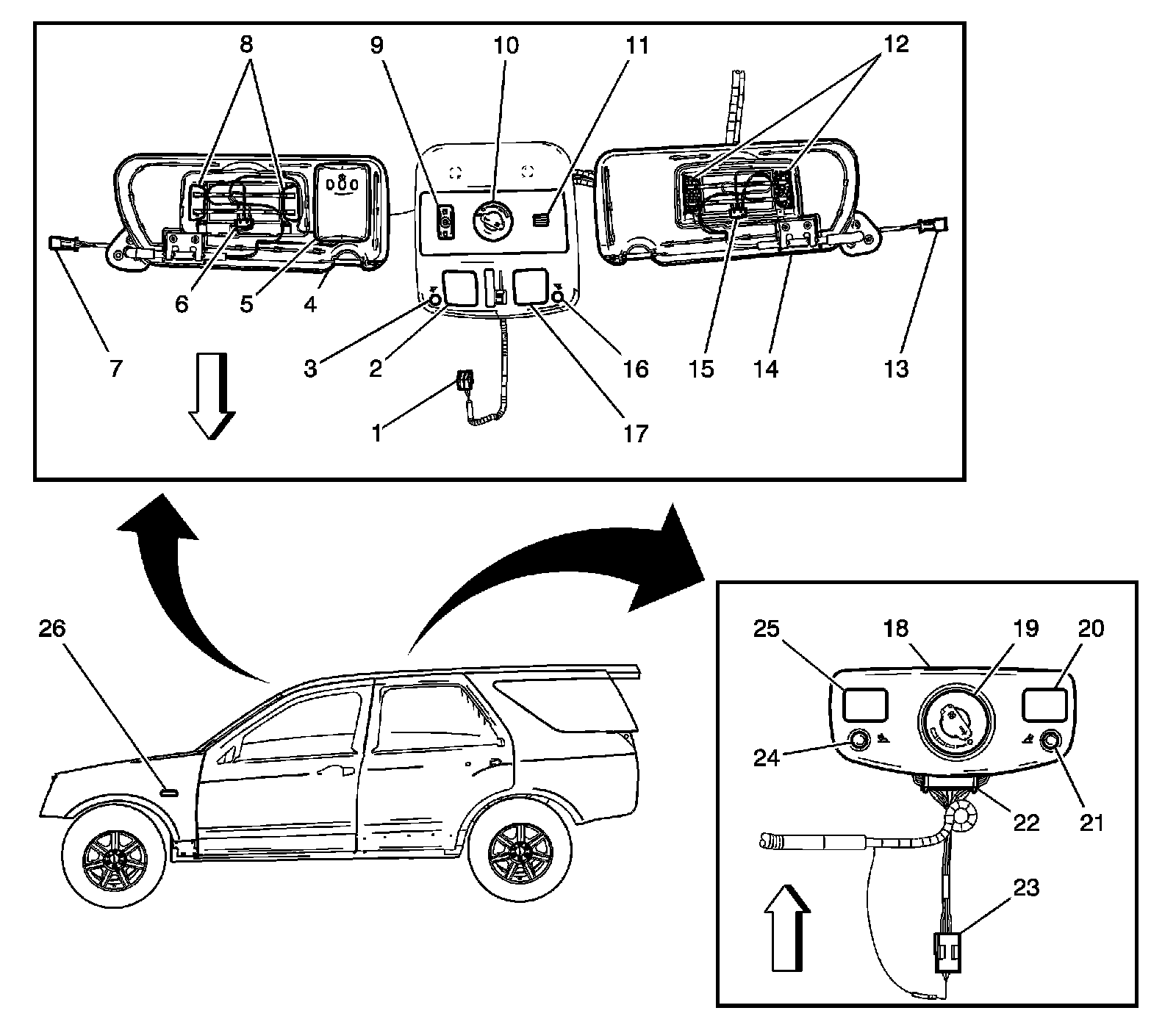

Headliner and Overhead Console Components
1 - Inside Rearview Mirror (ISRVM) Connector
2 - Overhead Console Courtesy/Reading Lamps
3 - Overhead Console Courtesy/Reading Lamps Switch
4 - Sunshade - Left
5 - Garage Door Opener (GDO) (UG1)
6 - Vanity Mirror Lamp Switch - Left
7 - Sunshade Connector - Left
8 - Vanity Mirror Lamp - Left
9 - Window Wiper/Washer Switch - Rear
10 - Blower Motor Switch - Auxiliary Front (C57)
11 - Noise Compensation Microphone (UQS)
12 - Vanity Mirror Lamp - Right
13 - Sunshade Connector - Right
14 - Sunshade - Right
15 - Vanity Mirror Lamp Switch - Right
16 - Overhead Console Courtesy/Reading Lamps Switch
17 - Overhead Console Courtesy/Reading Lamps
18 - Overhead Console Assembly - Center
19 - Blower Motor Switch - Auxiliary Rear (C57)
20 - Courtesy/Reading Lamps - 2nd Row
21 - Courtesy/Reading Lamp Switch - 2nd Row
22 - Blower Motor Switch Connector - Auxiliary Rear (C57)
23 - Courtesy/Reading Lamps - 2nd Row Connector
24 - Courtesy/Reading Lamps Switch - 2nd Row
25 - Courtesy/Reading Lamps - 2nd Row
26 - Repeater Lamp - Left, Right Similar (T90)

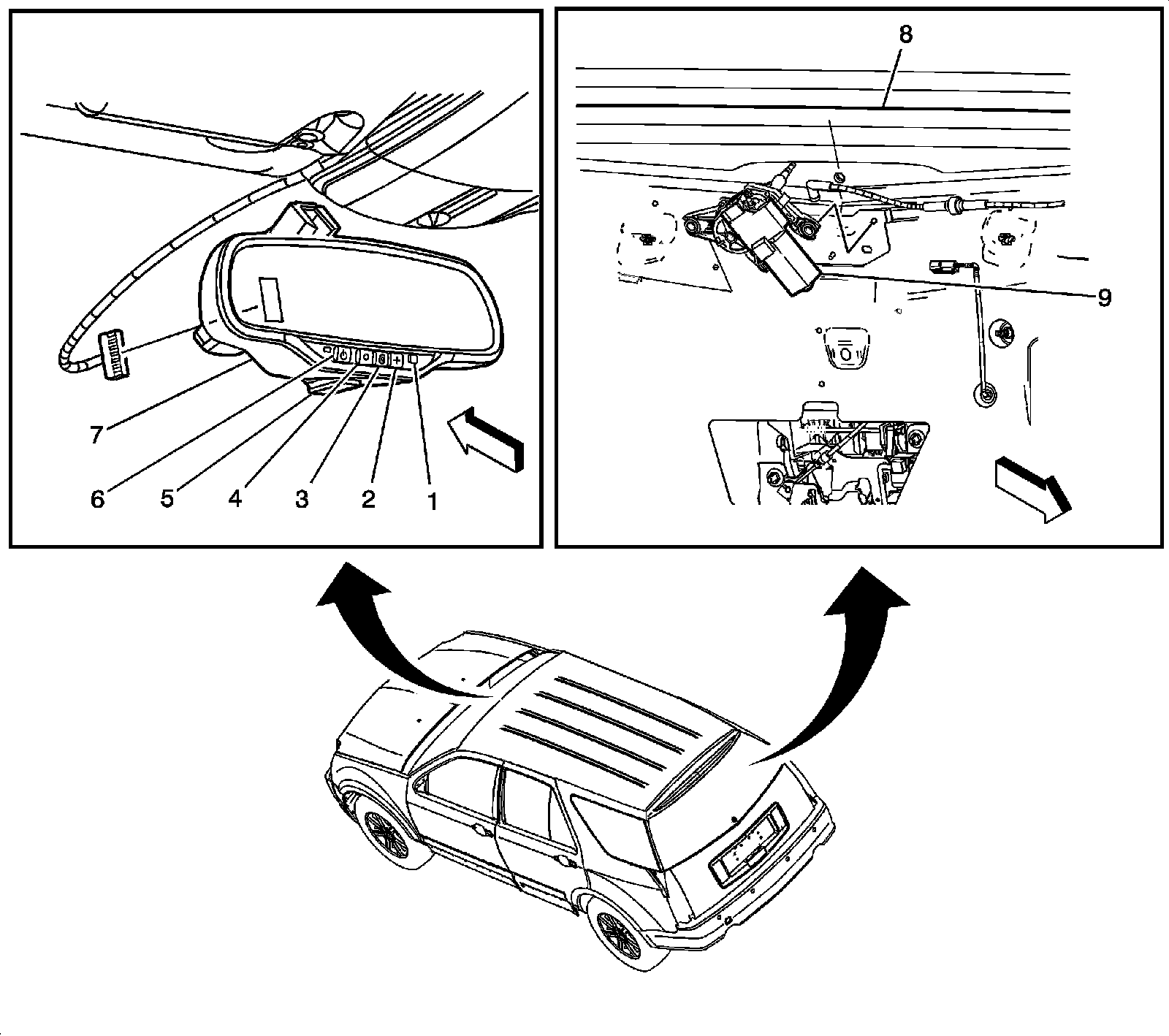

Inside Rear View Mirror and Rear Window Defogger Grid Components
1 - Light Sensor
2 - Emergency Button (UE1)
3 - OnStar(R) Call Center Button (UE1)
4 - Answer/End Call Button (UE1)
5 - Cellular Microphone (UE1)
6 - Inside Rearview Mirror (ISRVM) On/Off Button
7 - Inside Rearview Mirror (ISRVM)
8 - Rear Window Defogger Grid
9 - Rear Window Wiper Motor

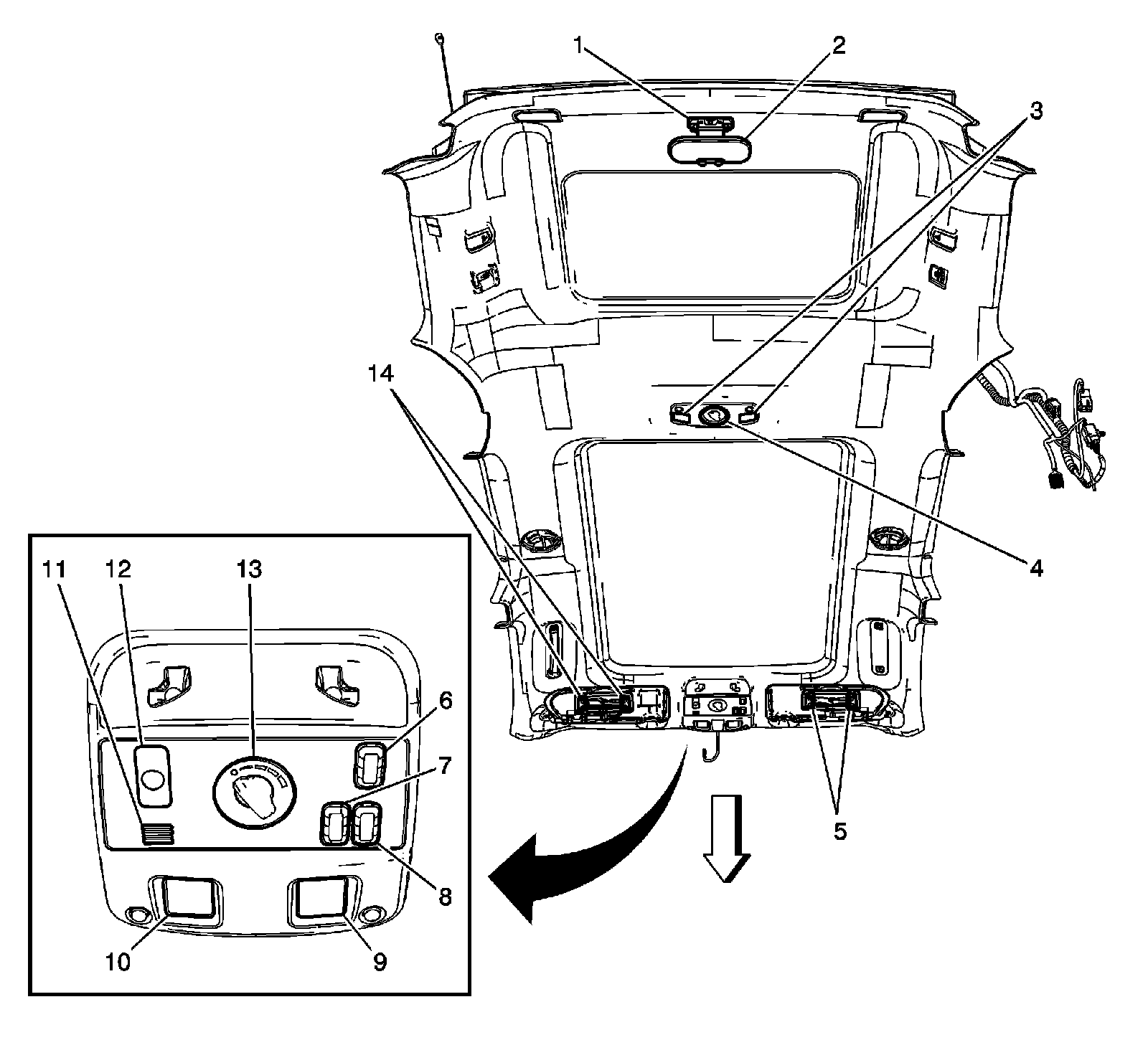

Headliner Components 1 of 2
1 - Rear Parking Assist (RPA) Display
2 - Courtesy/Reading Lamp - 3rd Row
3 - Courtesy/Reading Lamp - 2nd Row
4 - Blower Motor Switch - Auxiliary Rear (C57)
5 - Vanity Mirror Lamp - Right
6 - Overhead Console
7 - Sunroof Switch (CF5)
8 - Sunroof Shade Switch (CF5)
9 - Overhead Console Courtesy/Reading Lamps
10 - Overhead Console Courtesy/Reading Lamps
11 - Noise Compensation Microphone (UQS)
12 - Window Wiper/Washer Switch - Rear
13 - Blower Motor Switch - Auxiliary Rear (C57)
14 - Vanity Mirror Lamp - Left

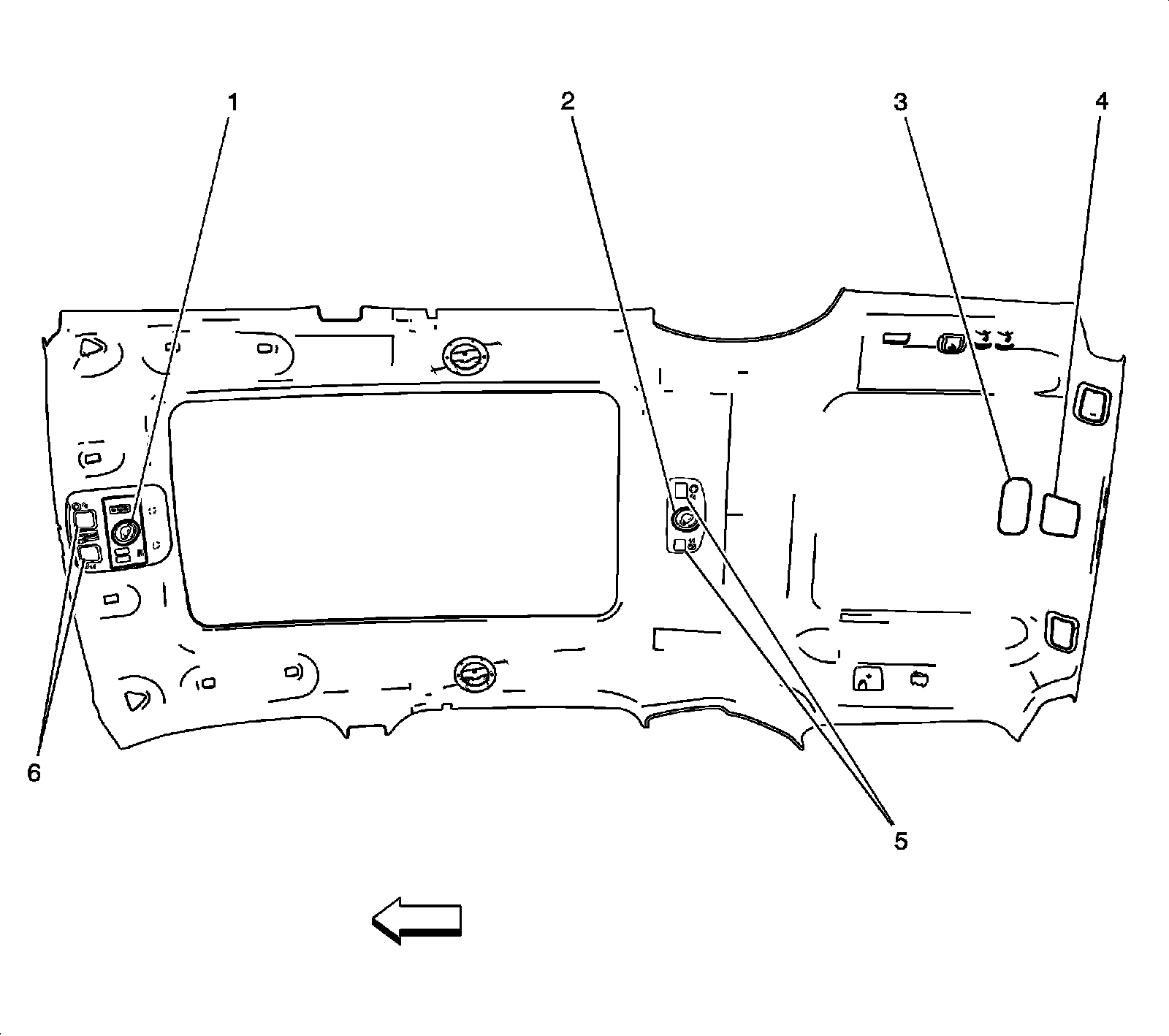

Headliner Components 2 of 2
1 - Blower Motor Switch - Auxiliary Front (C57)
2 - Blower Motor Switch - Auxiliary Rear (C57)
3 - Courtesy/Reading Lamp - 3rd Row
4 - Rear Parking Assist (RPA) Display
5 - Courtesy/Reading Lamp - 2nd Row
6 - Overhead Console Courtesy/Reading Lamps

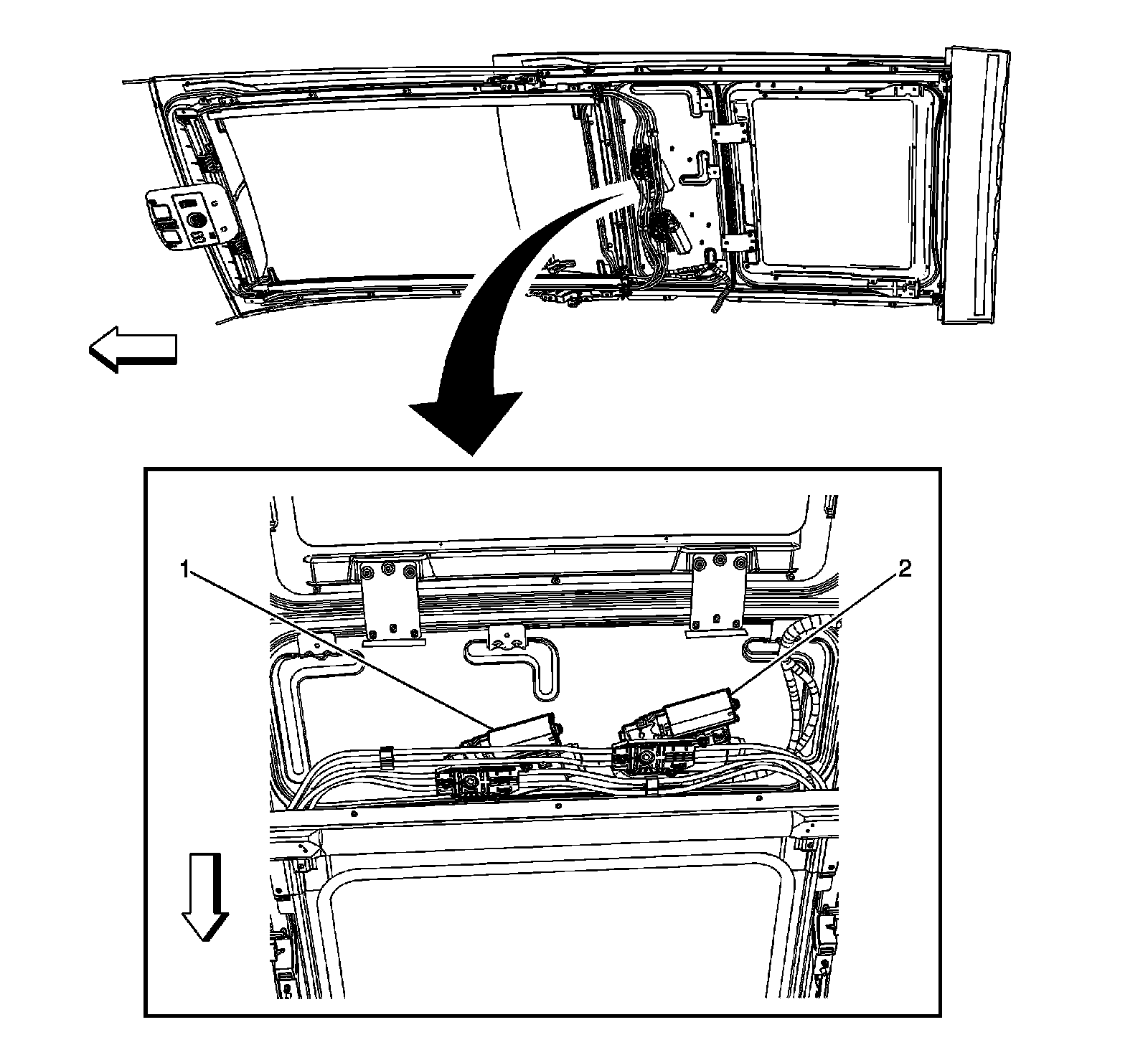

Sunroof Components - Mini (CF5)
1 - Sunroof Control Module
2 - Sunroof Sunshade Module - Front

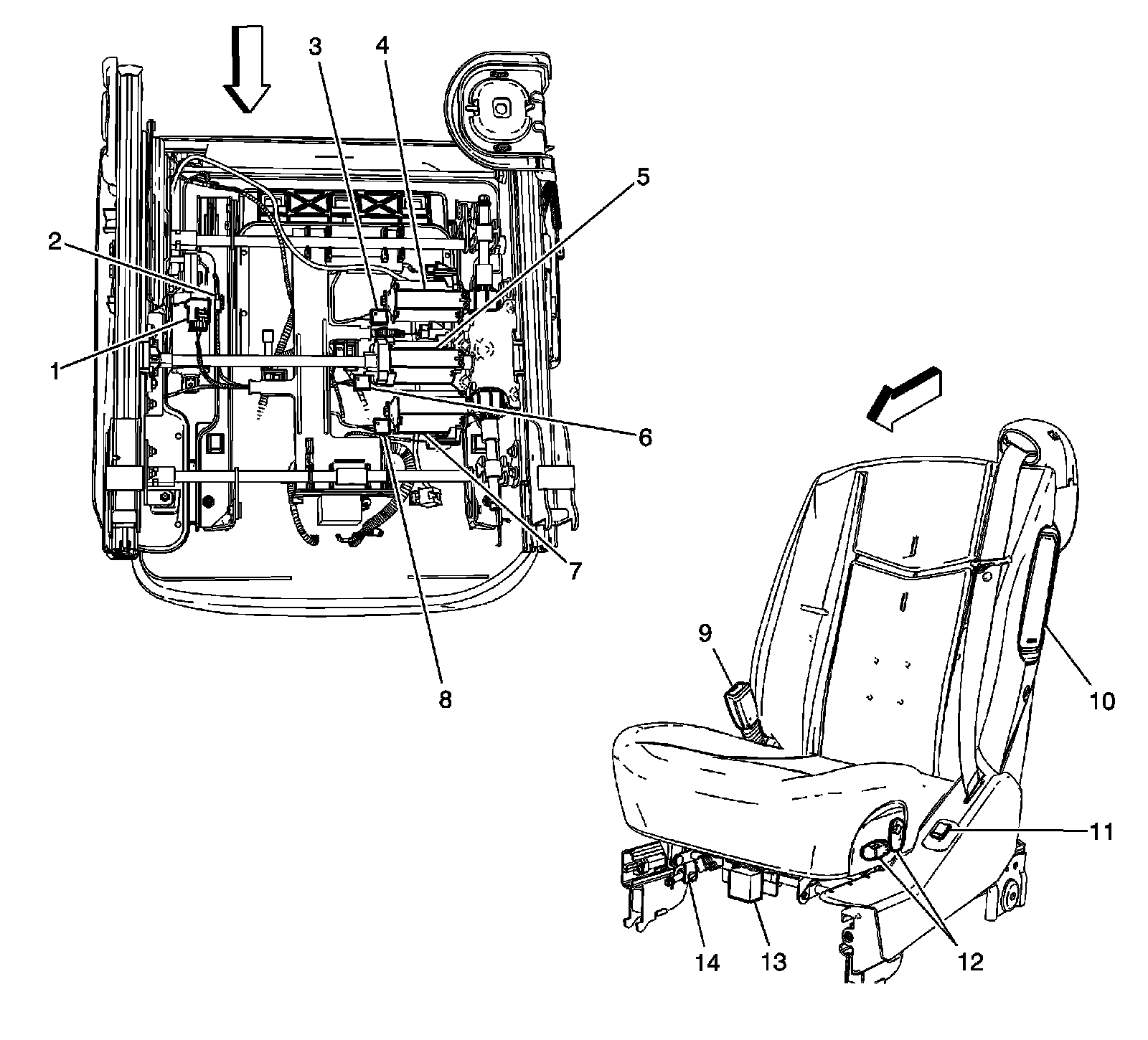

Driver Seat Components 1 of 2
1 - Seat Recline Motor - Driver
2 - Seat Recline Position Sensor - Driver (A45)
3 - Seat Front Vertical Motor Position Sensor - Driver (A45)
4 - Seat Rear Vertical Motor - Driver
5 - Seat Horizontal Motor - Driver
6 - Seat Horizontal Motor Position Sensor - Driver (A45)
7 - Seat Front Vertical Motor - Driver
8 - Seat Rear Vertical Motor Position Sensor - Driver (A45)
9 - Seat Belt Switch - Driver
10 - Inflatable Restraint Side Impact Module - Left
11 - Seat Lumbar Switch - Driver (AL2)
12 - Seat Adjuster Switch - Driver
13 - X300
14 - X301

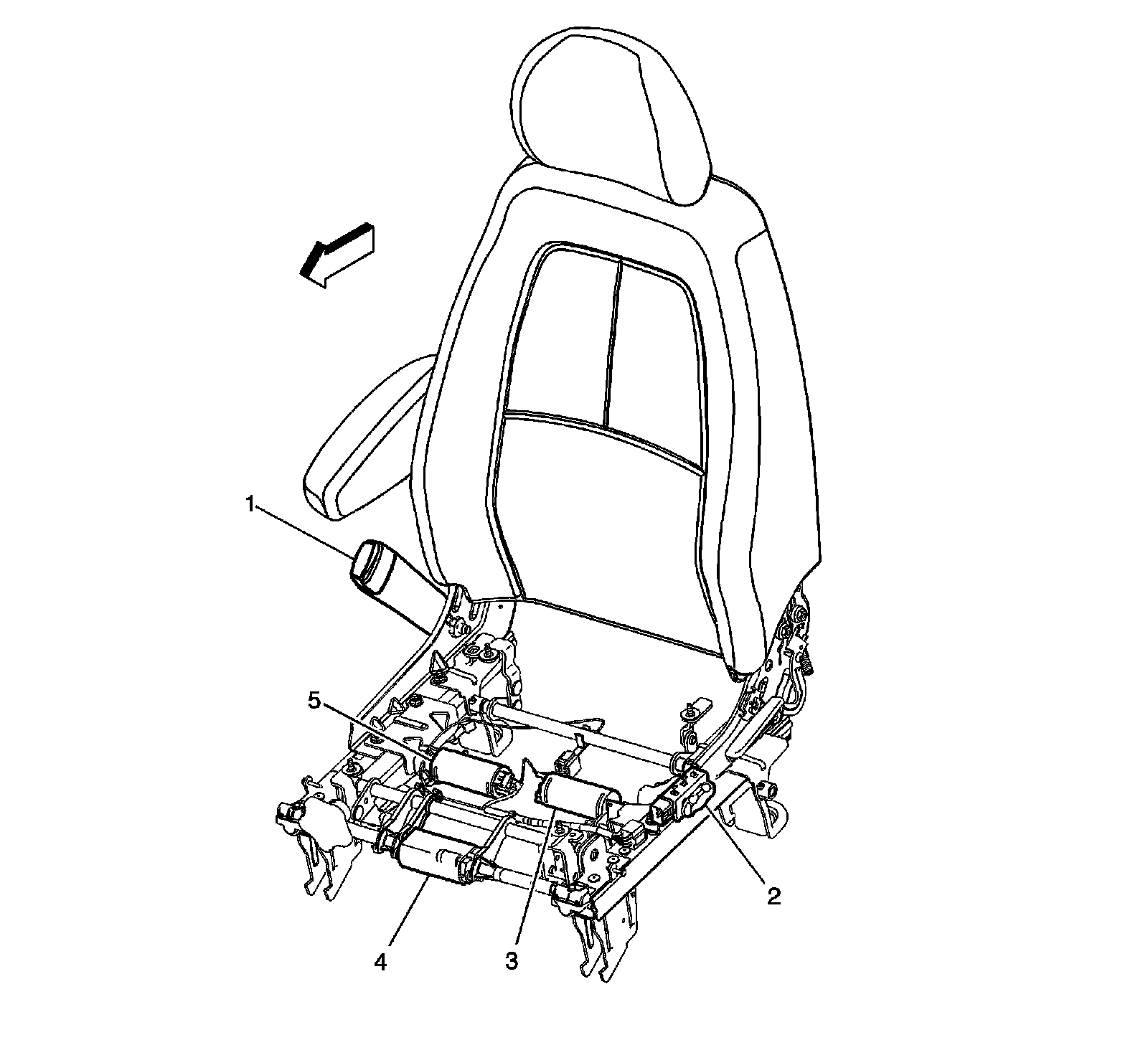

Driver Seat Components 2 of 2
1 - Seat Belt Switch - Driver
2 - Seat Adjuster Switch - Driver
3 - Seat Recline Motor - Driver
4 - Seat Horizontal Motor - Driver
5 - Seat Rear Vertical Motor - Driver

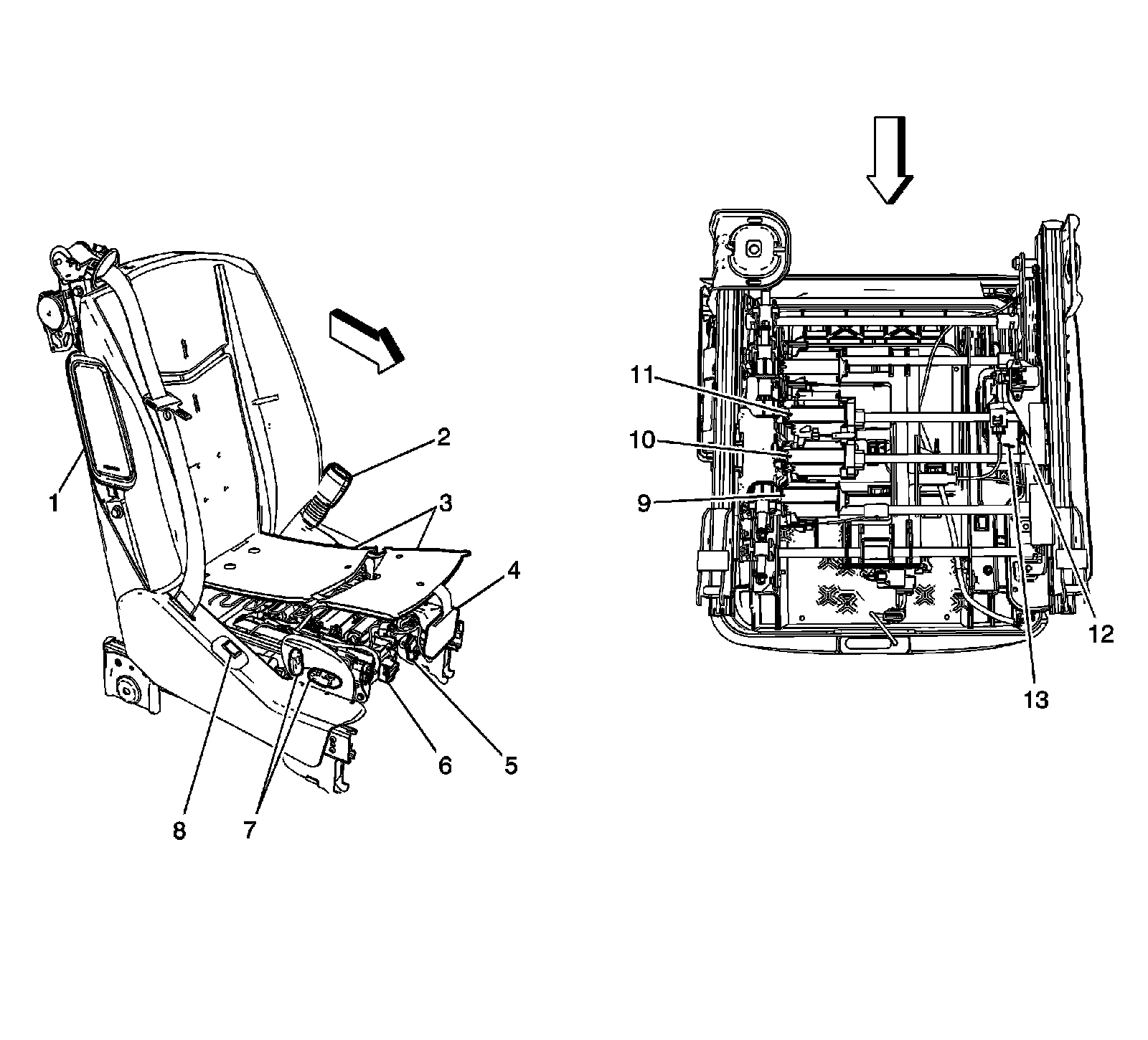

Passenger Seat Components
1 - Inflatable Restraint Side Impact Module - Right
2 - Seat Belt Switch - Passenger
3 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor Pad
4 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor
5 - X306
6 - X307
7 - Seat Adjuster Switch - Passenger
8 - Seat Lumbar Switch - Passenger (AL2)
9 - Seat Rear Vertical Motor - Passenger
10 - Seat Horizontal Motor - Passenger
11 - Seat Front Vertical Motor - Passenger
12 - Inflatable Restraint Seat Position Sensor - Passenger
13 - Seat Recline Motor - Passenger

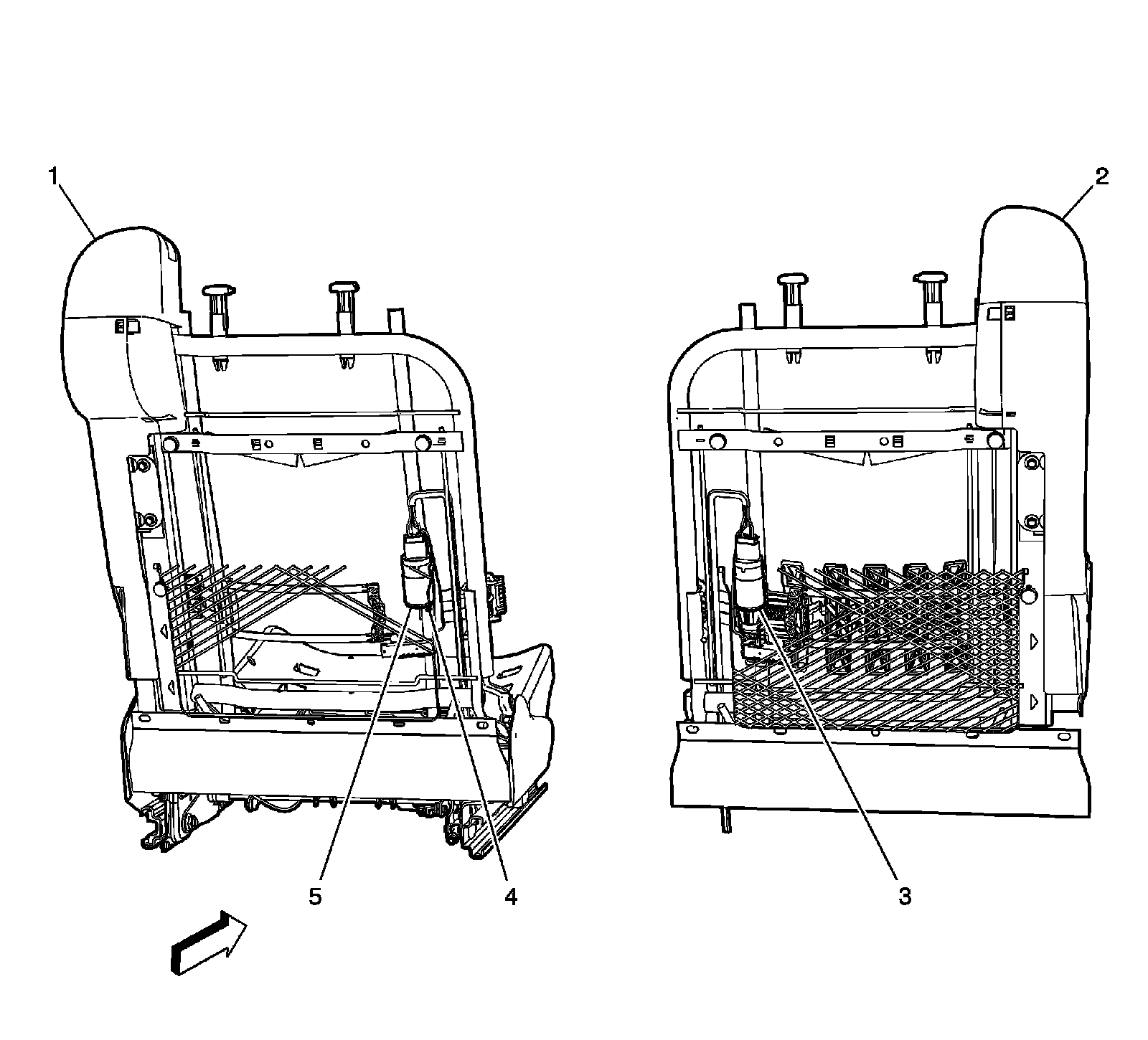

Driver and Passenger Seat Lumbar Components (AL2)
1 - Driver Seat
2 - Passenger Seat
3 - Seat Lumbar Motor - Passenger (AL2)
4 - Seat Lumbar Horizontal Motor Position Sensor - Driver (AL2 with A45)
5 - Seat Lumbar Motor - Driver (AL2)

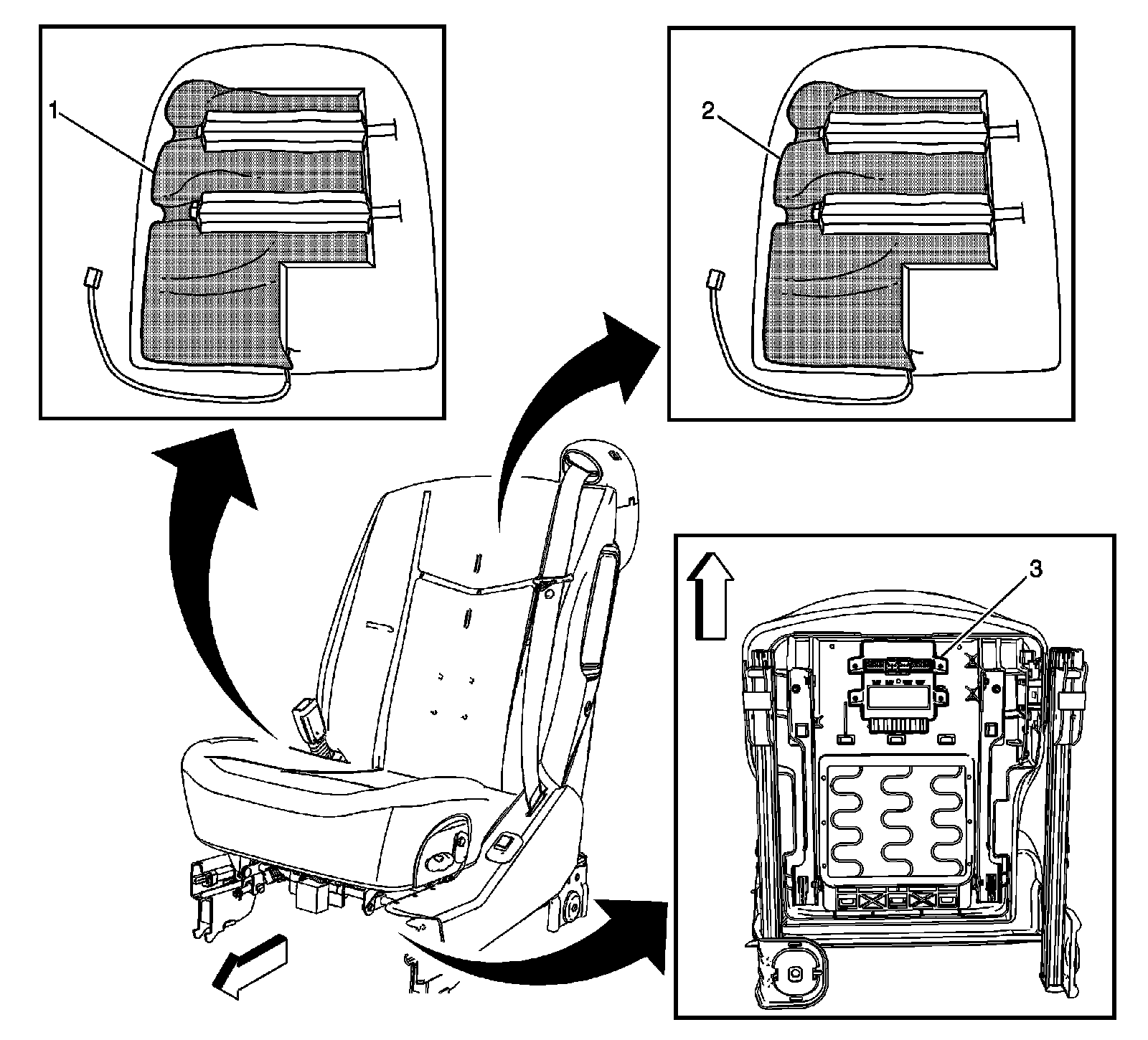

Front Heated Seat Components
1 - Heated Seat Element - Driver Cushion (KA1), Passenger Side Similar
2 - Heated Seat Element - Driver Back (KA1), Passenger Side Similar
3 - Memory Seat Module (MSM) (A45)

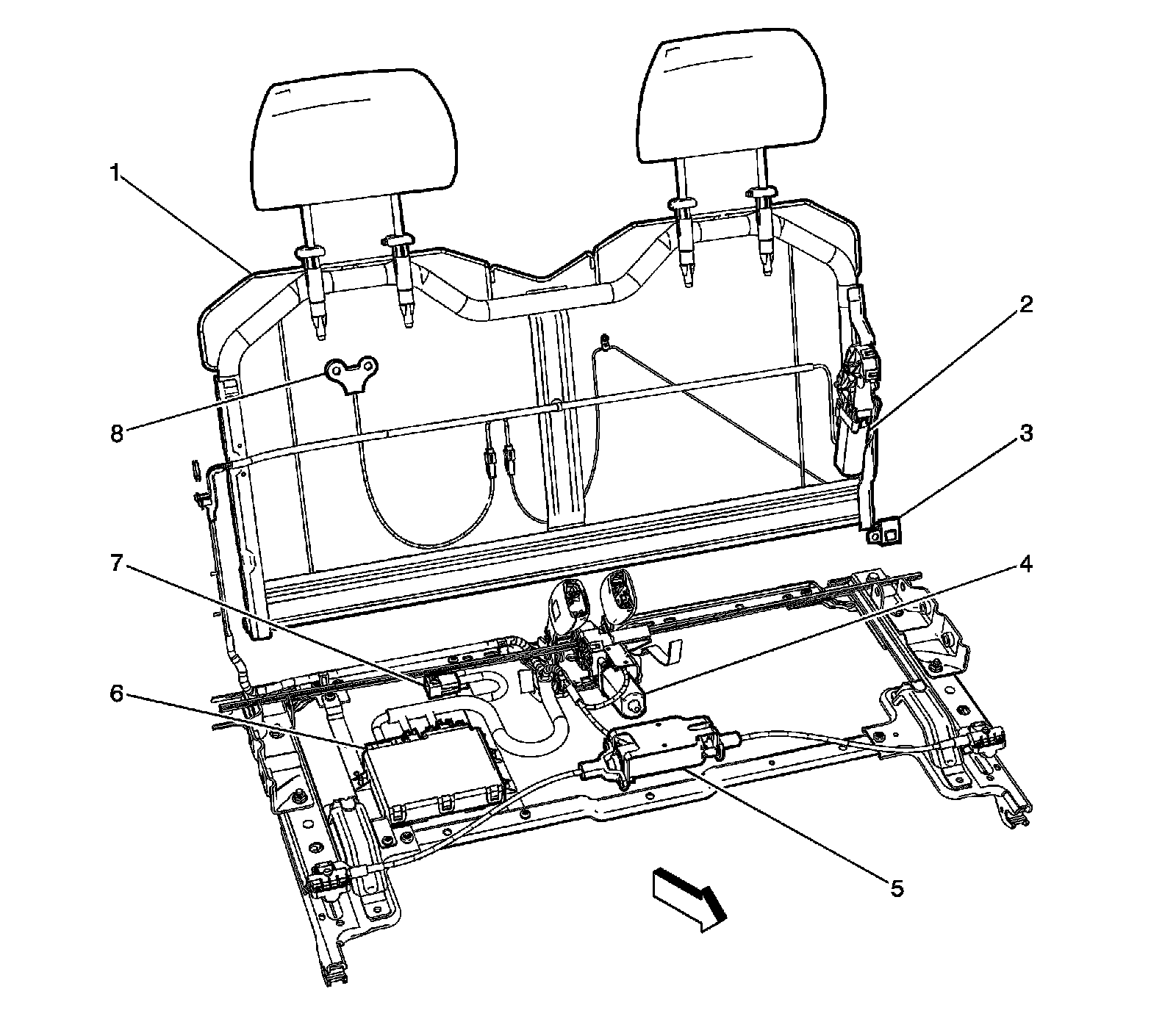

Third Row Folding Seats Components (AM0)
1 - Third Row Seats
2 - Folding Seat Rotation Motor
3 - Folding Seat Back Panel Position Switch
4 - Folding Seat Recline Motor
5 - Folding Seat Horizontal Motor
6 - Rear Seat Control Module
7 - X411
8 - Folding Seat Back Position Switch
