Home
>>
Cadillac Truck
>>
2009
>>
SRX AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antenna Control Module
Antenna Control Module

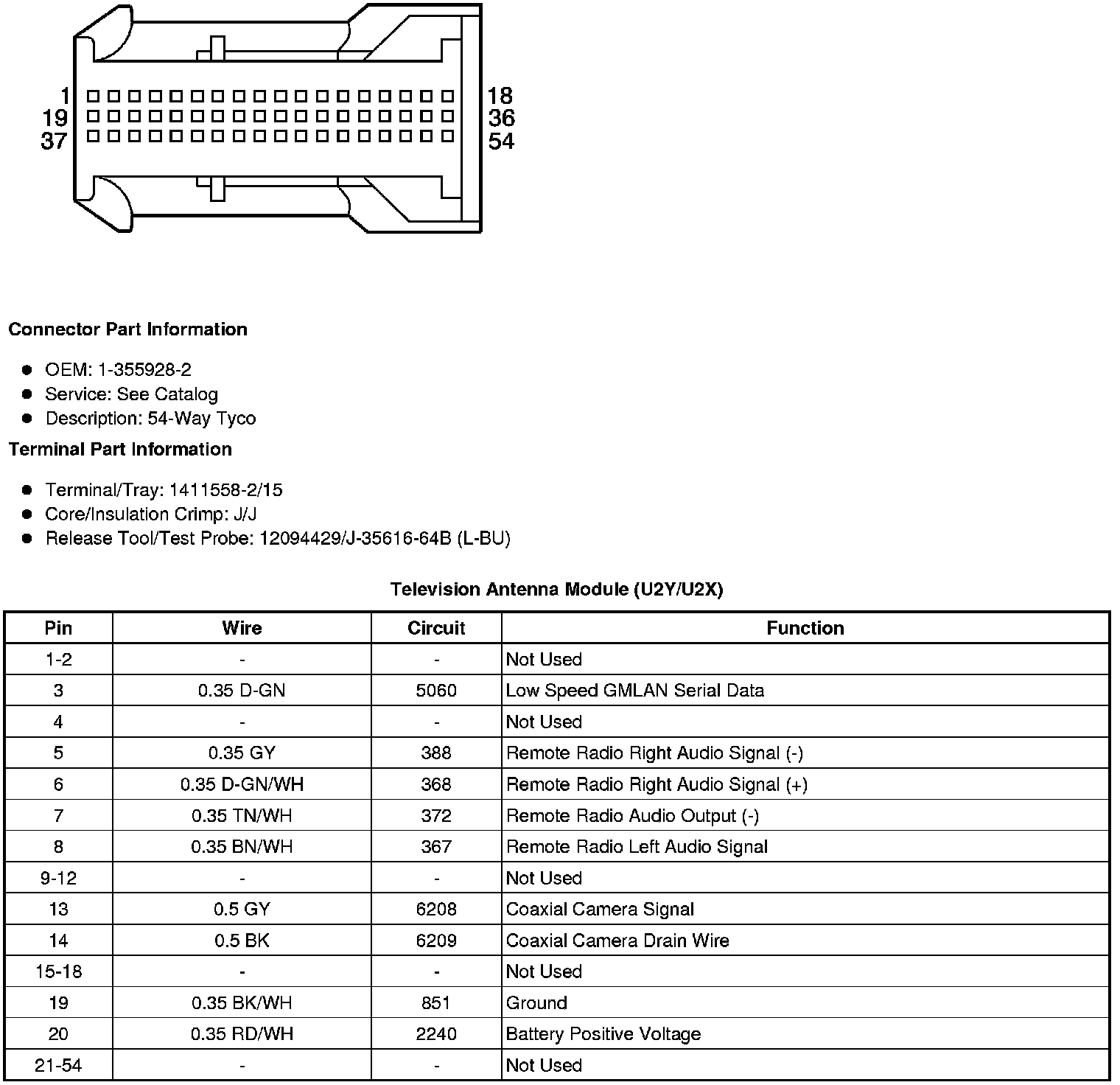

Component Connector End Views
Television Antenna Module (U2Y/U2X)
