Auxiliary Power Outlet




Component Connector End Views

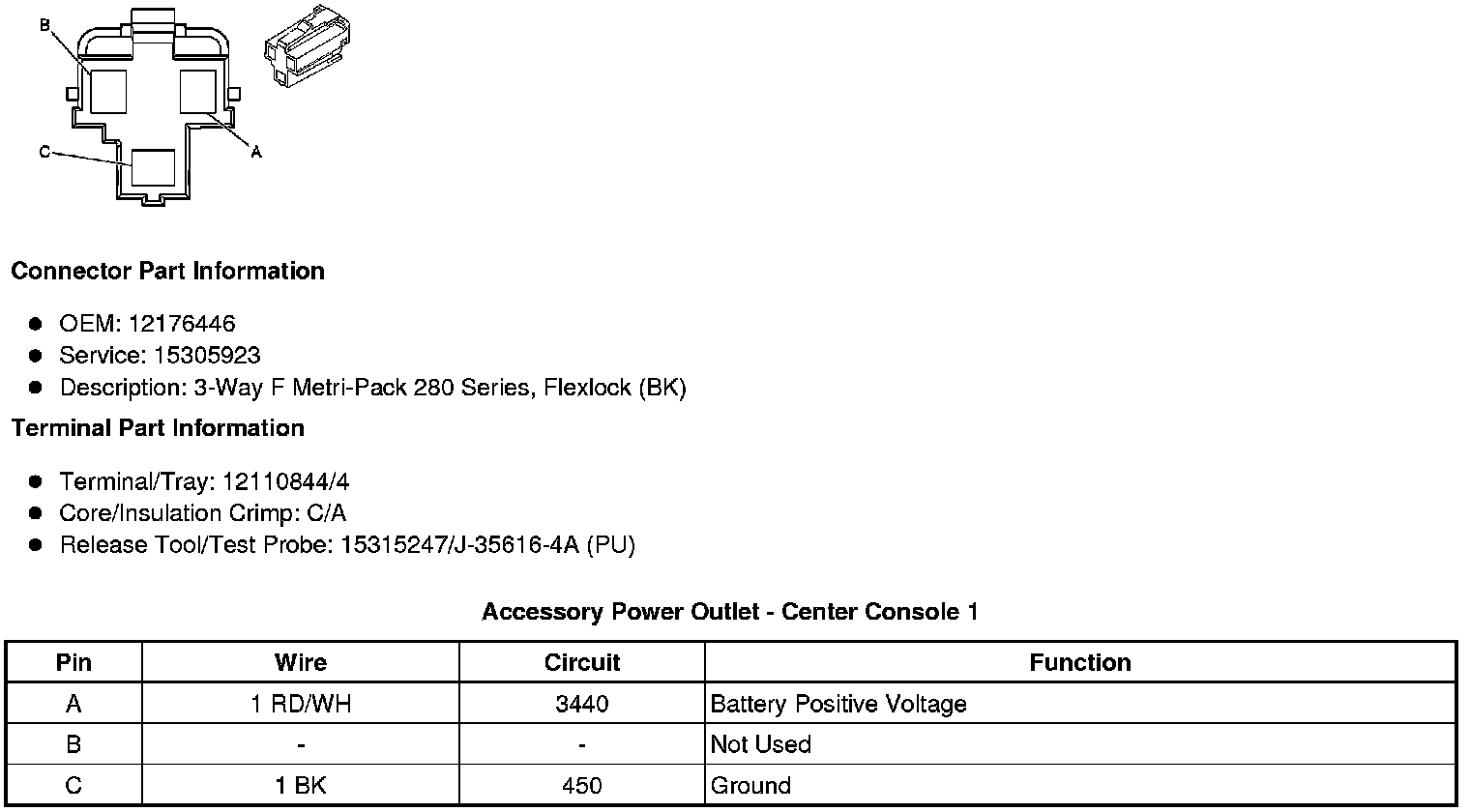

Accessory Power Outlet - Center Console 1






Accessory Power Outlet - Center Console 2 (UQS)

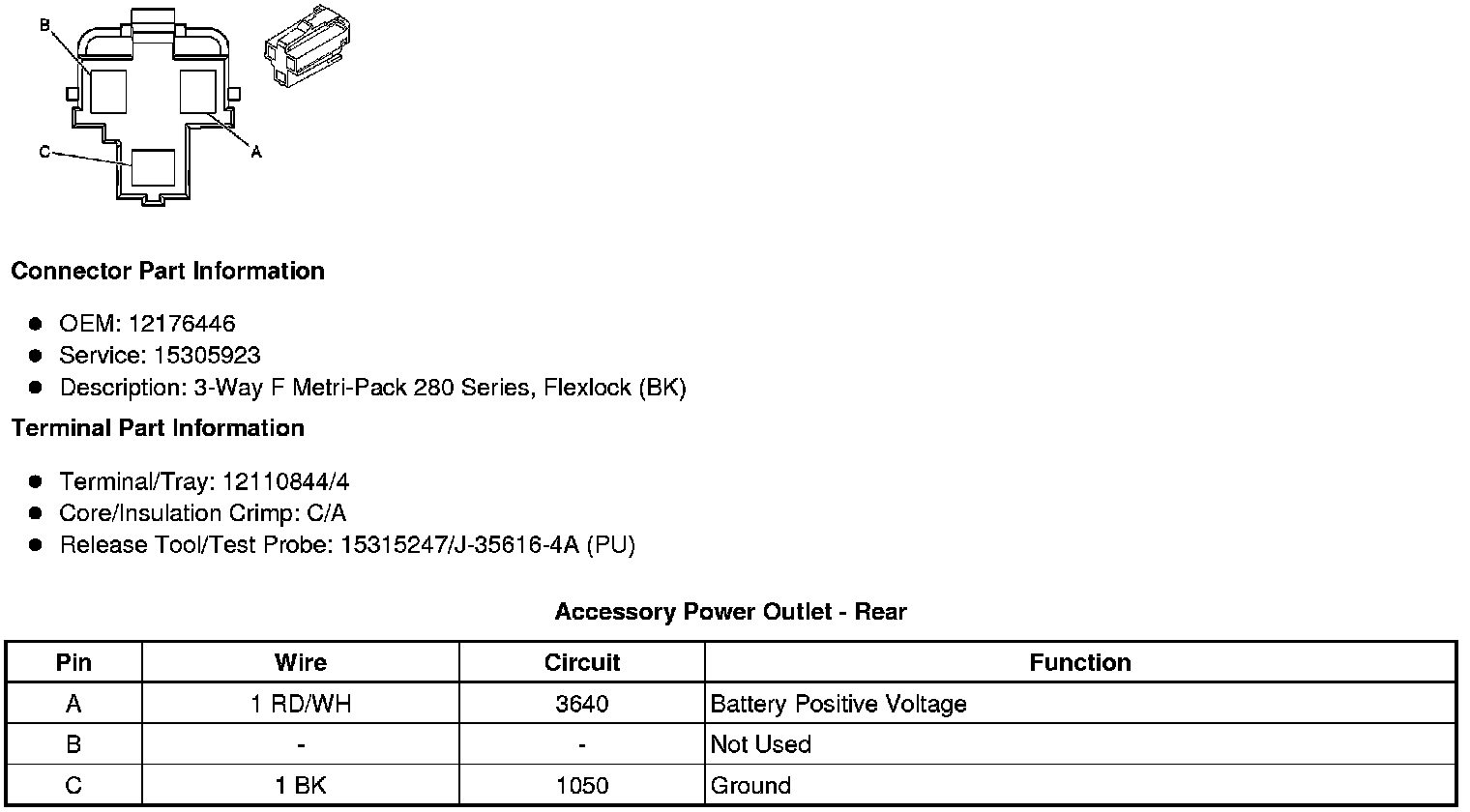

Accessory Power Outlet - Rear
