Blower Motor Resistor
Blower Motor Resistor

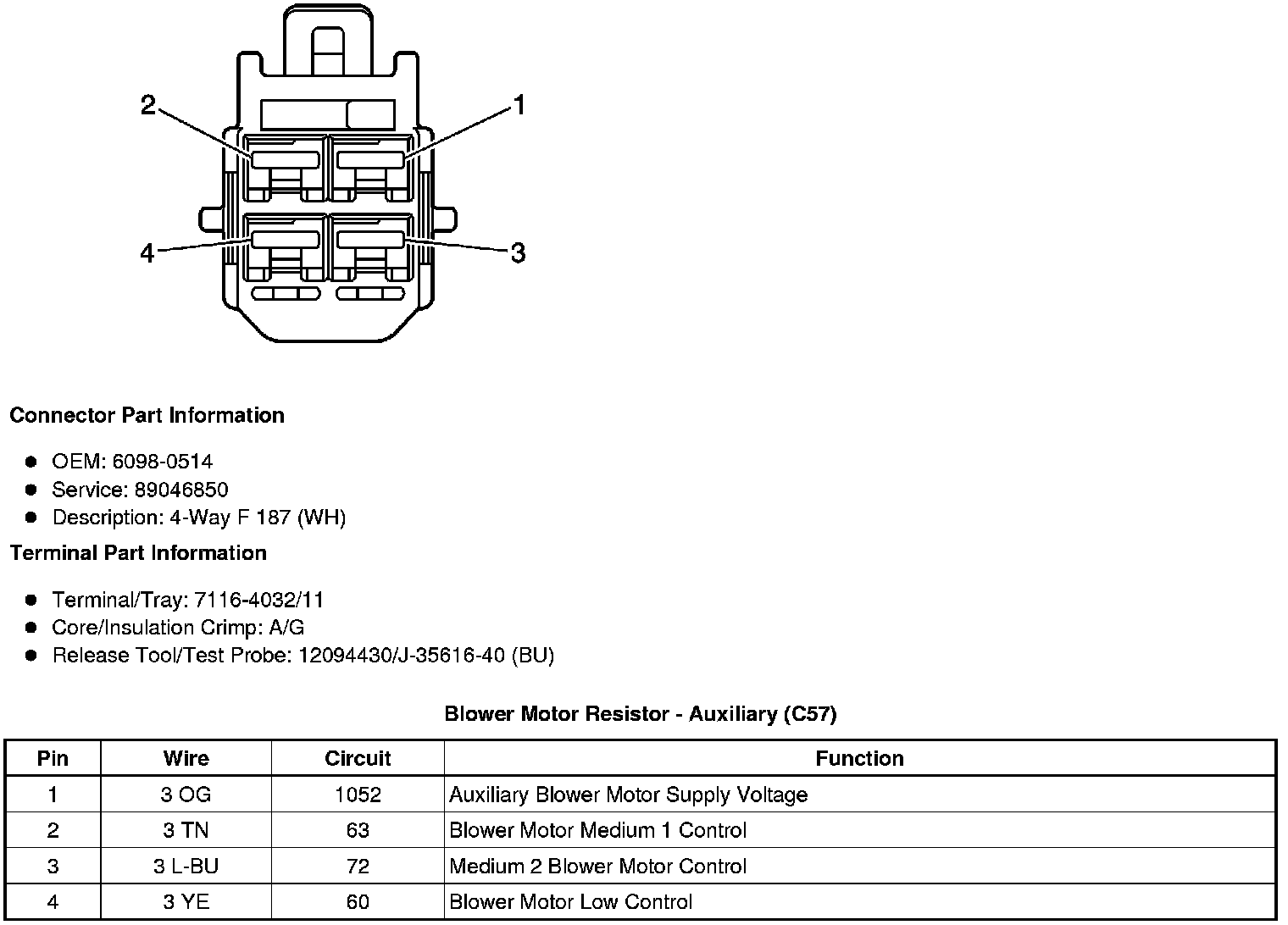

Component Connector End Views
Blower Motor Resistor
- Auxiliary (C57)
