Blower Motor Switch




Component Connector End Views

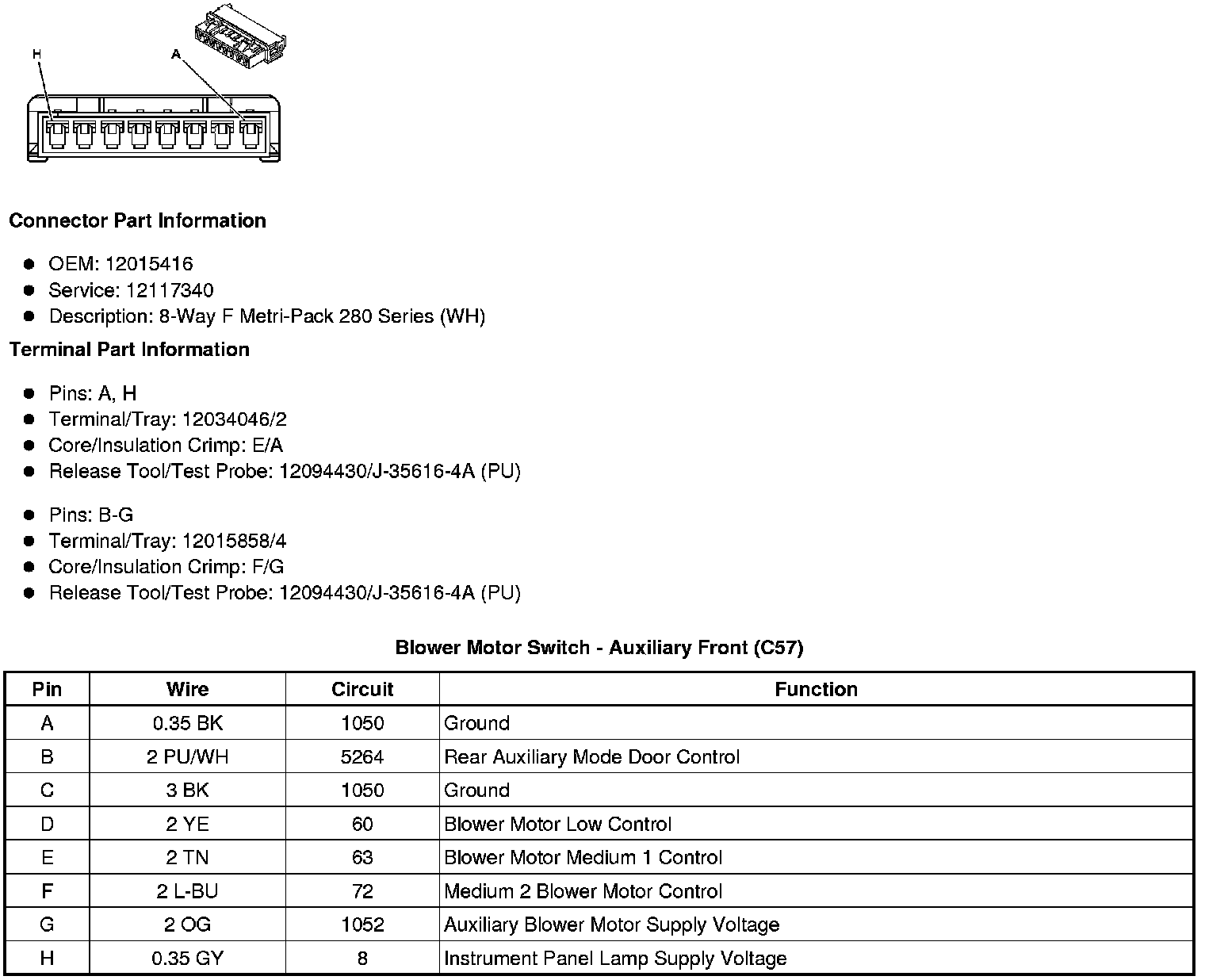

Blower Motor Switch - Auxiliary Front (C57)

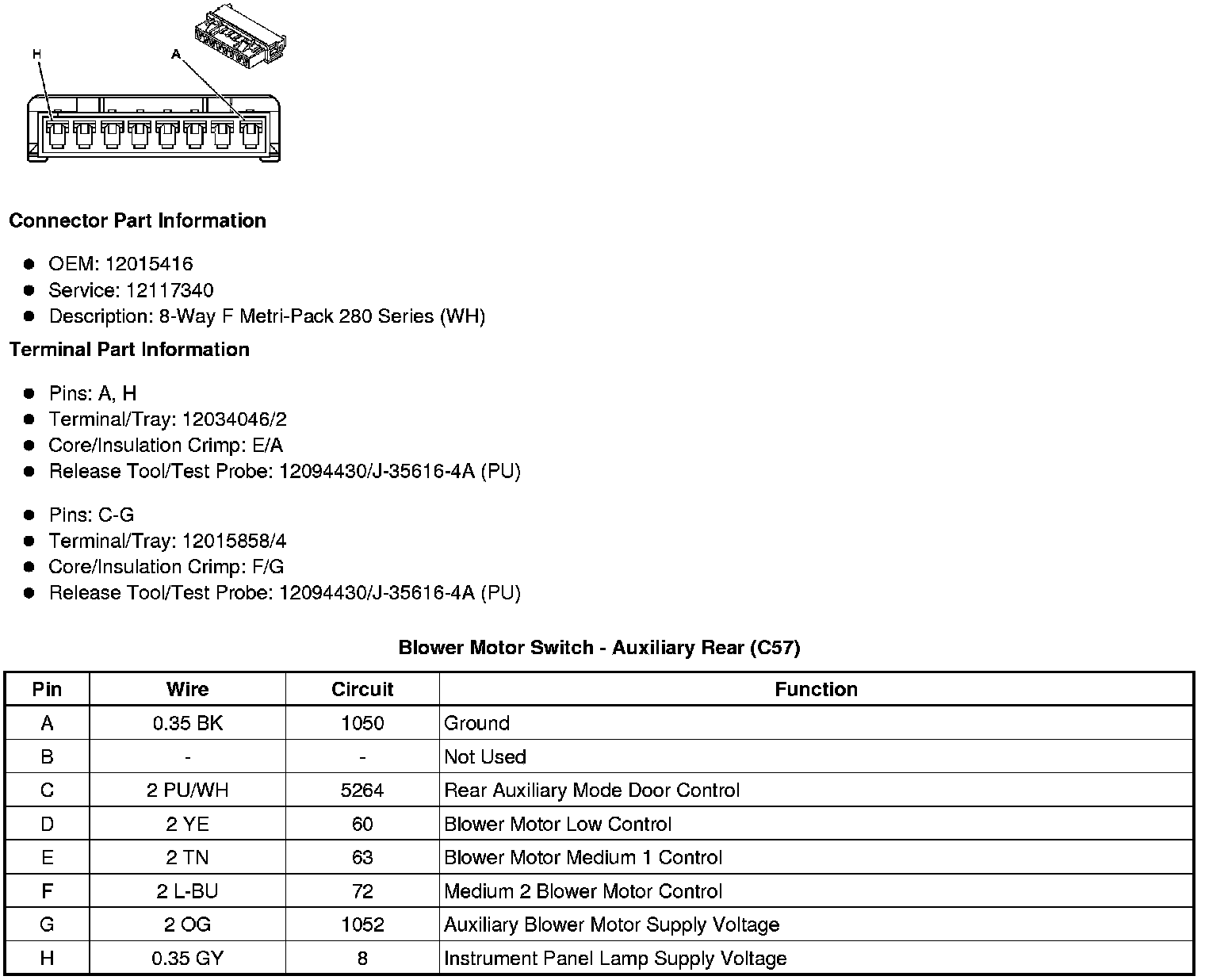

Blower Motor Switch - Auxiliary Rear (C57)
