Camshaft Position Sensor




Component Connector End Views

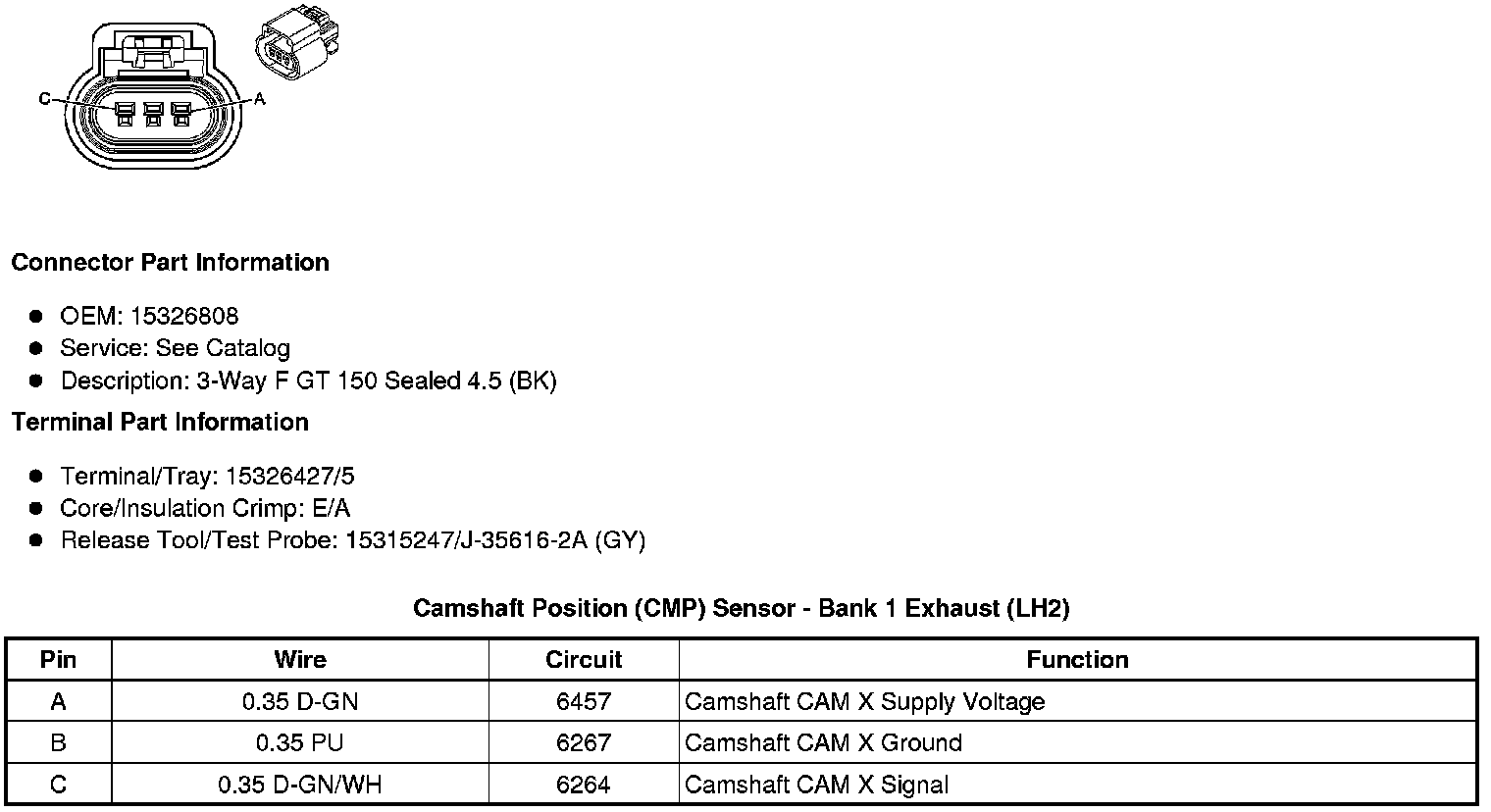

Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LH2)






Camshaft Position (CMP) Sensor - Bank 1 Intake (LH2)






Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LH2)

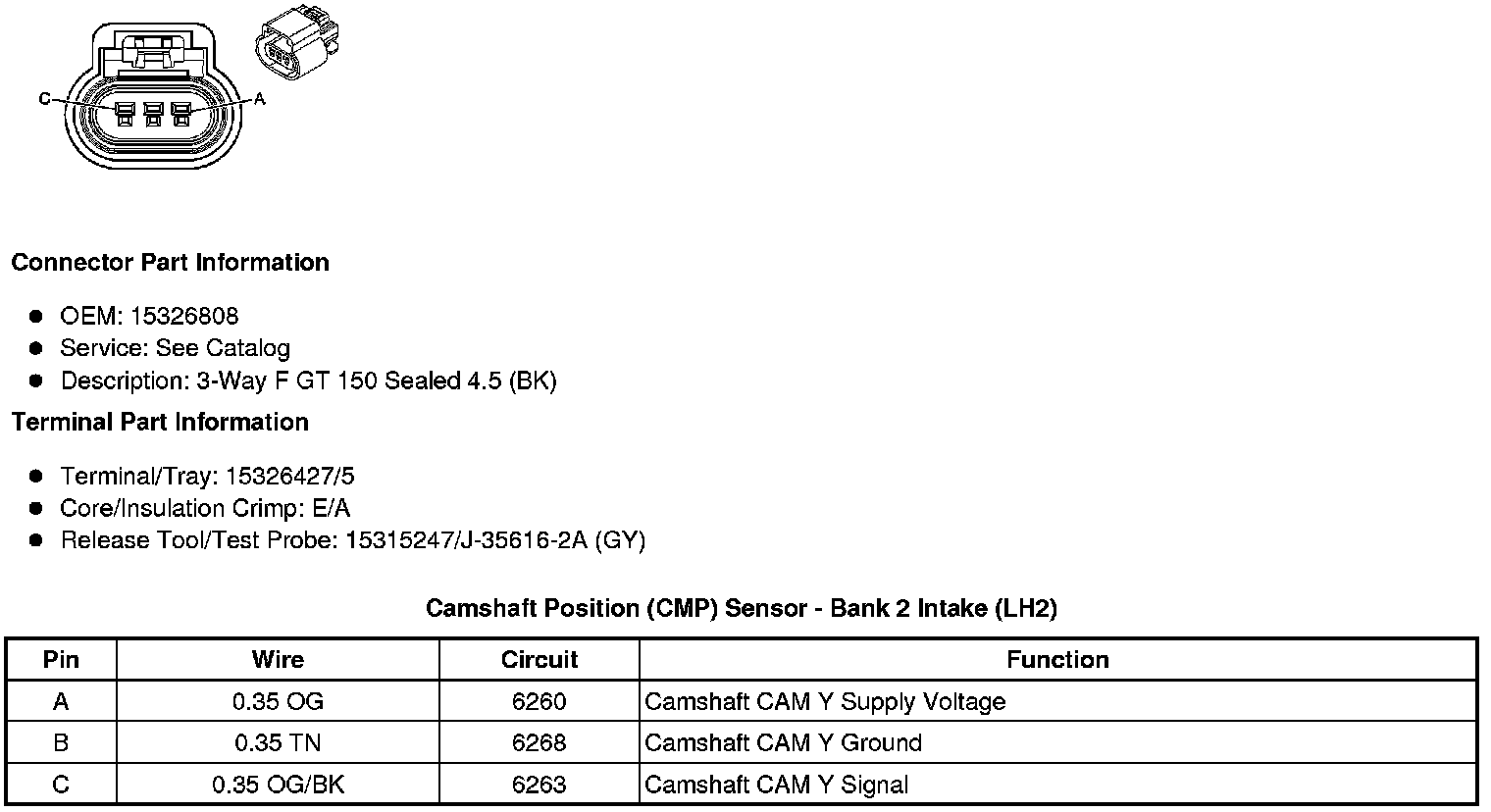

Camshaft Position (CMP) Sensor - Bank 2 Intake (LH2)
