Door Module
Component Connector End Views

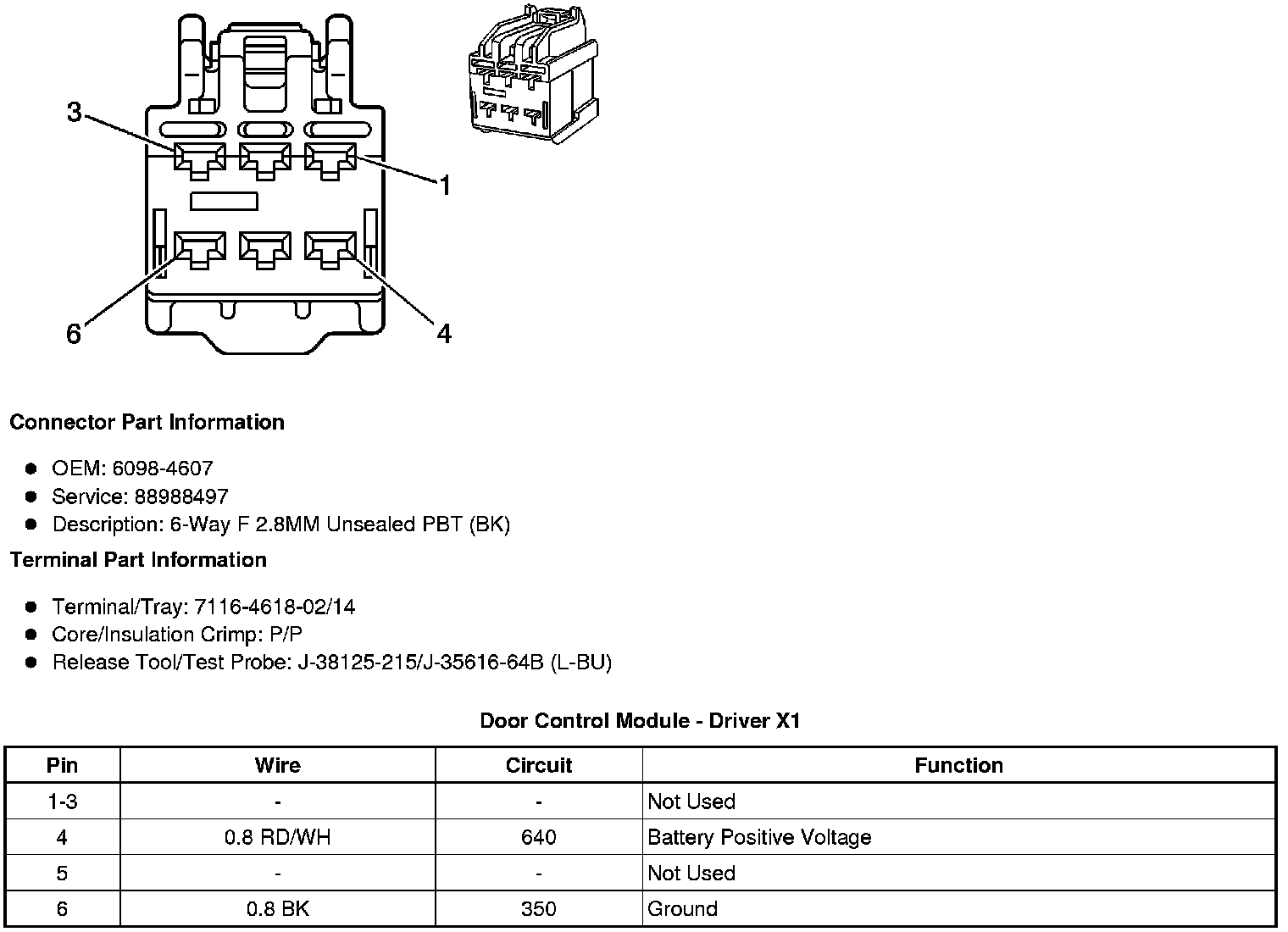

Door Control Module - Driver X1

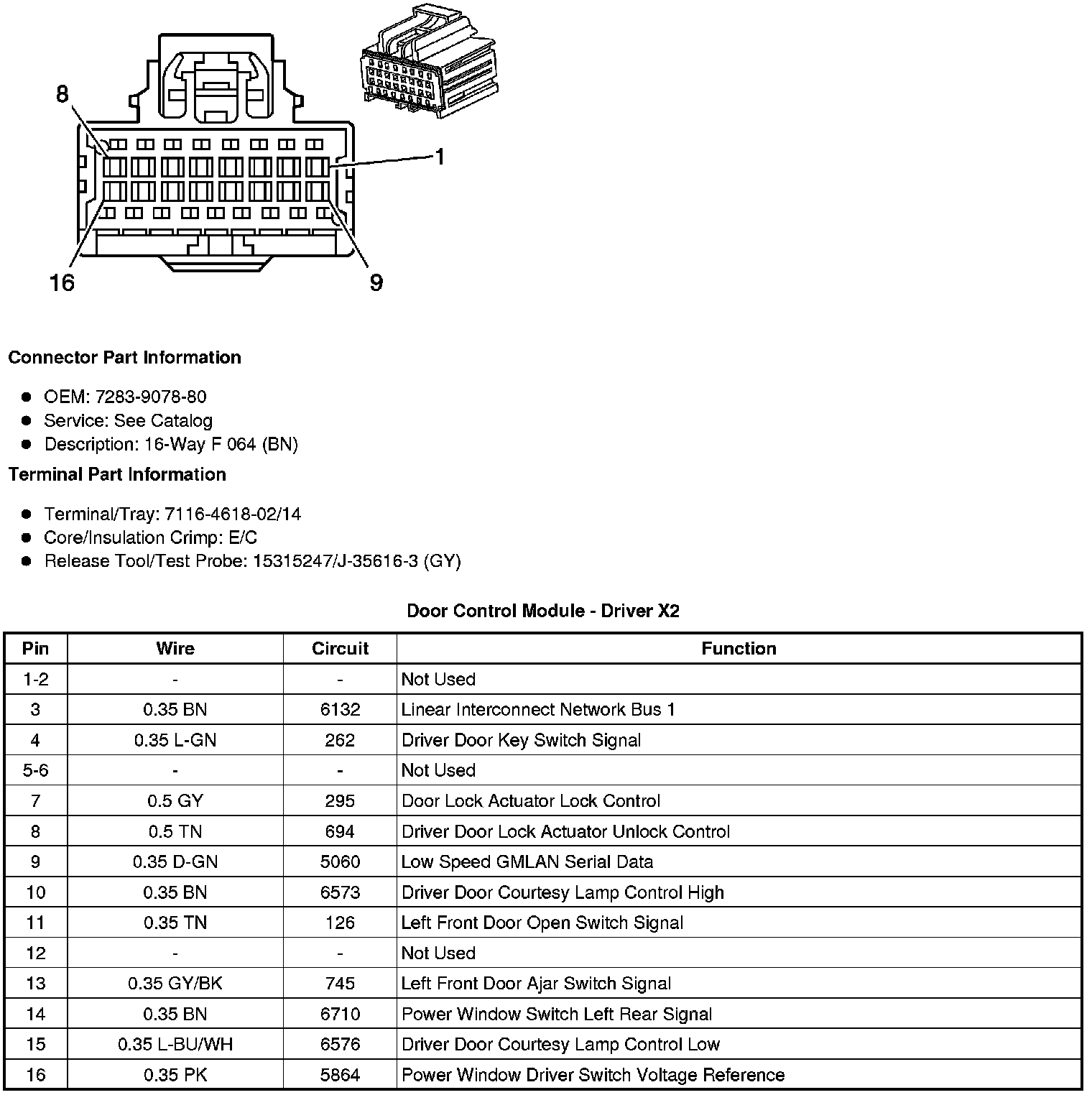

Door Control Module - Driver X2

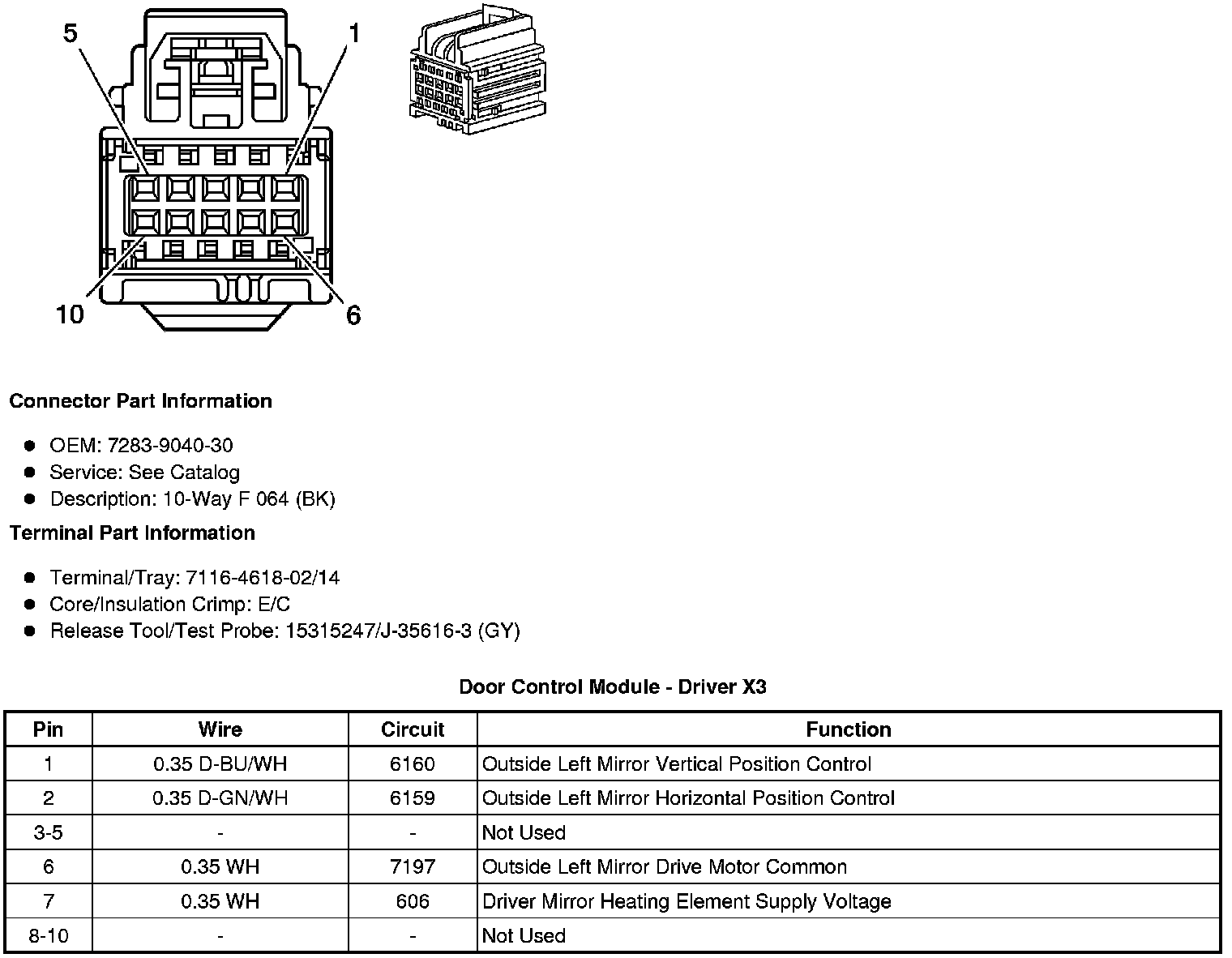

Door Control Module - Driver X3

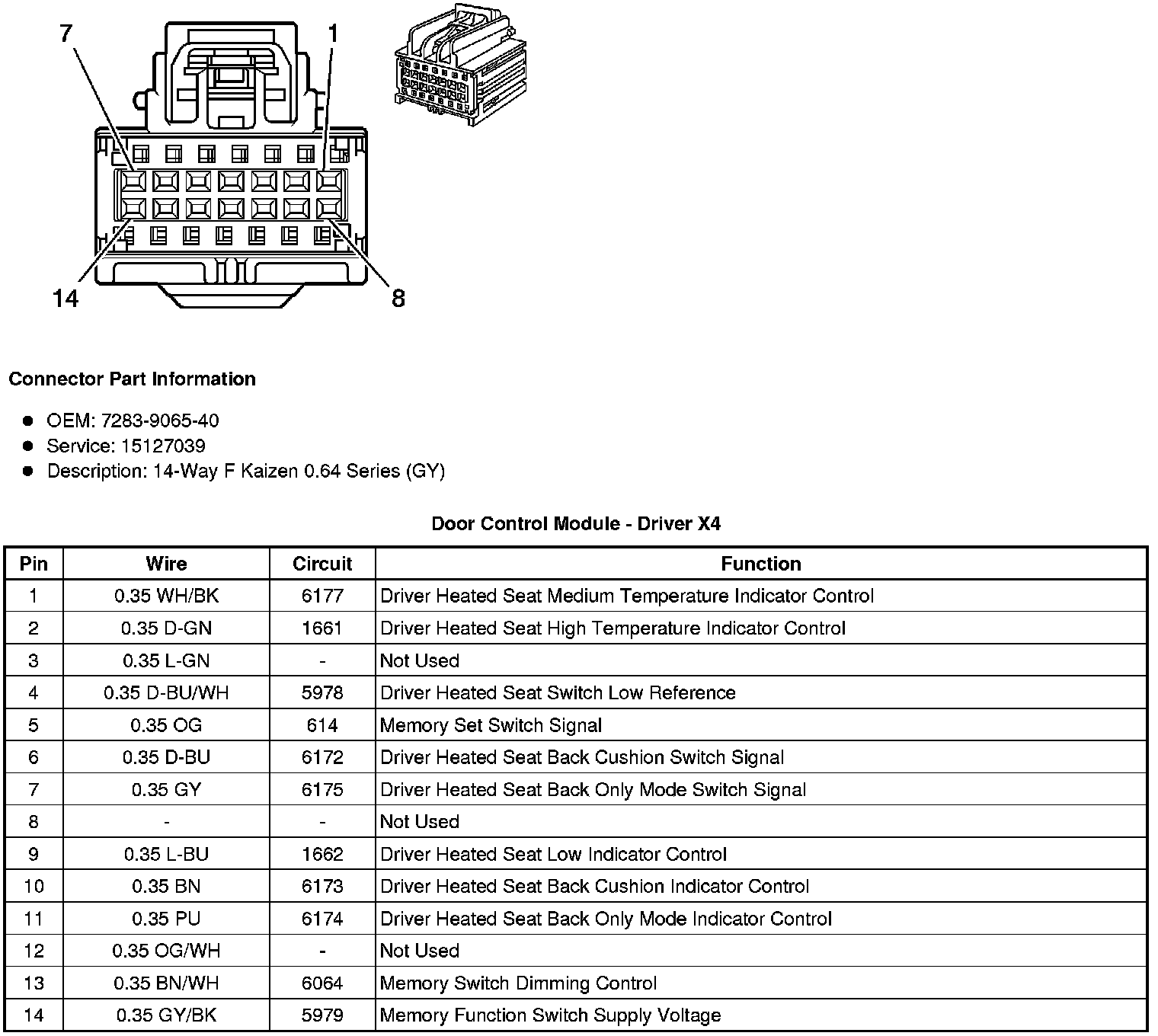

Door Control Module - Driver X4

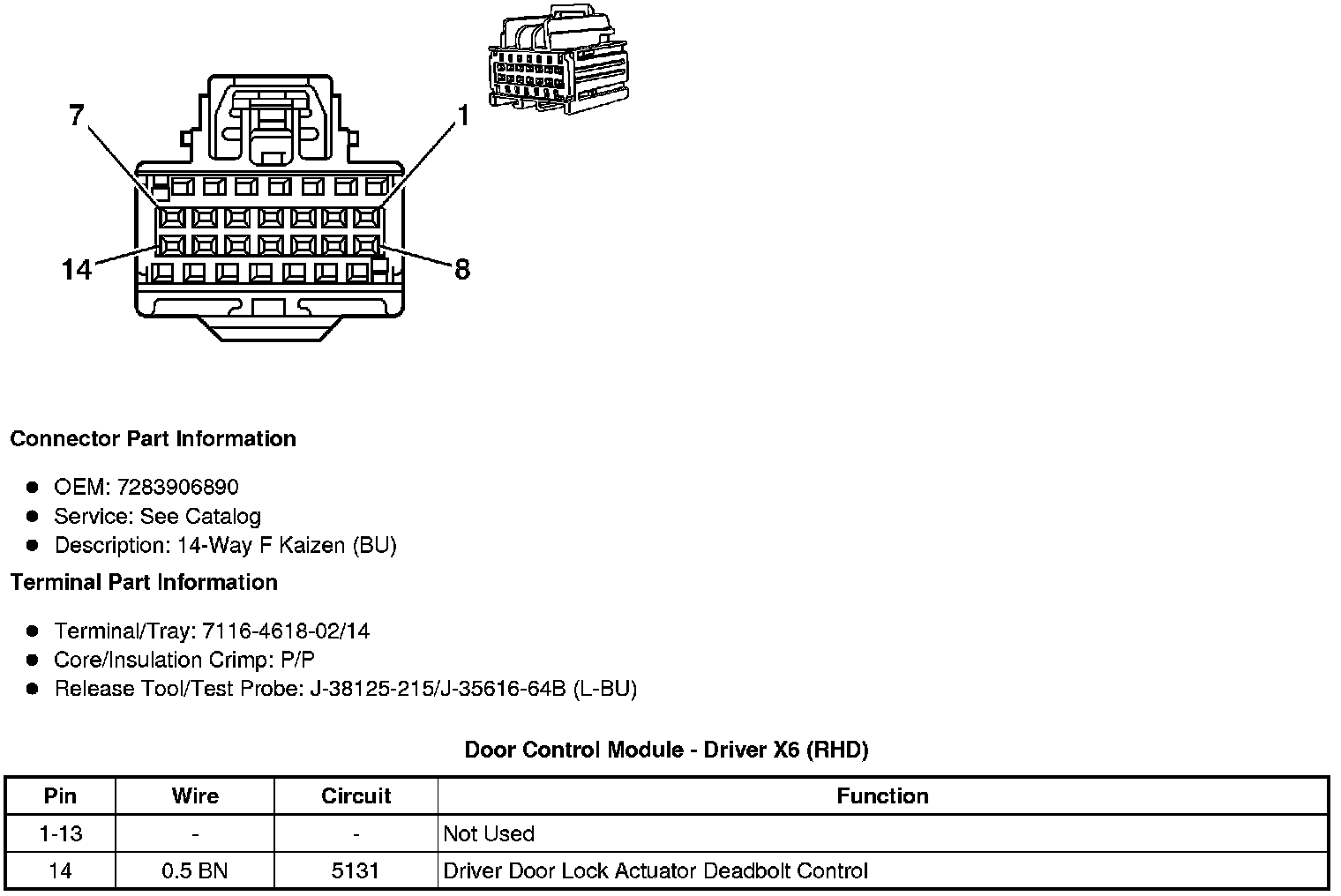

Door Control Module - Driver X6 (RHD)

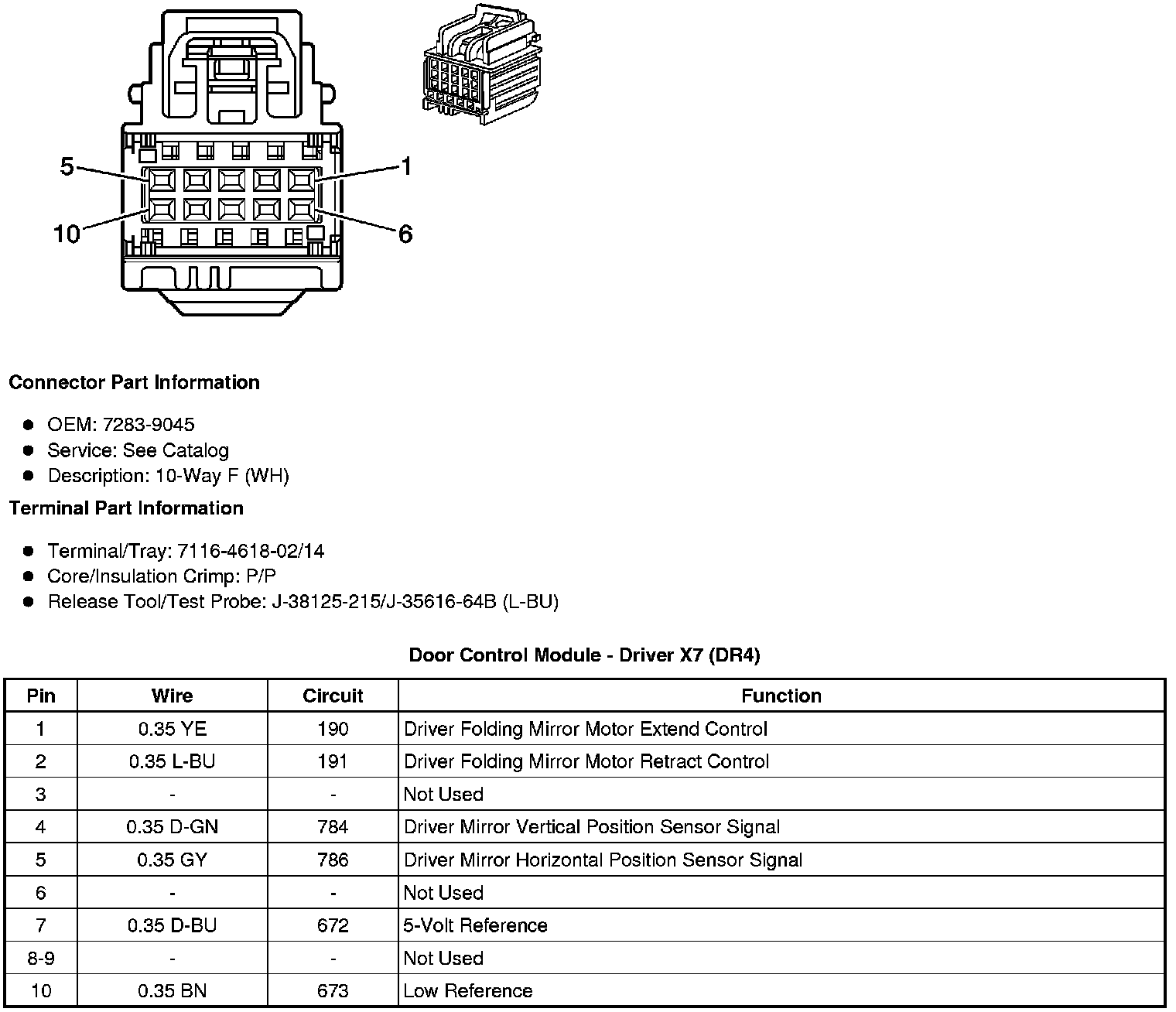

Door Control Module - Driver X7 (DR4)

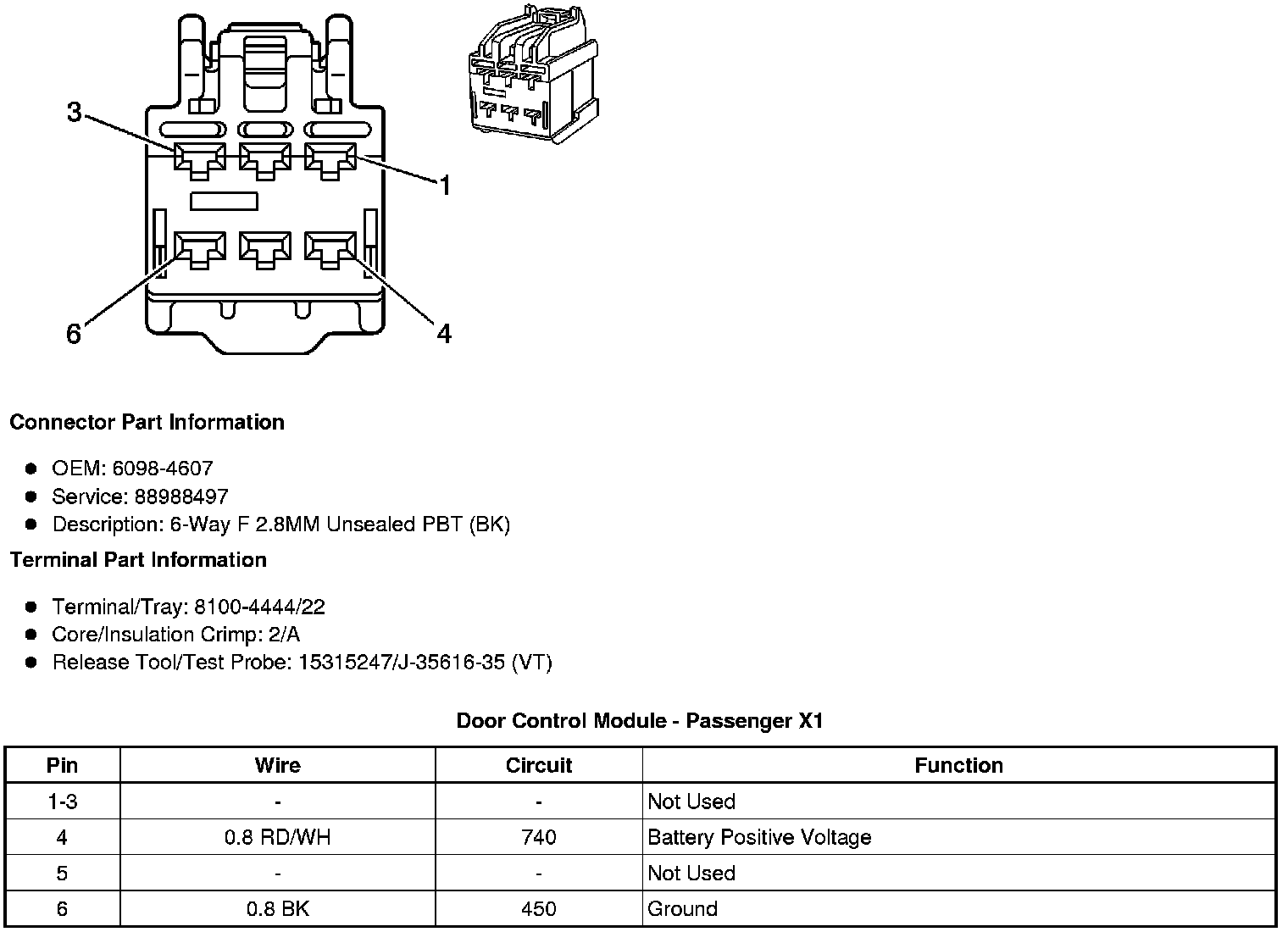

Door Control Module - Passenger X1

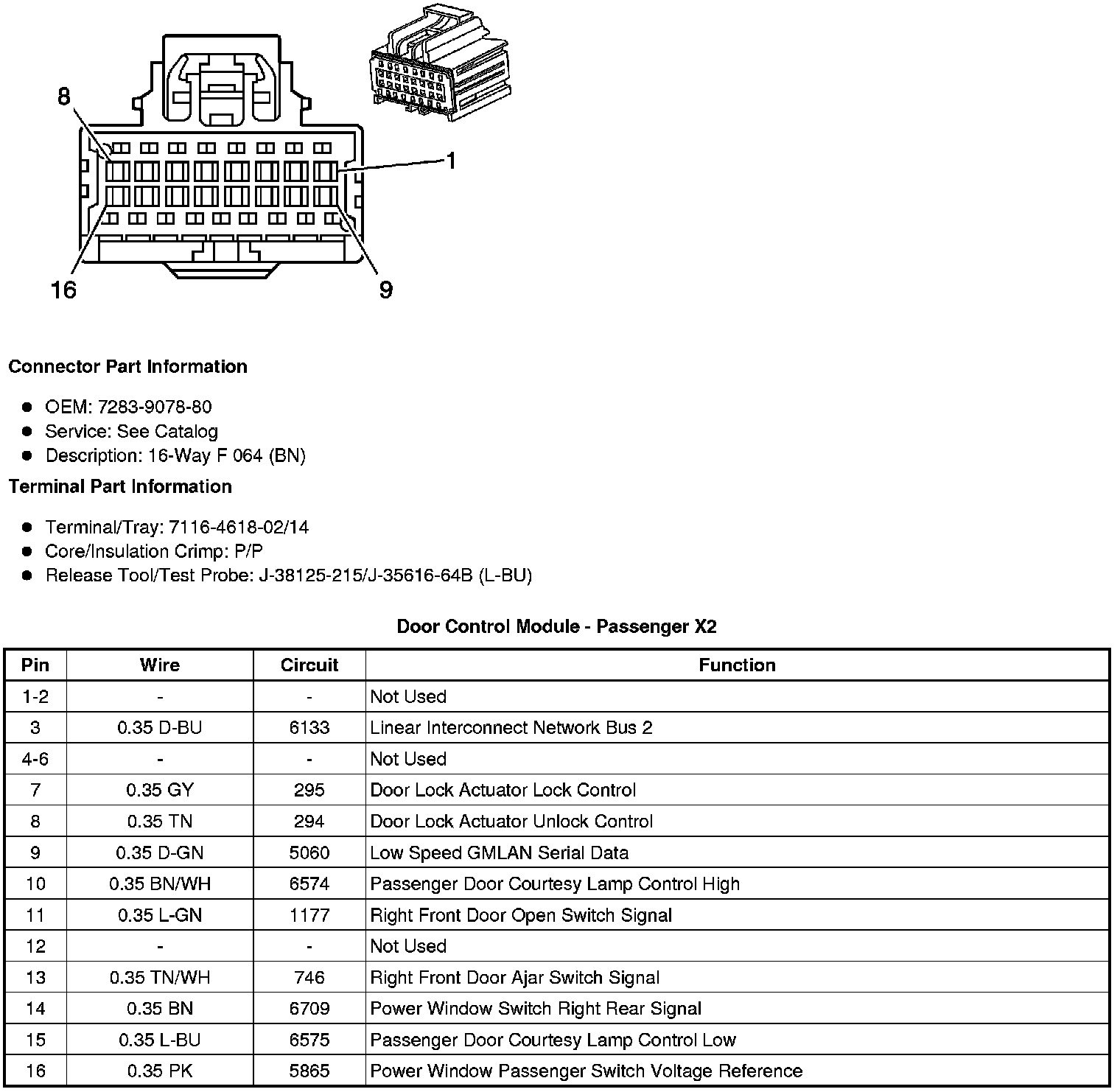

Door Control Module - Passenger X2

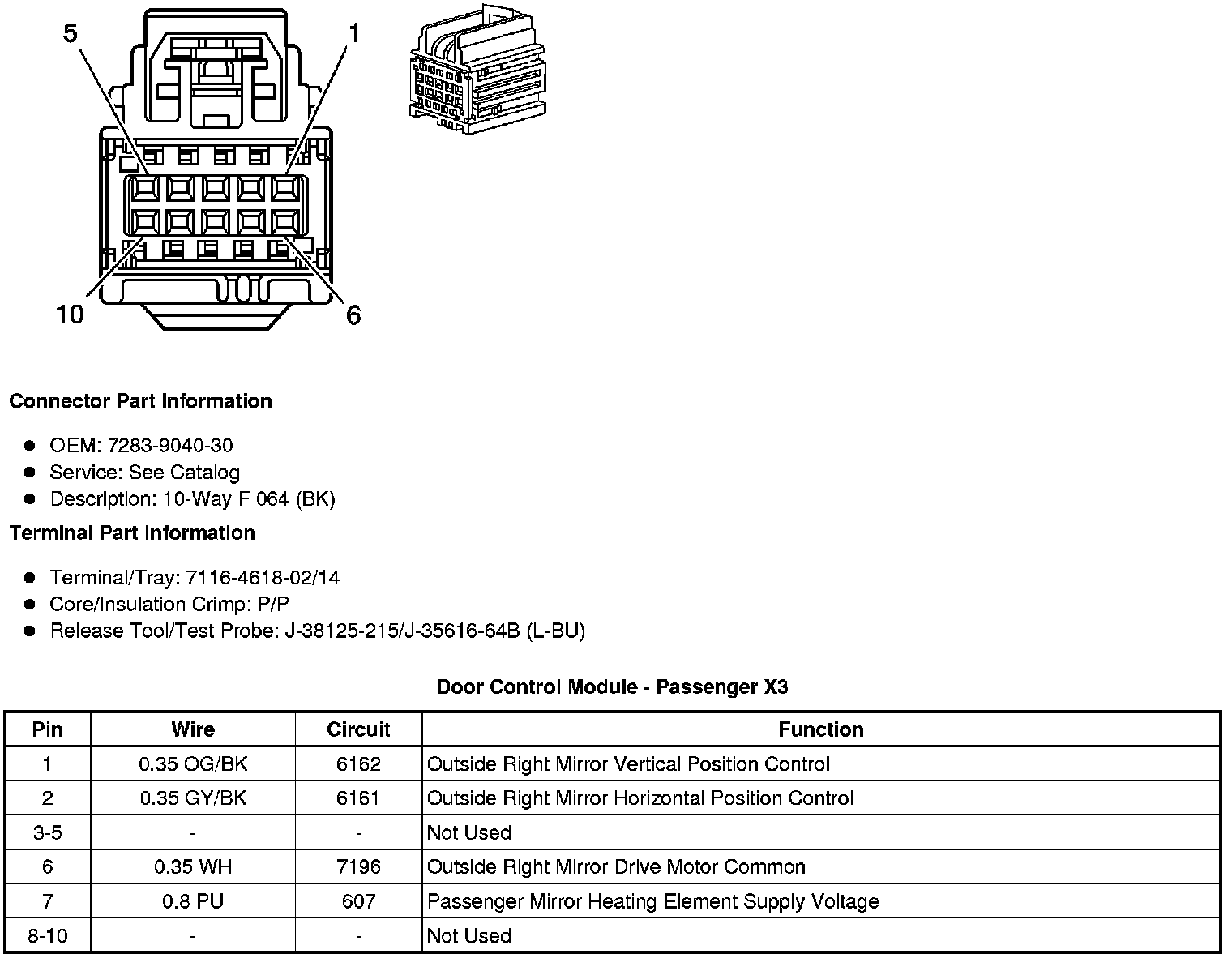

Door Control Module - Passenger X3

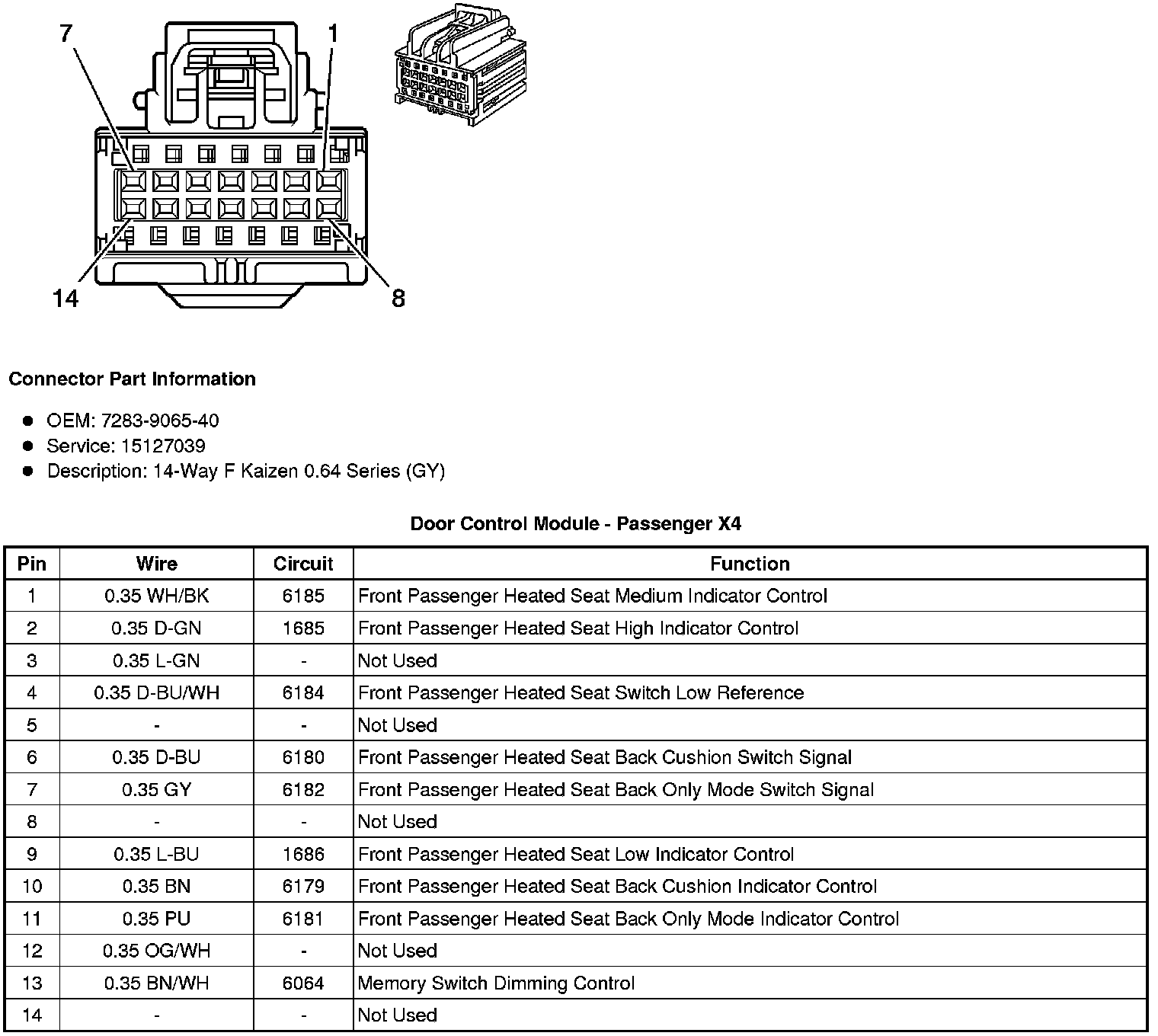

Door Control Module - Passenger X4

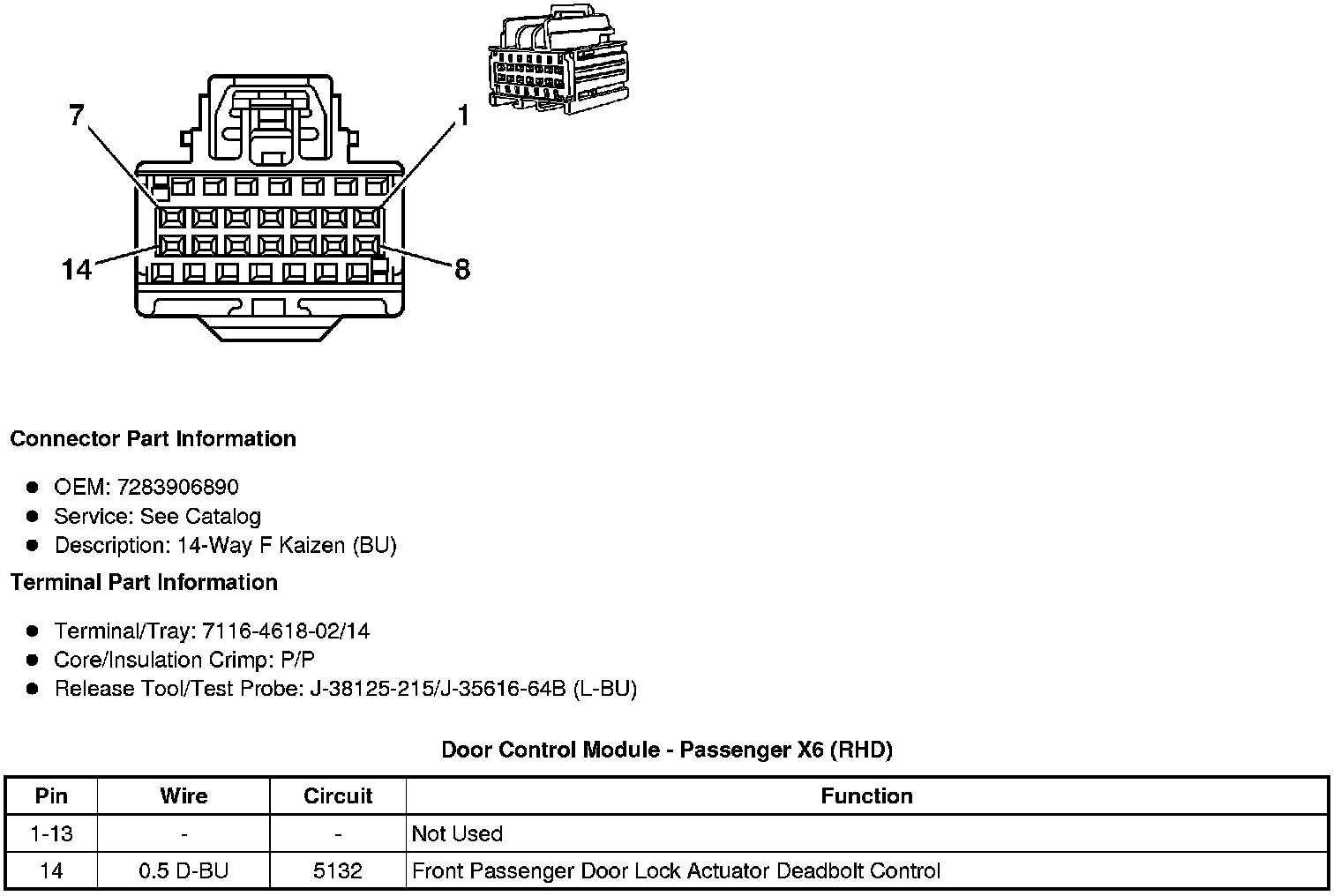

Door Control Module - Passenger X6 (RHD)

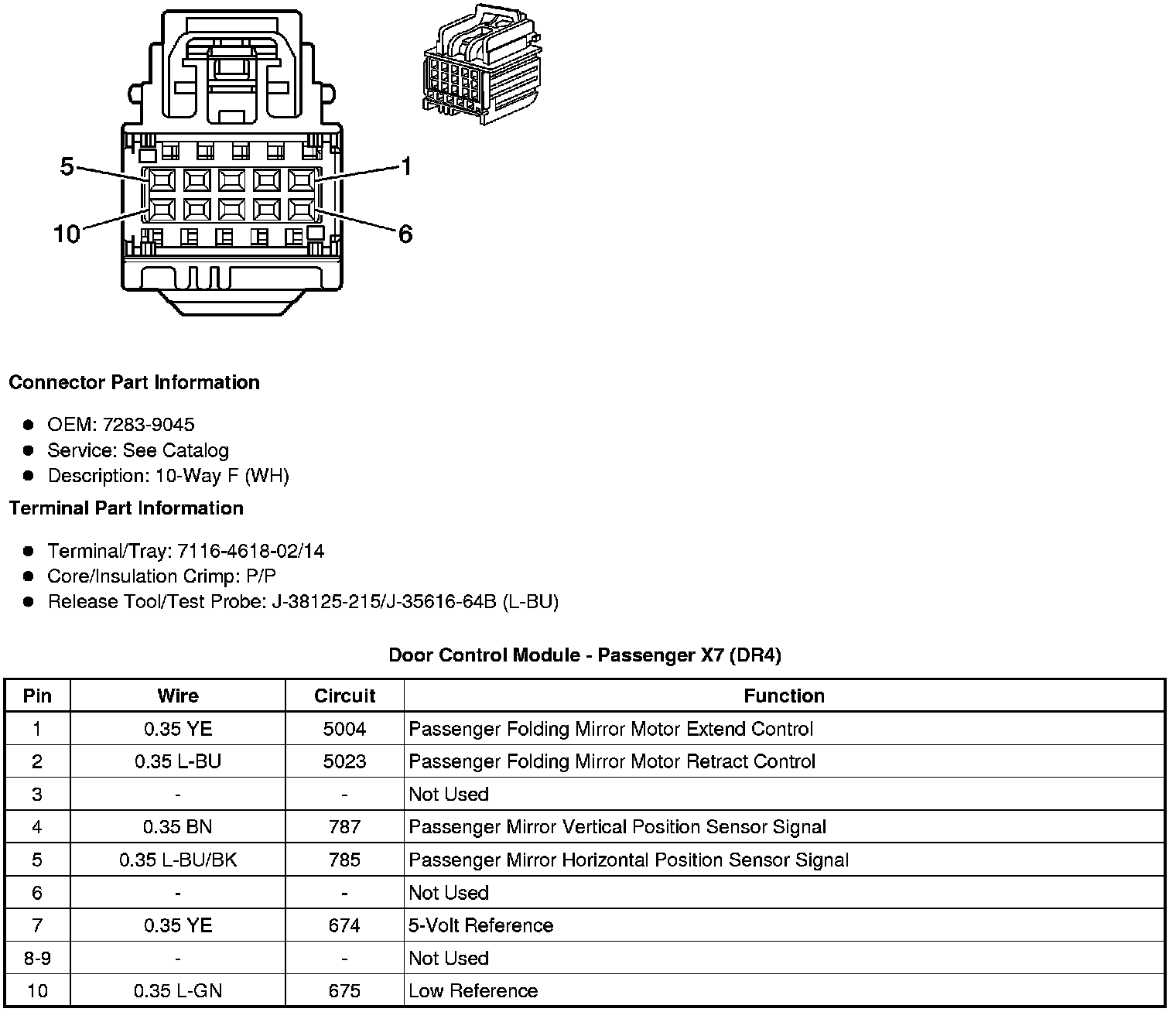

Door Control Module - Passenger X7 (DR4)
