Horn

Component Connector End Views

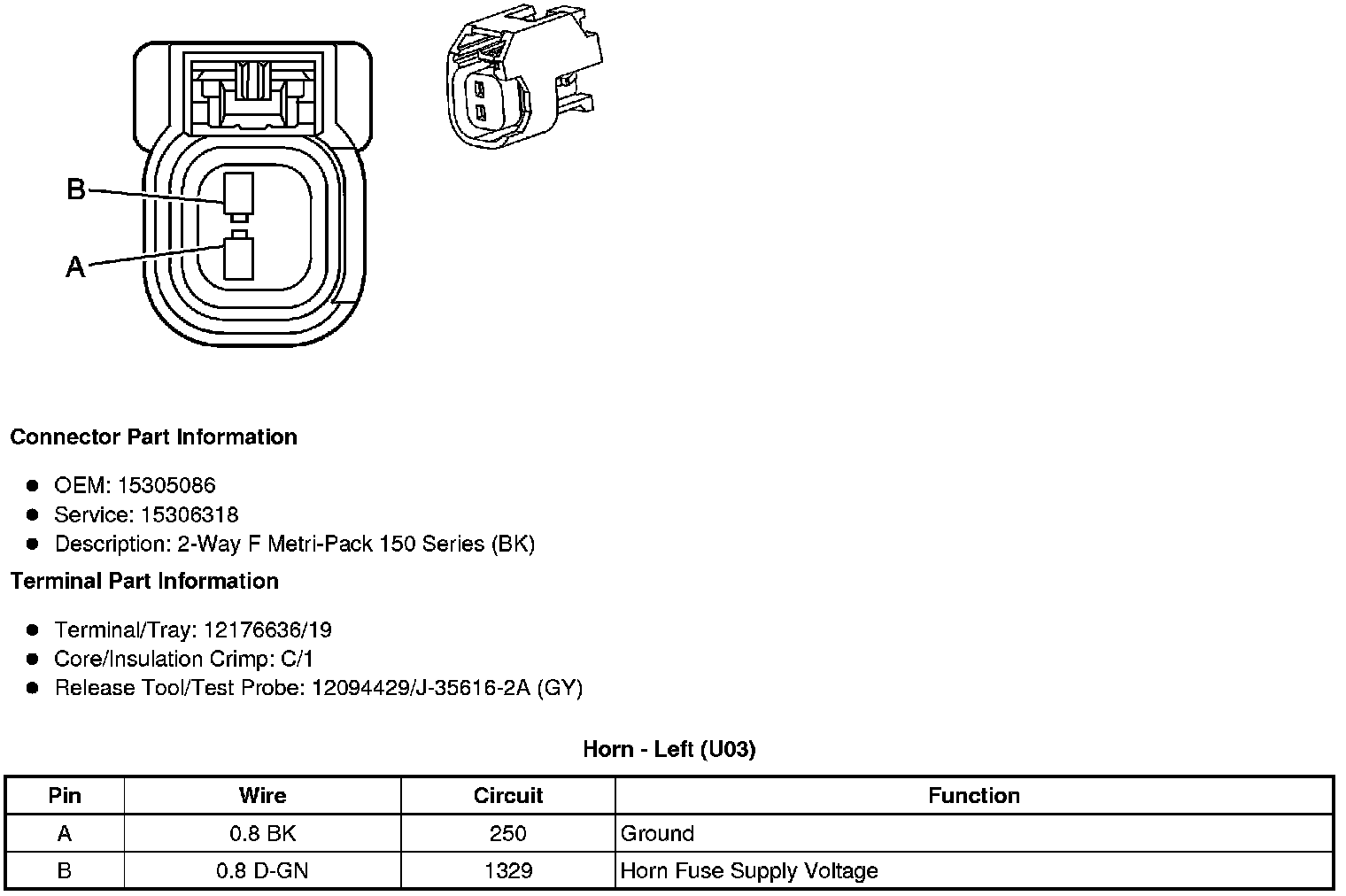

Horn - Left (U03)

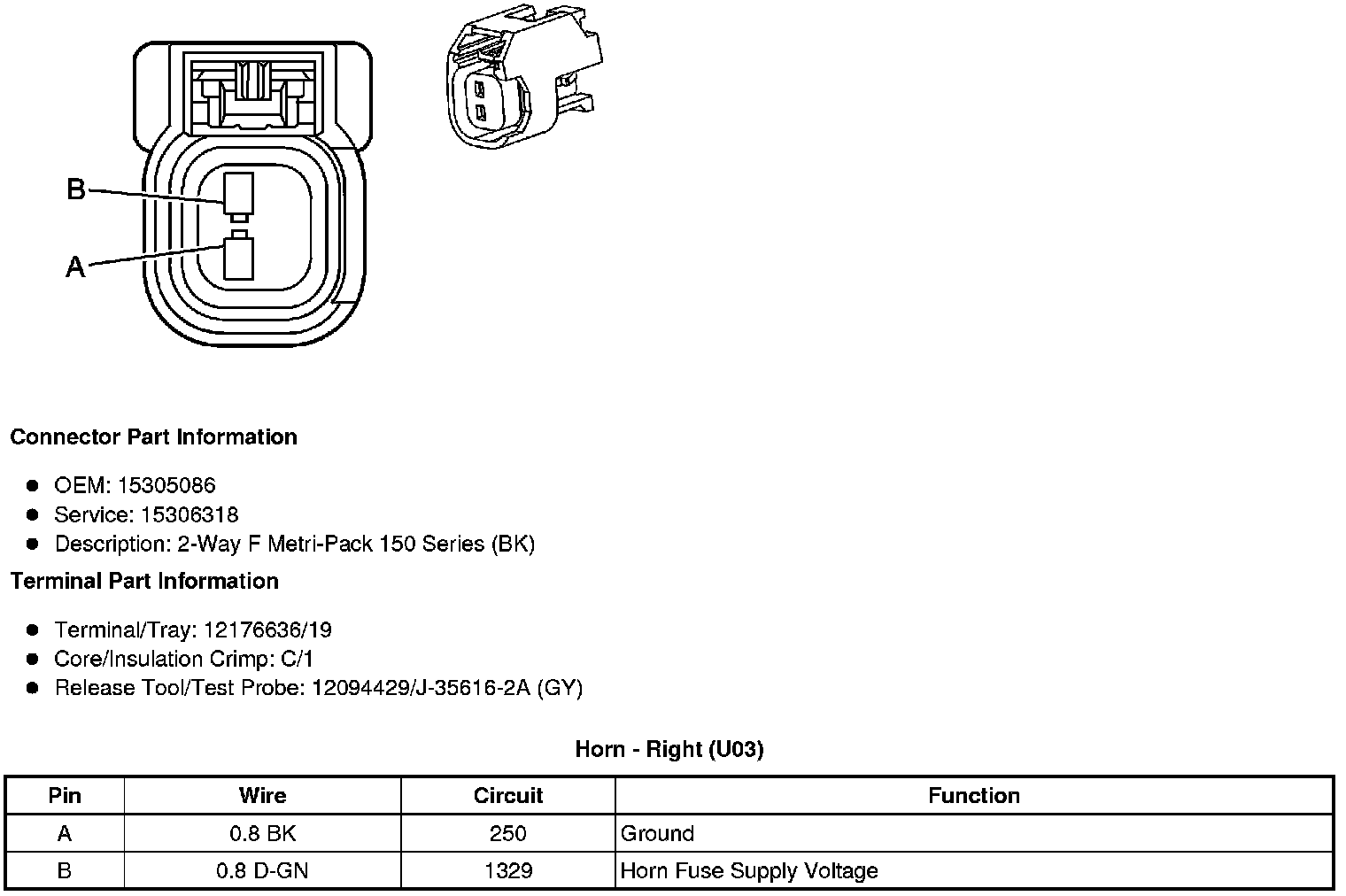

Horn - Right (U03)

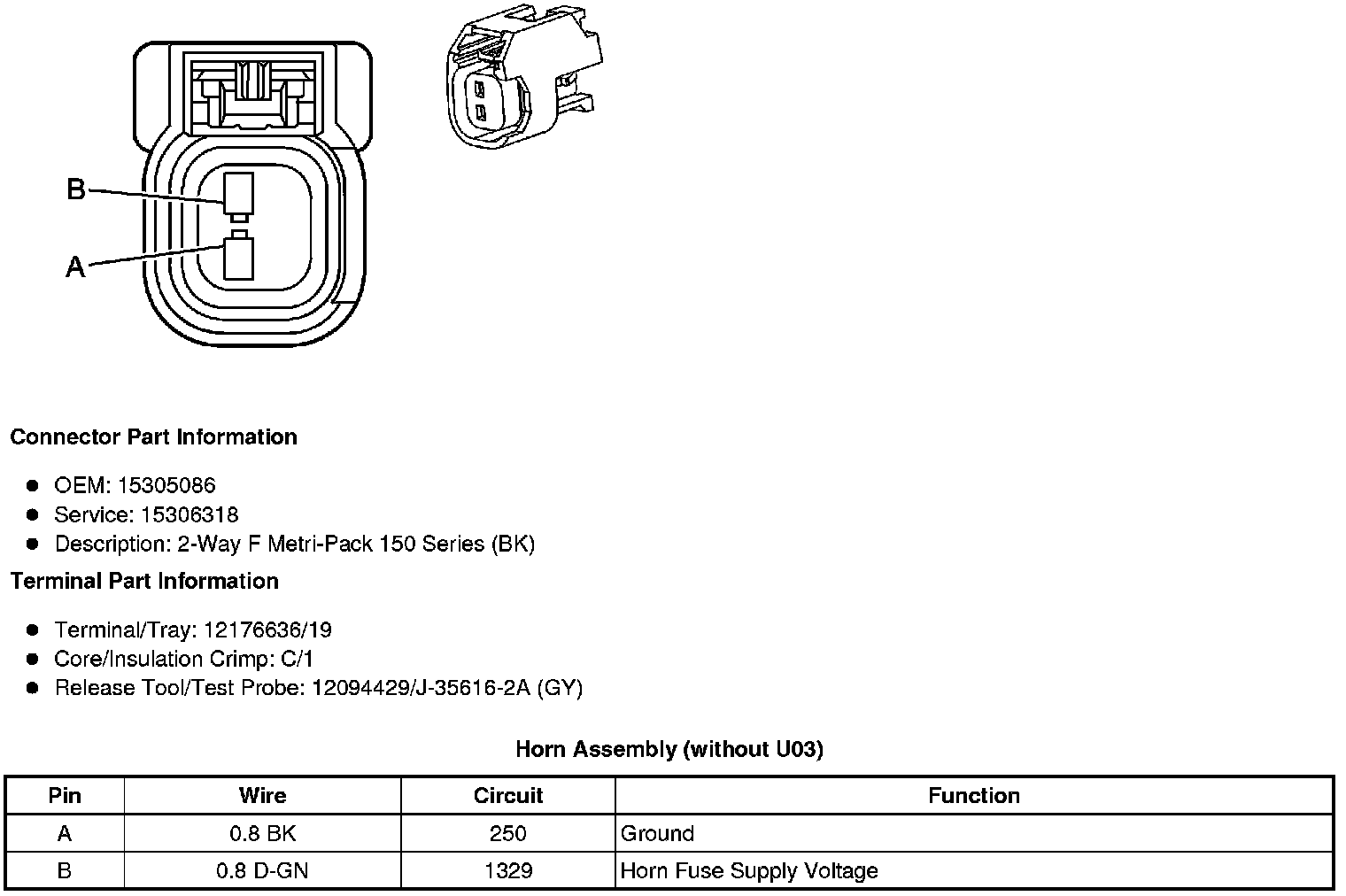

Horn Assembly (without U03)
