Pedal Positioning Sensor
Pedal Positioning Sensor
Component Connector End Views

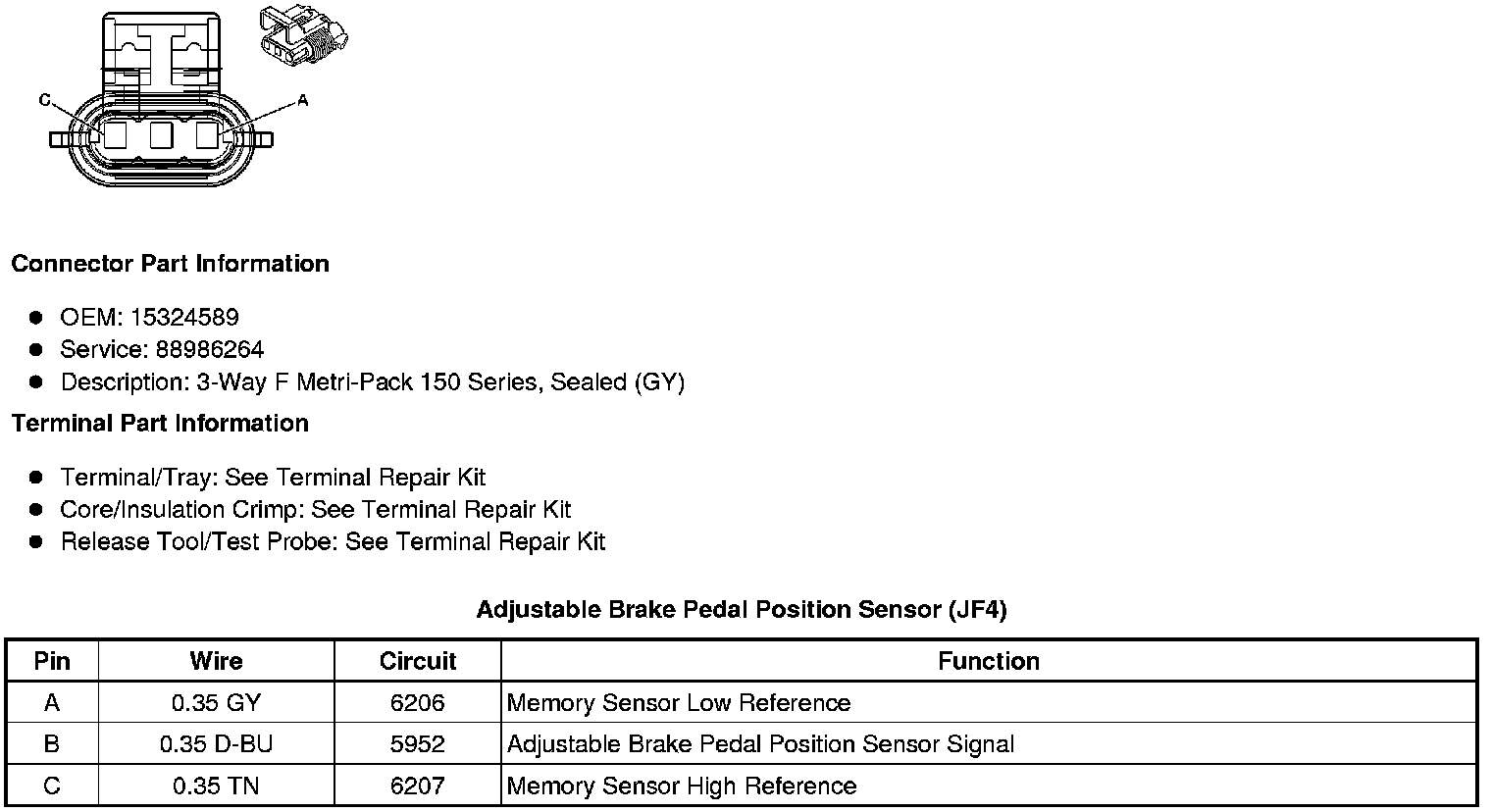

Adjustable Brake Pedal Position Sensor (JF4)

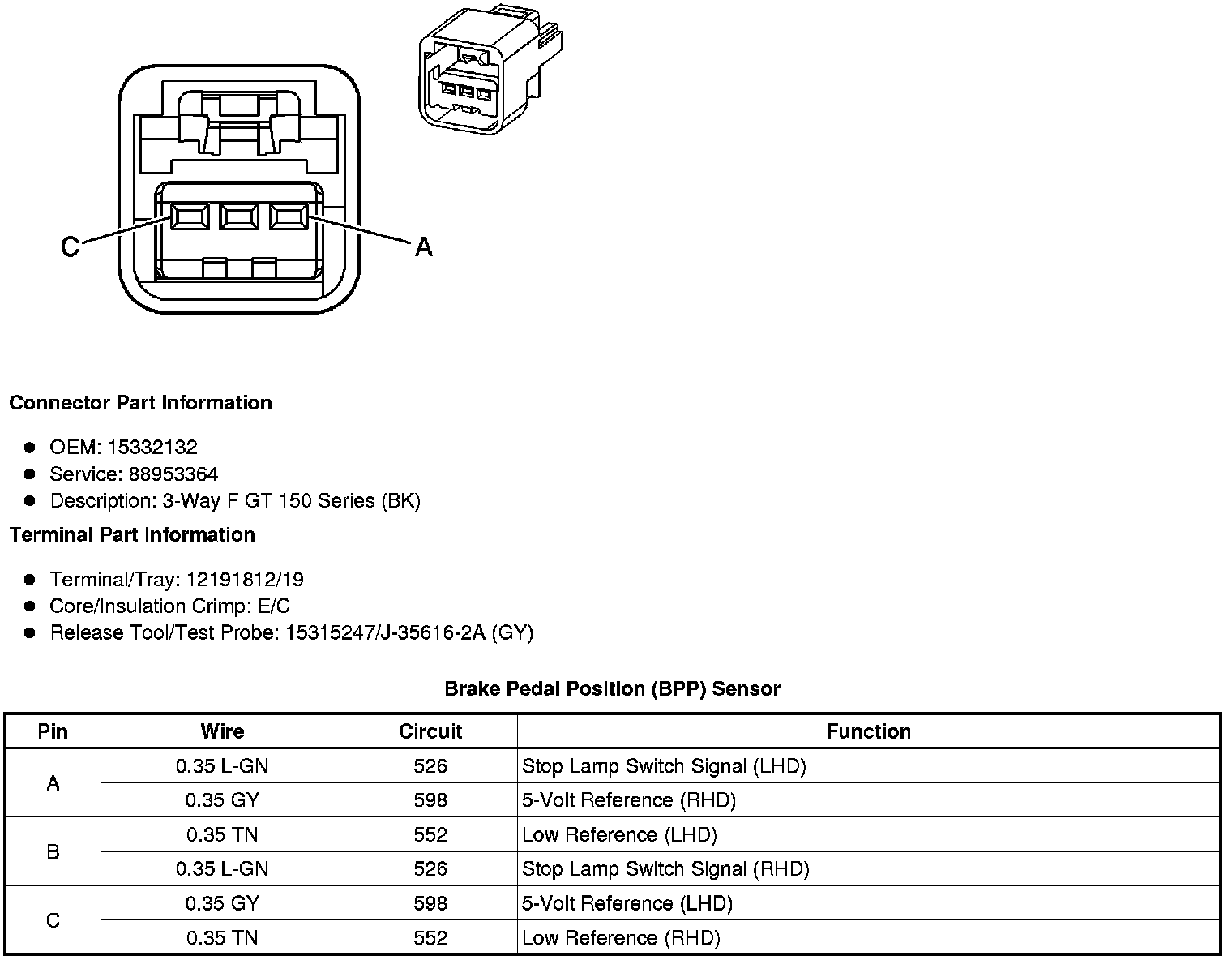

Brake Pedal Position (BPP) Sensor
