Power Seat Motor
Component Connector End Views

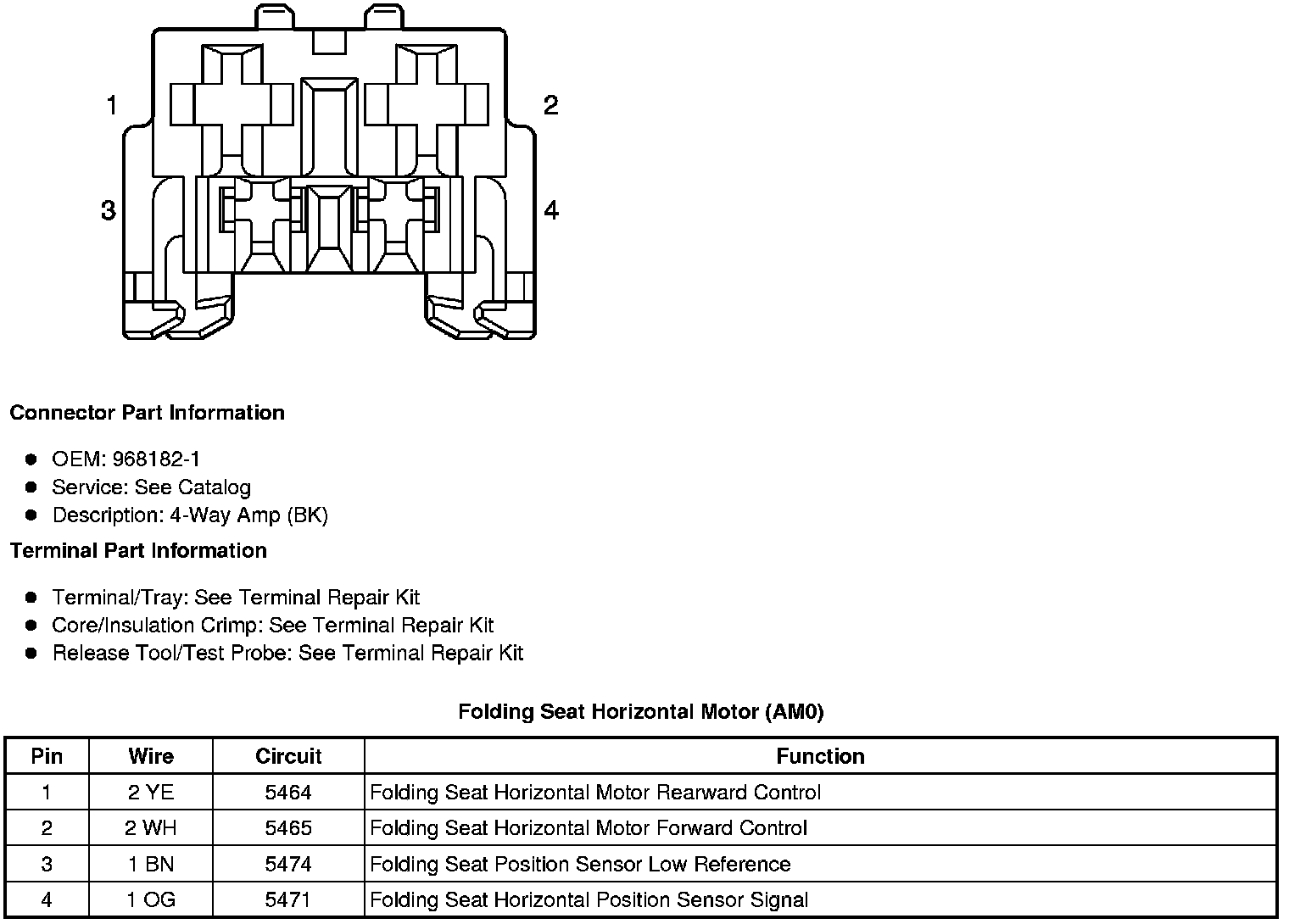

Folding Seat Horizontal Motor (AM0)
Folding Seat Recline Motor (AM0)
Folding Seat Rotation Motor (AM0)

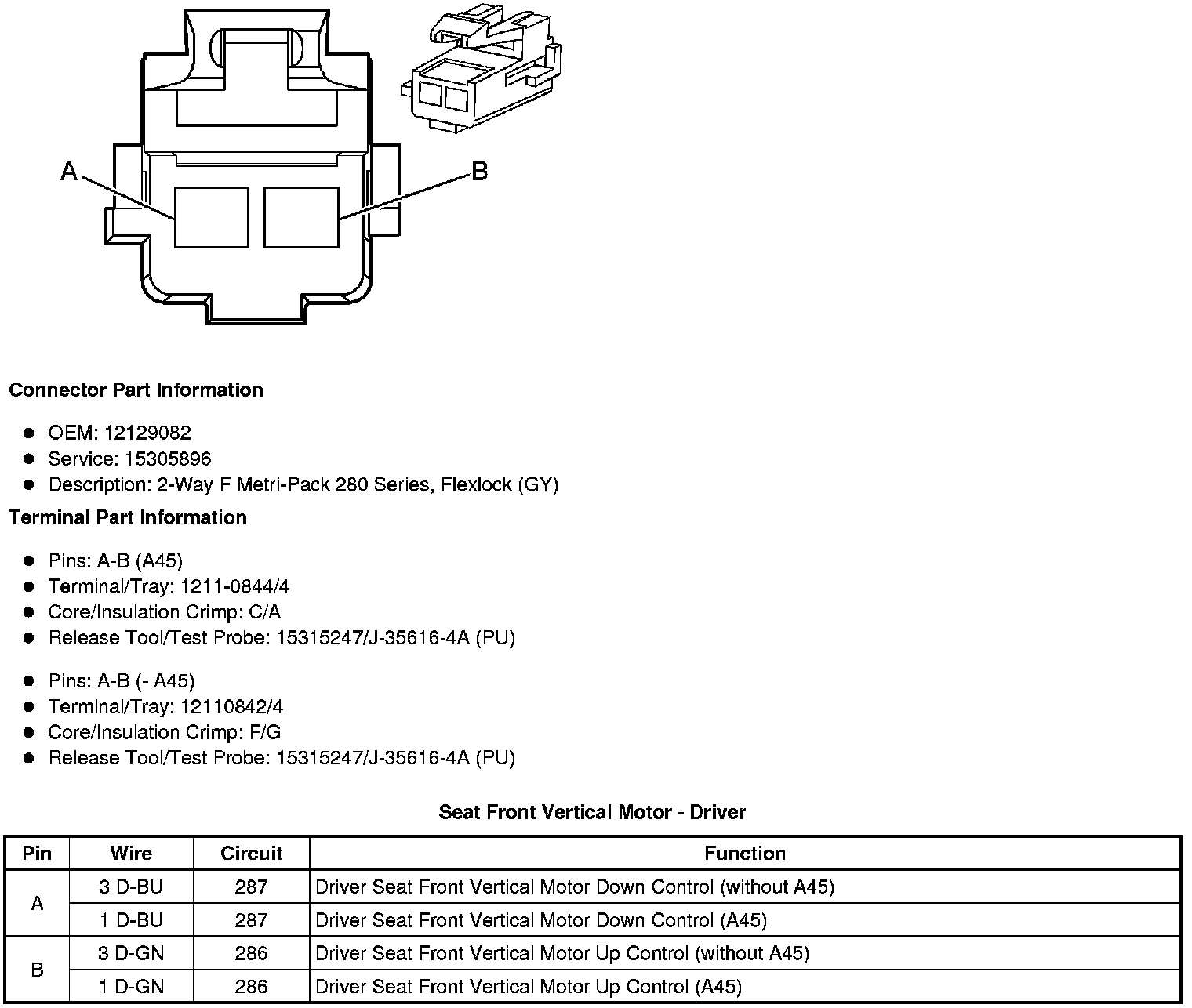

Seat Front Vertical Motor - Driver

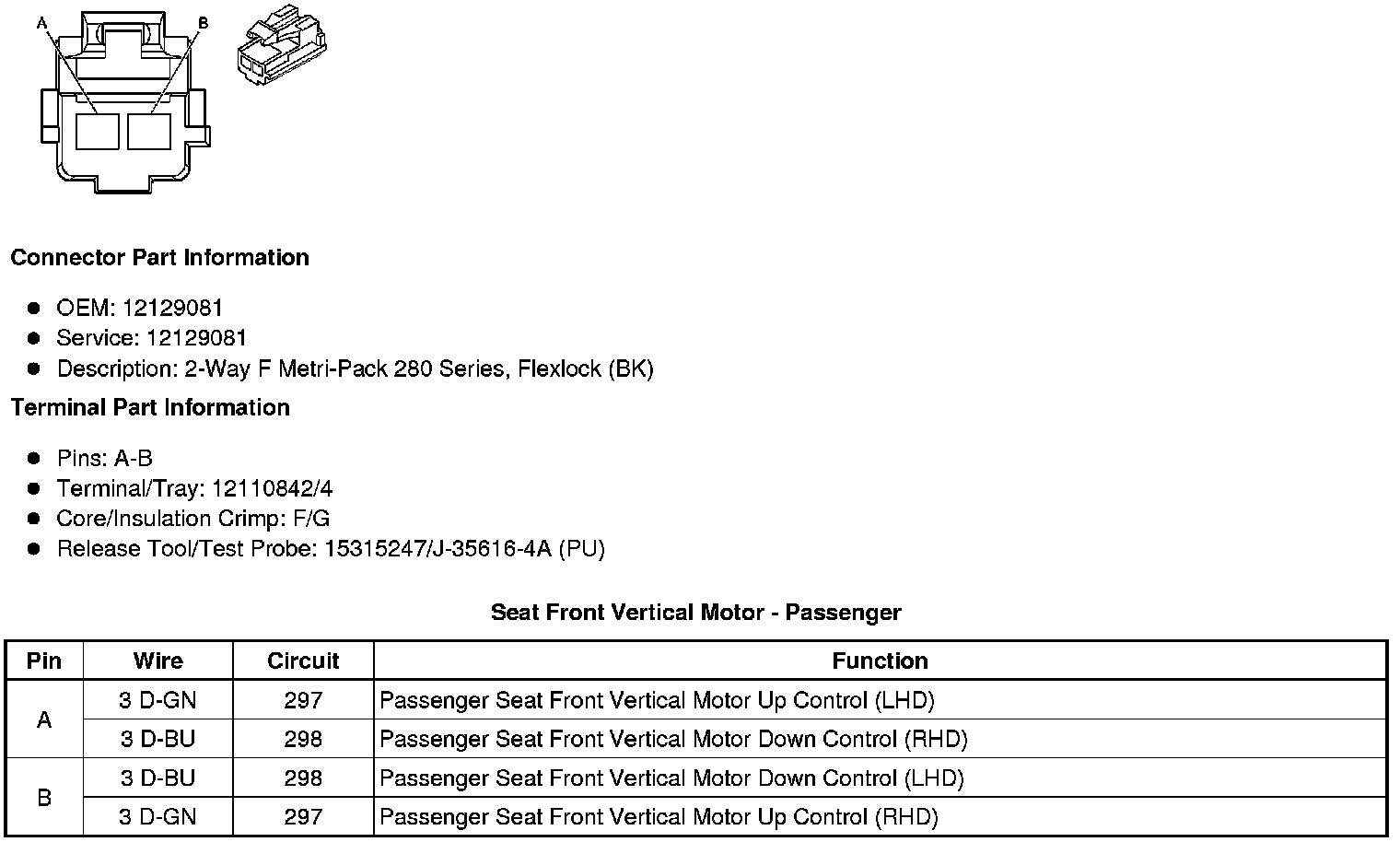

Seat Front Vertical Motor - Passenger

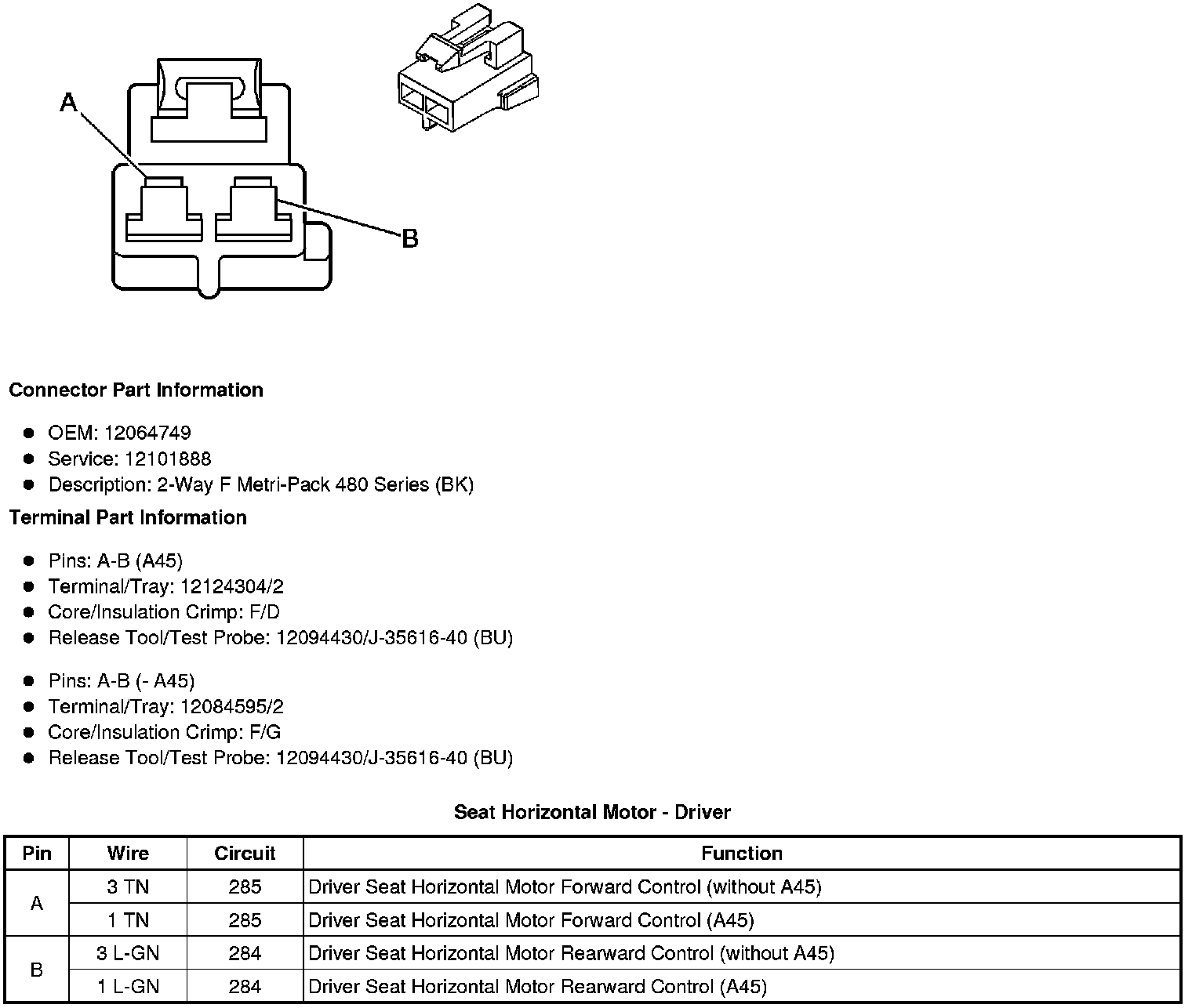

Seat Horizontal Motor - Driver

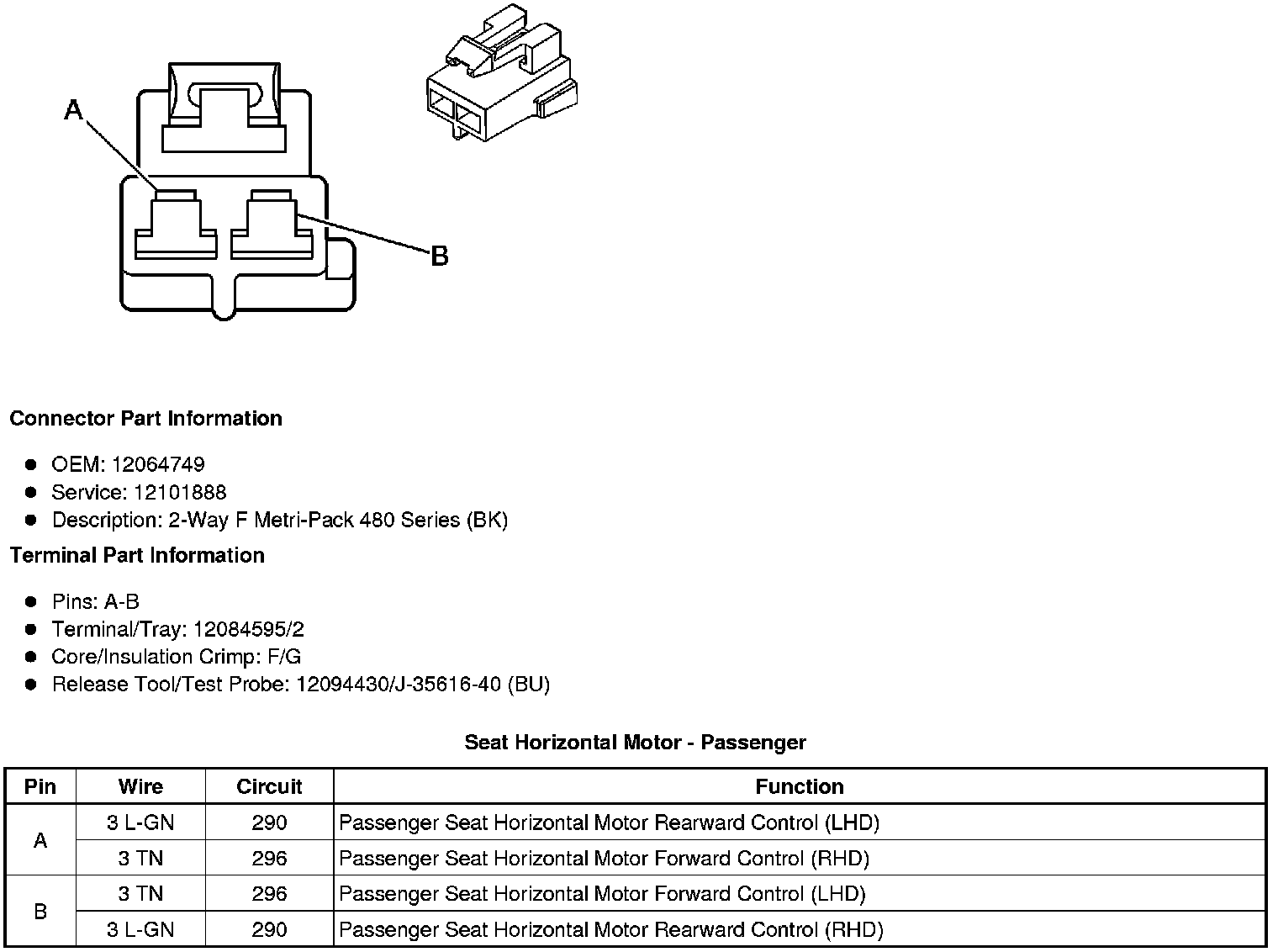

Seat Horizontal Motor - Passenger

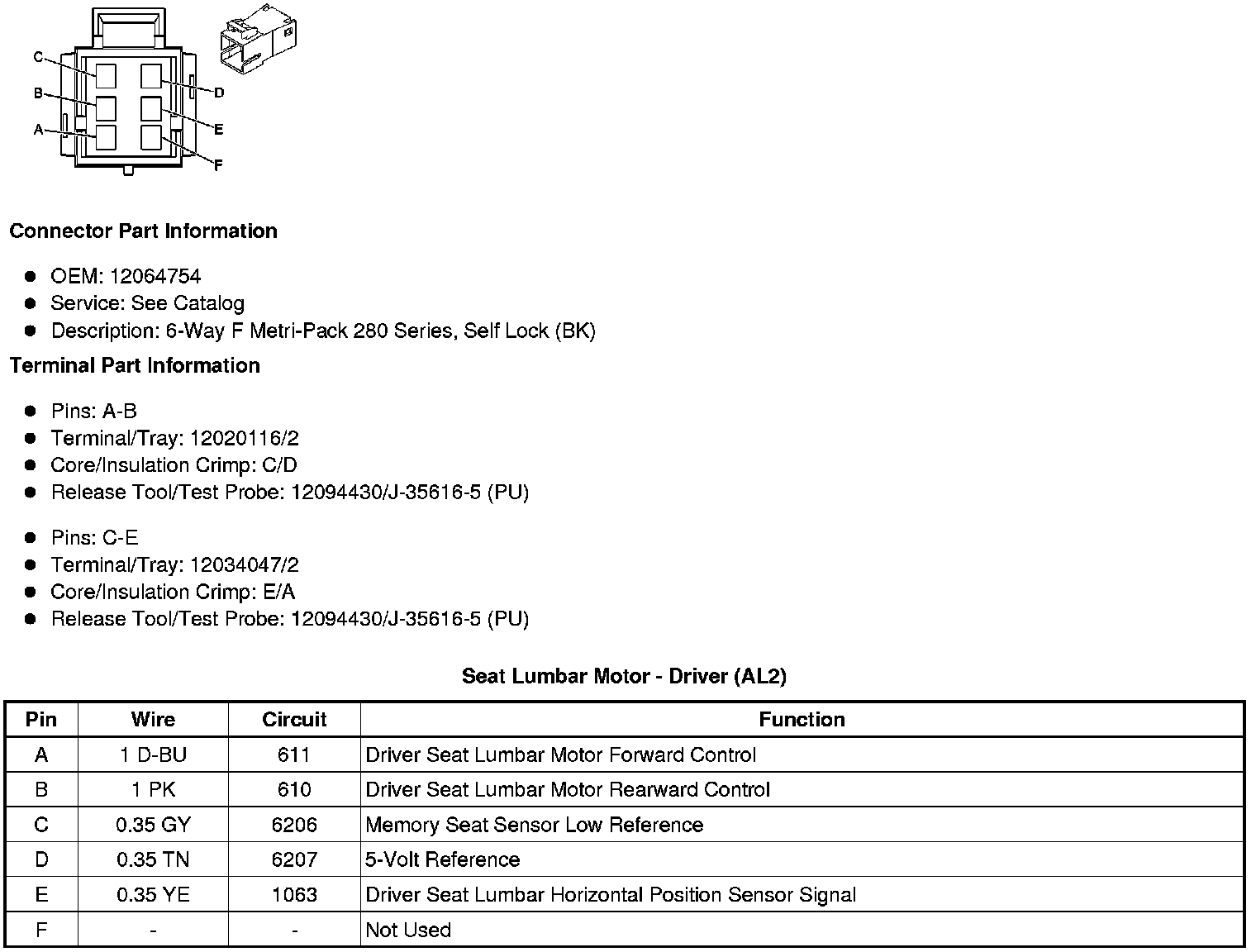

Seat Lumbar Motor - Driver (AL2)

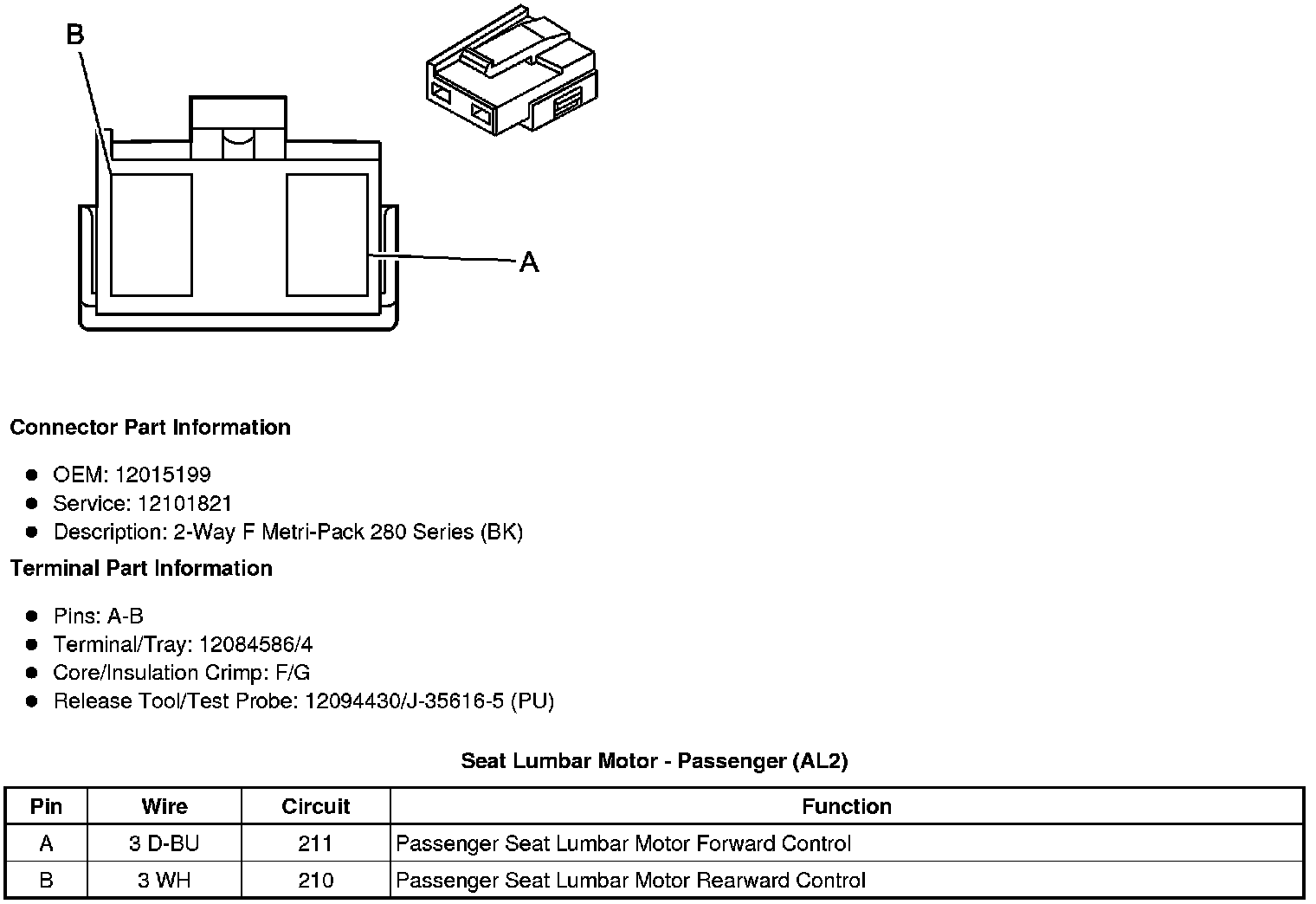

Seat Lumbar Motor - Passenger (AL2)

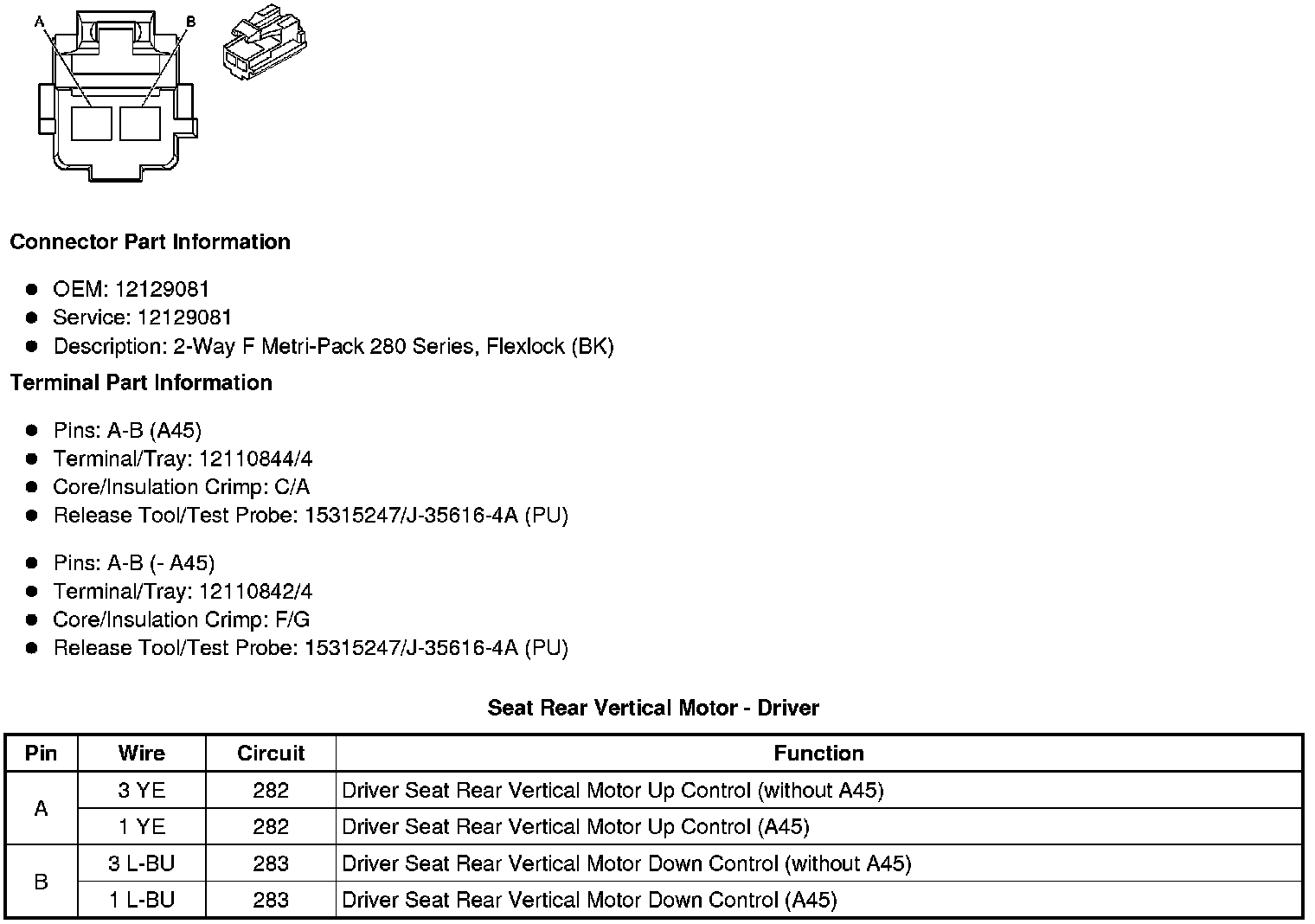

Seat Rear Vertical Motor - Driver

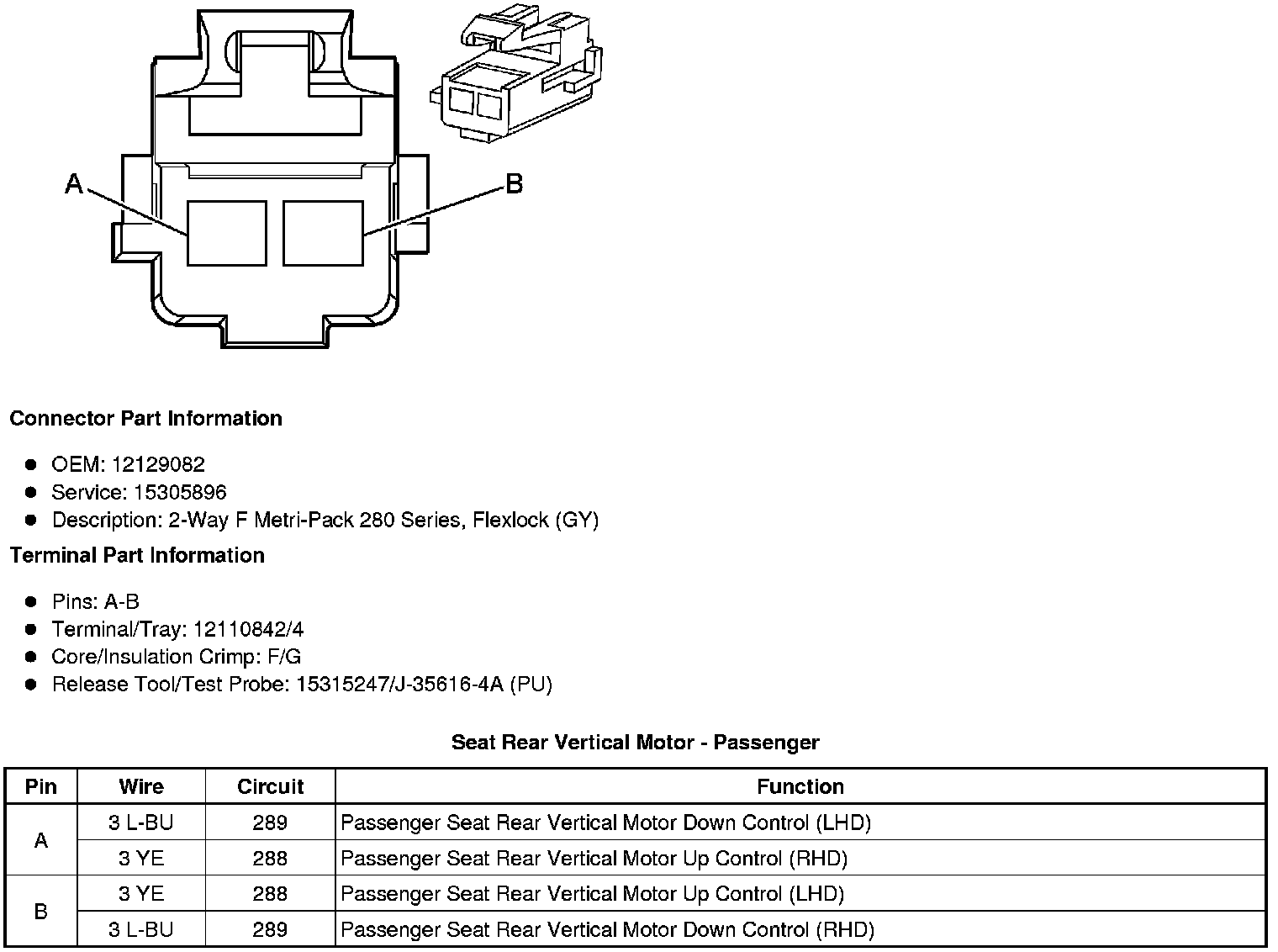

Seat Rear Vertical Motor - Passenger

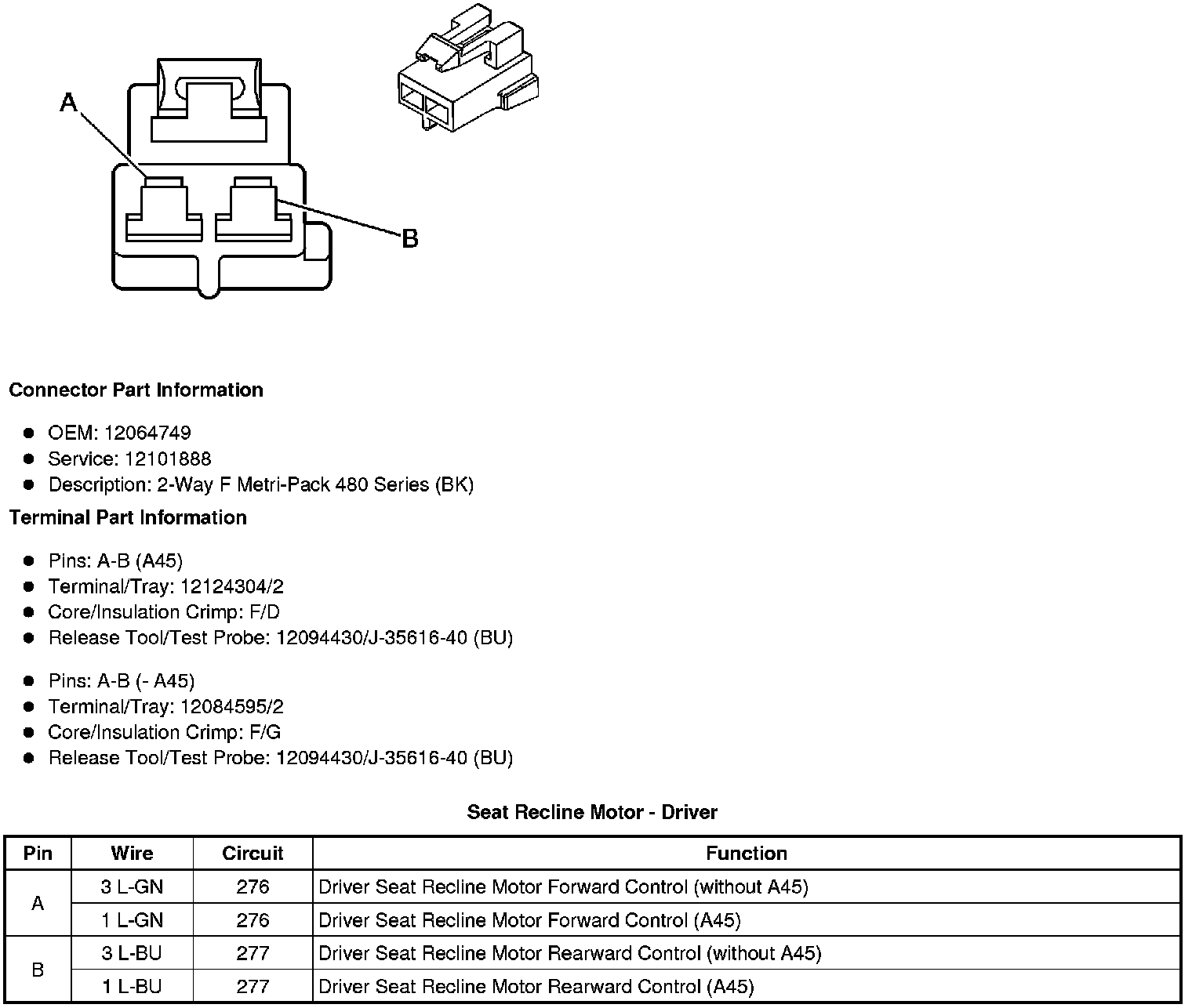

Seat Recline Motor - Driver

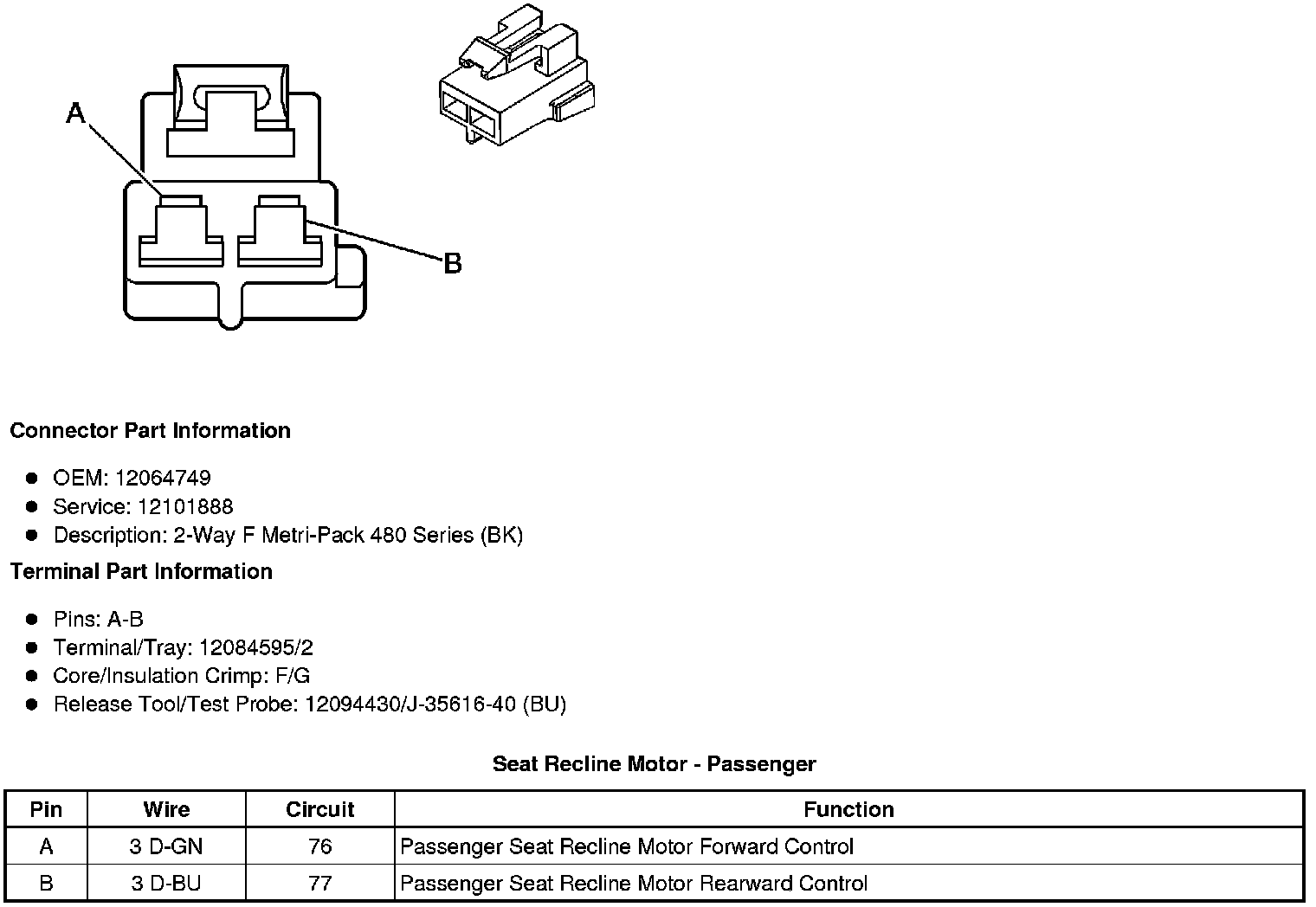

Seat Recline Motor - Passenger
