Power Seat Switch




Component Connector End Views

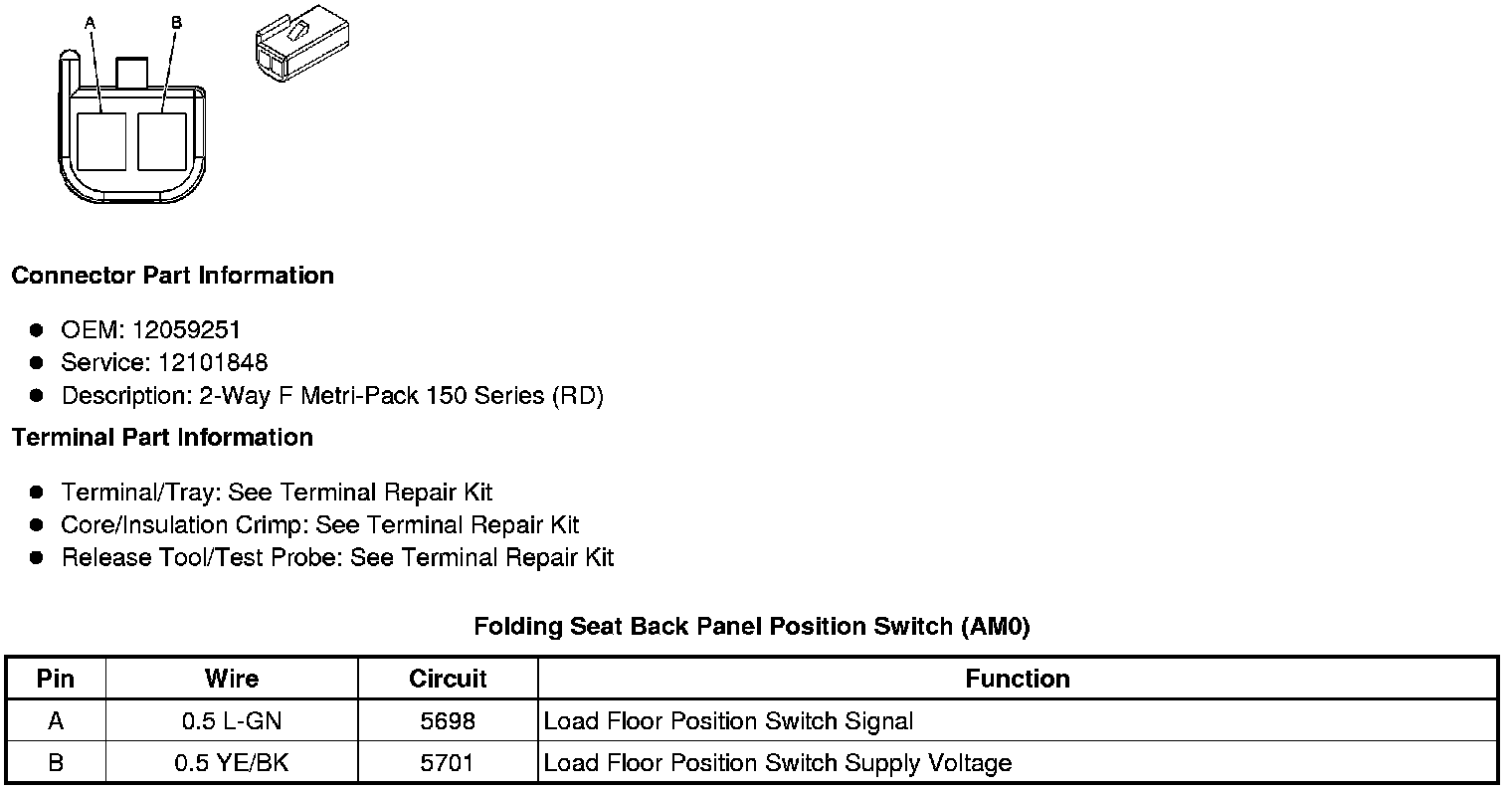

Folding Seat Back Panel Position Switch (AM0)

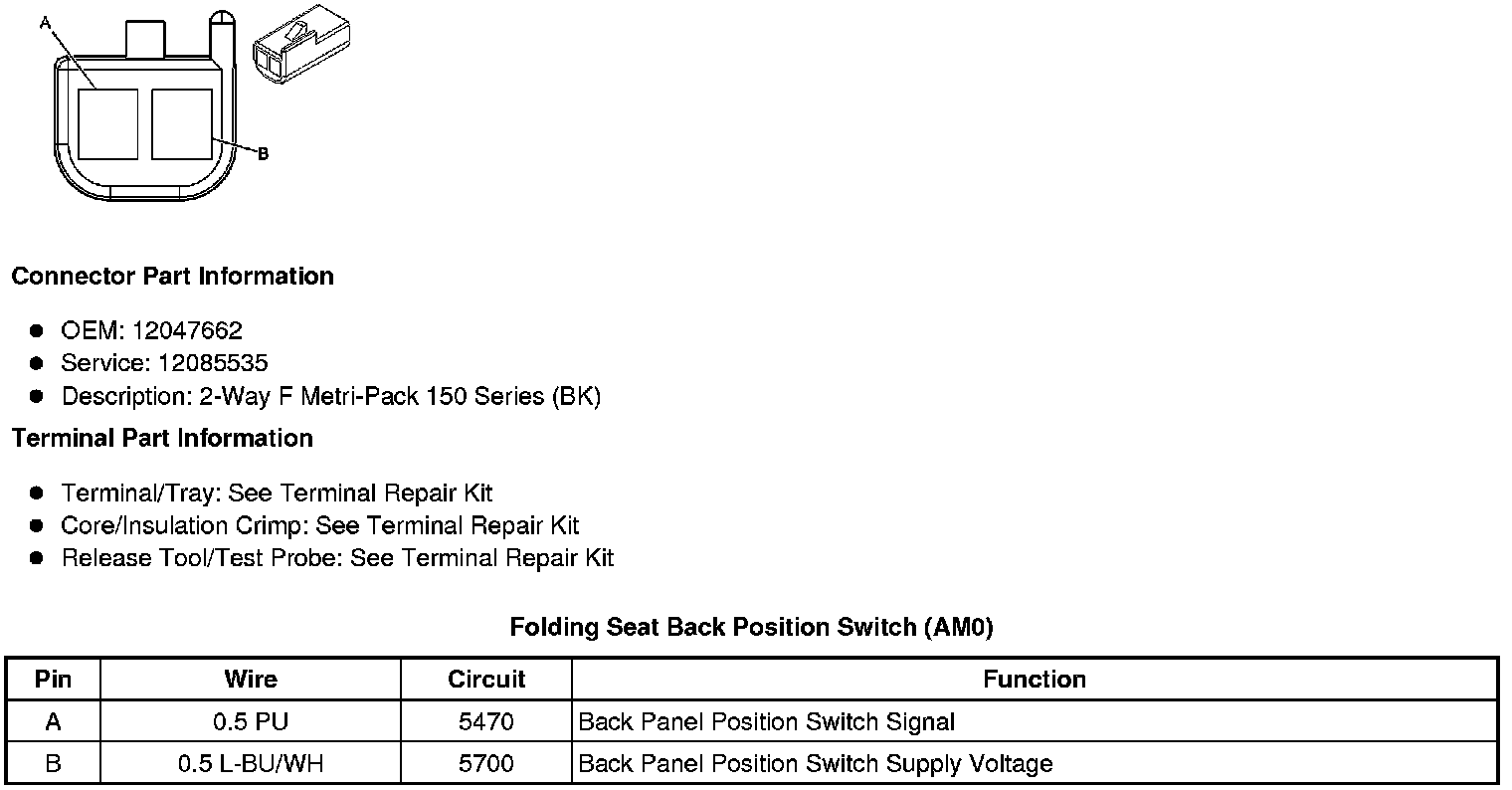

Folding Seat Back Position Switch (AM0)

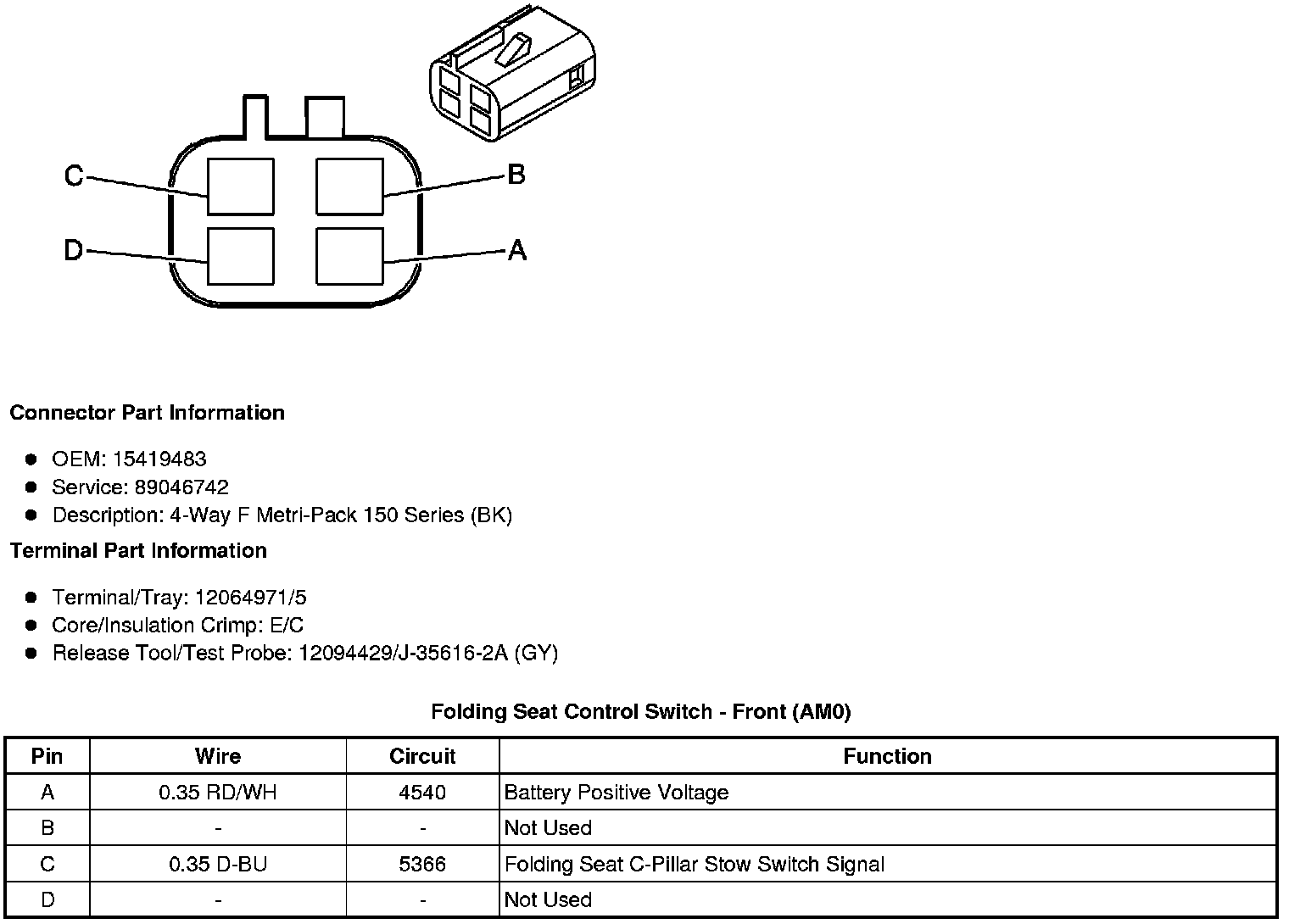

Folding Seat Control Switch - Front (AM0)

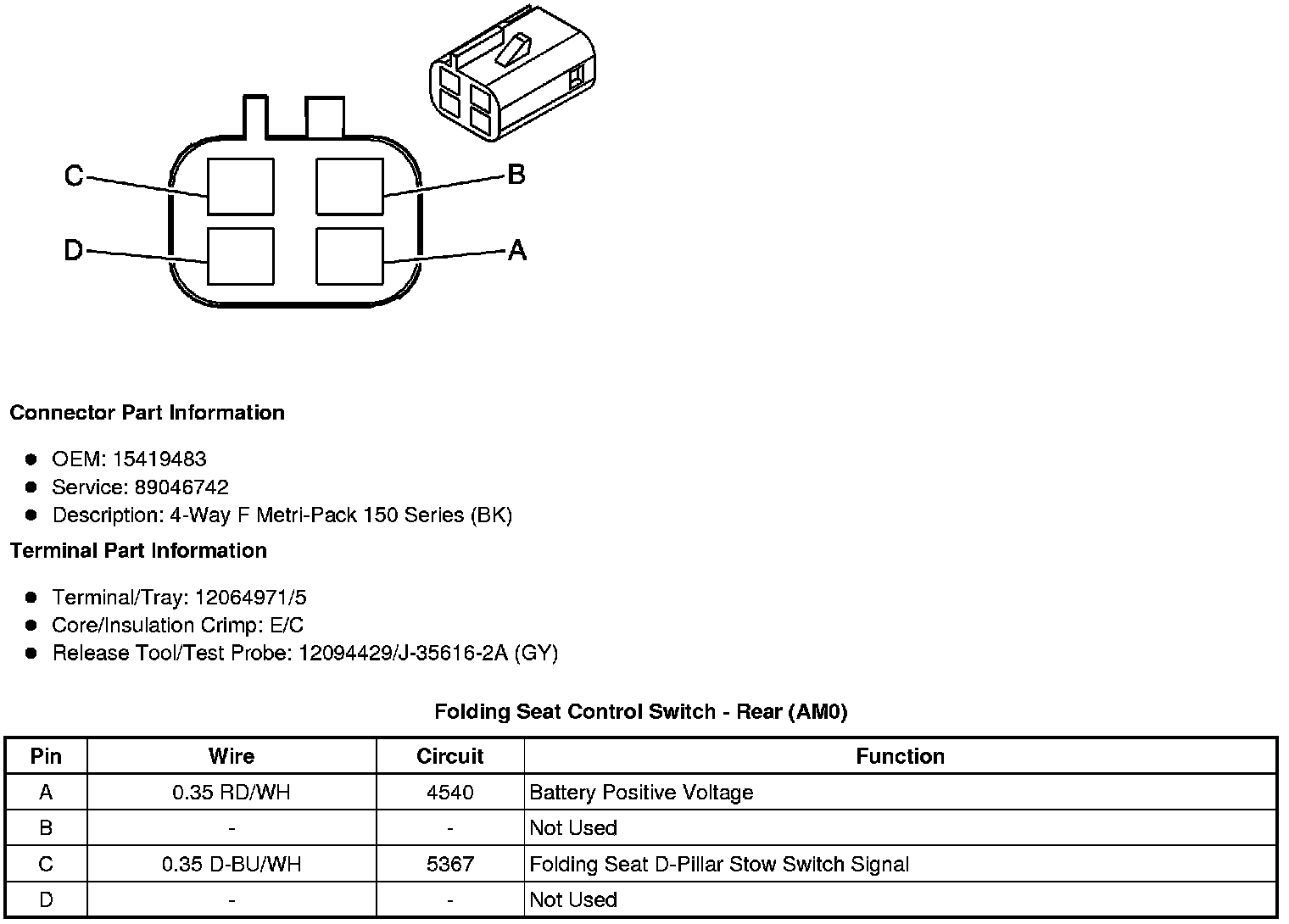

Folding Seat Control Switch - Rear (AM0)

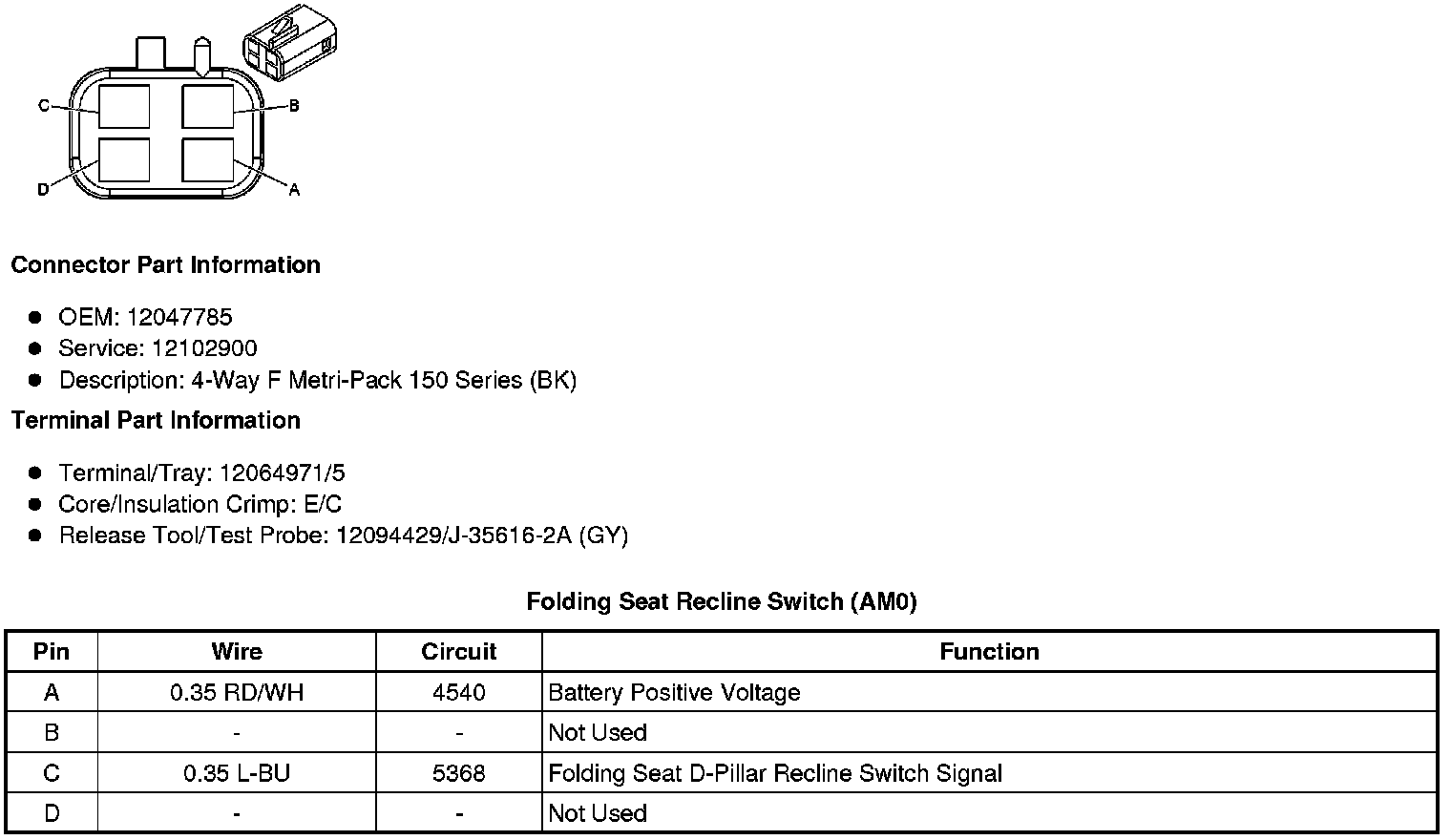

Folding Seat Recline Switch (AM0)

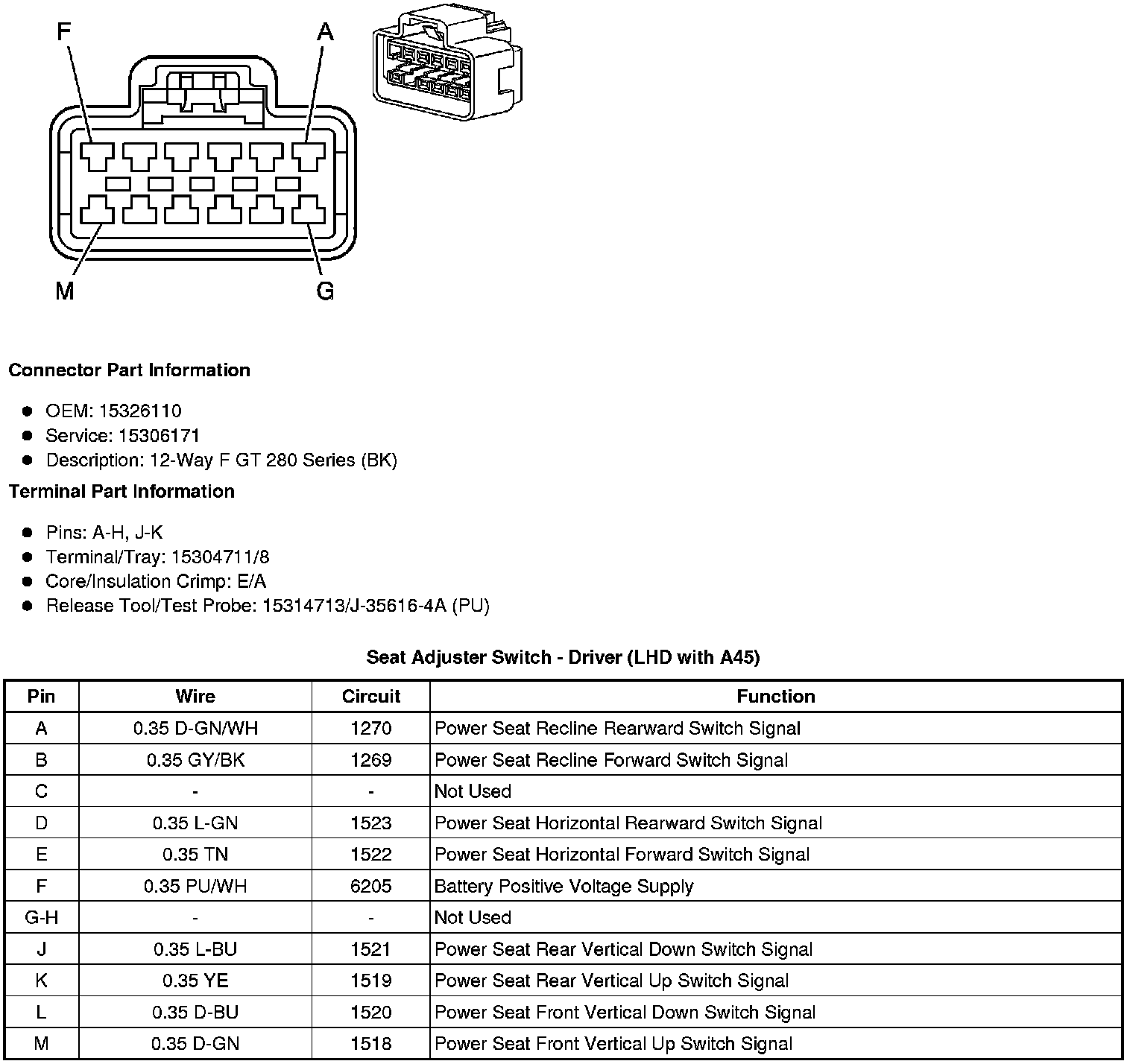

Seat Adjuster Switch - Driver (LHD with A45)

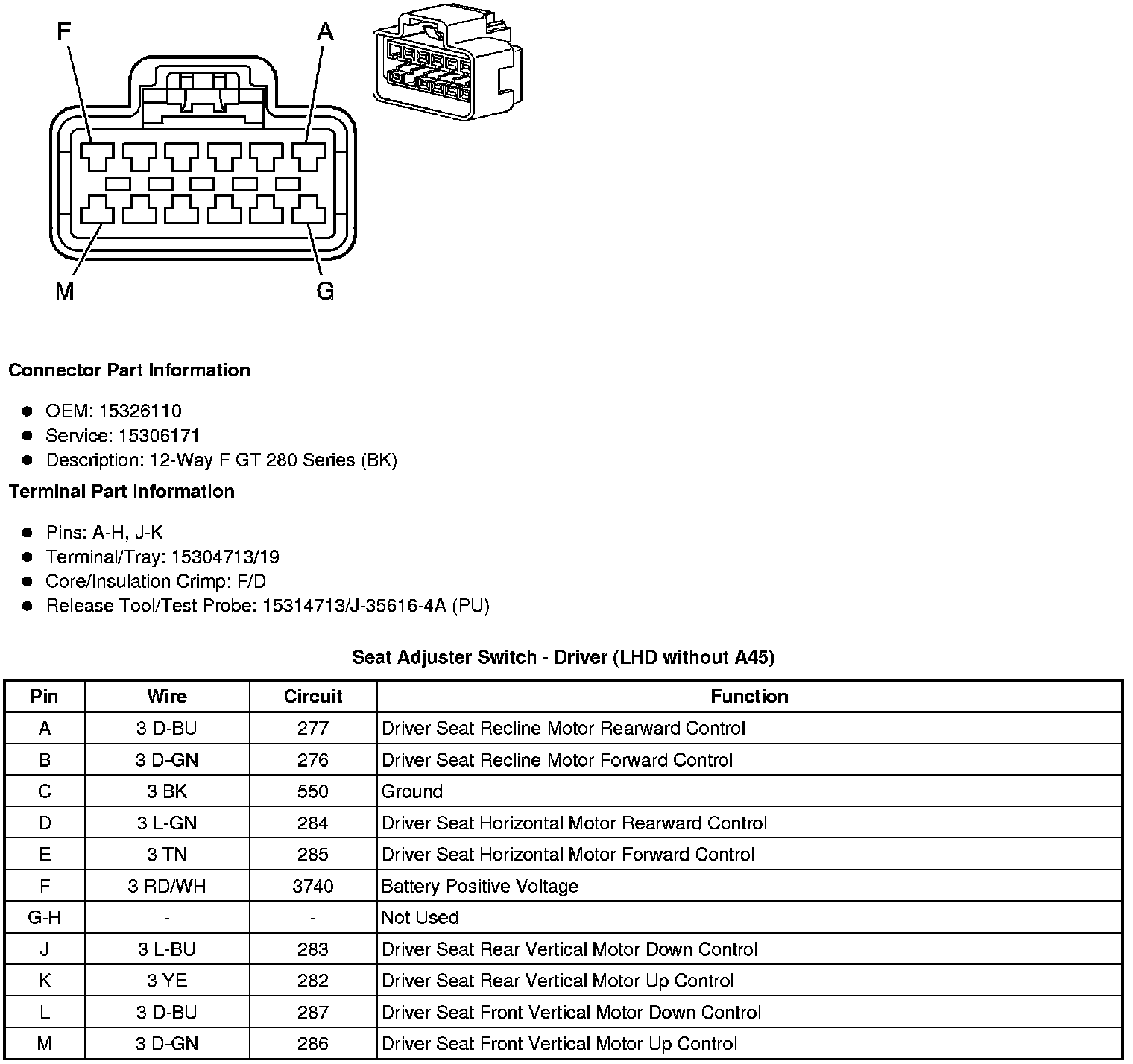

Seat Adjuster Switch - Driver (LHD without A45)

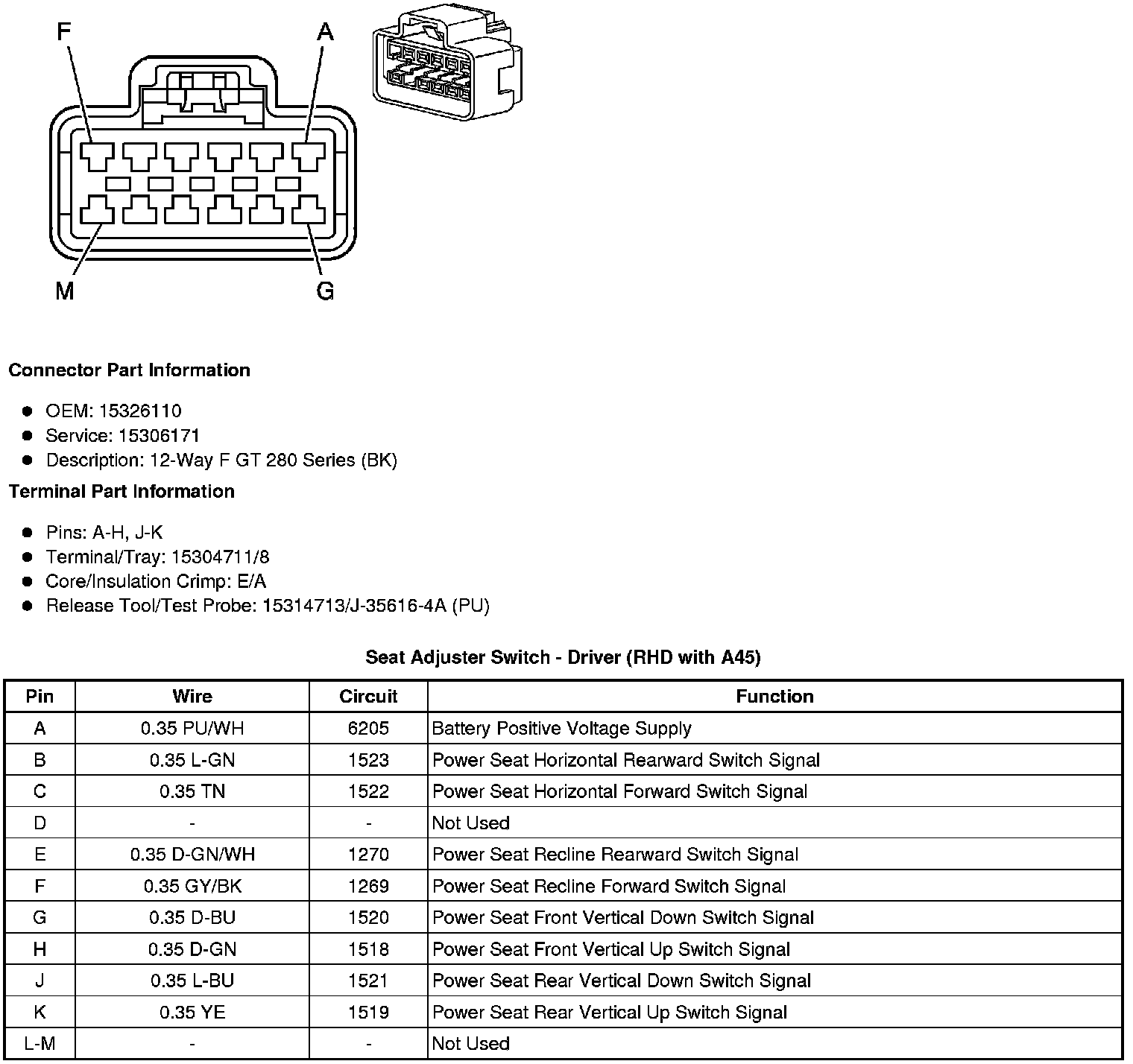

Seat Adjuster Switch - Driver (RHD with A45)

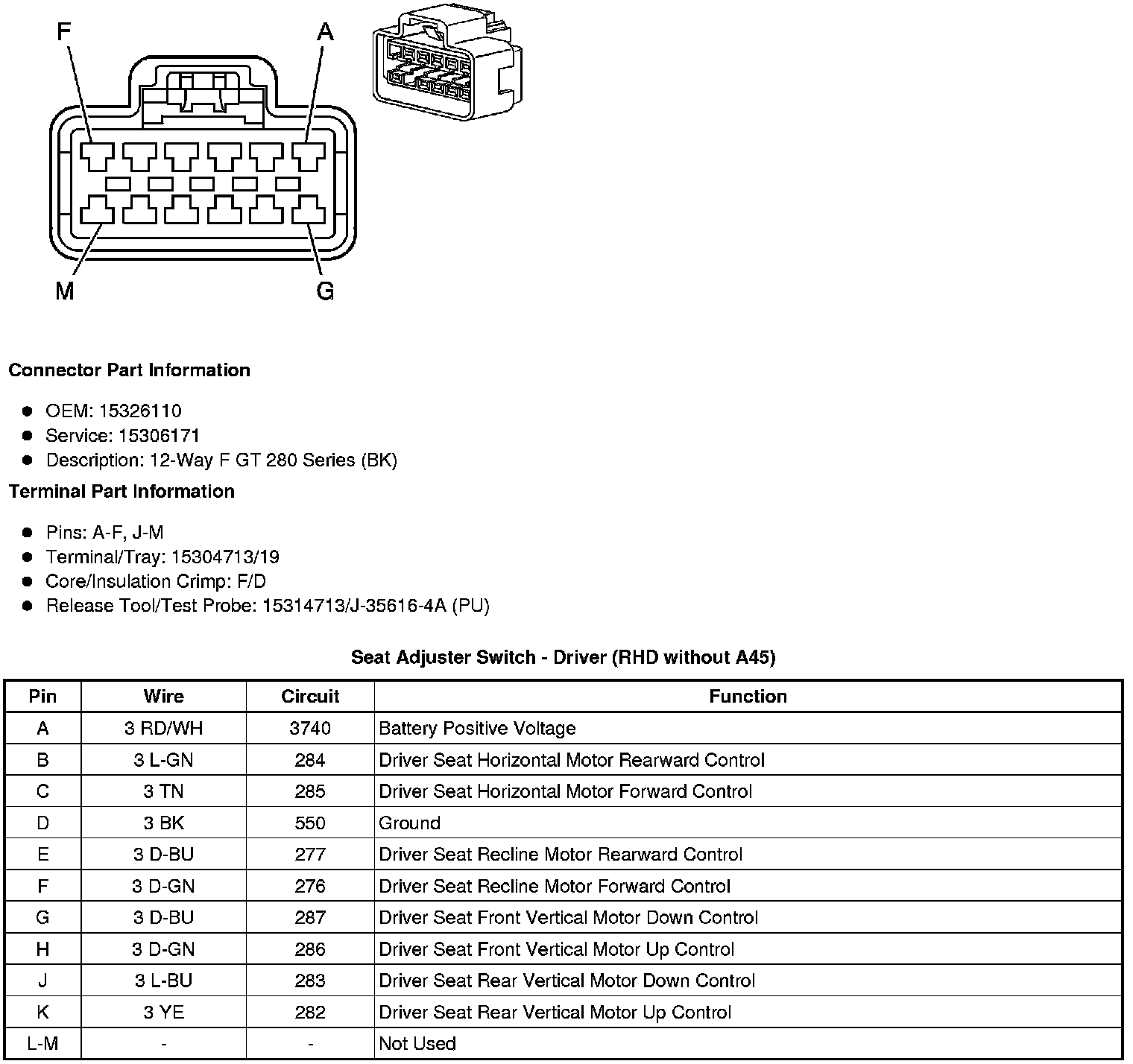

Seat Adjuster Switch - Driver (RHD without A45)






Seat Adjuster Switch - Passenger (LHD)

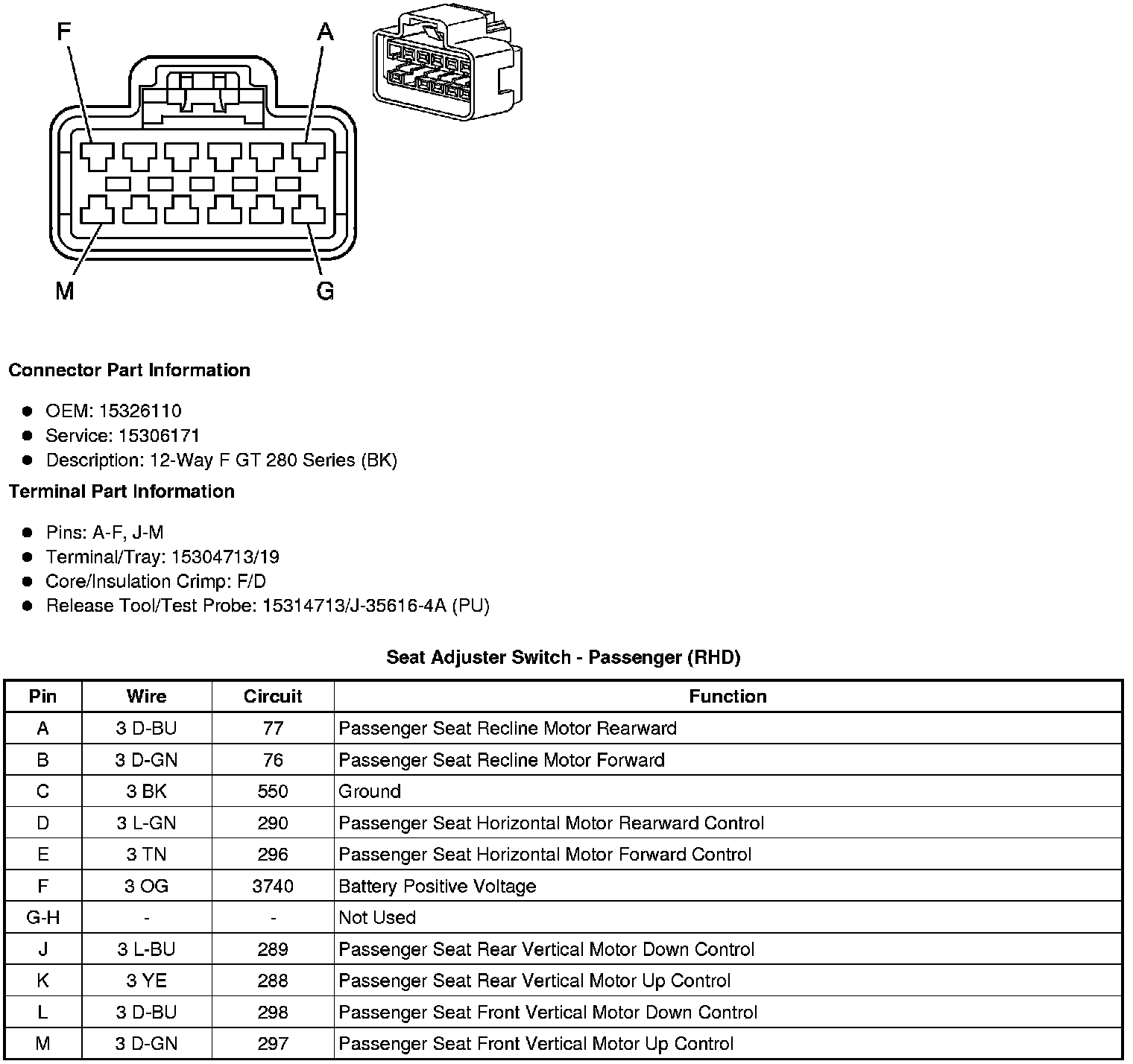

Seat Adjuster Switch - Passenger (RHD)

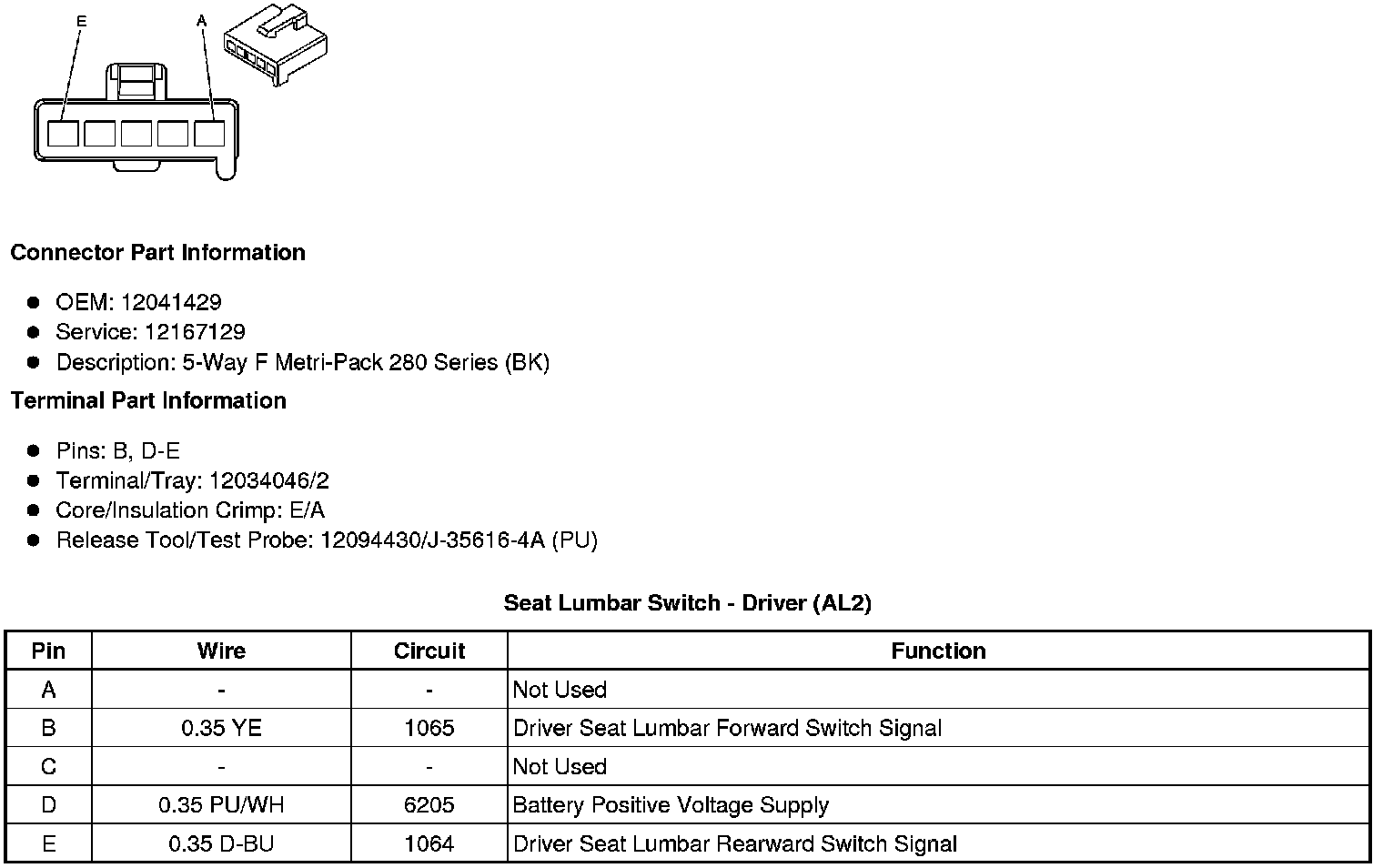

Seat Lumbar Switch - Driver (AL2)

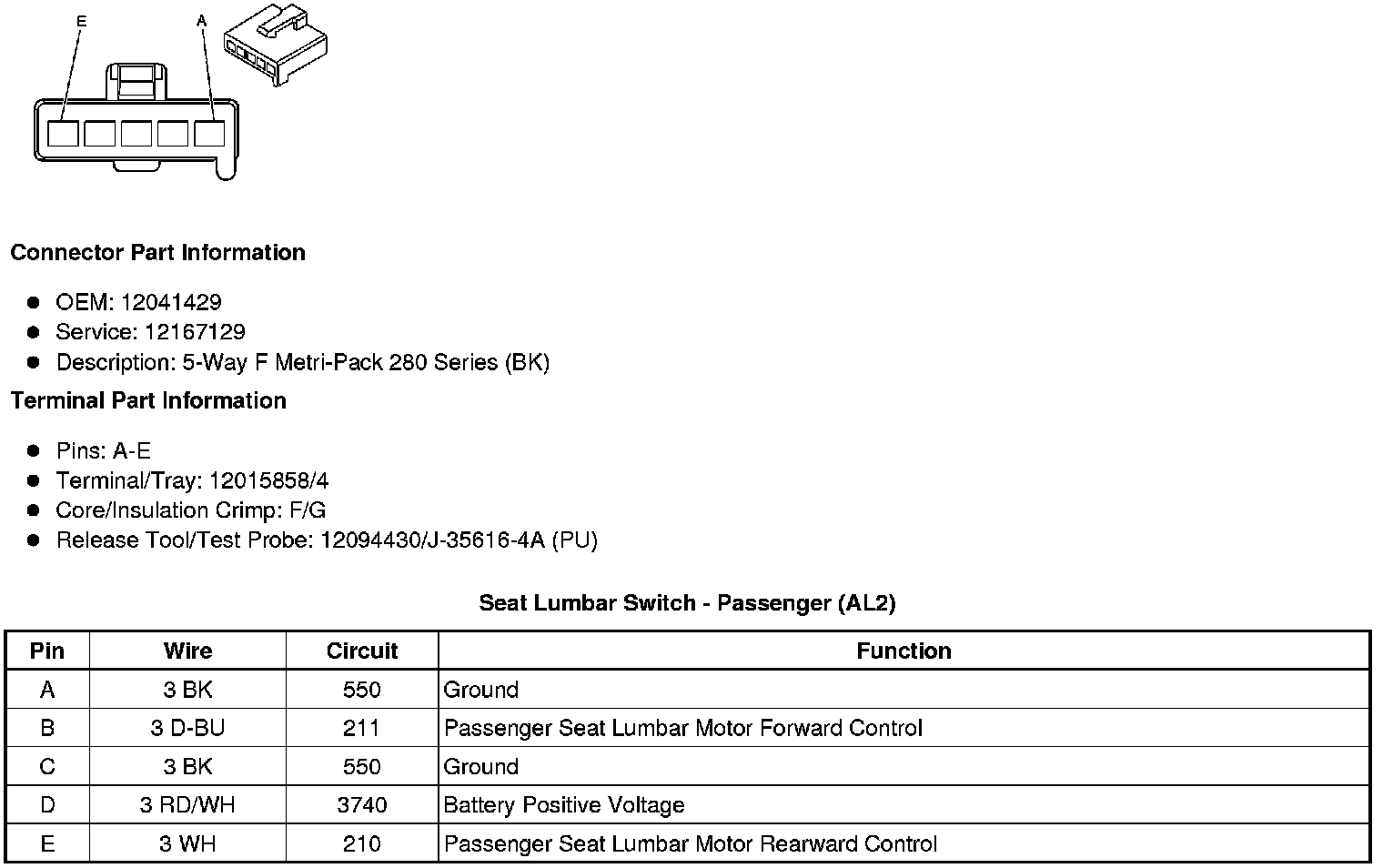

Seat Lumbar Switch - Passenger (AL2)
