Power Trunk / Liftgate Hazard Sensor




Component Connector End Views

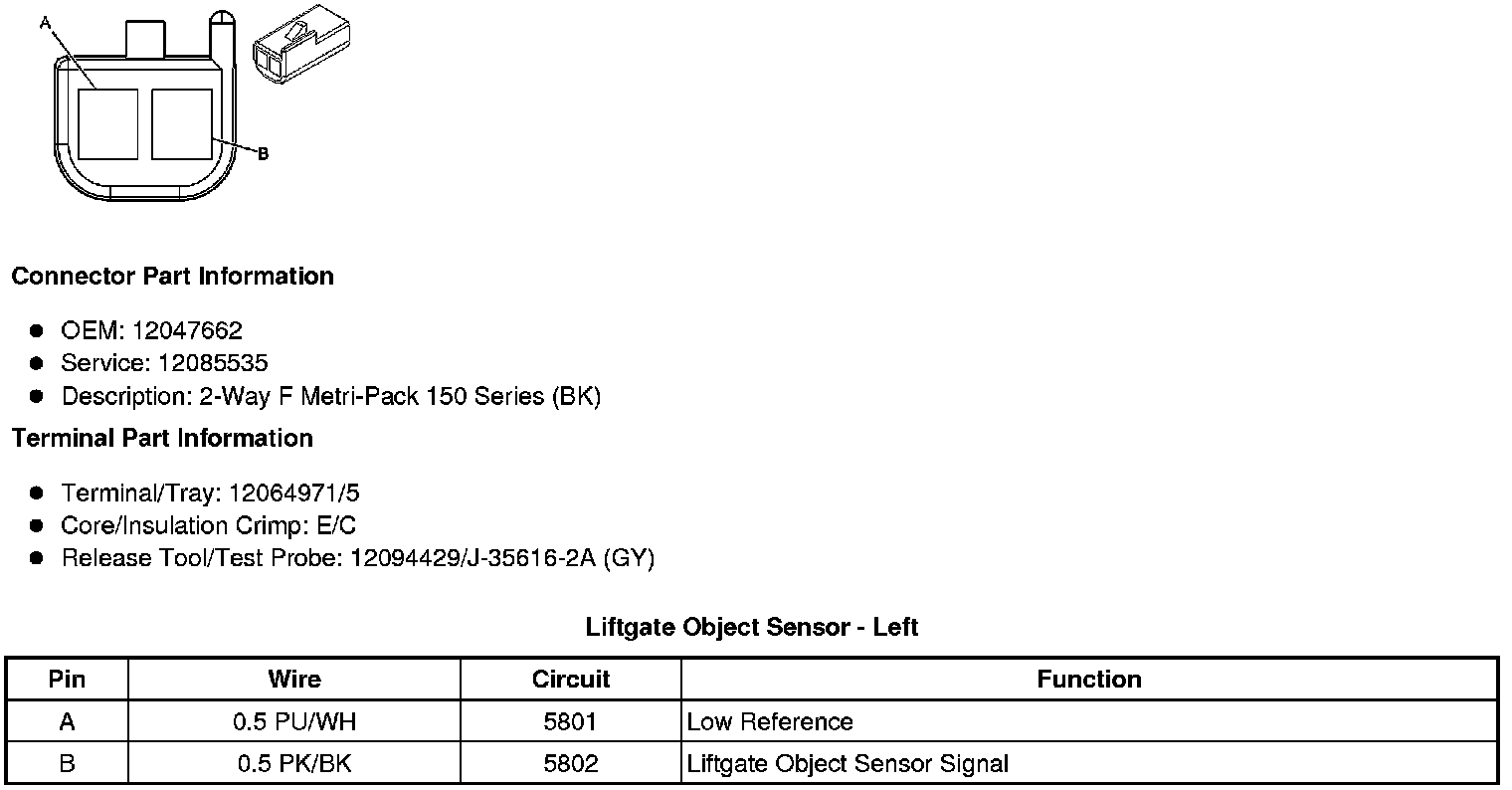

Liftgate Object Sensor - Left

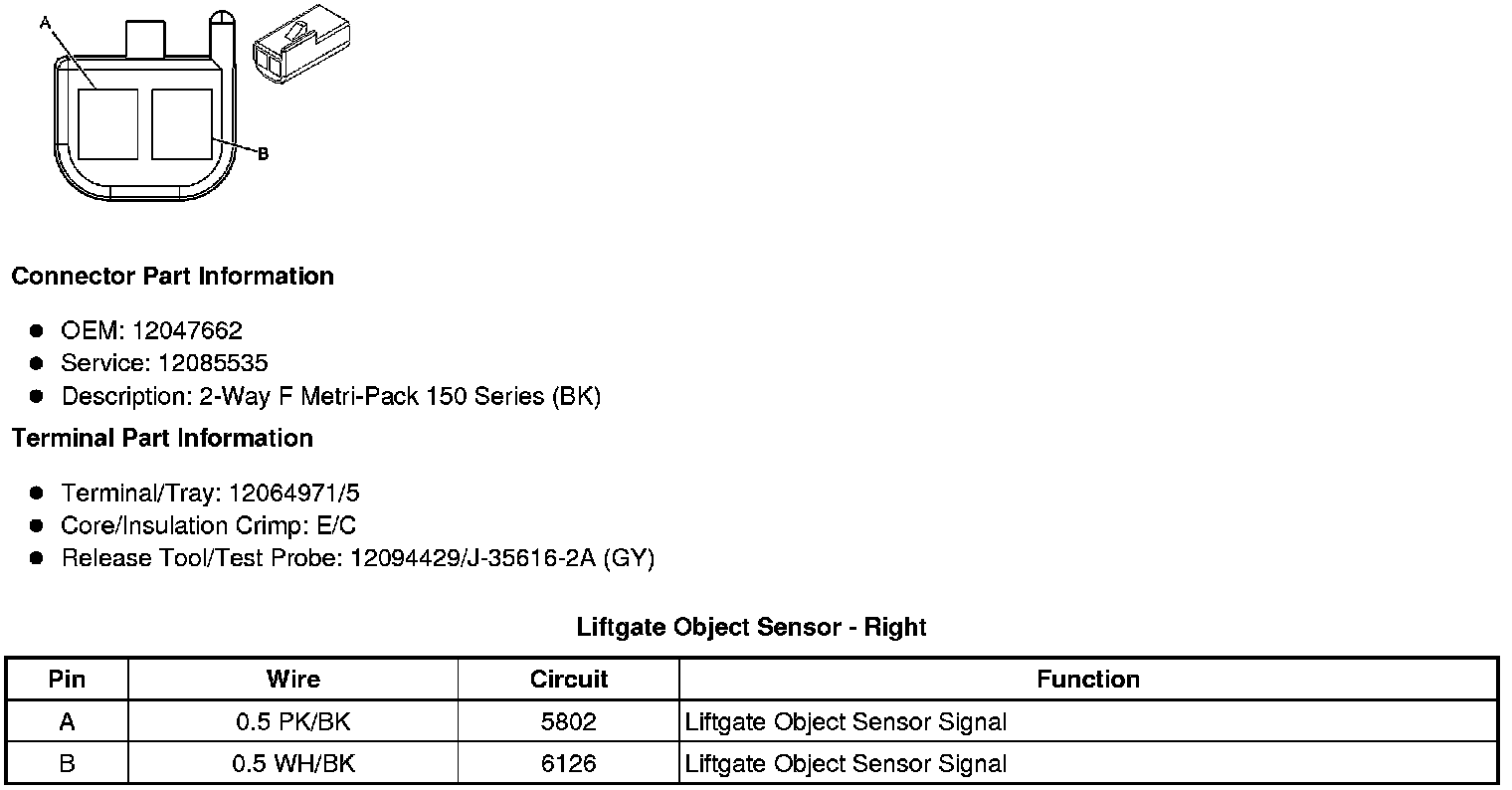

Liftgate Object Sensor - Right
