System Diagram




Component Connector End Views

Engine Cooling Fan (LY7 or LH2 without V92)






Engine Cooling Fan - Left (LH2 with V92)

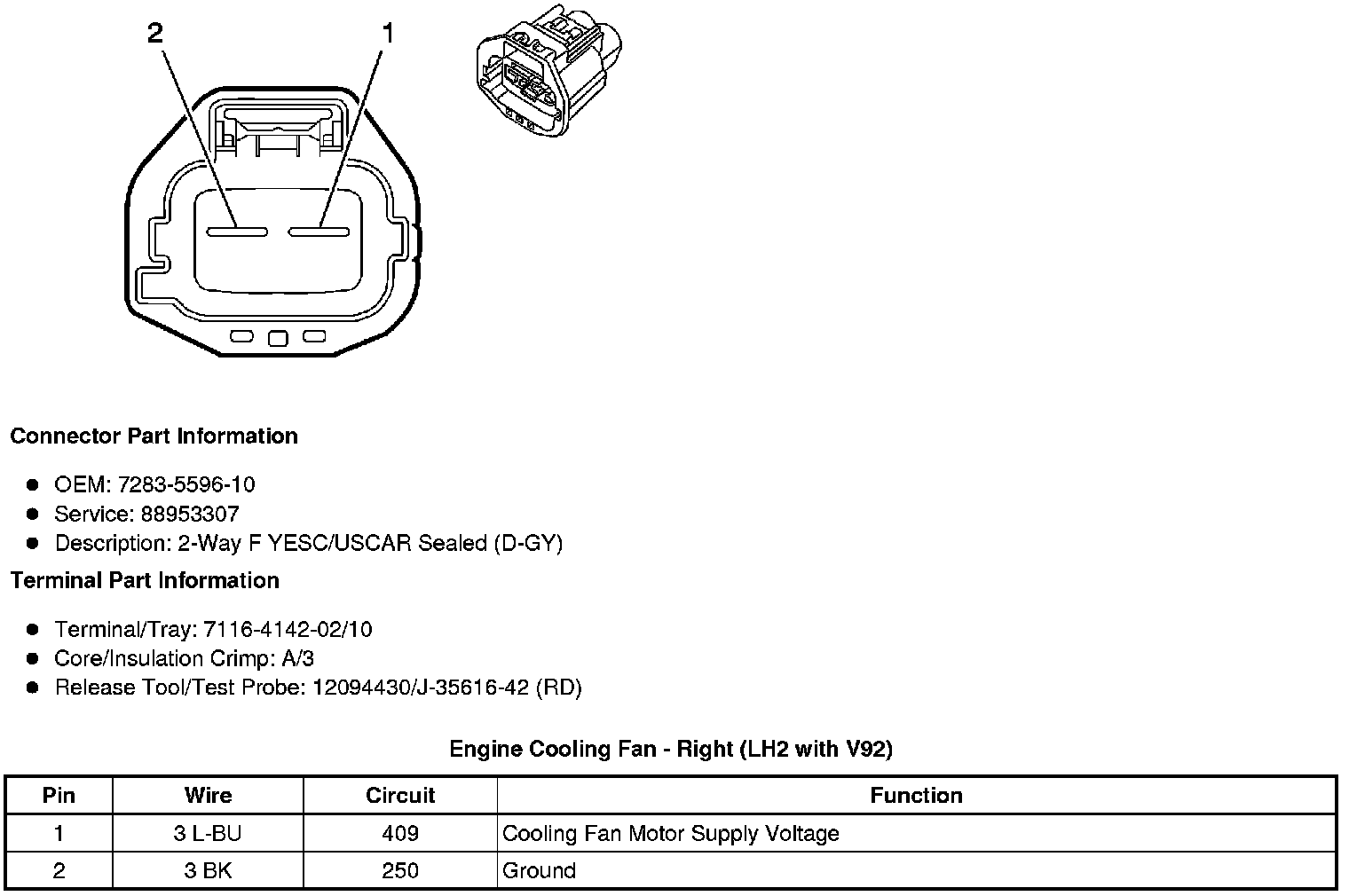

Engine Cooling Fan - Right (LH2 with V92)
