System Diagram
Component Connector End Views
Radio X1 (EXP)
Radio X1 (without EXP)
Radio X2 (EXP)
Radio X2 (without EXP)
Radio X3 (U42)
Radio X4
Component Connector End Views
Radio X1 (EXP)

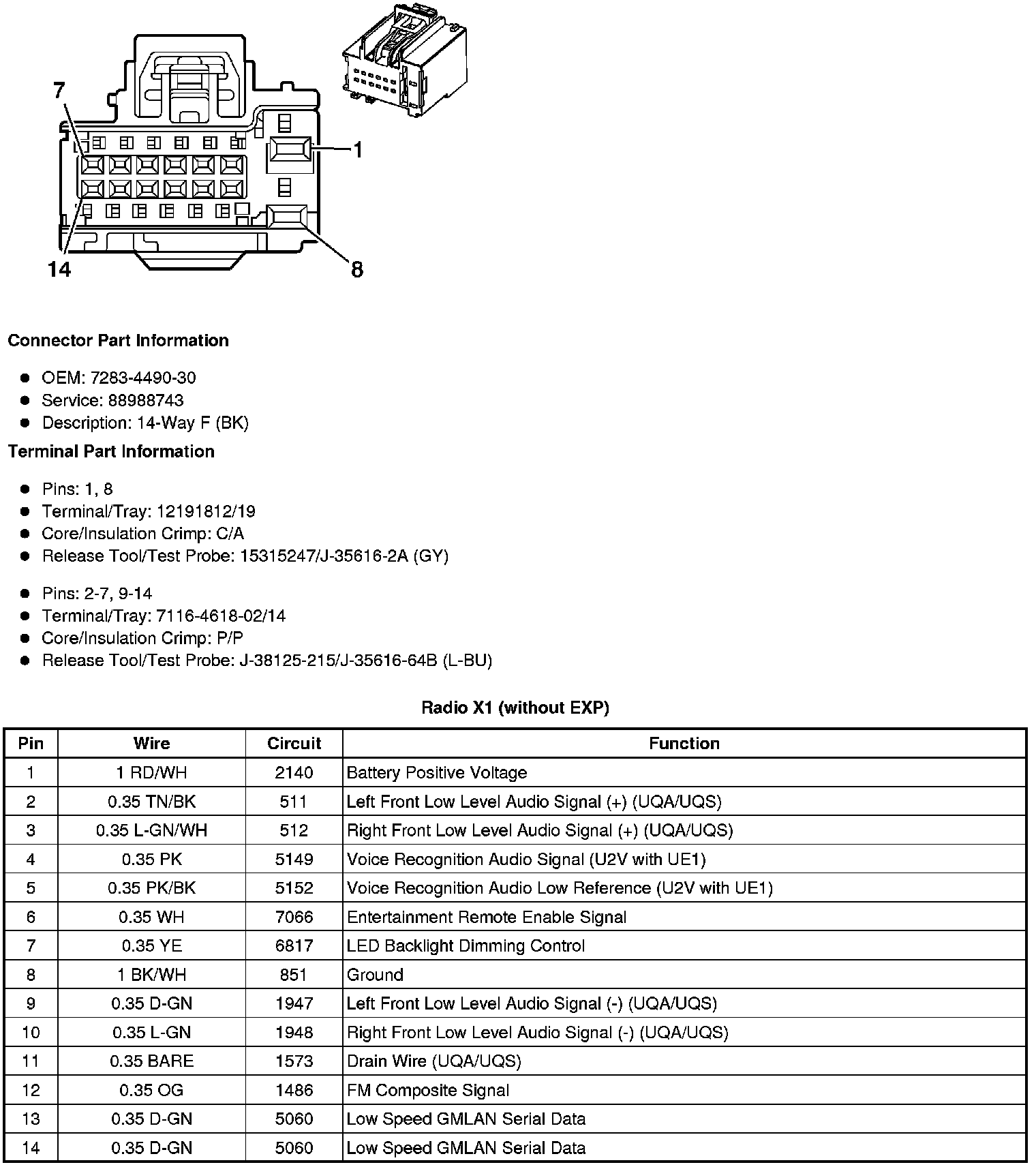

Radio X1 (without EXP)

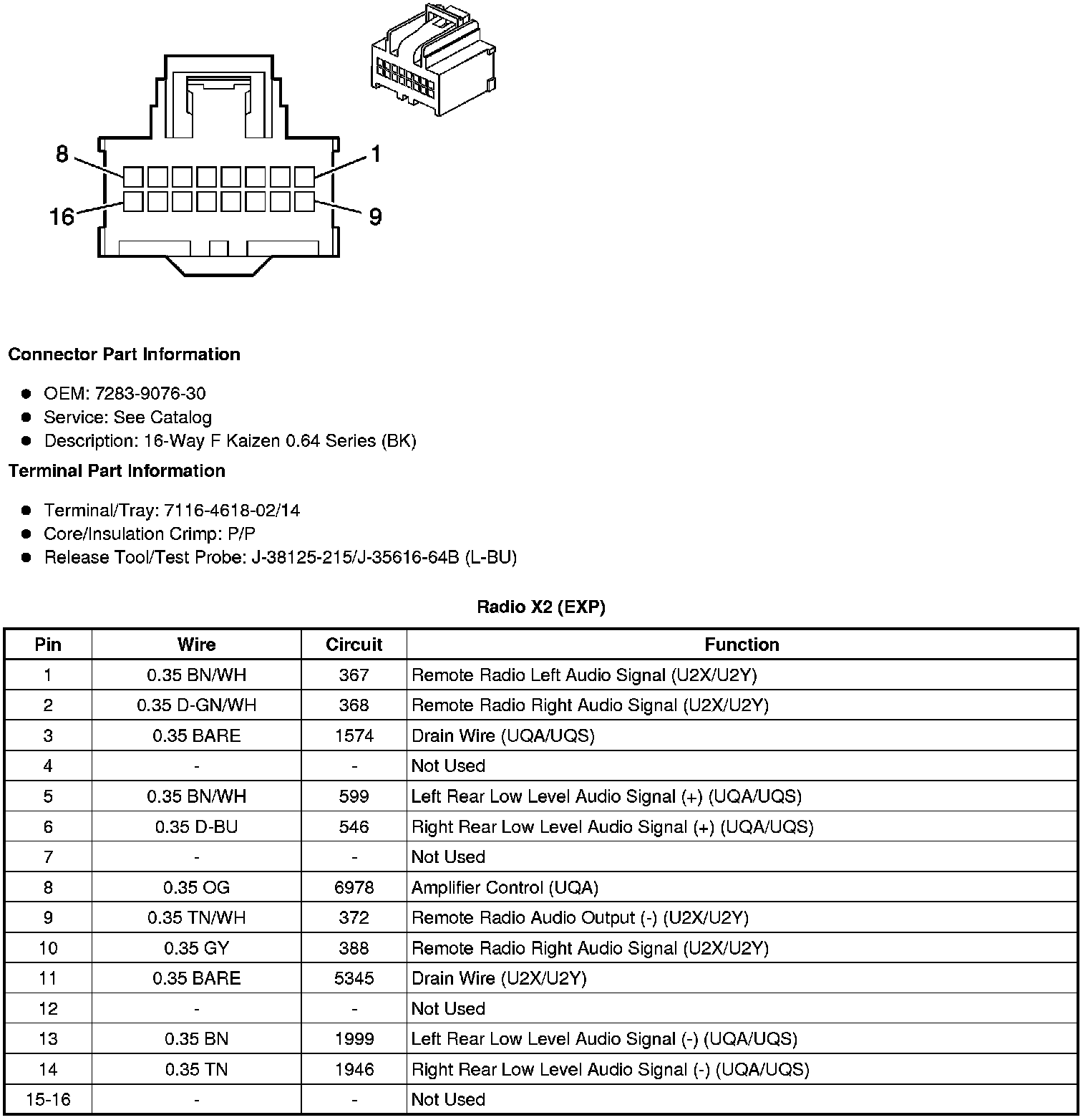

Radio X2 (EXP)

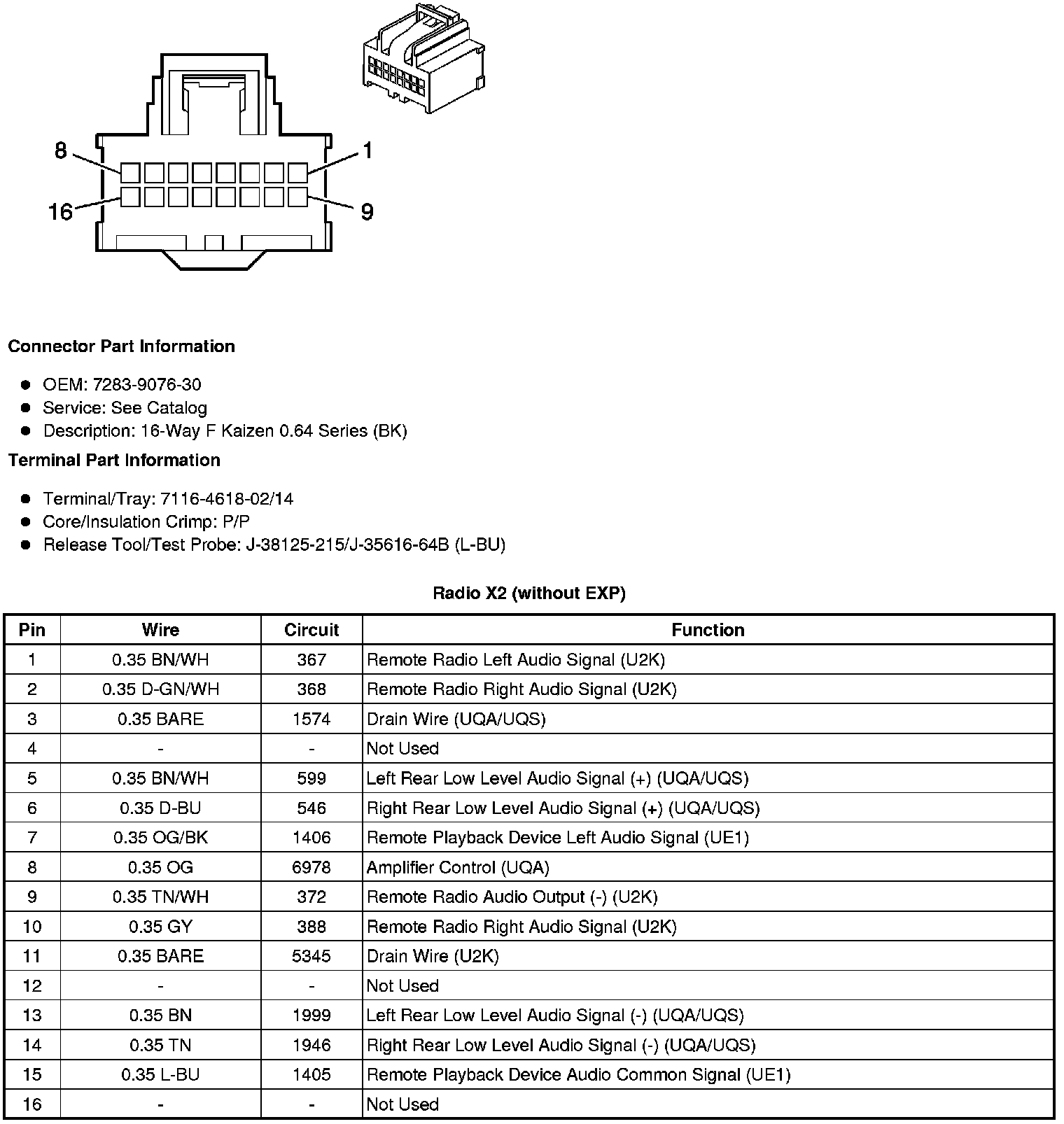

Radio X2 (without EXP)

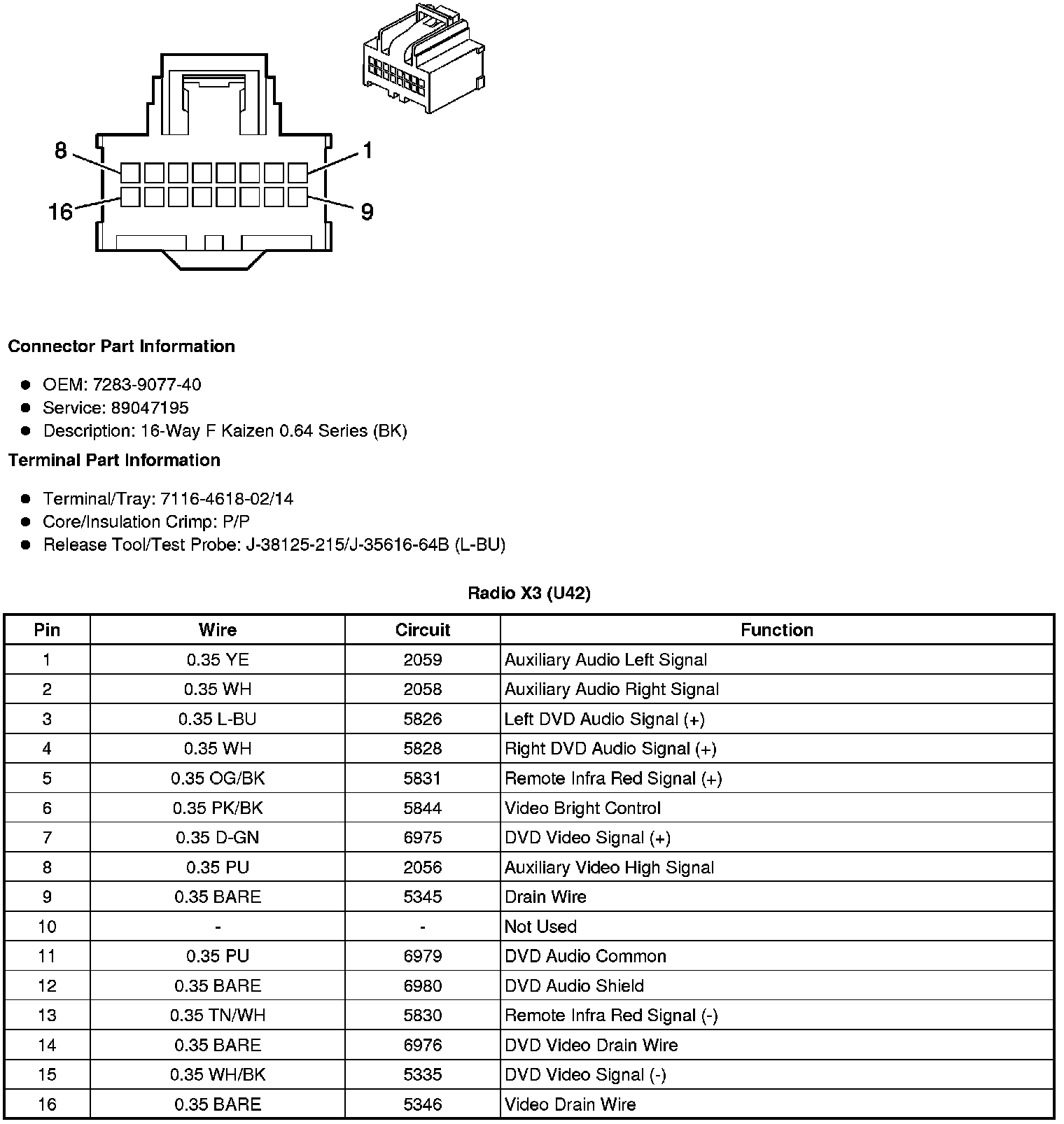

Radio X3 (U42)

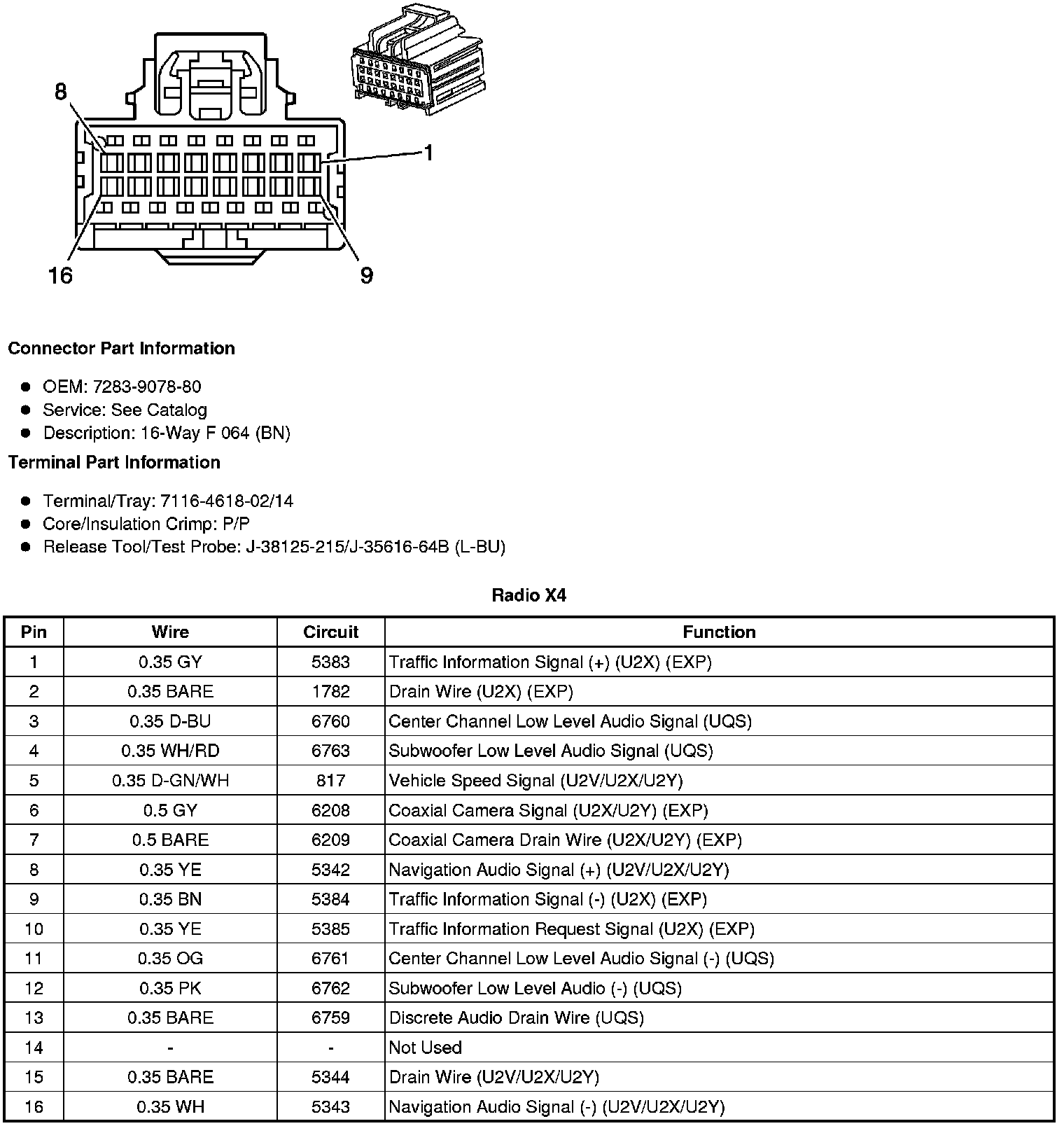

Radio X4
