Turn Signal Lamp




Component Connector End Views

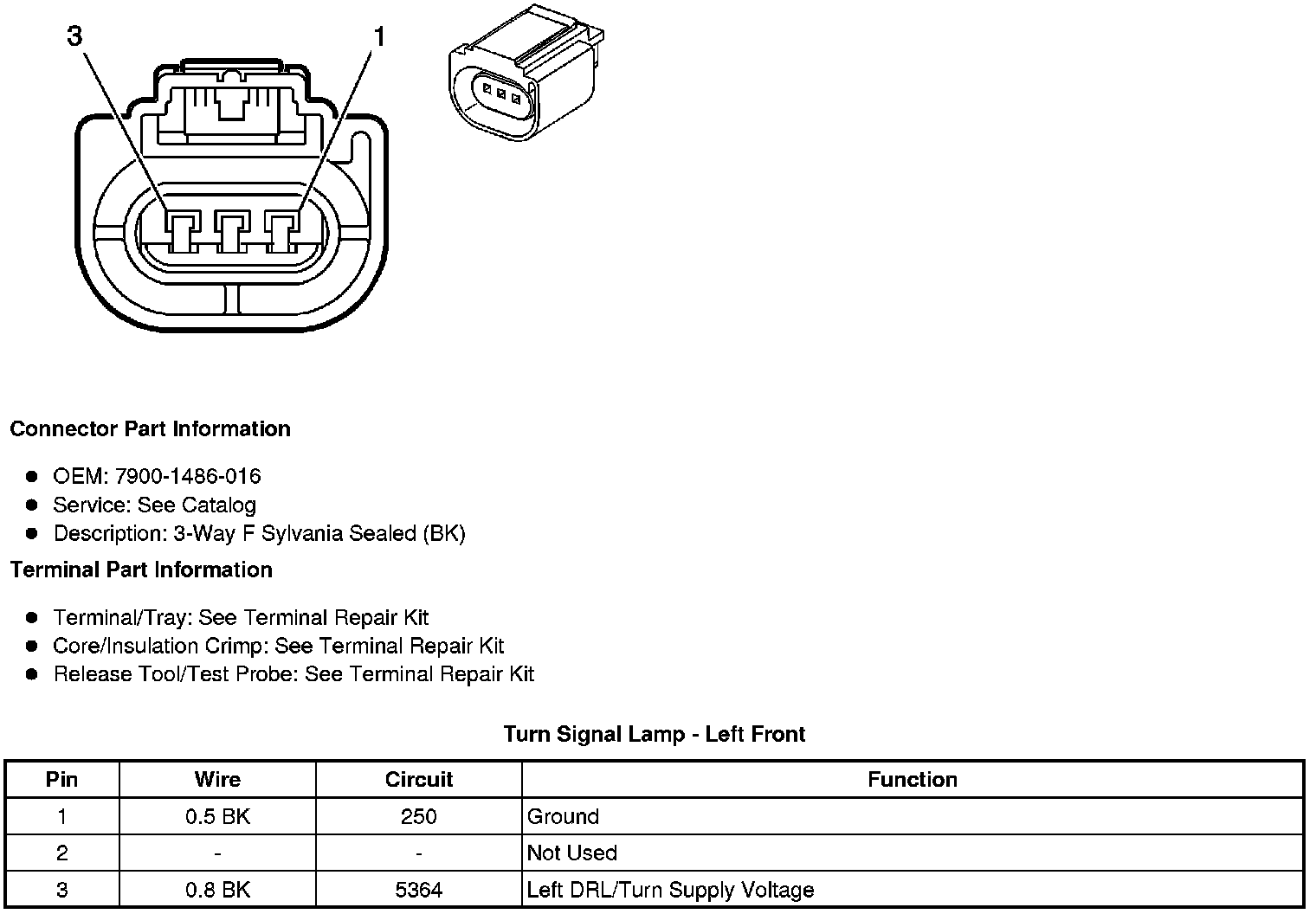

Turn Signal Lamp - Left Front

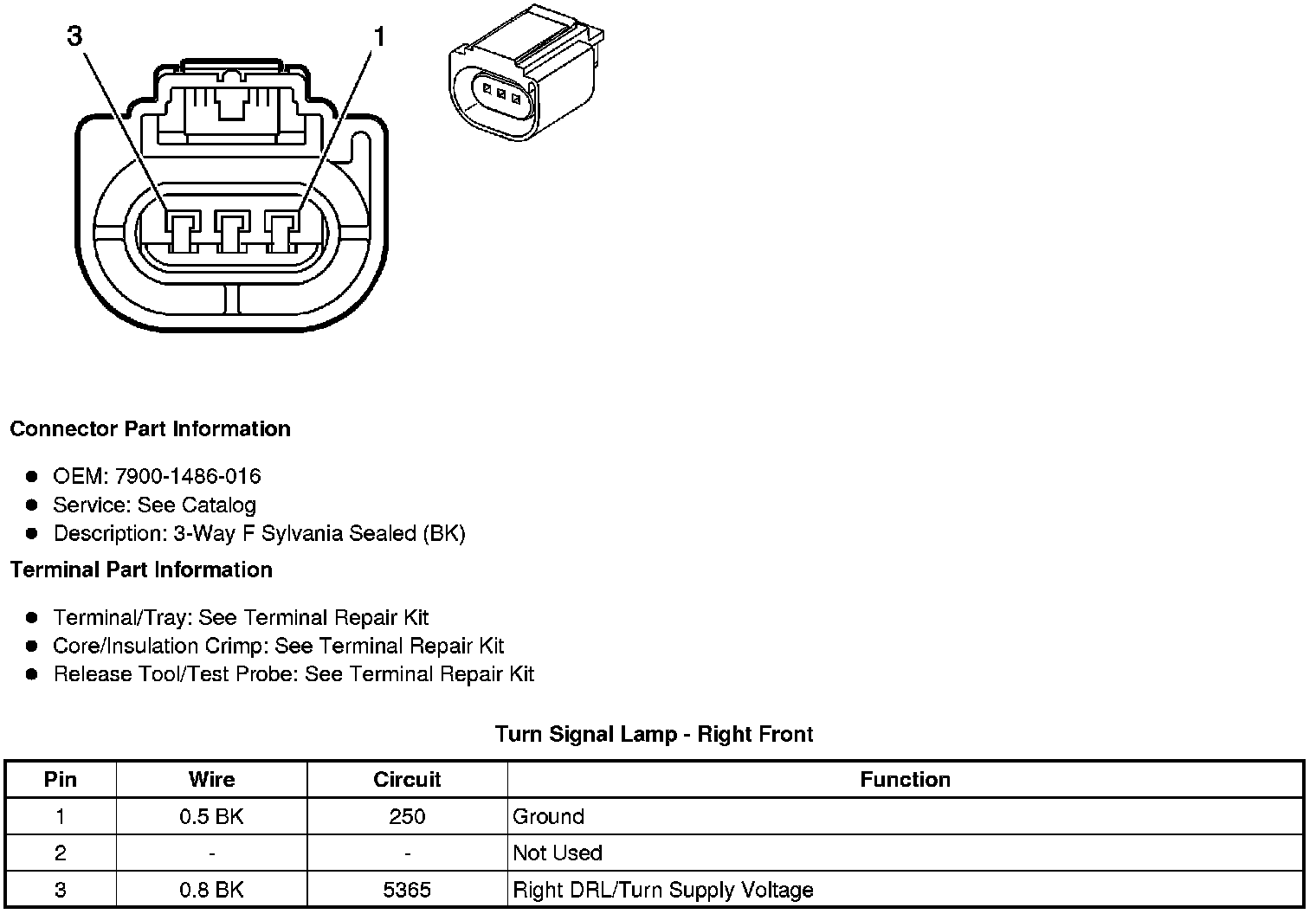

Turn Signal Lamp - Right Front

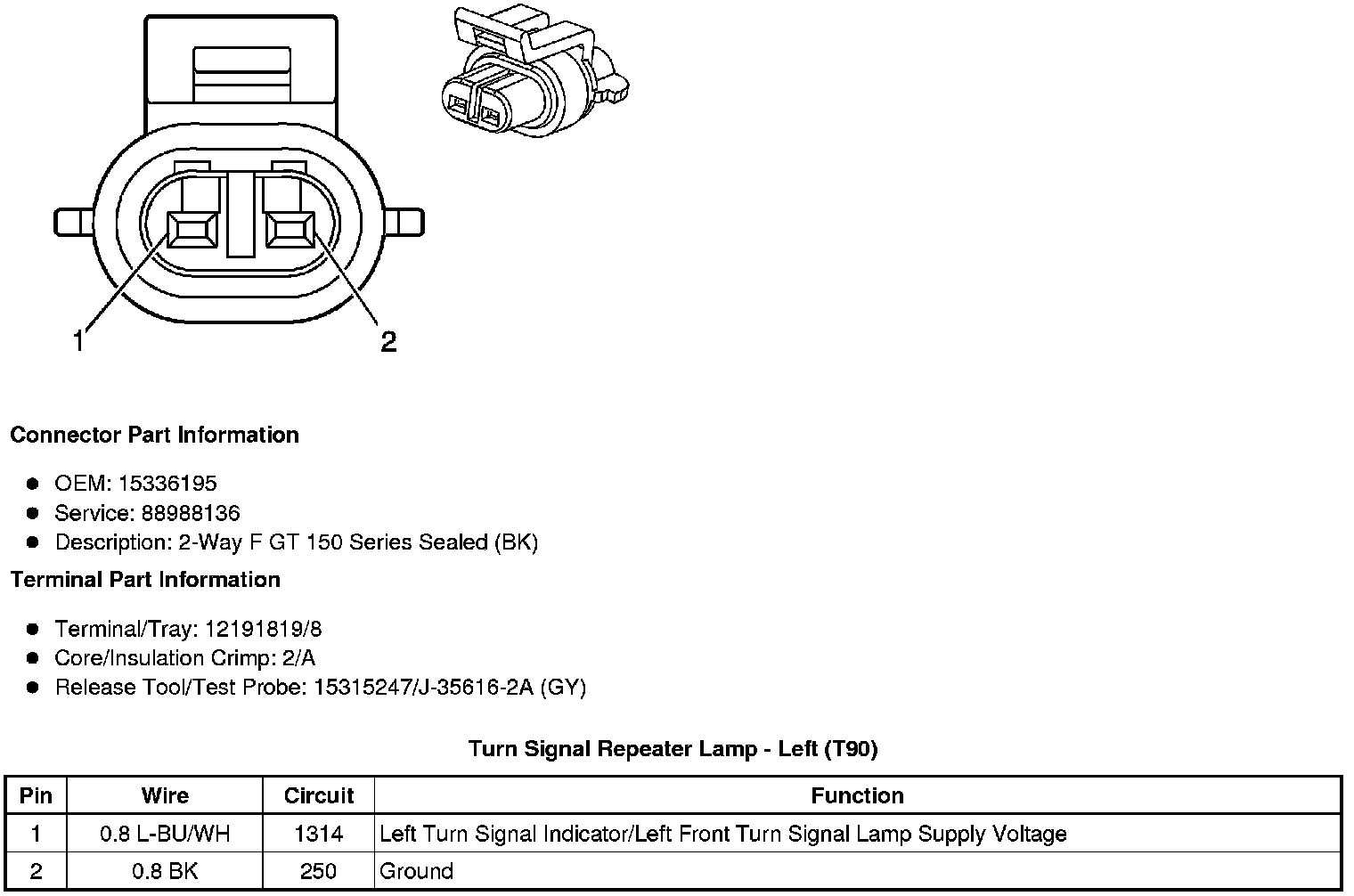

Turn Signal Repeater Lamp - Left (T90)

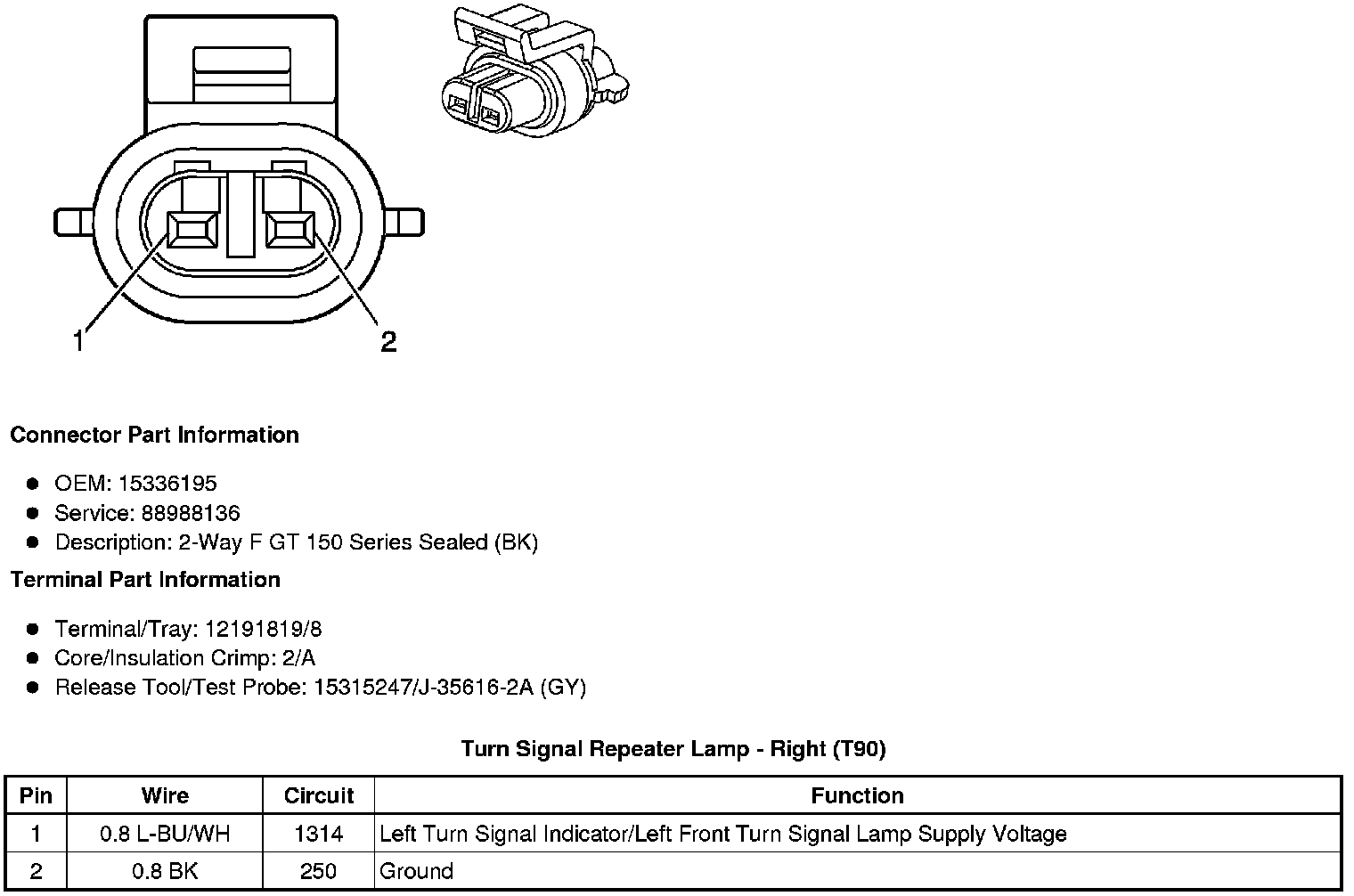

Turn Signal Repeater Lamp - Right (T90)
