Cadillac Truck
>>
2009
>>
SRX AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Switch
Windshield Washer Switch
Component Connector End Views

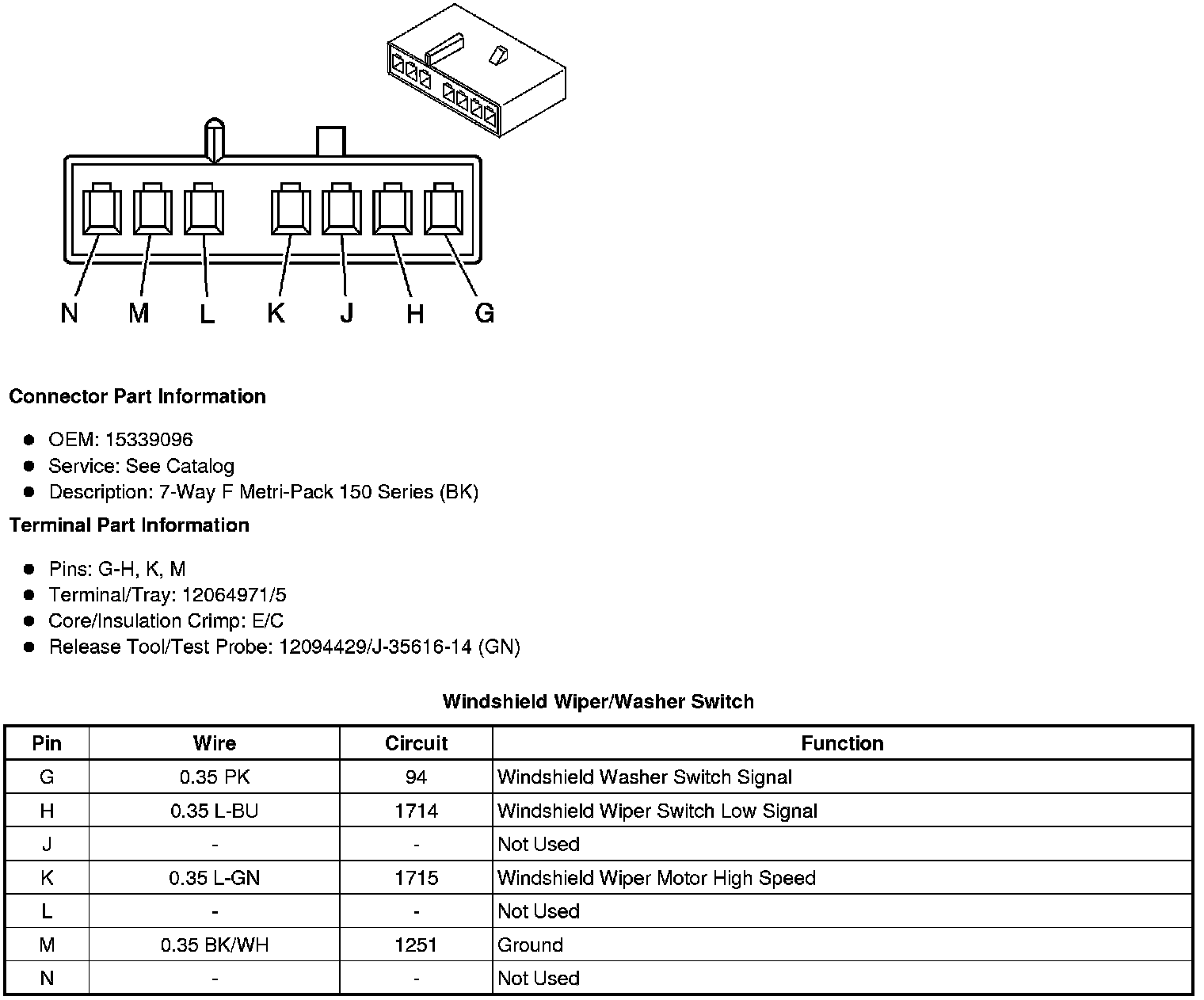

Windshield Wiper/Washer Switch

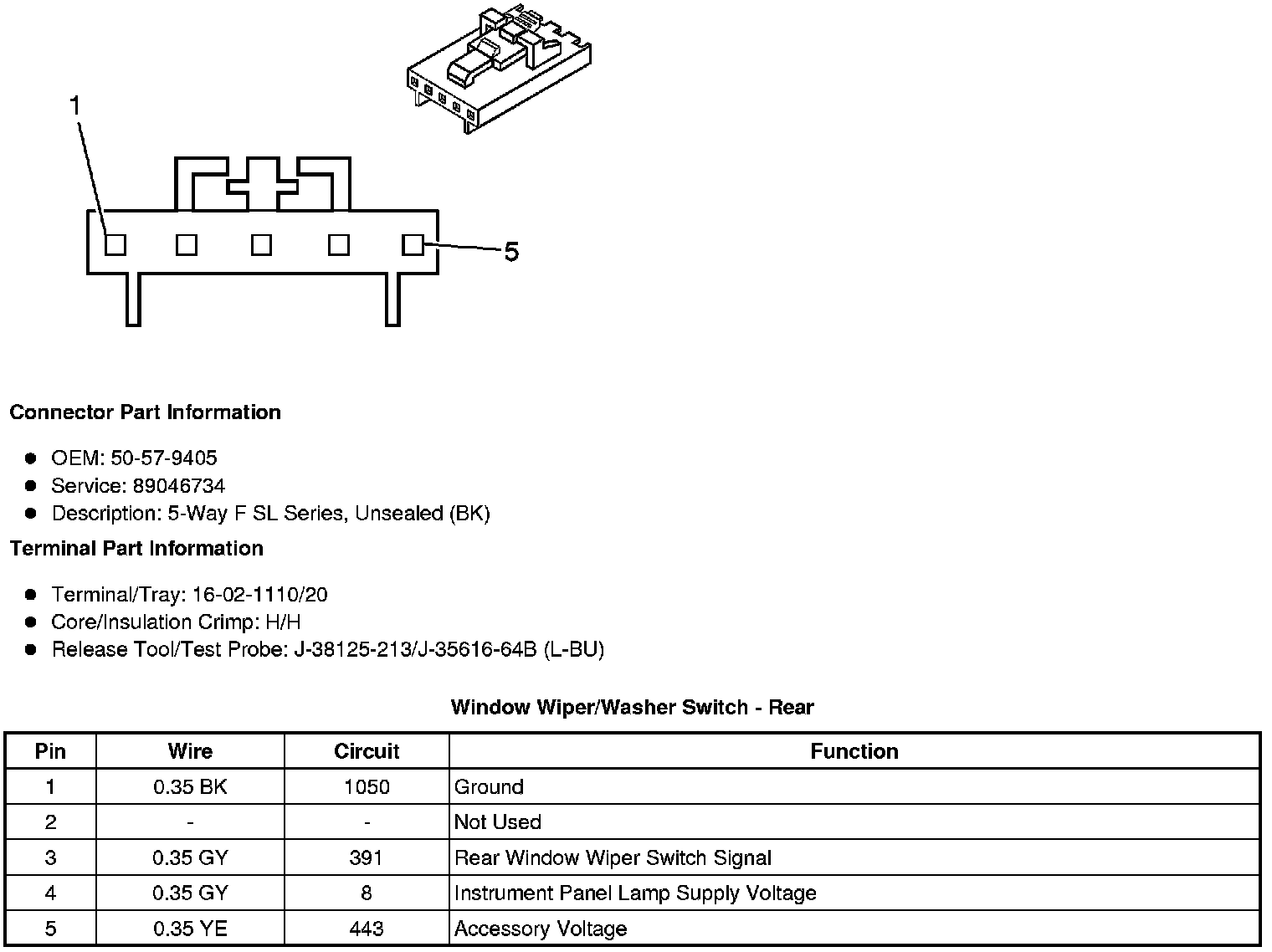

Window Wiper/Washer Switch - Rear
