Wiper Motor
Wiper Motor
Component Connector End Views

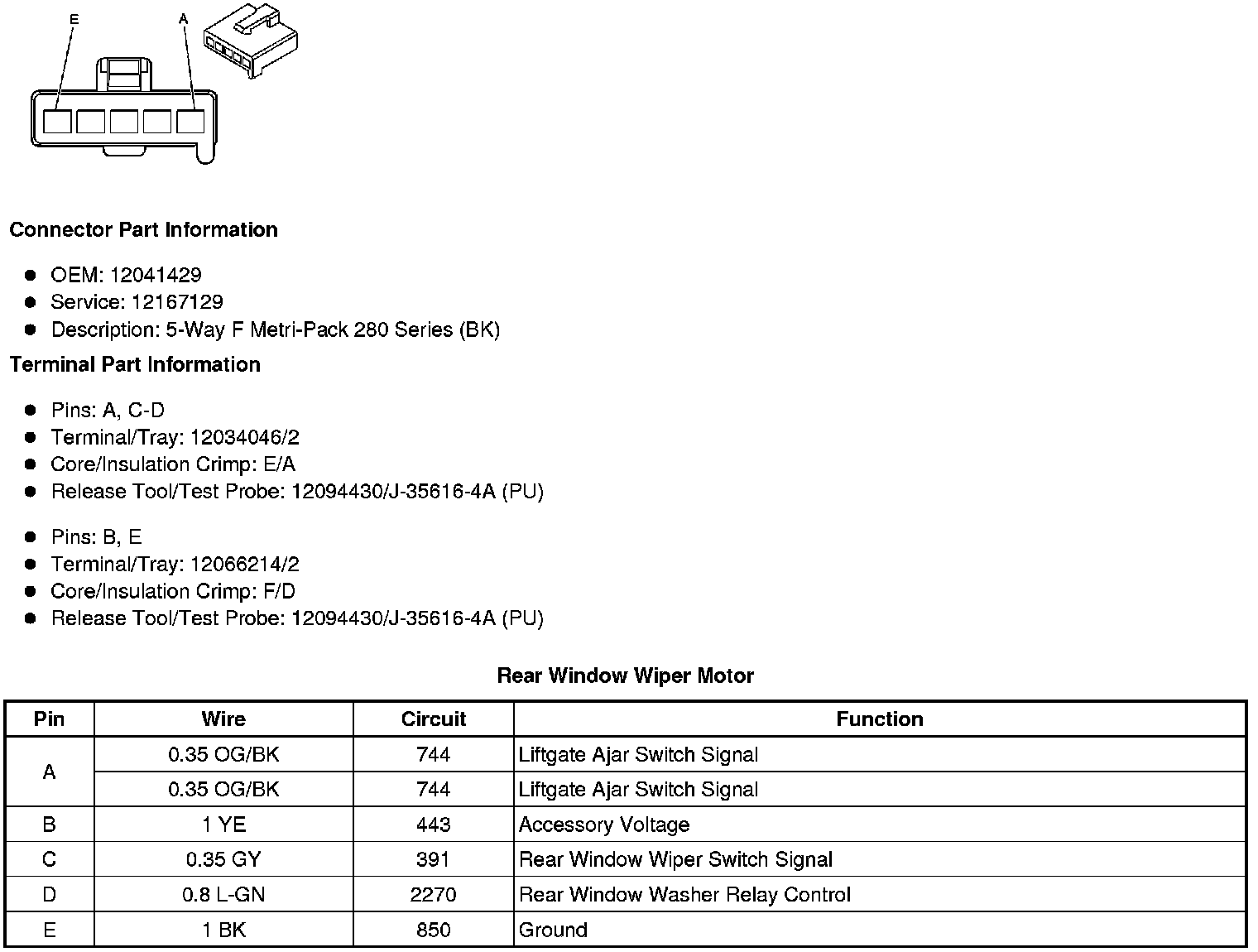

Rear Window Wiper Motor
Windshield Wiper Motor (LHD)

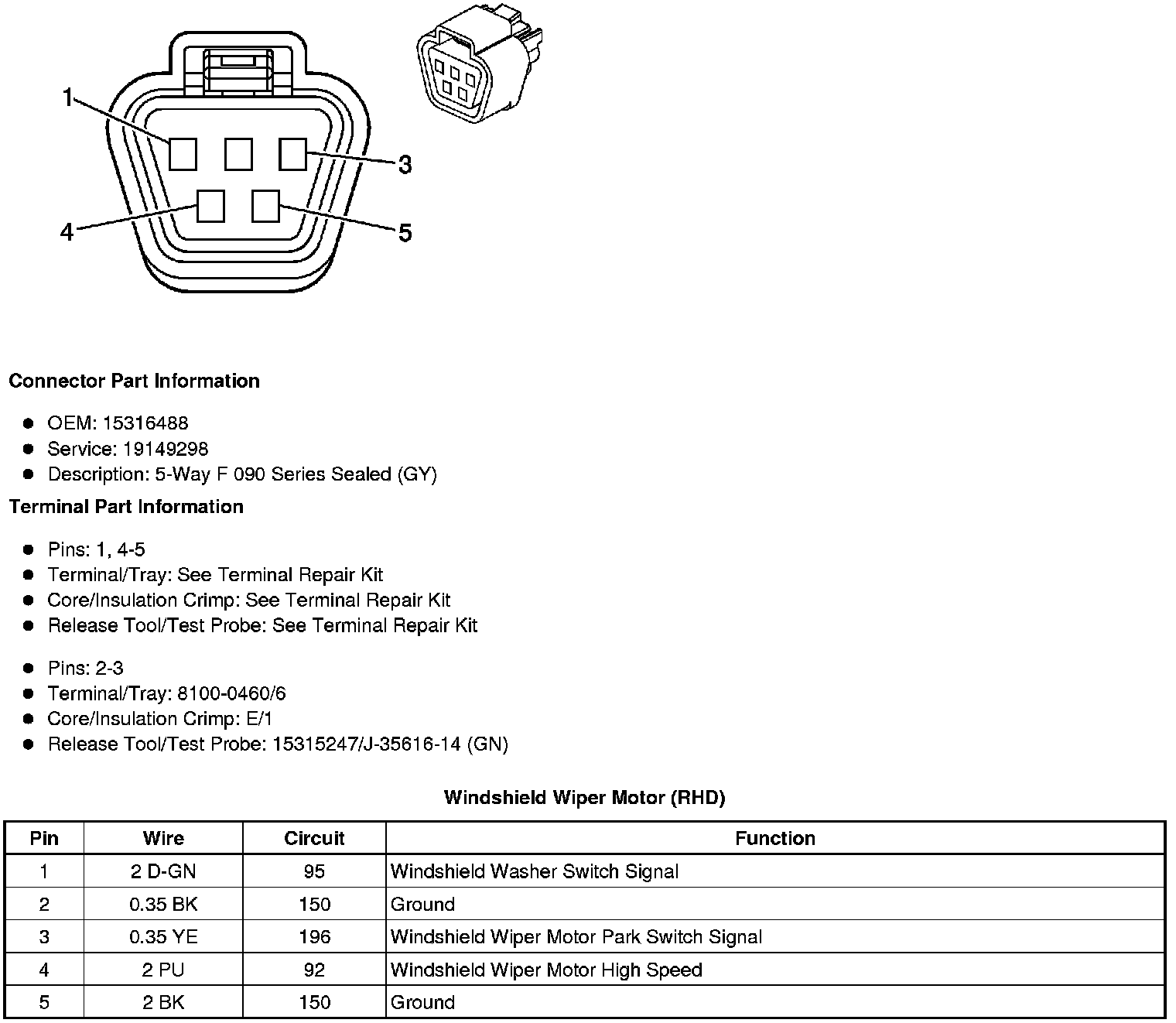

Windshield Wiper Motor (RHD)
