Liftgate Schematics
Liftgate Schematics
Liftgate Schematics

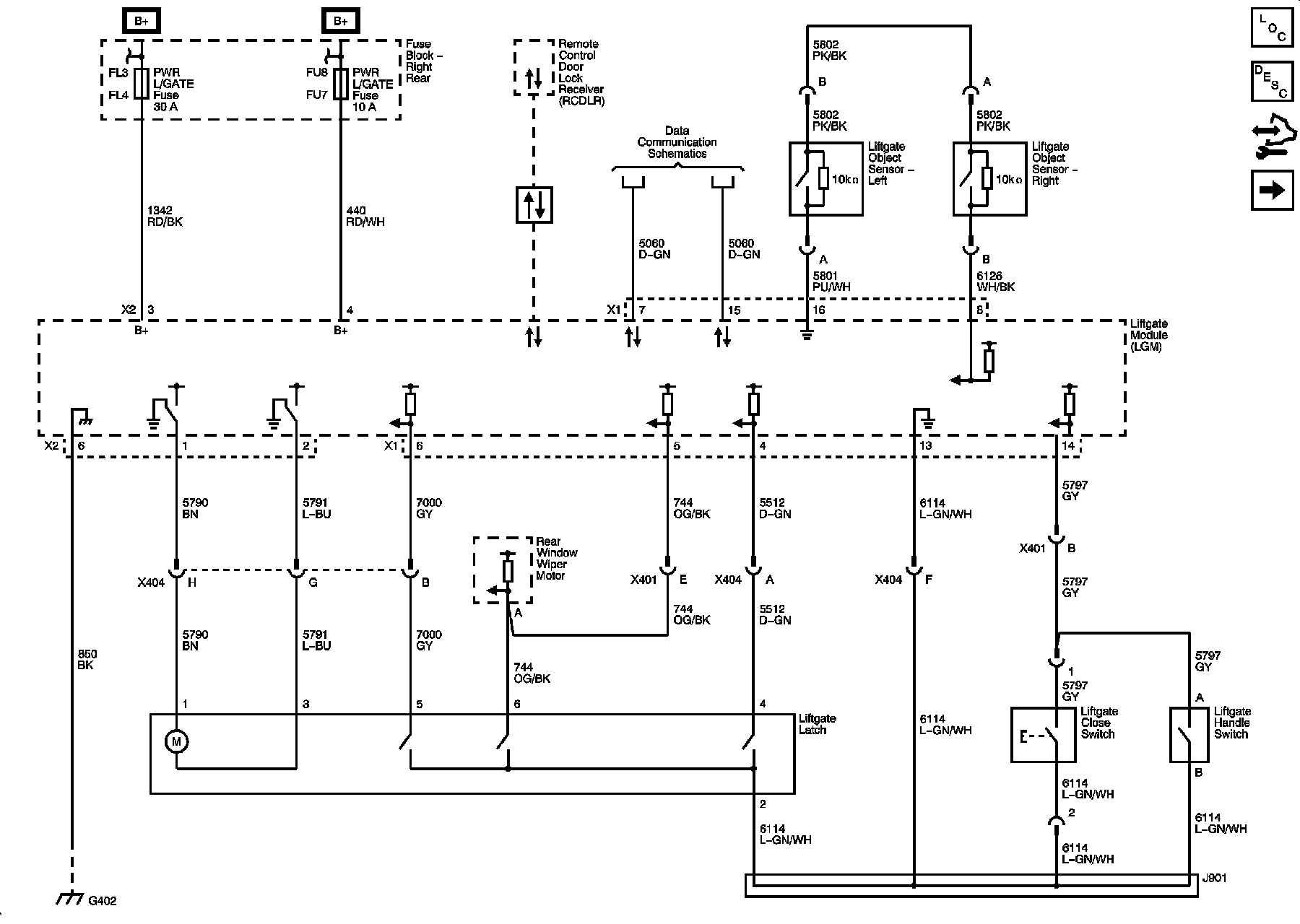

Power, Ground, DLC, and Controls

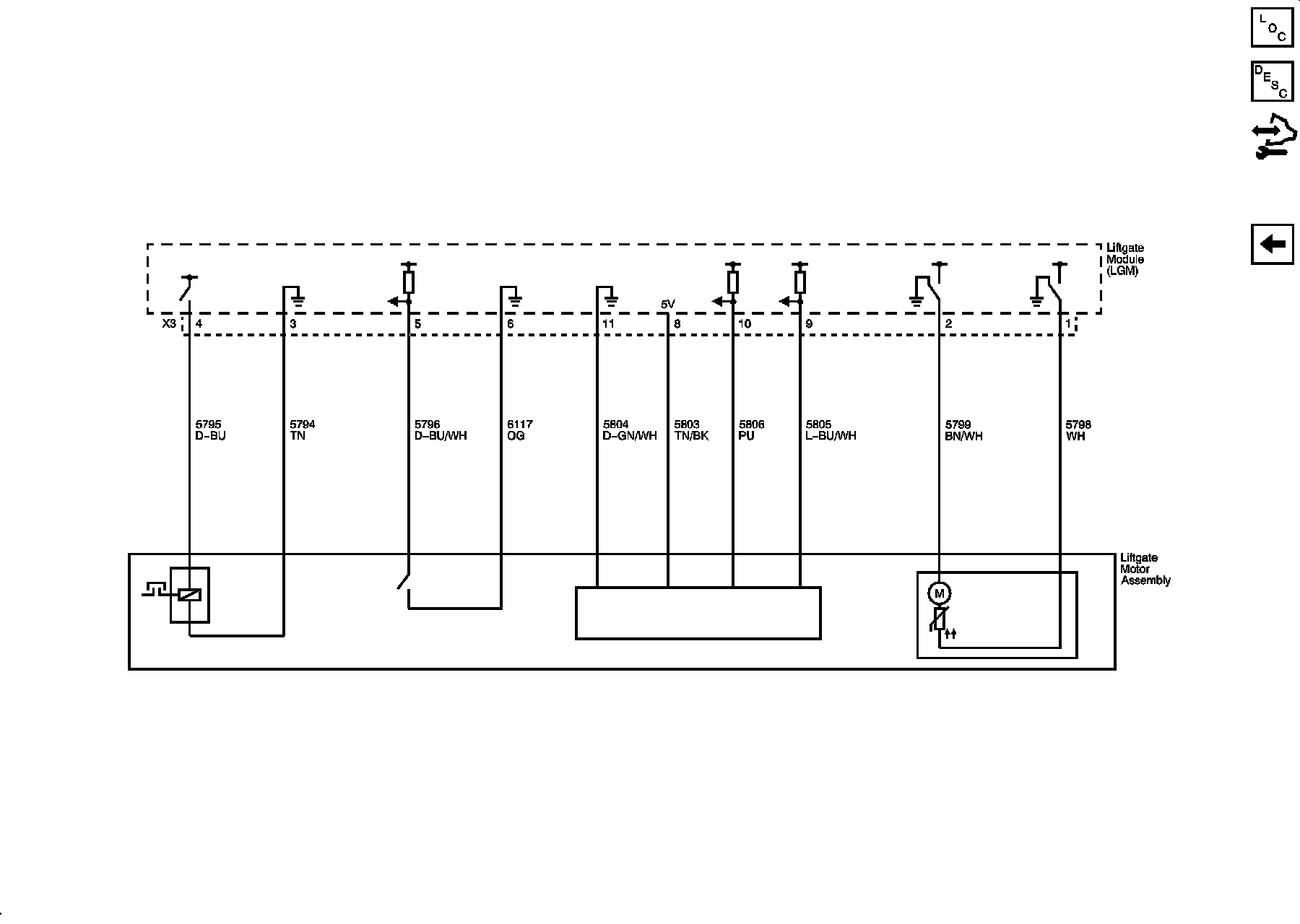

Power Liftgate Motor
