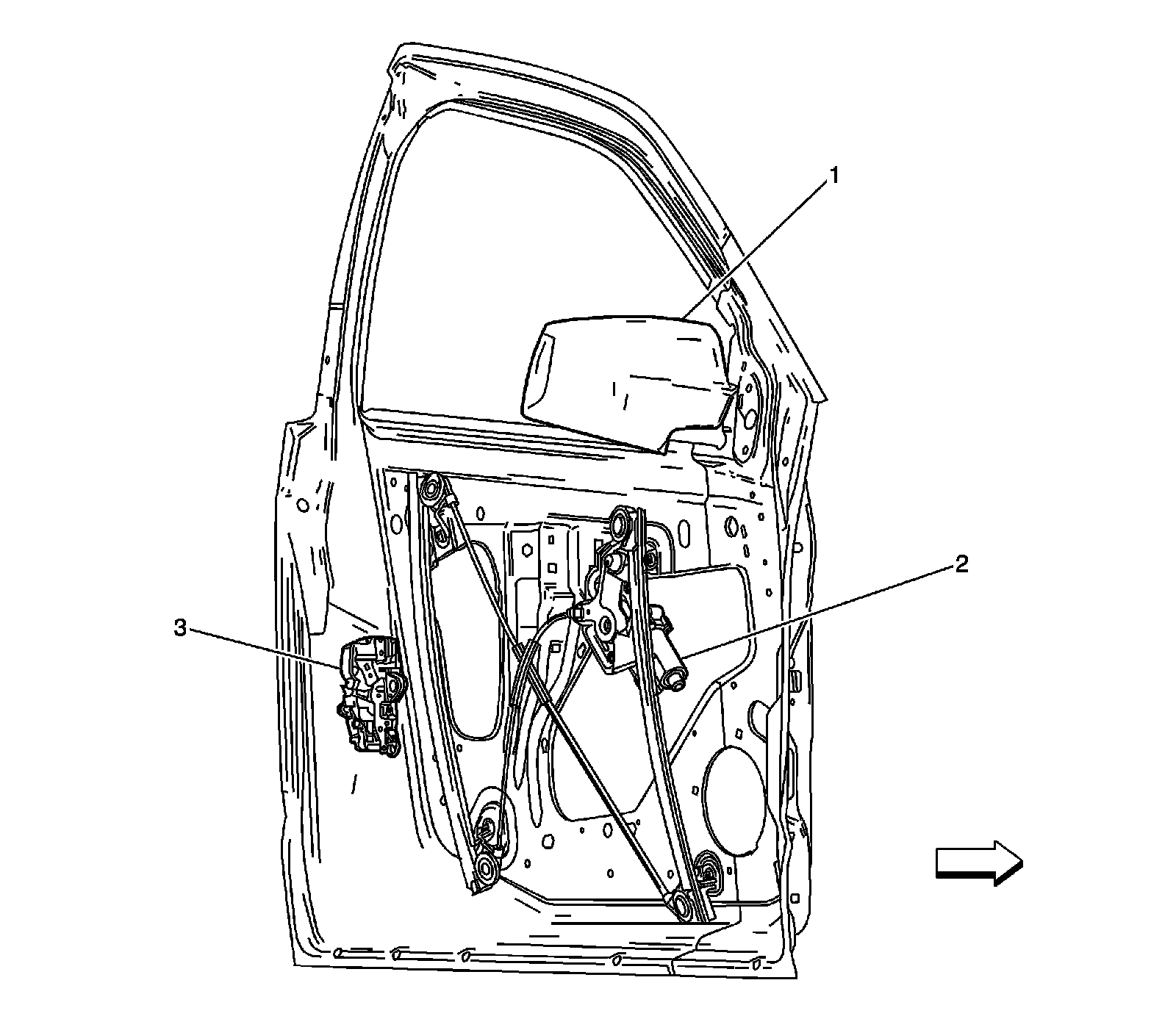

Driver Door Components 1 of 3 (LHD)




1 - Outside Rearview Mirror - Driver
2 - Door Latch - Driver
3 - Window Motor - Driver

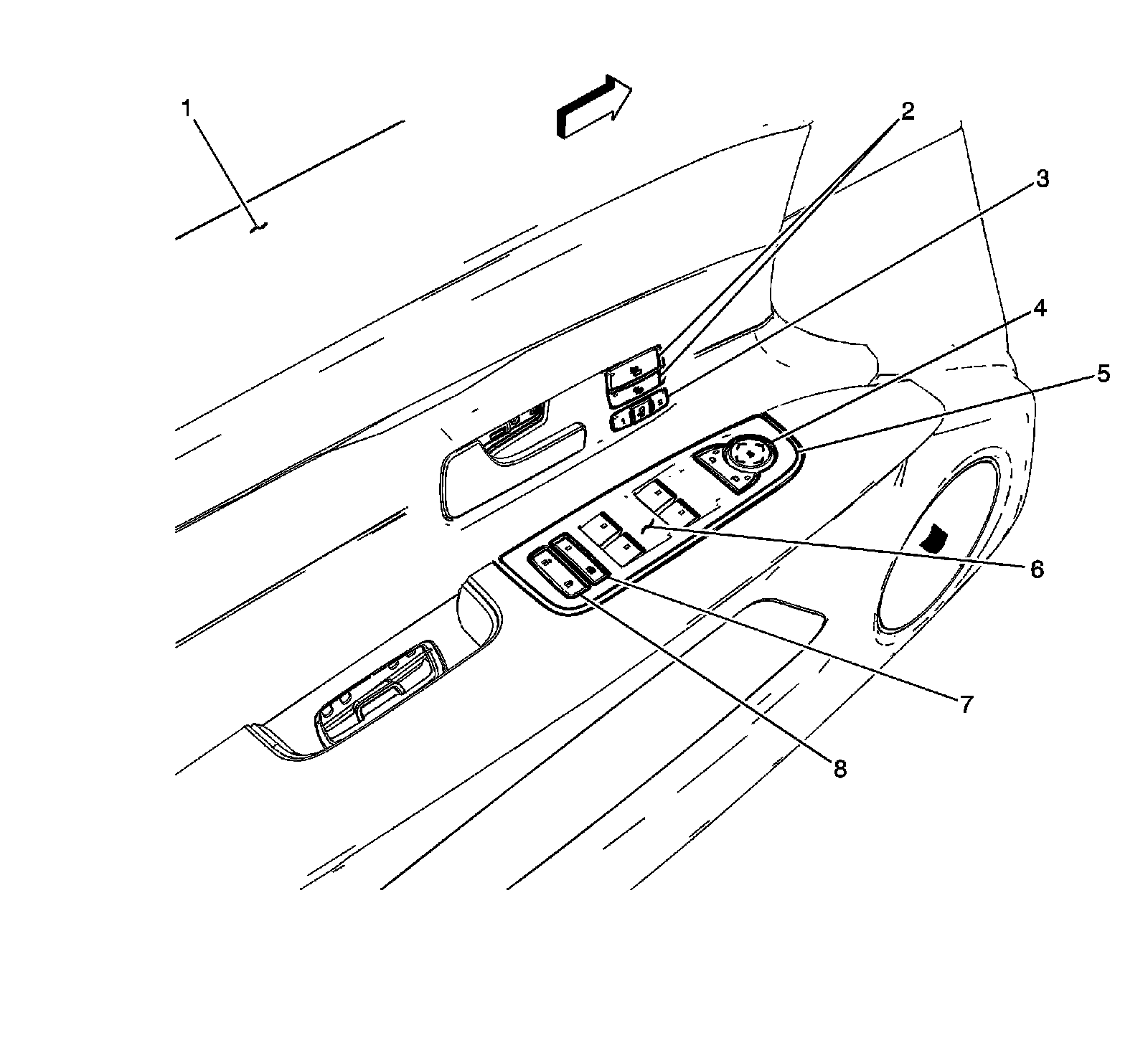

Driver Door Components 2 of 3 (LHD)




1 - Driver Door
2 - Heated Seat Switch - Driver (KA1)
3 - Memory Seat Adjuster Switch - Driver (A45)
4 - Outside Rearview Mirror Switch
5 - Door Control Module - Driver
6 - Window Switch - Driver
7 - Window Lockout Switch
8 - Door Lock/Unlock Switch

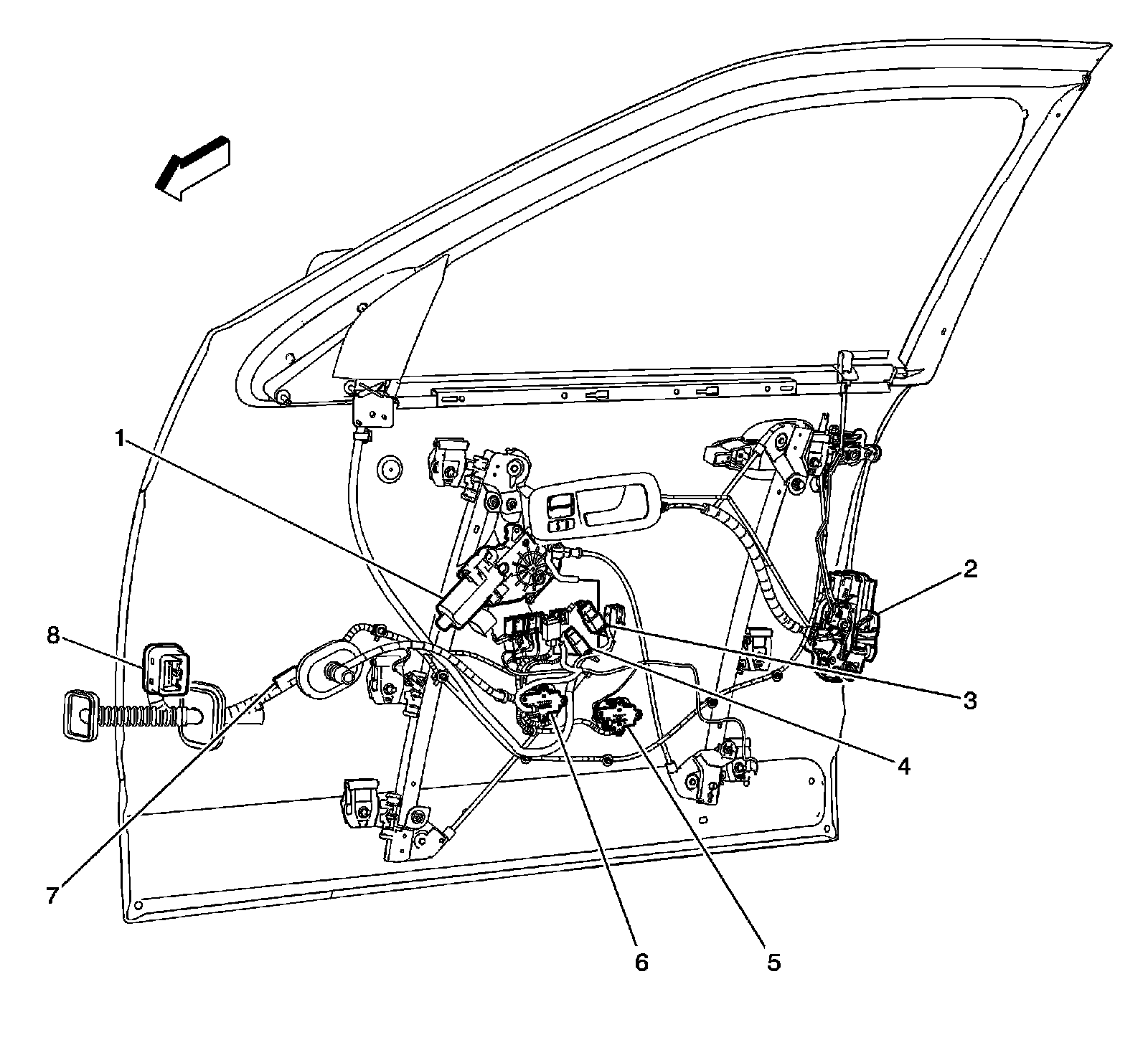

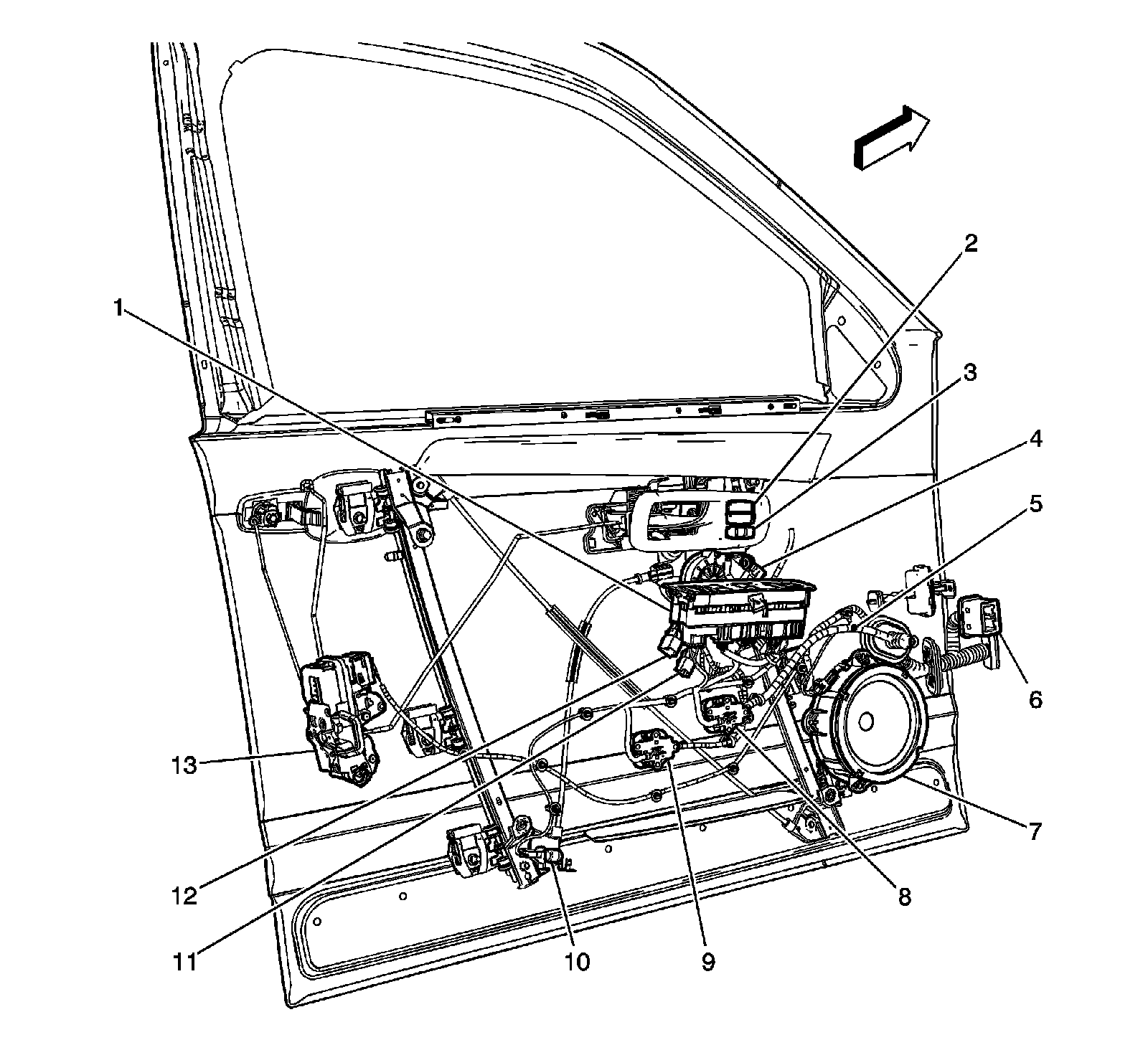

Driver Door Components 3 of 3 (LHD)




1 - Door Control Module - Driver
2 - Heated Seat Switch - Driver (KA1)
3 - Memory Seat Adjuster Switch - Driver (A45)
4 - Window Motor - Driver
5 - J501
6 - X500
7 - Speaker - Left Front
8 - X501
9 - X502
10 - Courtesy Lamp - Left Front Door
11 - Outside Rearview Mirror - Driver X1
12 - Outside Rearview Mirror - Driver X2
13 - Door Latch - Driver

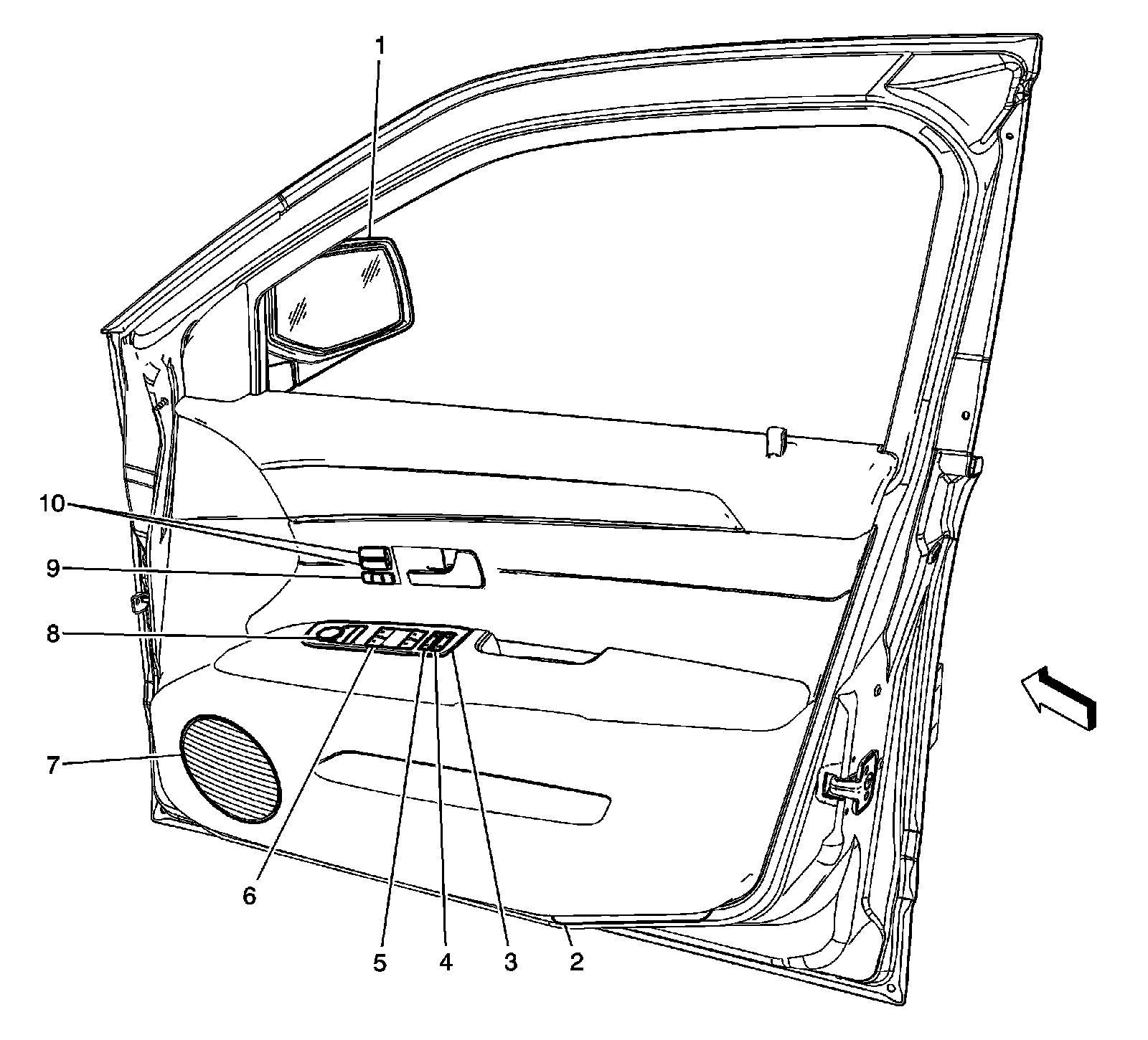

Driver Door Components 1 of 2 (RHD)




1 - Outside Rearview Mirror - Driver
2 - Courtesy Lamp - Right Front Door
3 - Door Control Module - Driver
4 - Door Lock Switch - Driver
5 - Window Lockout Switch
6 - Window Switch - Driver
7 - Speaker - Right Front
8 - Outside Rearview Mirror Switch
9 - Memory Seat Adjuster Switch - Driver (A45)
10 - Heated Seat Switch - Driver

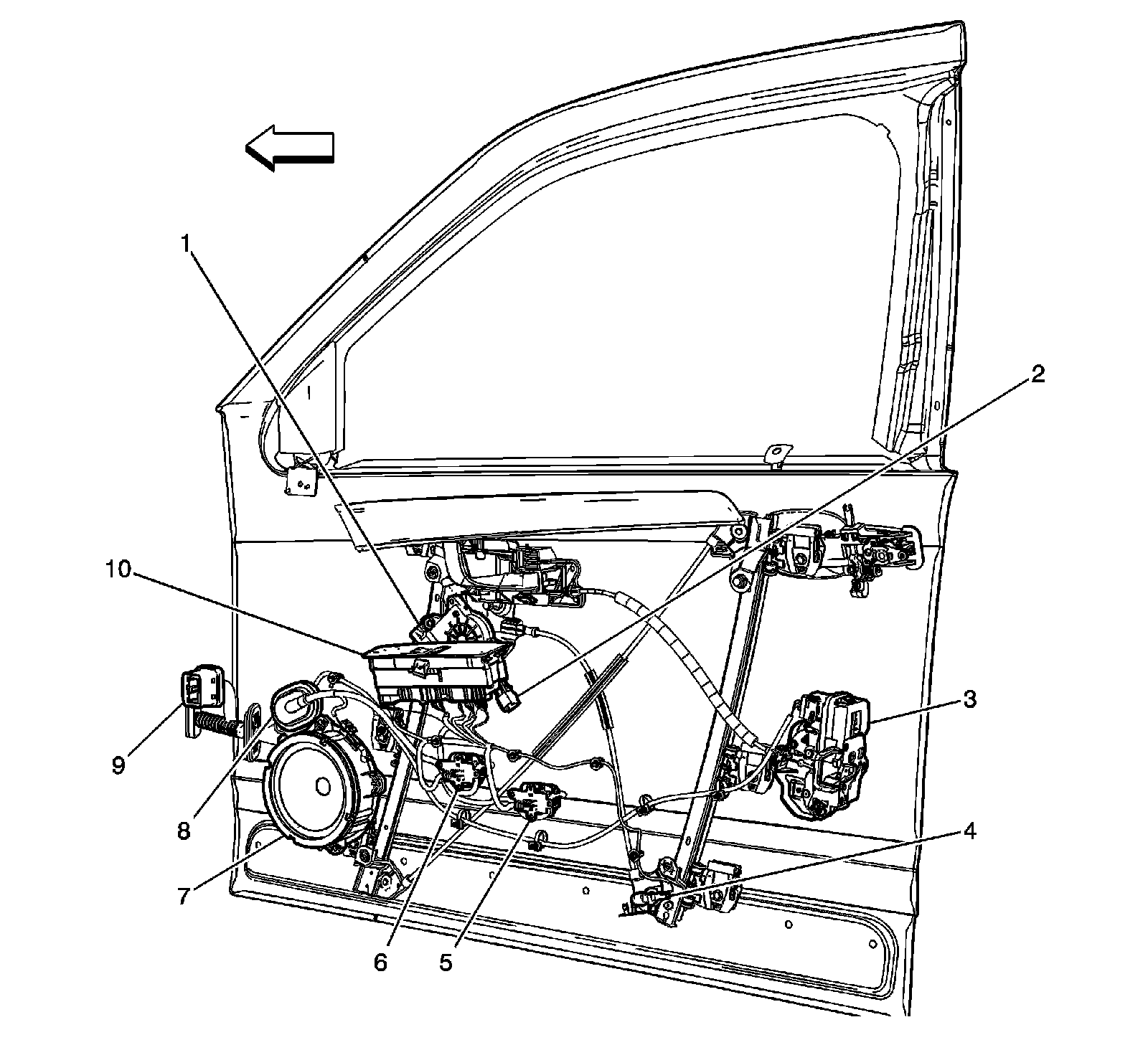

Driver Door Components 2 of 2 (RHD)




1 - Window Motor - Driver
2 - Door Latch - Driver
3 - Outside Rearview Mirror - Driver X2
4 - Outside Rearview Mirror - Driver X1
5 - X602
6 - X601
7 - J601
8 - X600

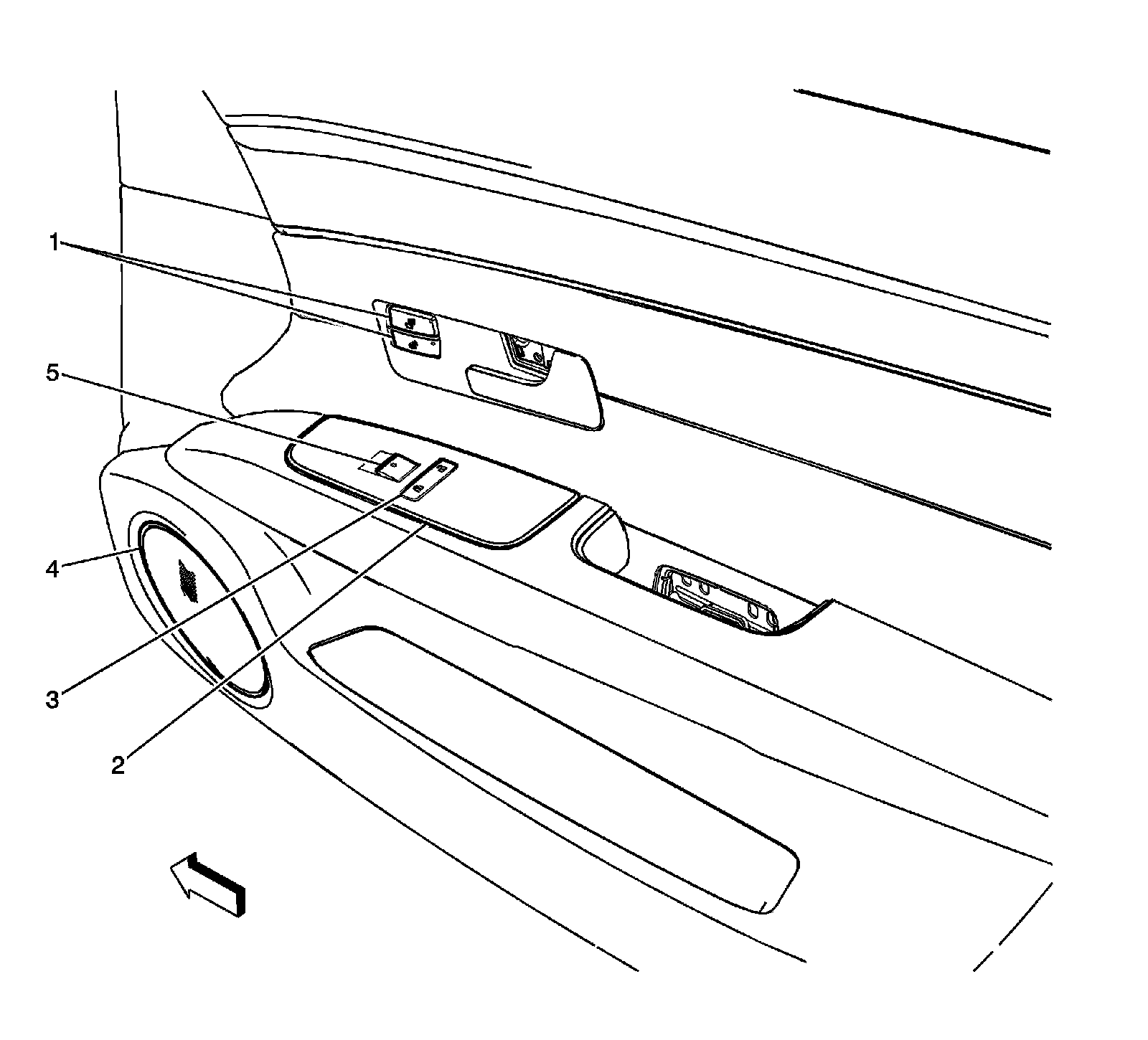

Front Passenger Door Components 1 of 3 (LHD)




1 - Heated Seat Switch - Passenger (KA1)
2 - Door Control Module - Passenger
3 - Door Lock Switch - Passenger
4 - Speaker - Right Front
5 - Window Switch - Passenger

Front Passenger Door Components 2 of 3 (LHD)




1 - Window Motor - Passenger
2 - Outside Rearview Mirror - Passenger
3 - Door Latch - Passenger
4 - Courtesy Lamp - Right Front Door
5 - X602
6 - X601
7 - Speaker - Right Front
8 - J601
9 - X600
10 - Door Control Module - Passenger

Front Passenger Door Components 3 of 3 (LHD)




1 - Outside Rearview Mirror - Passenger
2 - Window Motor - Passenger
3 - Door Latch - Passenger

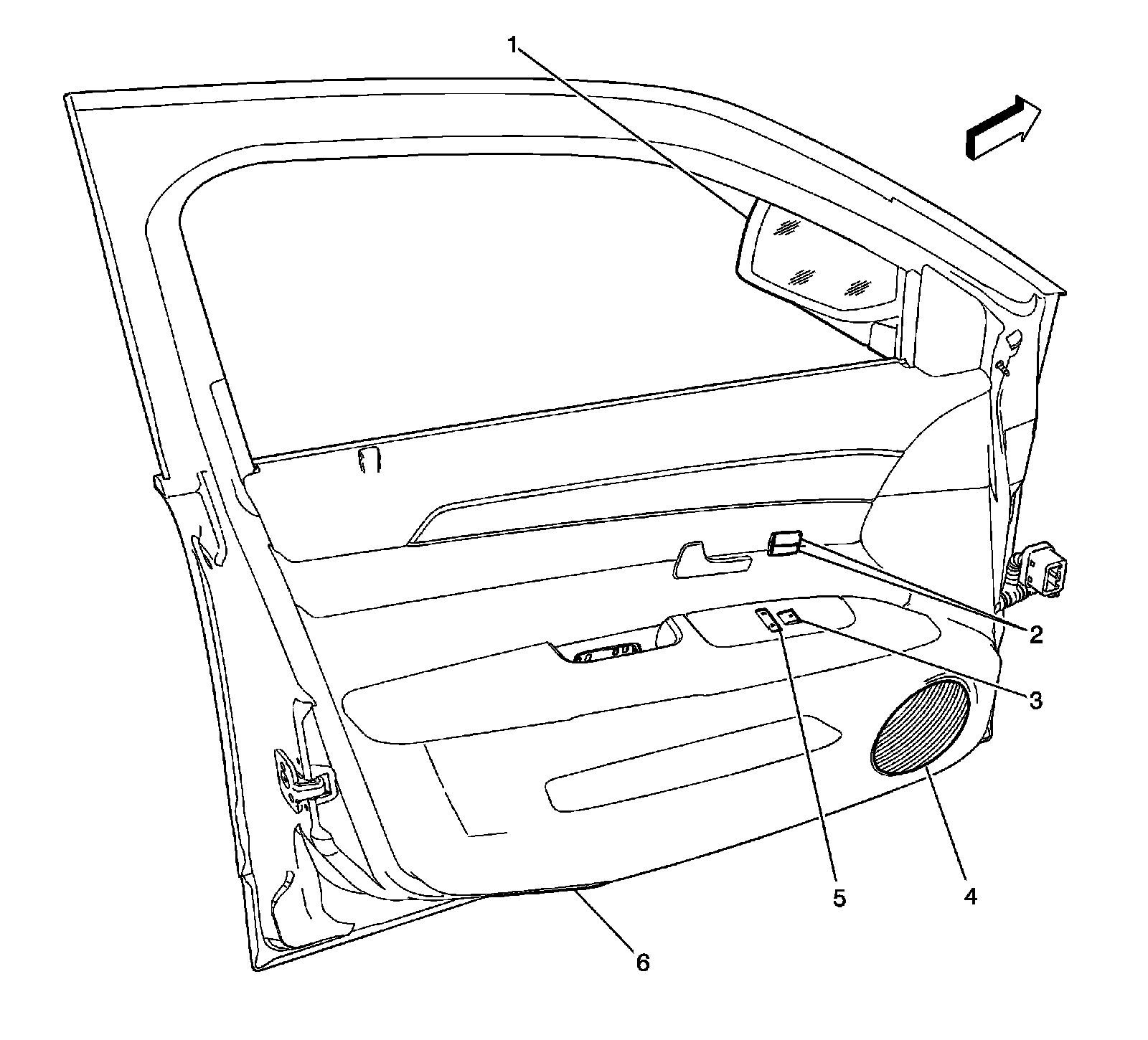

Front Passenger Door Components 1 of 2 (RHD)




1 - Outside Rearview Mirror - Passenger
2 - Heated Seat Switch - Passenger
3 - Window Switch - Passenger
4 - Speaker - Left Front
5 - Door Lock Switch - Passenger
6 - Courtesy Lamp - Left Front Door

Front Passenger Door Components 2 of 2 (RHD)




1 - Outside Rearview Mirror - Passenger
2 - Window Motor - Passenger
3 - J501
4 - X500
5 - X501
6 - X502
7 - Outside Rearview Mirror Passenger Connector
8 - Door Latch - Passenger

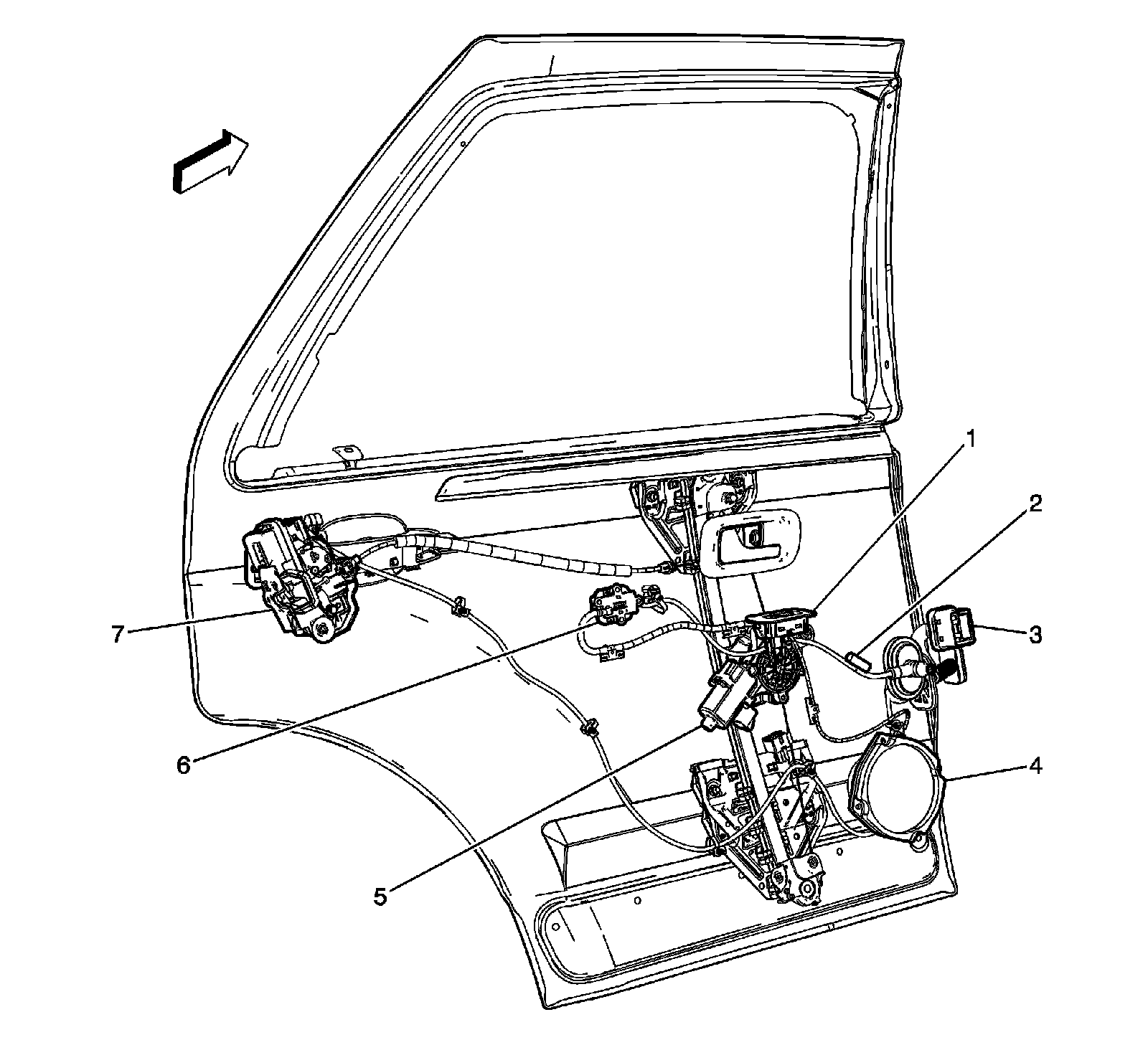

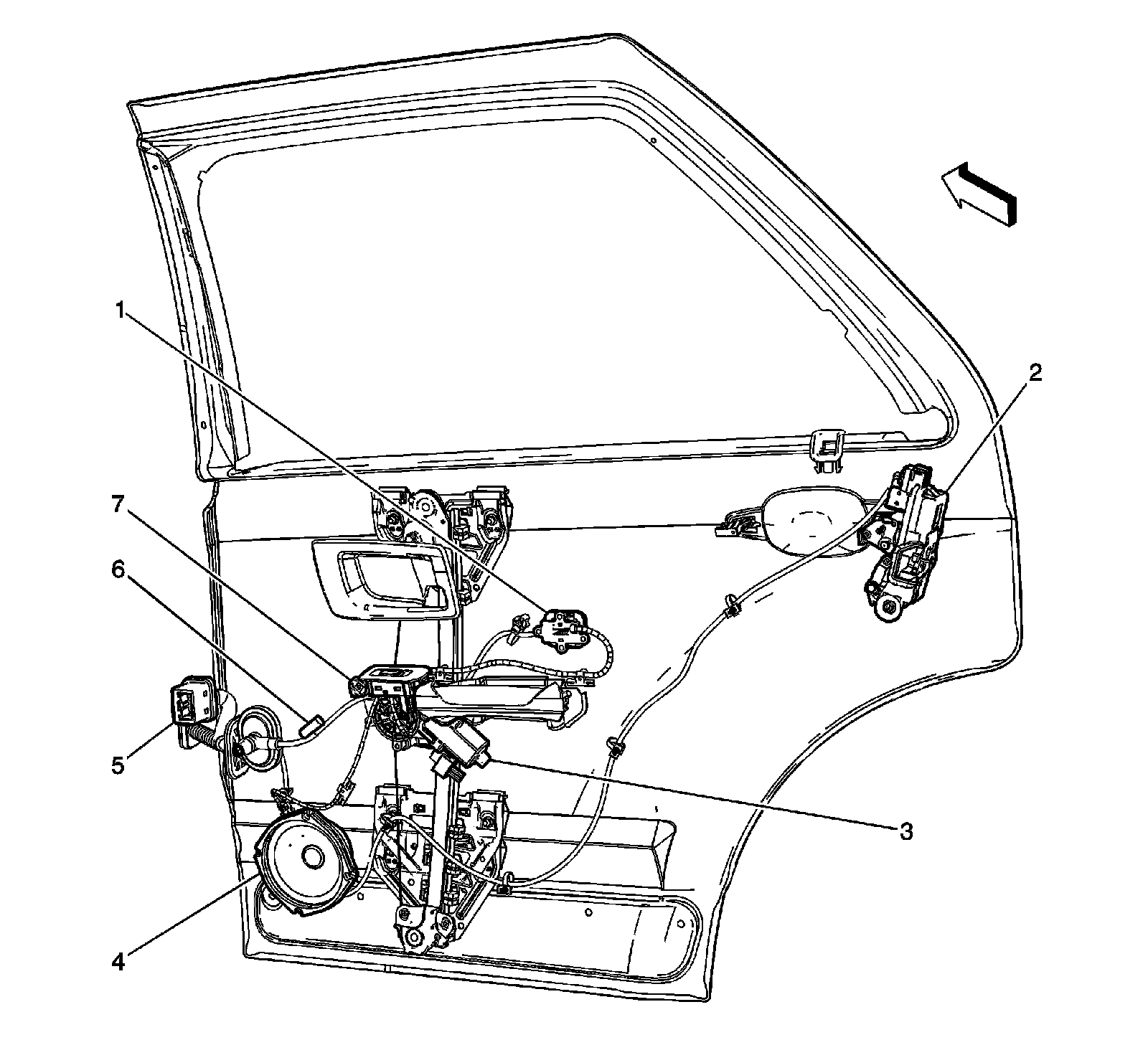

Left Rear Door Components




1 - Window Switch - Left Rear
2 - J701
3 - X700
4 - Speaker - Left Rear
5 - Window Motor - Left Rear
6 - X701
7 - Door Latch - Left Rear

Right Rear Door Components




1 - X801
2 - Door Latch - Right Rear
3 - Window Motor - Right Rear
4 - Speaker - Right Rear
5 - X800
6 - J800
7 - Window Switch - Right Rear
