Master Connector List
Master Electrical Component List

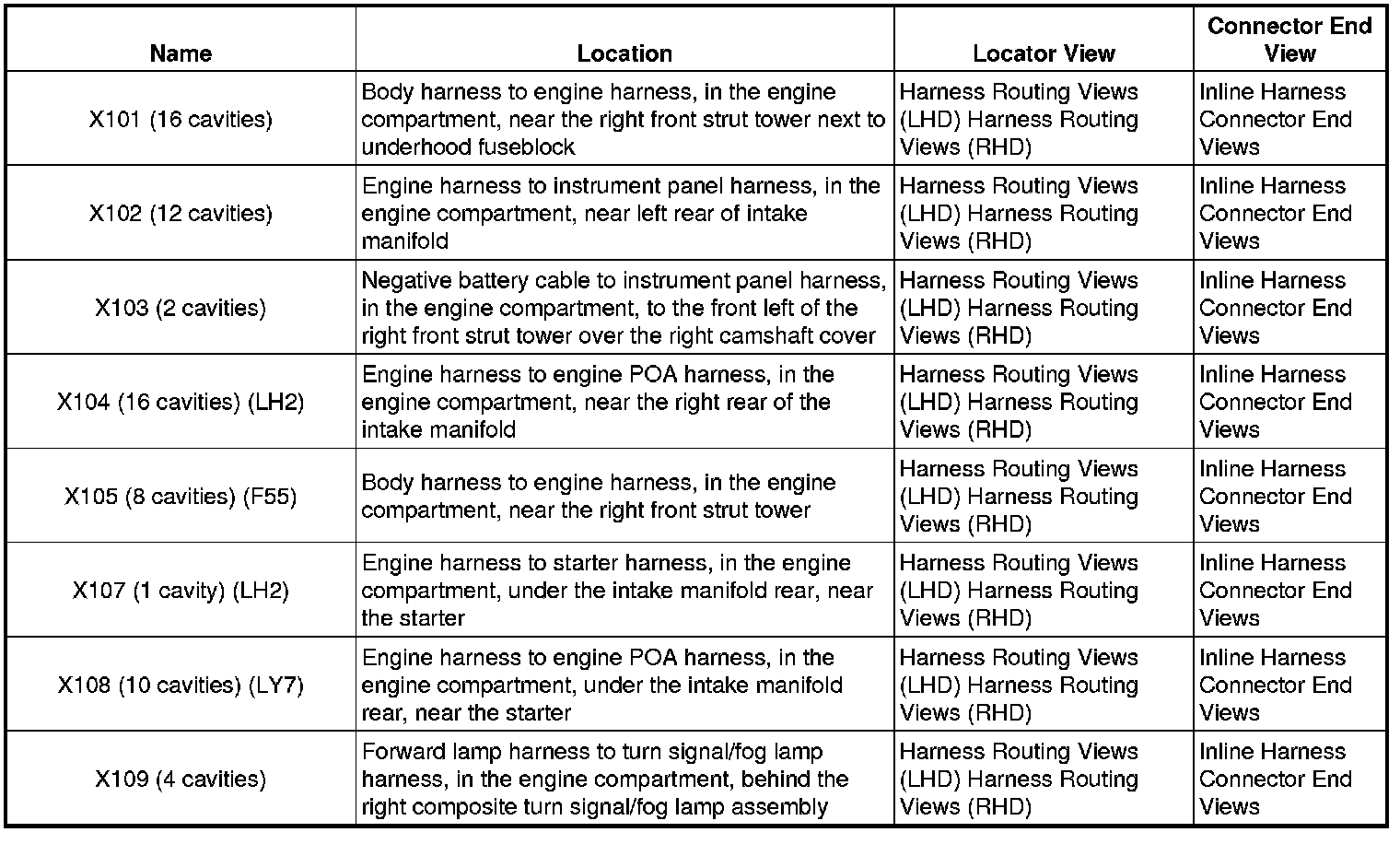

X101 - X109:

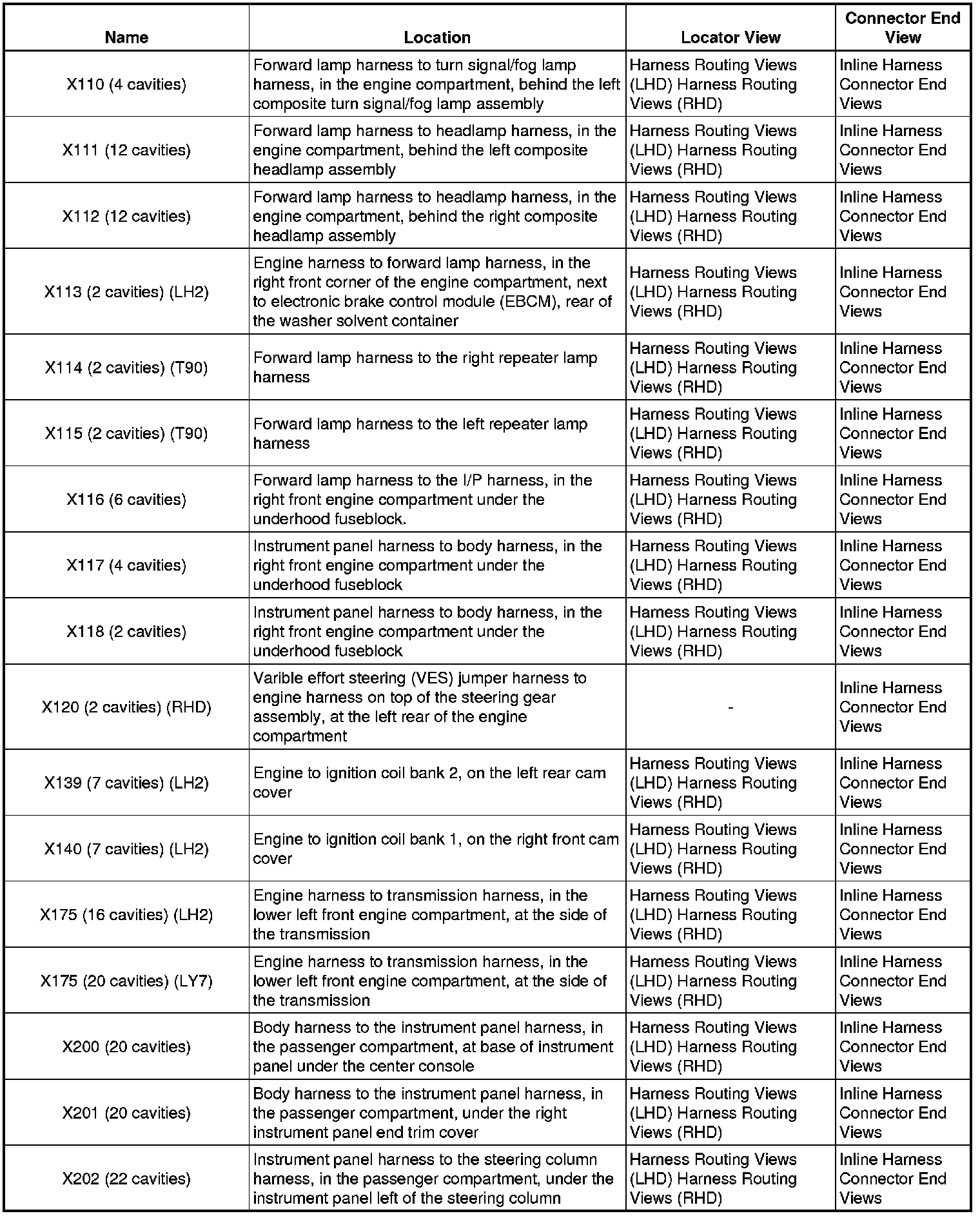

X110 - X202:

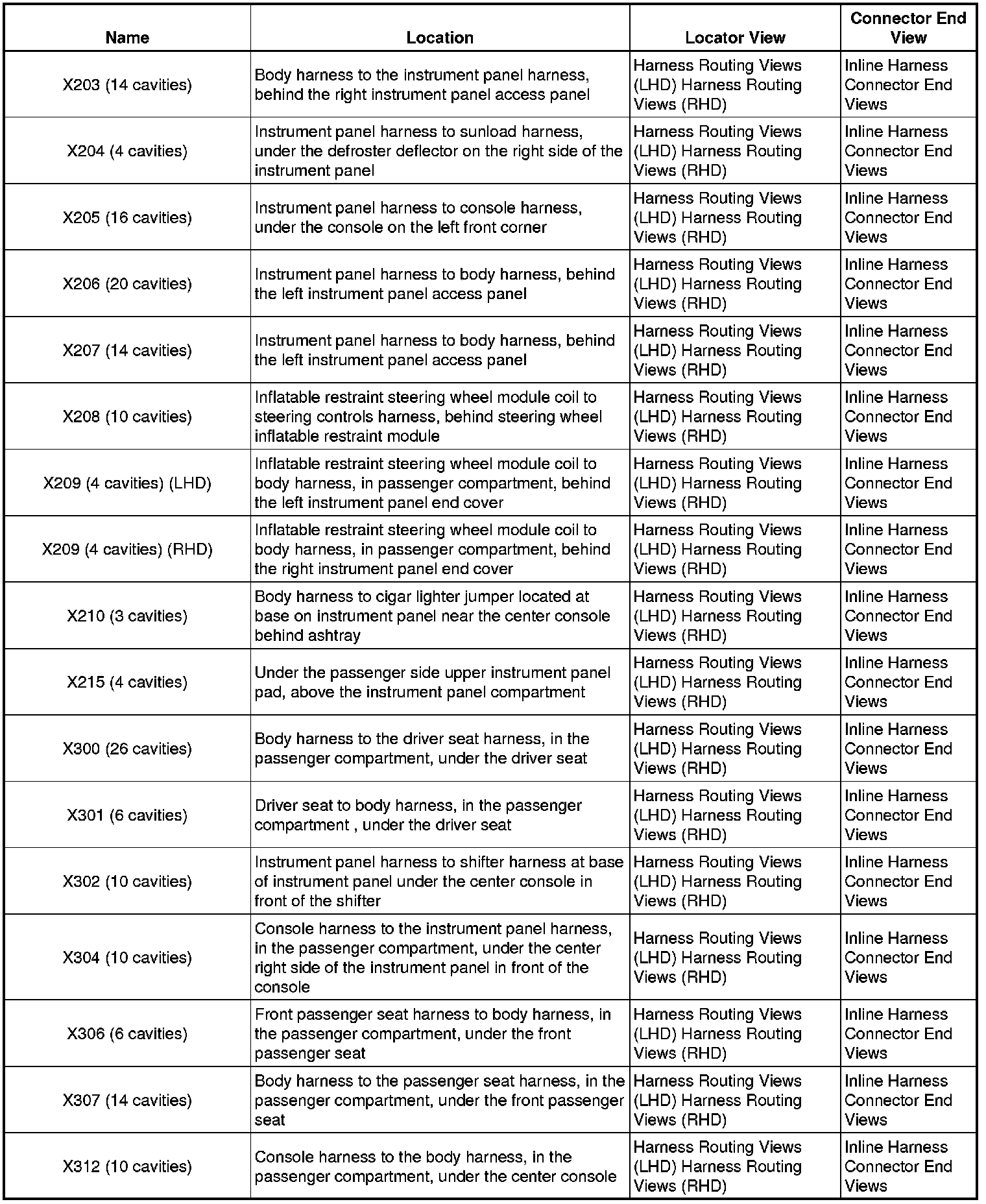

X203 - X312:

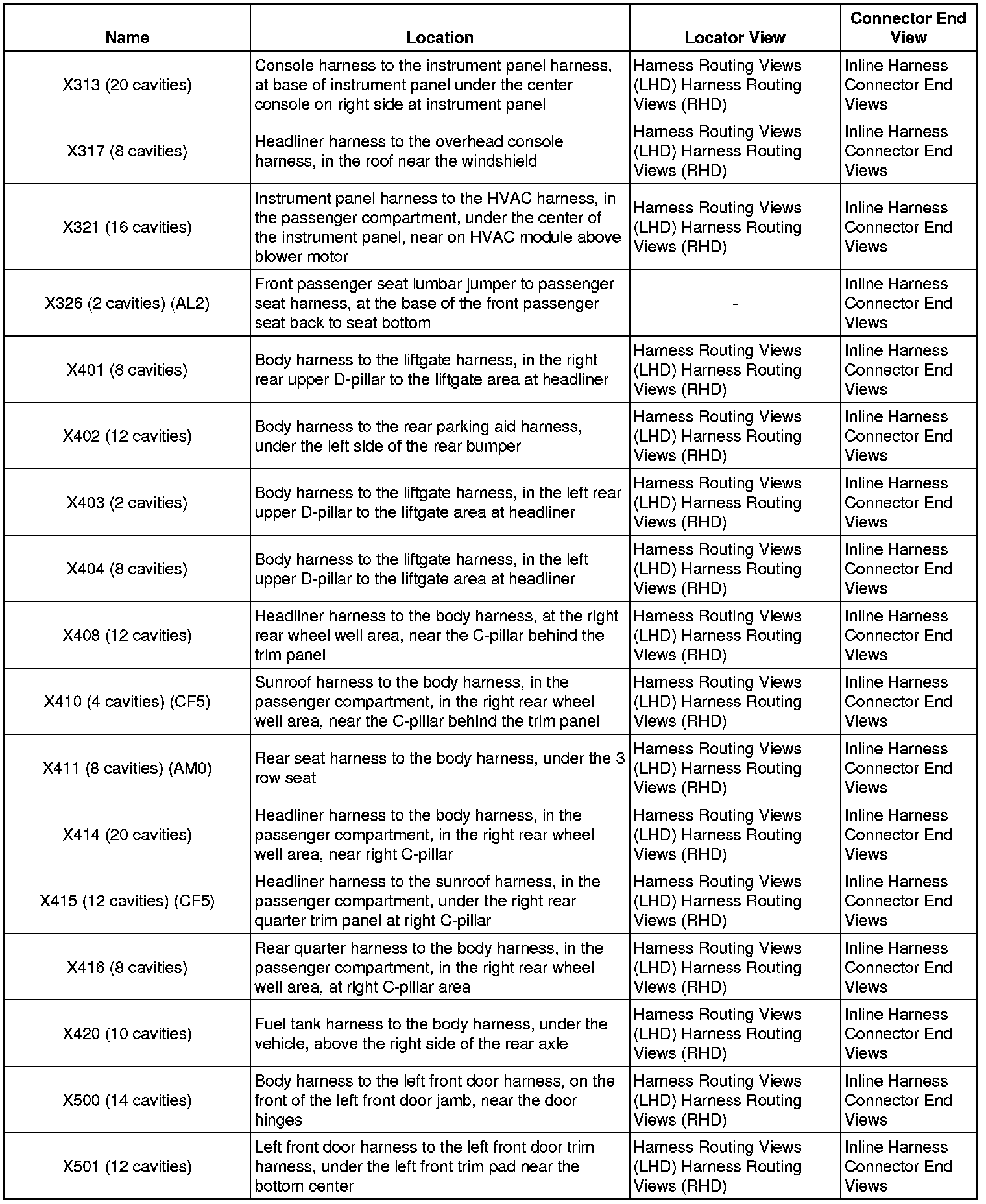

X313 - X501:

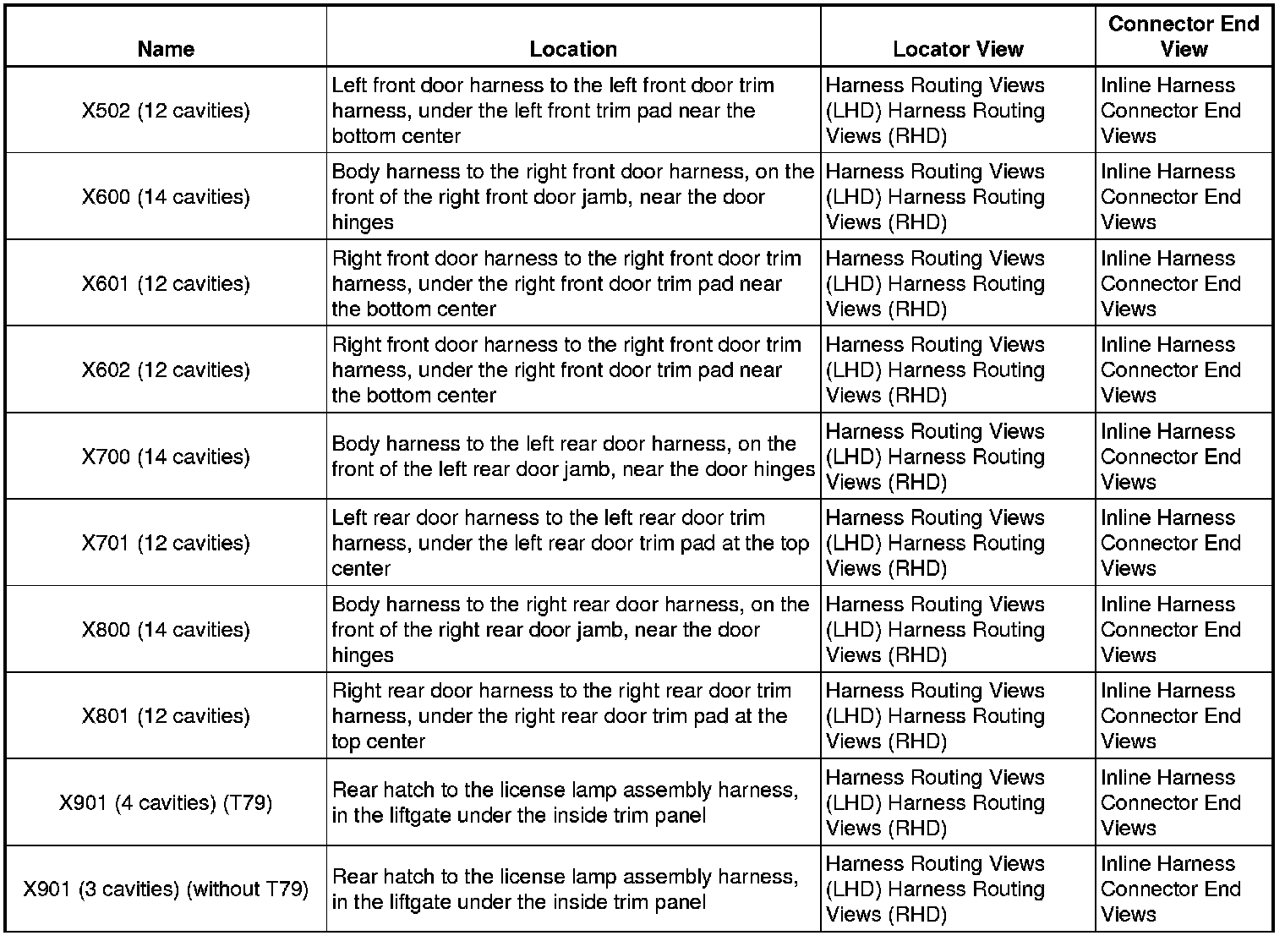

X502 - X901:
