Master Splice List
Master Splice List
Master Electrical Component List
J100 - J112:

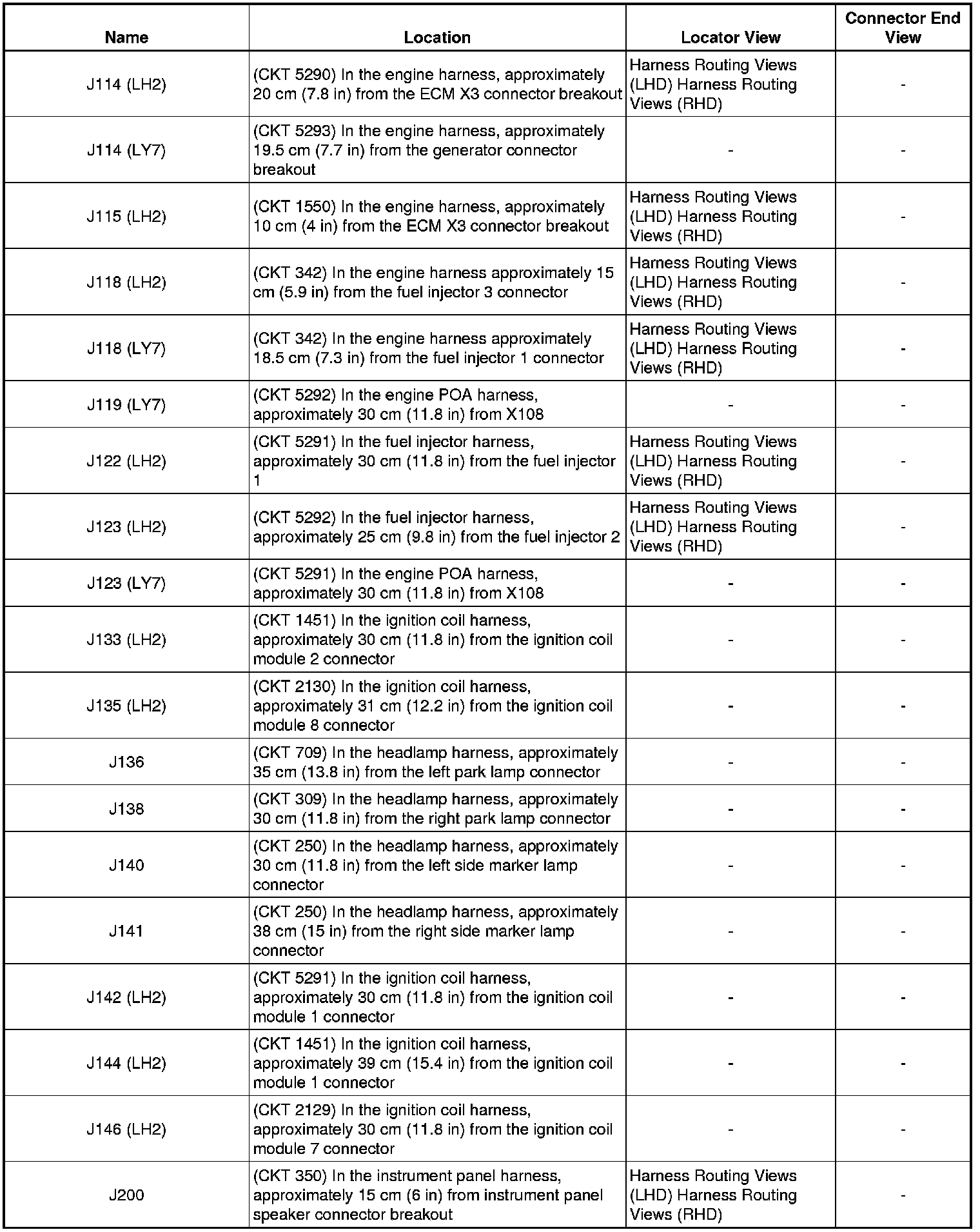

J114 - J200:

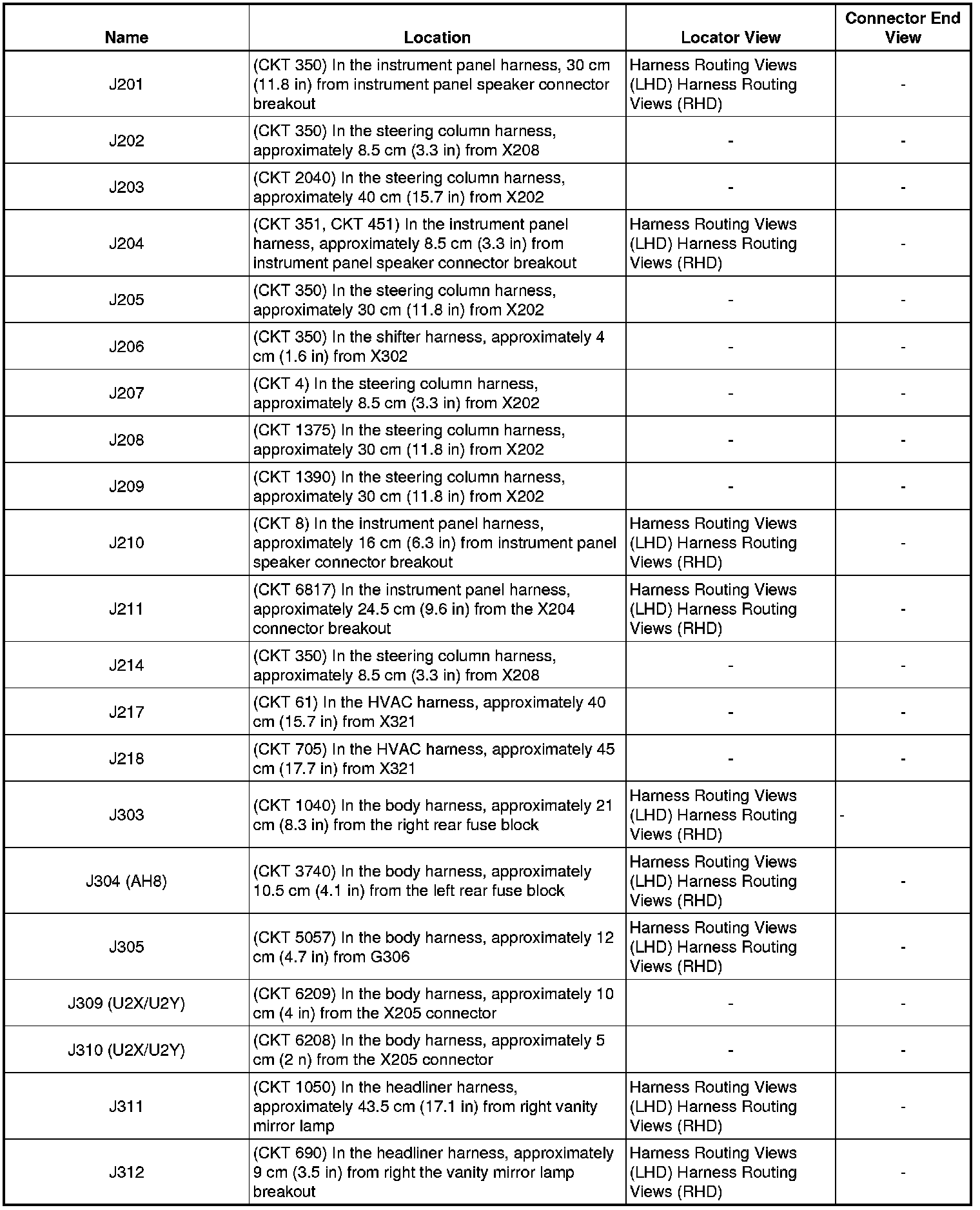

J201 - J312:

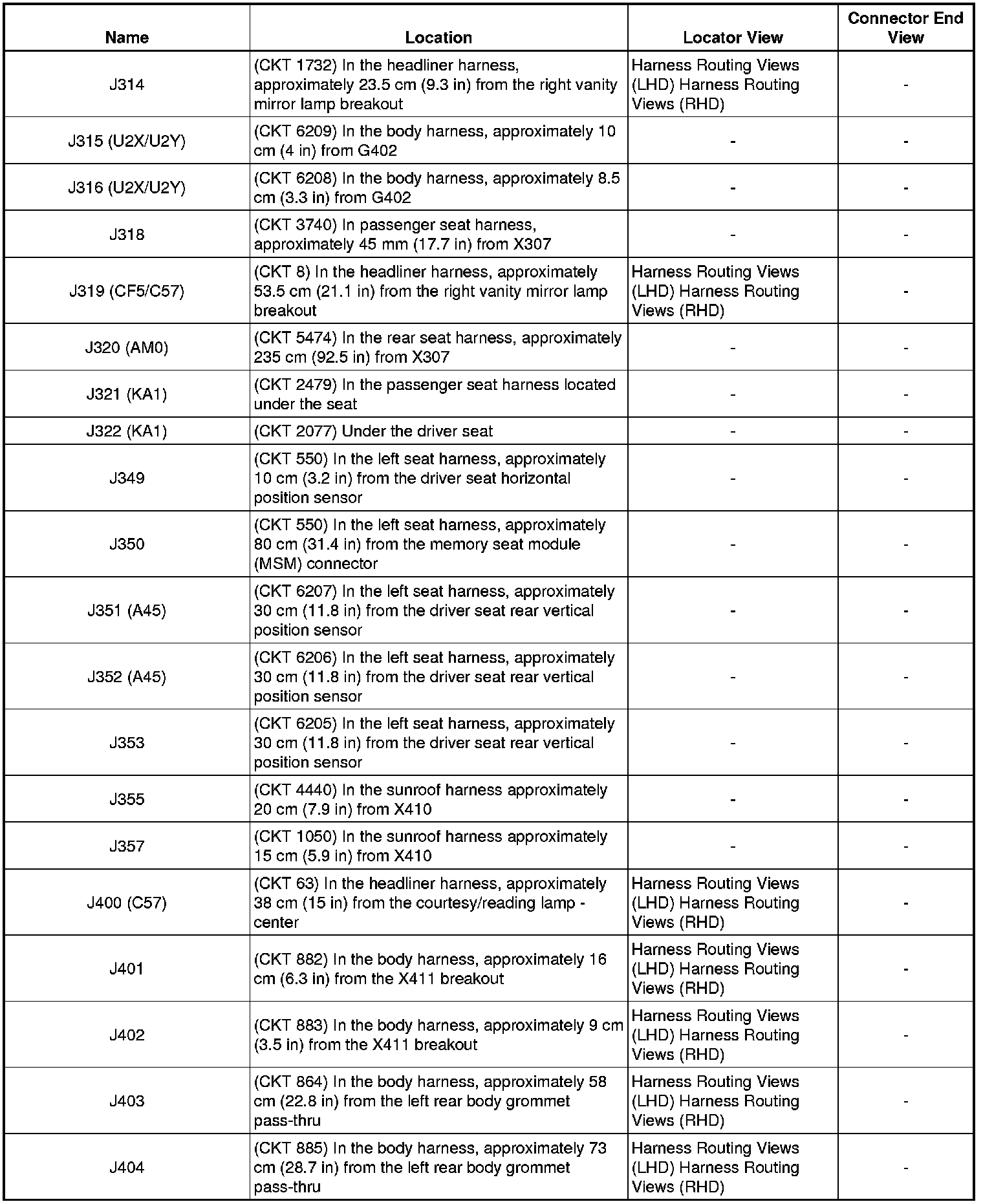

J314 - J404:

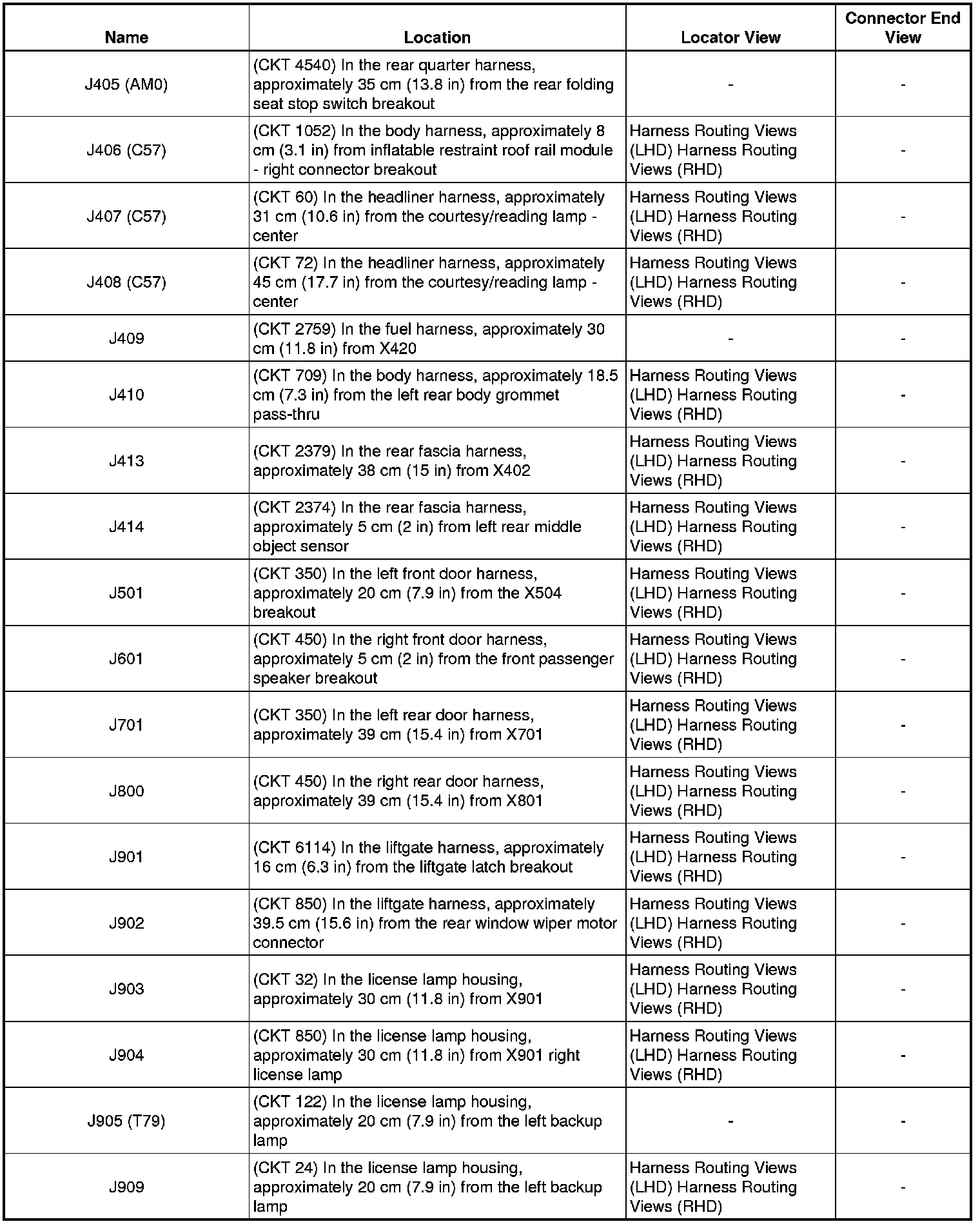

J405 - J909:

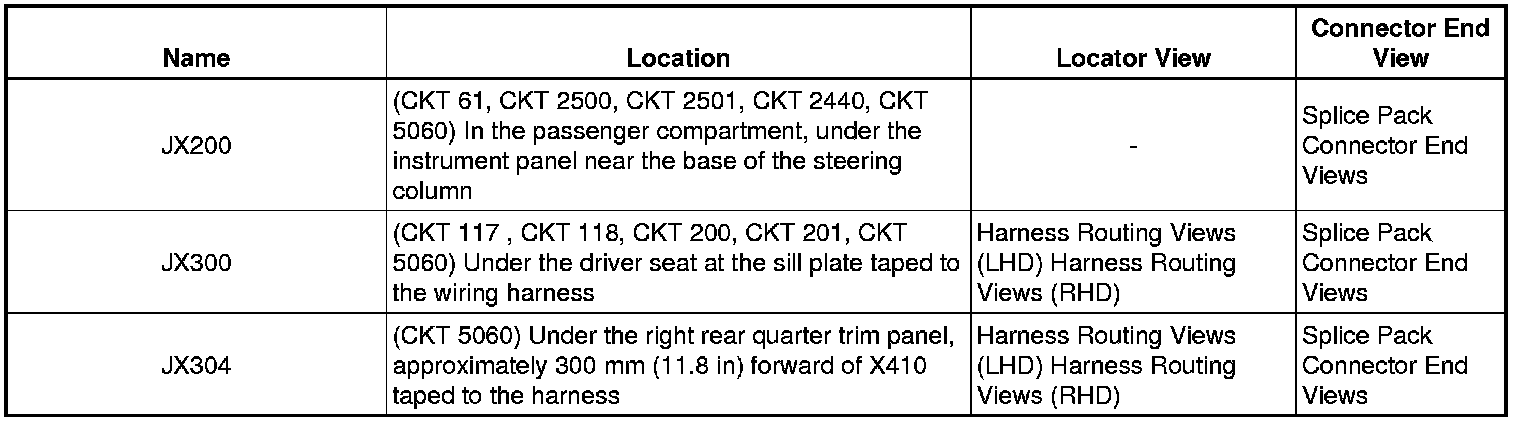

JX200 - JX304:
