Harness Routing Views (LHD)

Harness Routing Views (LHD)

Forward Lamp Harness




1 - J104 (TR7)
2 - X112
3 - X114 (T90)
4 - X109
5 - J105 (K14)
6 - Fuse Block - Underhood Bracket
7 - X116
8 - G104
9 - G110 (LH2)
10 - X113 (LH2)
11 - X110
12 - X115 (T90)
13 - X111

Rear of Engine Compartment (LH2)




1 - X104
2 - Fuse Block - Underhood X3
3 - G100
4 - G107
5 - X175
6 - X107
7 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
8 - X102

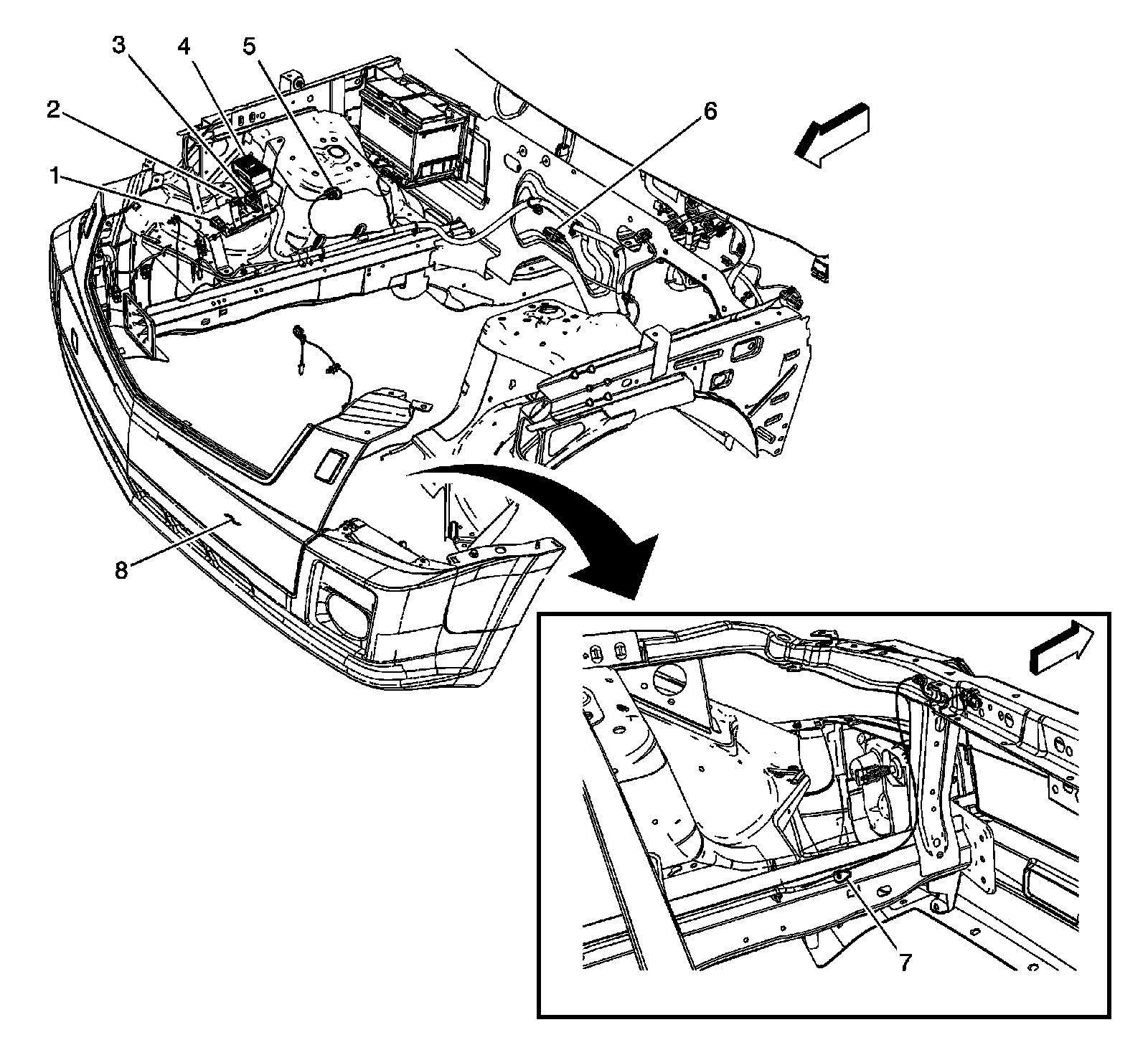

Instrument Panel Harness Routing - Front Engine Compartment




1 - X116
2 - X118
3 - X117
4 - Fuse Block - Underhood X2
5 - X103
6 - X102
7 - G101
8 - Front Fascia
