Harness Routing Views (RHD)

Harness Routing Views (RHD)

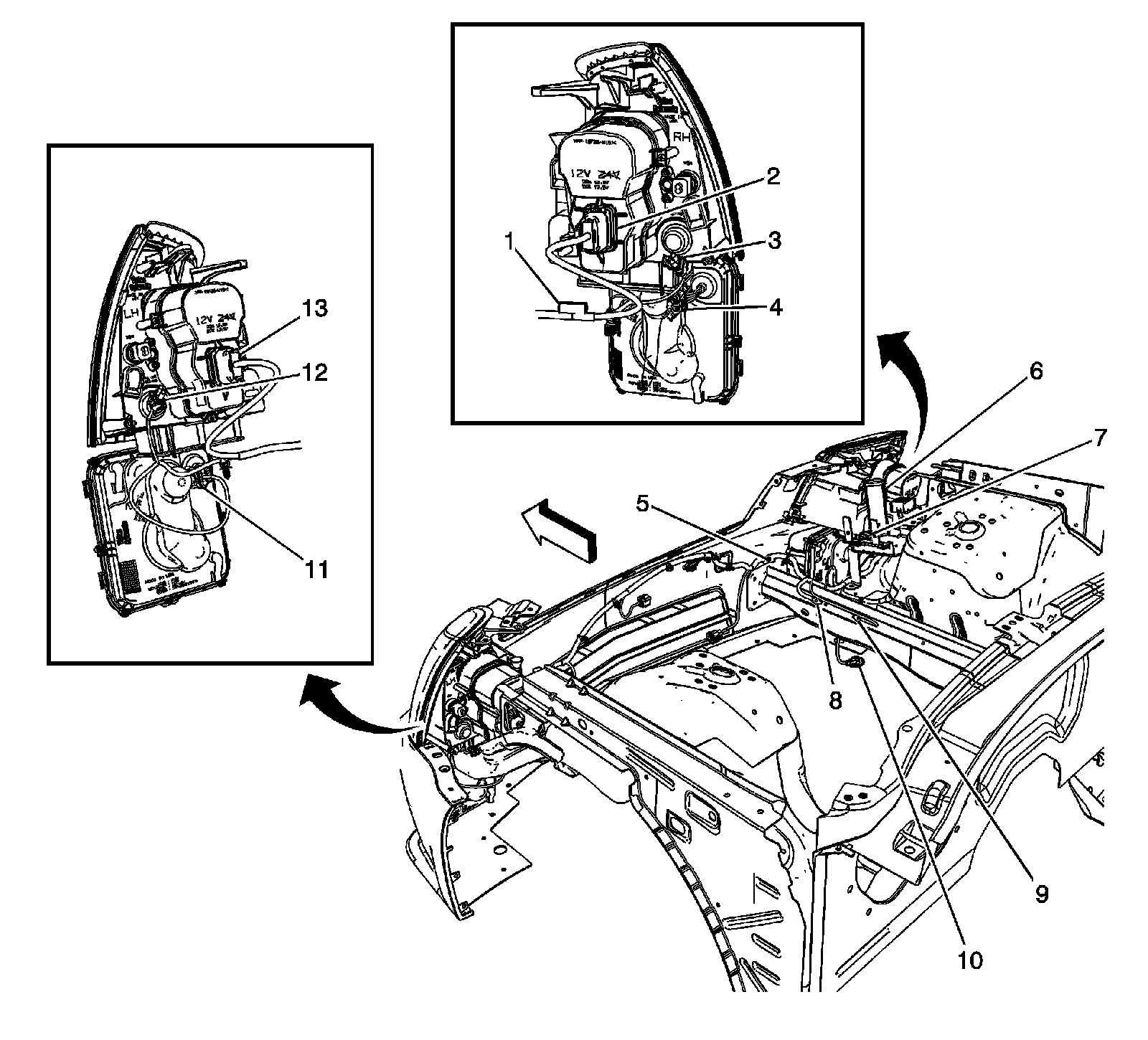

Forward Lamp Harness




1 - J104 (TR7)
2 - X112
3 - X114 (T90)
4 - X109
5 - J105 (K14)
6 - Fuse Block - Underhood Bracket
7 - X116
8 - G104
9 - G110 (LH2)
10 - X113 (LH2)
11 - X110
12 - X115 (T90)
13 - X111

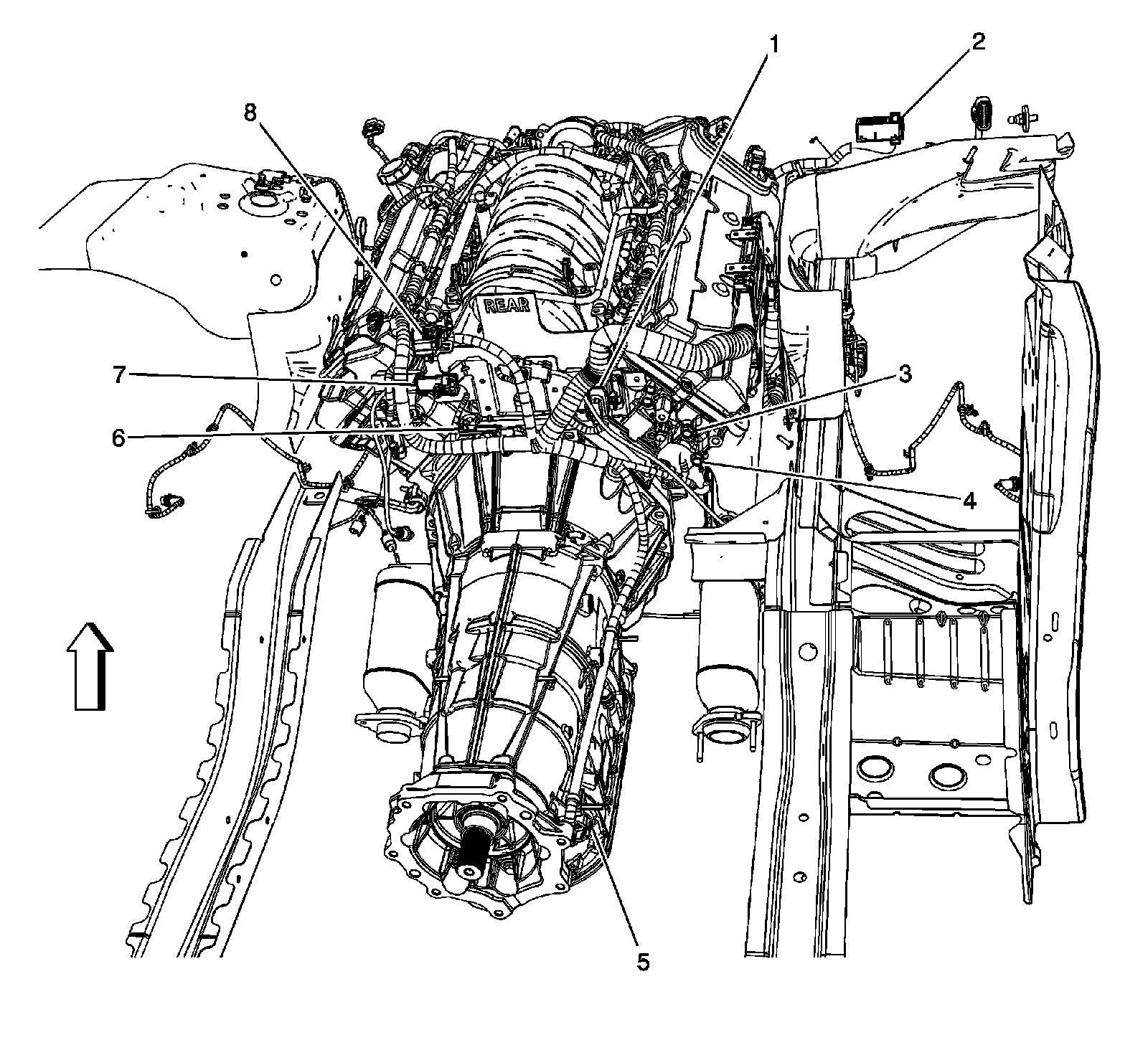

Rear of Engine Compartment (LH2)




1 - X104
2 - Fuse Block - Underhood X3
3 - G100
4 - G107
5 - X175
6 - X107
7 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
8 - X102

I/P Harness Routing - Front Engine Compartment




1 - X102
2 - Battery
3 - Battery Current Sensor
4 - X103
5 - G101
6 - X116
7 - X118
8 - X117
9 - Fuse Block - Underhood X2

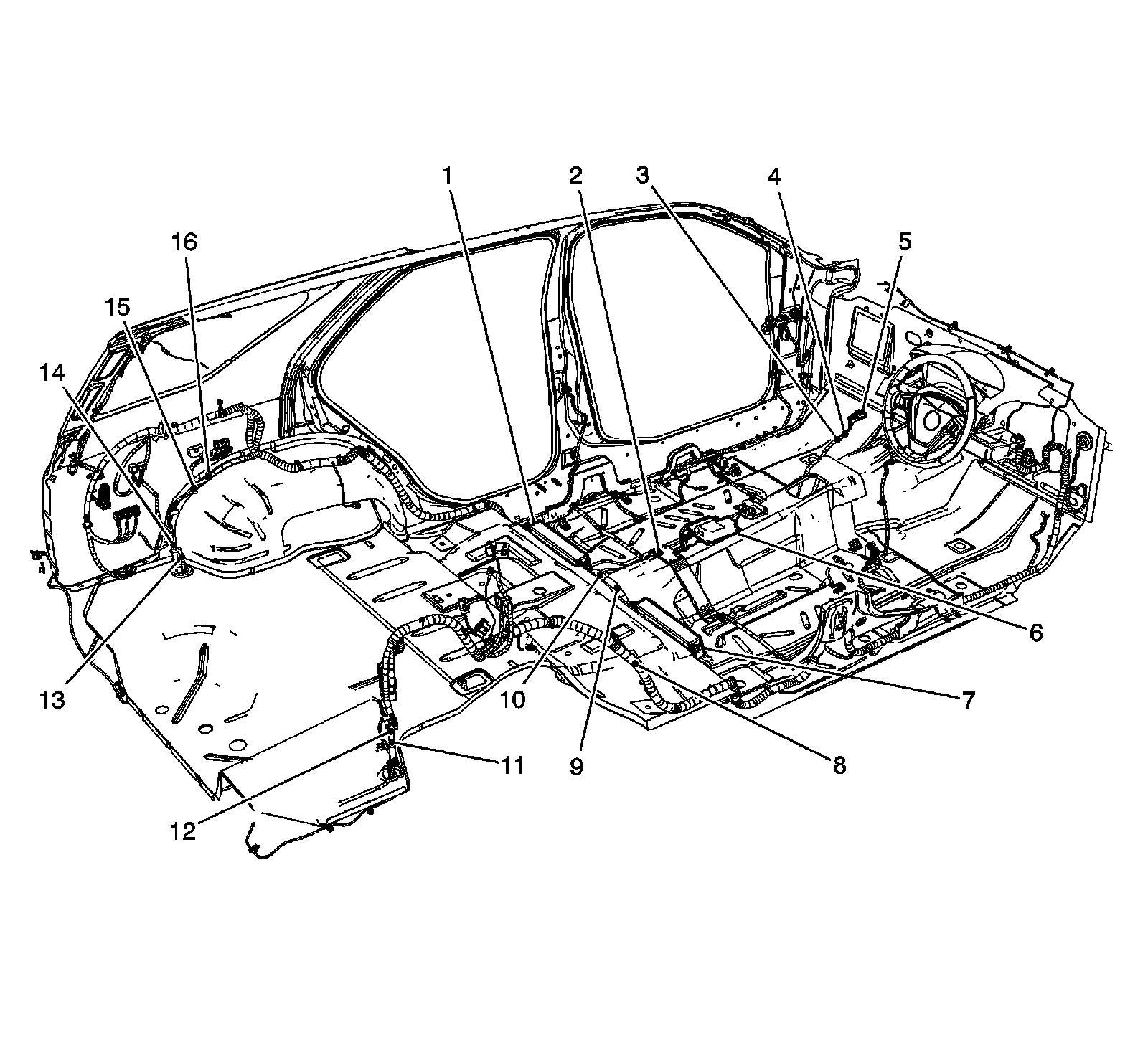

Body Harness Routing - Splices




1 - Fuse Block - Left Rear
2 - J305
3 - J309 (U2X/U2Y)
4 - J410
5 - X205
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 - Fuse Block - Right Rear
8 - J406
9 - J304 (AH8)
10 - J303
11 - J407 (C57)
12 - J402
13 - J403
14 - J404
15 - J416
16 - J415
