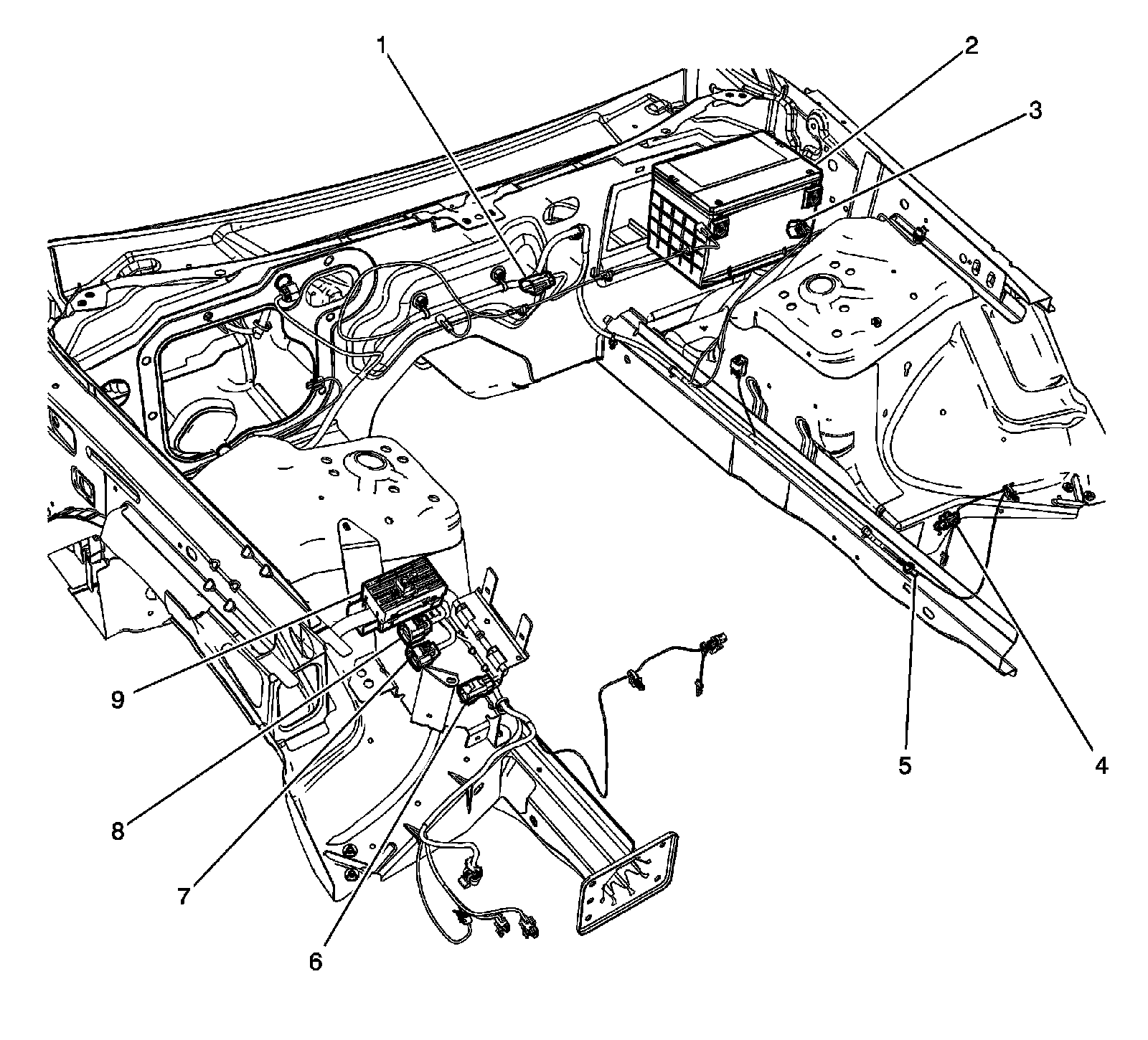

I/P Harness Routing - Front Engine Compartment




1 - X102
2 - Battery
3 - Battery Current Sensor
4 - X103
5 - G101
6 - X116
7 - X118
8 - X117
9 - Fuse Block - Underhood X2
