Fuel Tank Pressure Sensor: Locations

Wheels/Vehicle Underbody Component Views

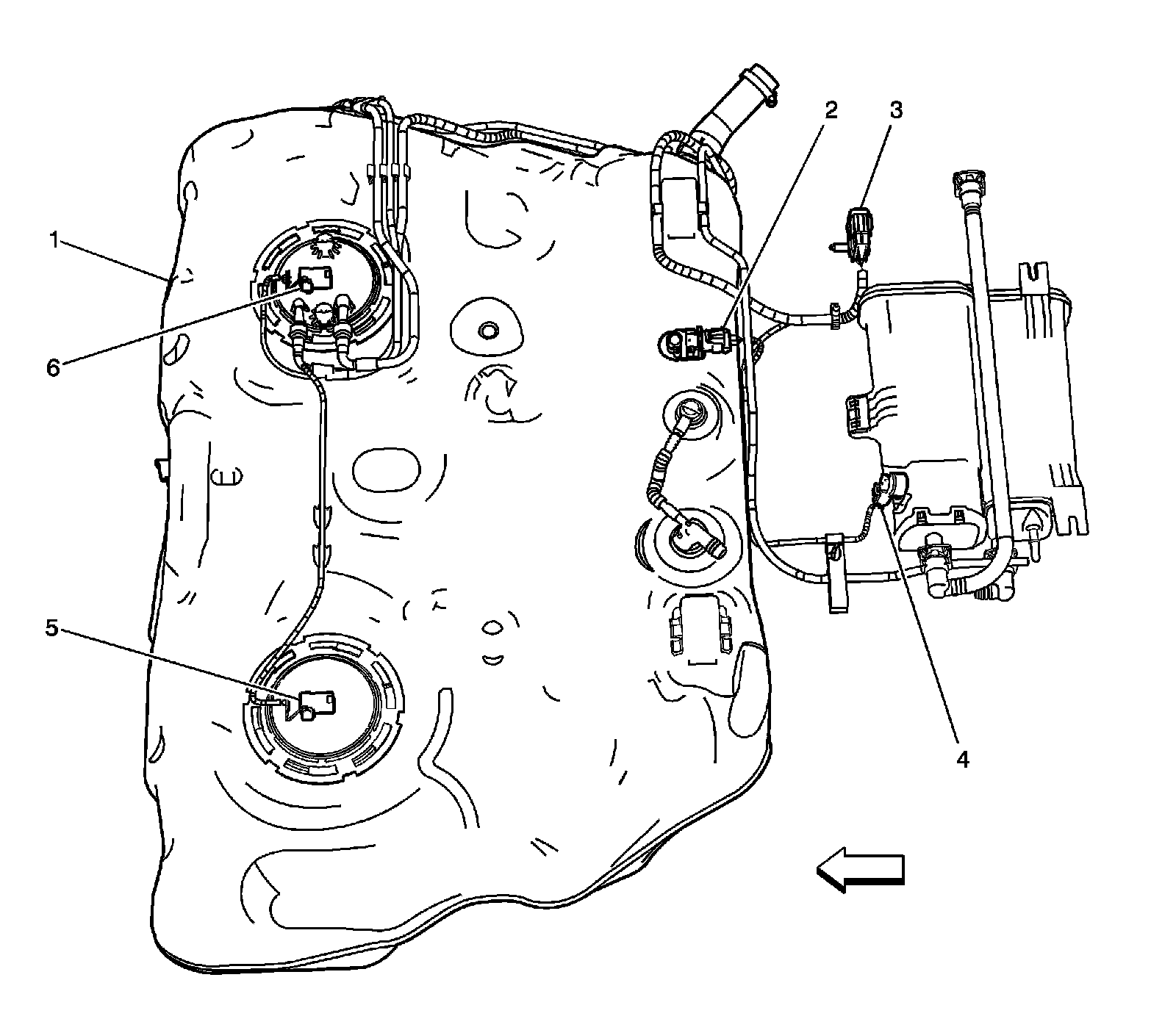

Fuel Tank Components




1 - Fuel Tank
2 - Fuel Tank Pressure (FTP) Sensor
3 - X420
4 - Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
5 - Fuel Level Sensor - Secondary
6 - Fuel Pump and Sender Assembly
