Antenna Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

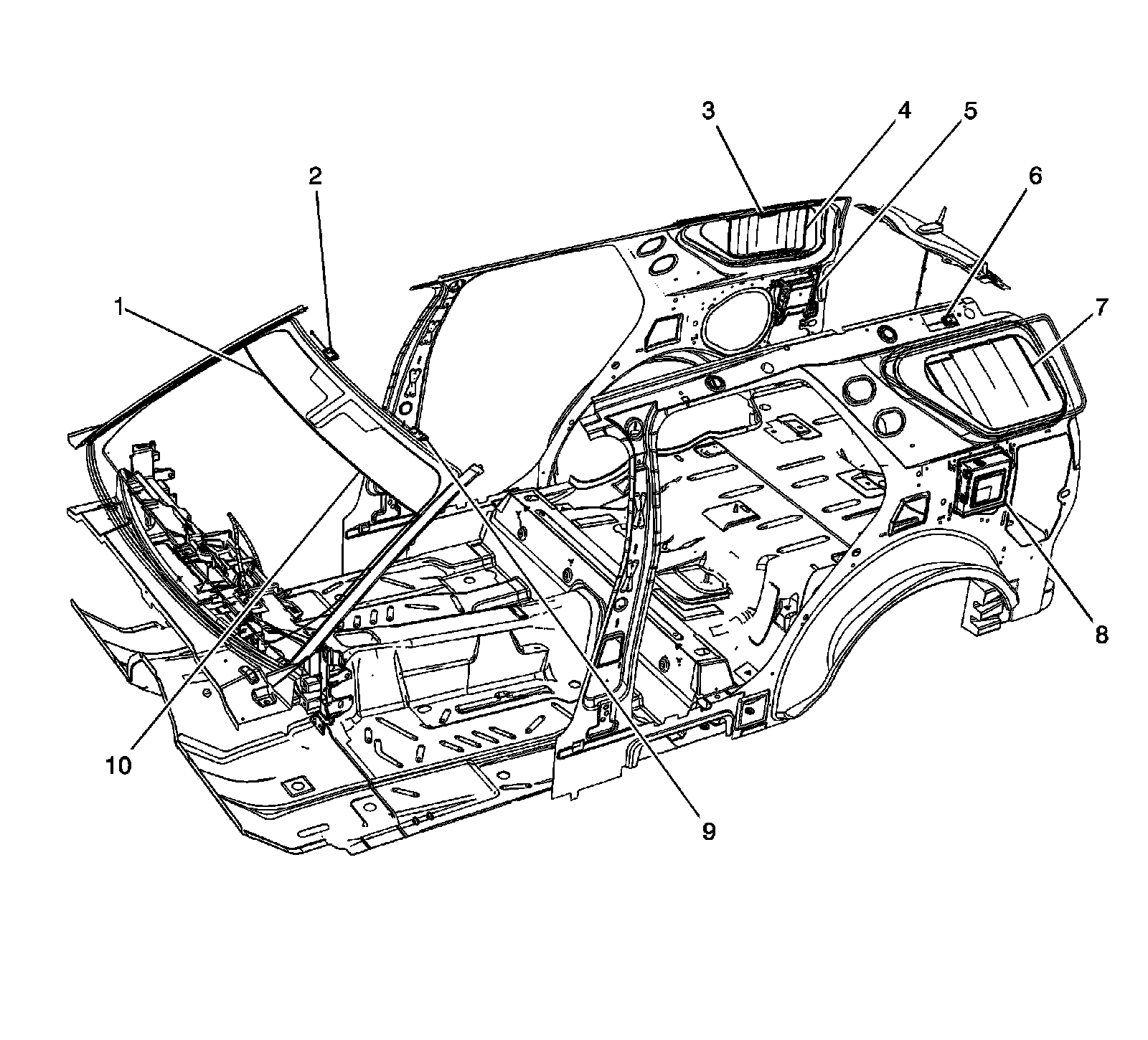

Antenna Components (EXP)




1 - Television Antenna - Right Front
2 - Television Antenna Amplifier - Right Front
3 - Television Antenna Amplifier - Right Rear
4 - Television Antenna - Right Rear
5 - Digital Radio Receiver (U2K)
6 - Television Antenna Amplifier - Left Rear
7 - Television Antenna - Left Rear
8 - Television Antenna Module (U2Y/U2X)
9 - Television Antenna Amplifier - Left Front
10 - Television Antenna - Left Front

Left Rear Cargo Area




1 - Liftgate Ajar Switch
2 - Liftgate Module (LGM)
3 - Liftgate Motor Assembly
4 - Power Liftgate Clutch (PLC)
5 - Audio Amplifier (UQA/UQS)
6 - Rear Object Sensor Control Module
7 - Television Antenna Module (U2Y/U2X)
8 - Blower Motor Resistor Auxiliary (C57)
9 - Blower Motor-Auxiliary (C57)
10 - HVAC Control Module-Auxiliary (C57)
