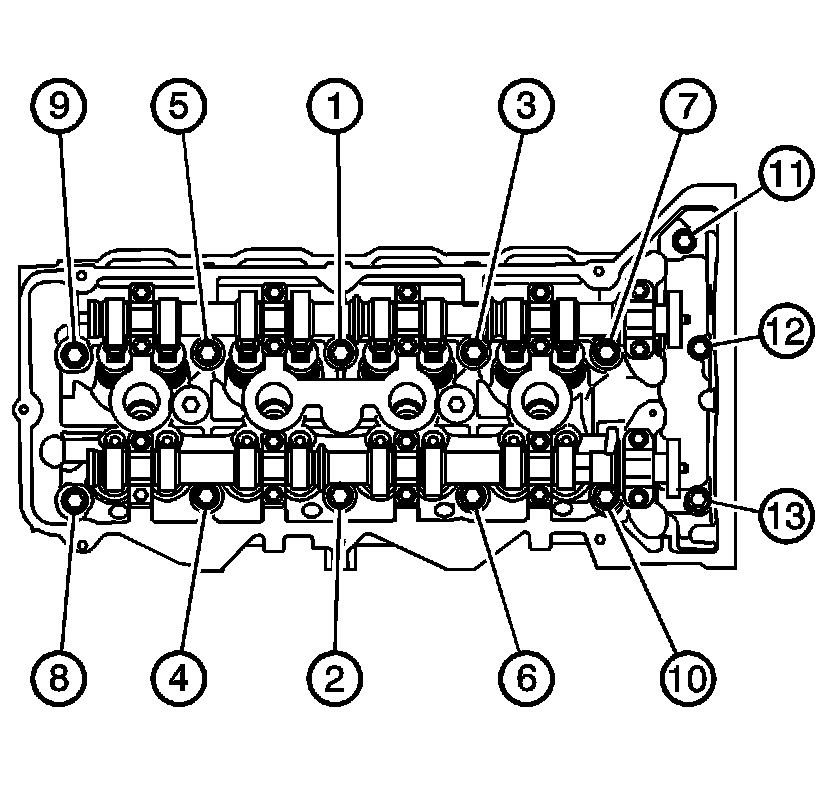

Tightening Torques & Sequences

Right:

Left:

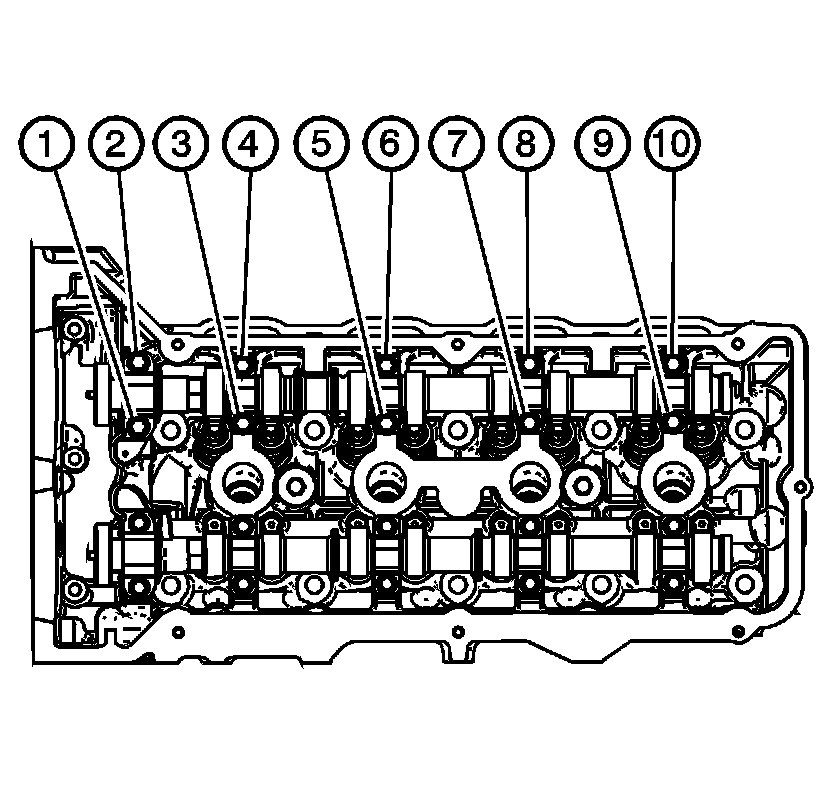

Cylinder Head Bolt 25 Nm (18 lb ft)

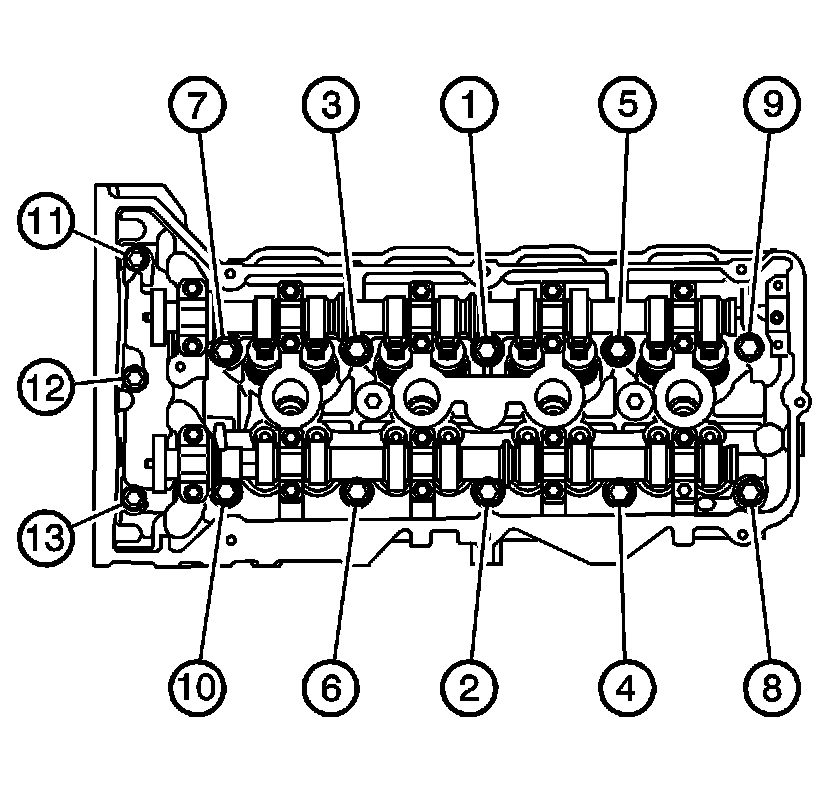

Cylinder Head Bolt M11
First Pass - In Sequence 30 Nm (22 lb ft)
Second Pass - In Sequence 60 degrees
Third Pass - In Sequence 60 degrees
Final Pass - In Sequence 60 degrees, total 180 degrees

Cylinder Head Bolt M6 12 Nm (106 lb in)

CYLINDER HEAD BOLT RE-USABILITY

Notice: DO NOT reuse the old M11 cylinder head bolts.

INTAKE MANIFOLD

Intake Manifold Mounting Bolt 10 Nm (89 lb in)

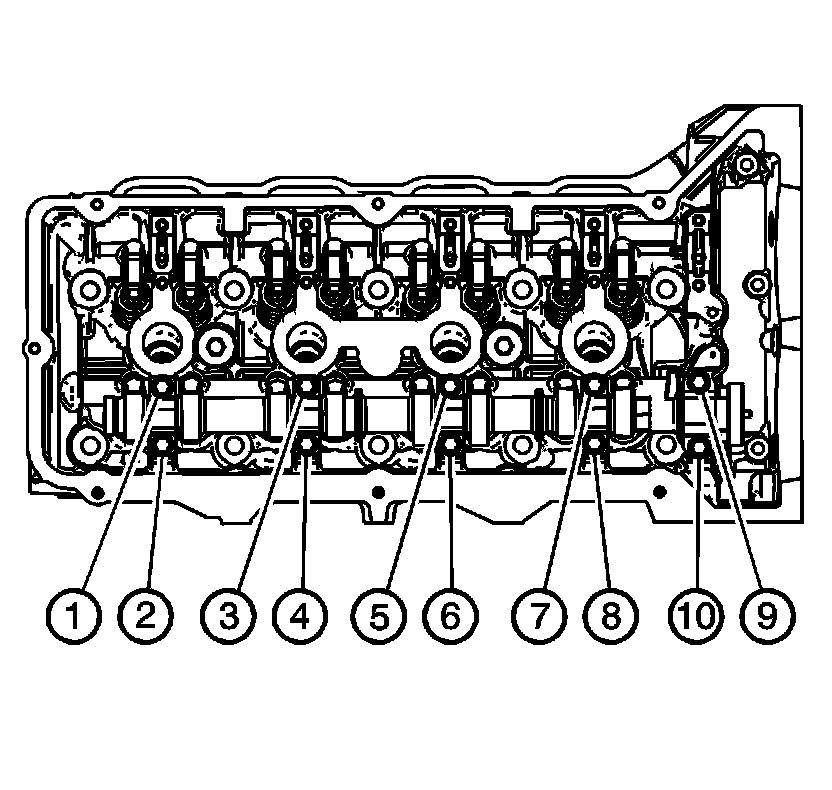

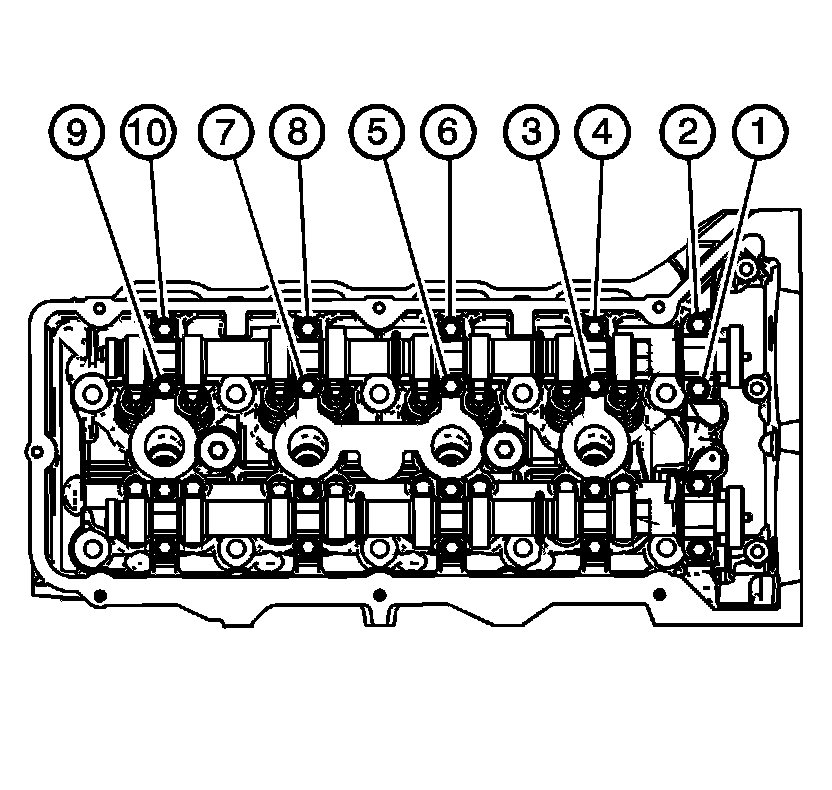

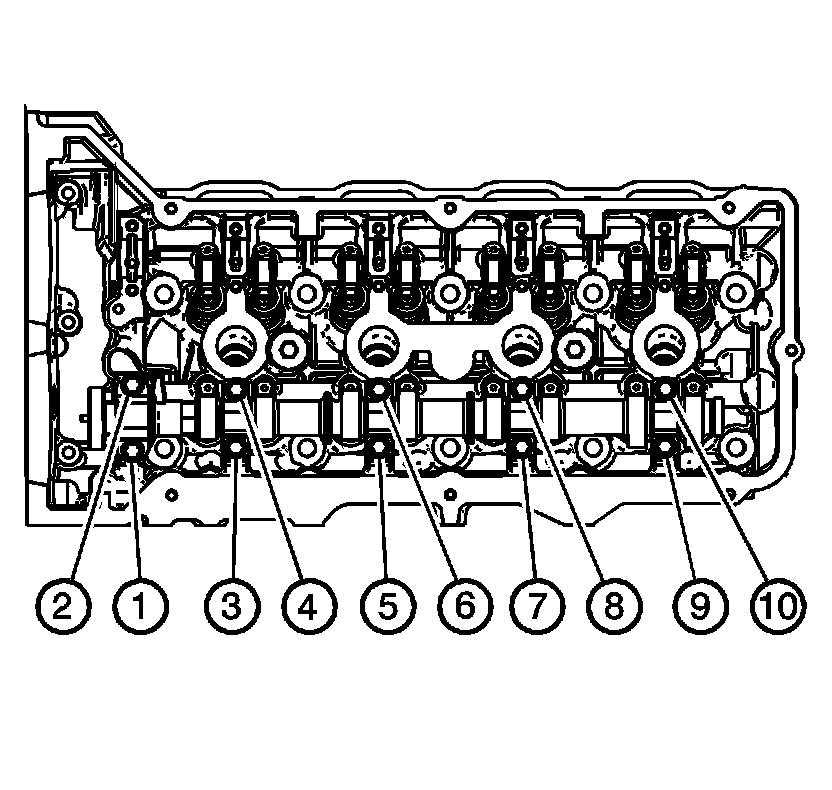

CAMSHAFT BEARING CAP

Intake Camshaft - Right Side:

Exhaust Camshaft - Right Side:

Intake Camshaft - Left Side:

Exhaust Camshaft - Left Side:

Camshaft Bearing Cap Bolt 12 Nm (106 lb in)

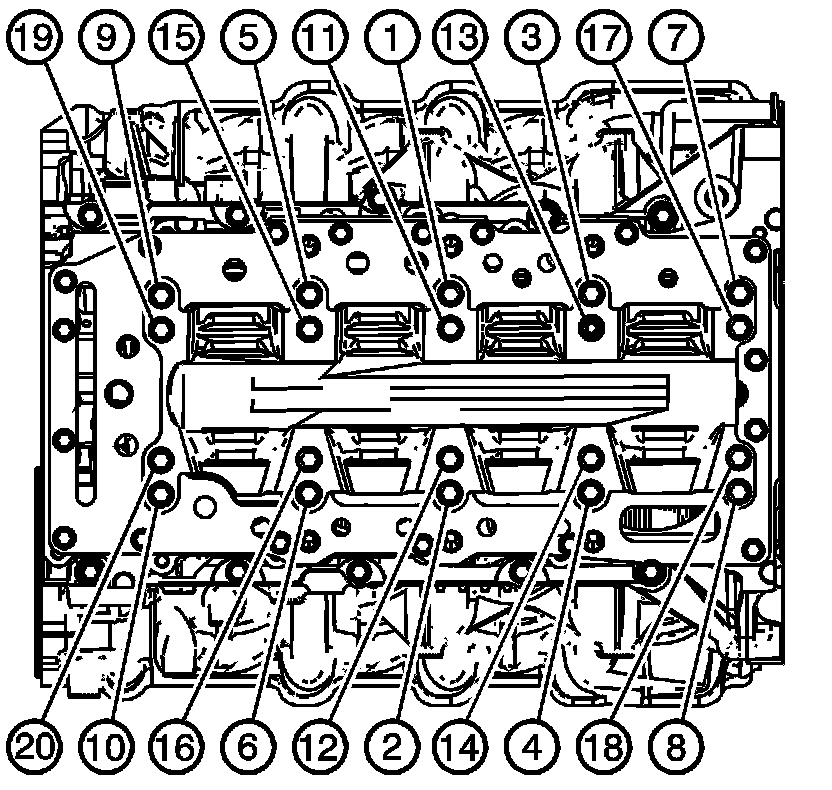

MAIN BEARING CAP

Bearing Bolt
M10 x 1.5 First Pass - In Sequence 20 Nm (15 lb ft)
M10 x 1.5 Final Pass - In Sequence 65 degrees

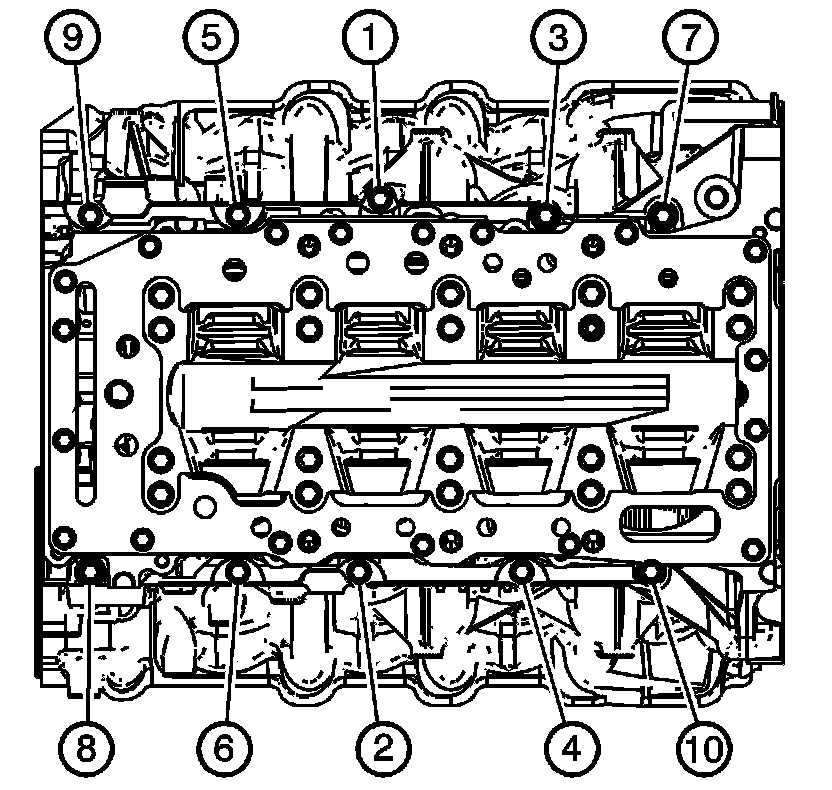

Perimeter Bolt

Upper-to-lower Crankcase Perimeter Bolts (1-8) 30 Nm (22 lb ft)

ROD BEARING CAP

Connecting Rod Bolt
First Pass 30 Nm (22 lb ft)
Second Pass Back off to zero
Third Pass 25 Nm (18 lb ft)
Final Pass 100 degrees

CRANKSHAFT PULLEY

Crankshaft Balancer Bolt
First Pass 50 Nm (37 lb ft)
Final Pass 150 degrees

FLYWHEEL/FLEXPLATE

Engine Flywheel Bolt
First Pass 30 Nm (22 lb ft )
Final Pass 50 degrees

OIL PUMP

Oil Pump Cover Bolt 12 Nm (106 lb in)

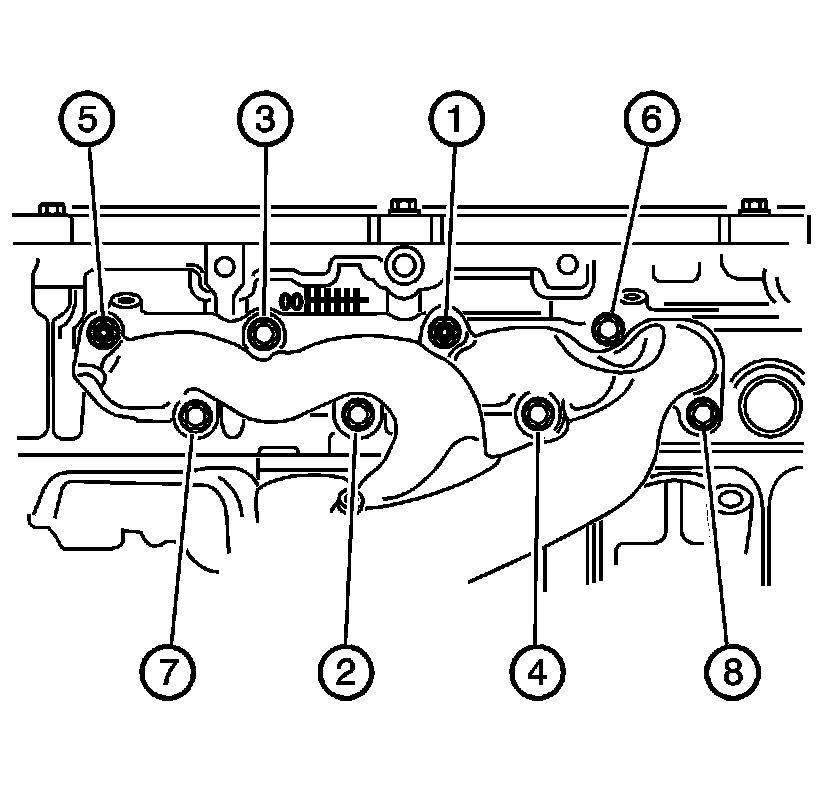

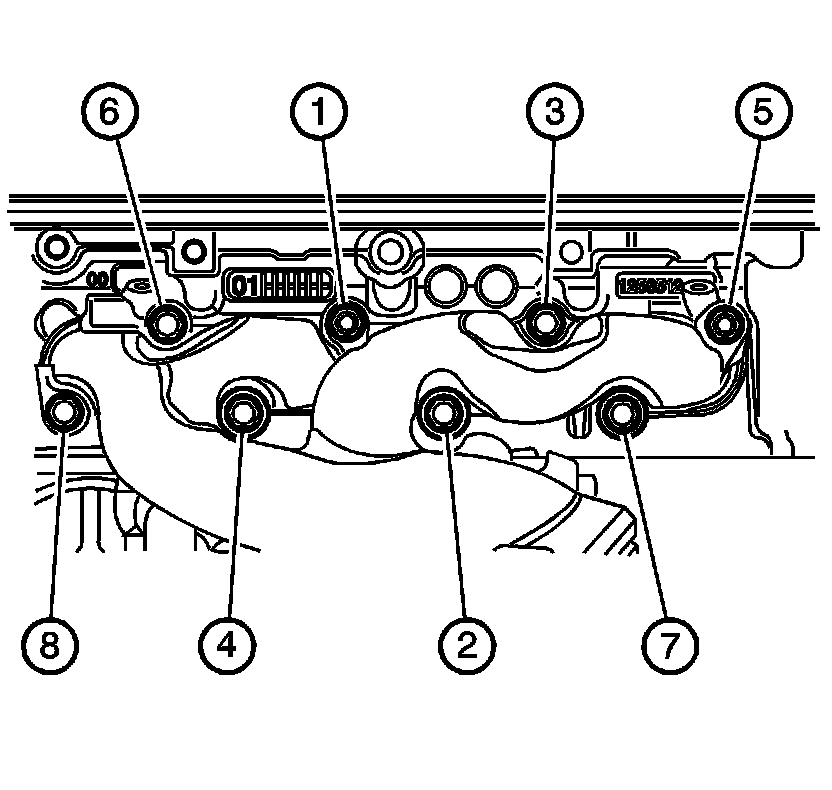

EXHAUST MANIFOLD

Left:

Right:

Exhaust Manifold Bolt 25 Nm (18 lb ft)
Exhaust Manifold Nut 25 Nm (18 lb ft)

WATER PUMP

Water Pump Bolt 10 Nm (89 lb in)
