Ignition Switch: Service and Repair

Ignition and Start Switch Replacement

Removal Procedure

Warning: Refer to SIR Warning (SIR Warning).

1. Disable the SIR system. Refer to SIR Disabling and Enabling (Service and Repair).
2. Remove the upper and lower trim covers. Refer to Steering Column Trim Cover Replacement (Steering Column Trim Cover Replacement).

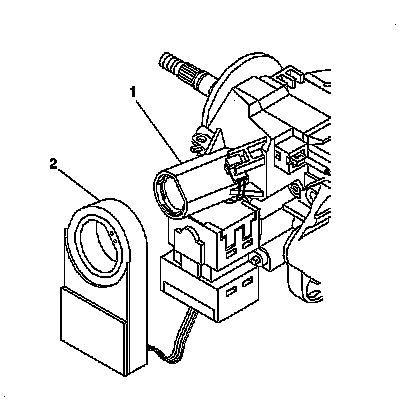

3. Remove the theft deterrent control module (2) from the ignition lock cylinder case (1).




4. Disconnect the connector located by the ignition switch.

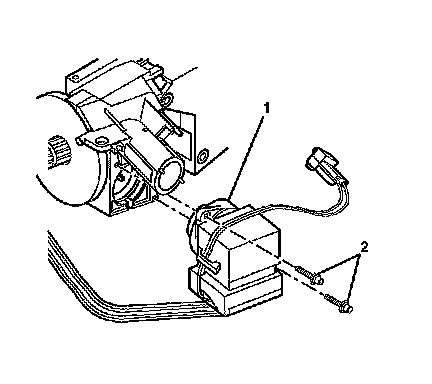

5. Remove the 2 tapping screws (2) from the ignition switch assembly (1).
6. Remove the ignition switch (1) from the ignition lock cylinder case.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the ignition switch (1) and secure by using the 2 tapping screws (2).

Tighten the screws to 7 Nm (62 lb in).

2. Connect the connector to the ignition switch.




3. Install the theft deterrent control module (2) onto the ignition lock cylinder case (1).
4. Install the upper and lower trim covers. Refer to Steering Column Trim Cover Replacement (Steering Column Trim Cover Replacement).
5. Enable the SIR system. Refer to SIR Disabling and Enabling (Service and Repair).
