Window Shade: Service and Repair

Rear Sunshade Replacement

Removal Procedure

1. Remove the body side rear trim panel. Refer to Body Side Rear Trim Panel Replacement (w/TB5) (Service and Repair)Body Side Rear Trim Panel Replacement (w/o TB5) (Service and Repair).

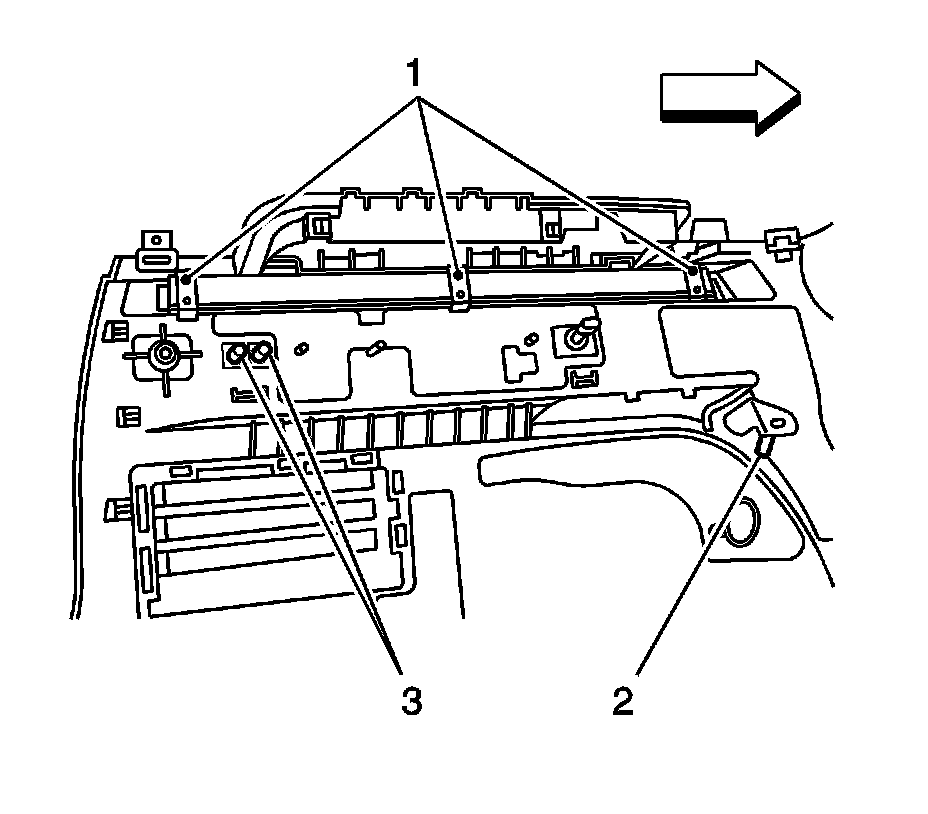

2. Remove the retaining screws (1).
3. Remove the sunshade from the trim panel.

Installation Procedure

1. Install the sunshade to the body side rear trim panel. Refer to Body Side Rear Trim Panel Replacement (w/TB5) (Service and Repair)Body Side Rear Trim Panel Replacement (w/o TB5) (Service and Repair).

Caution: Refer to Fastener Caution (Fastener Caution).




2. Install the screws (1).

Tighten the screws to 2 Nm (18 lb in).

3. Install the body side rear trim panel. Refer to Body Side Rear Trim Panel Replacement (w/TB5) (Service and Repair)Body Side Rear Trim Panel Replacement (w/o TB5) (Service and Repair).
