Damping Control Actuator

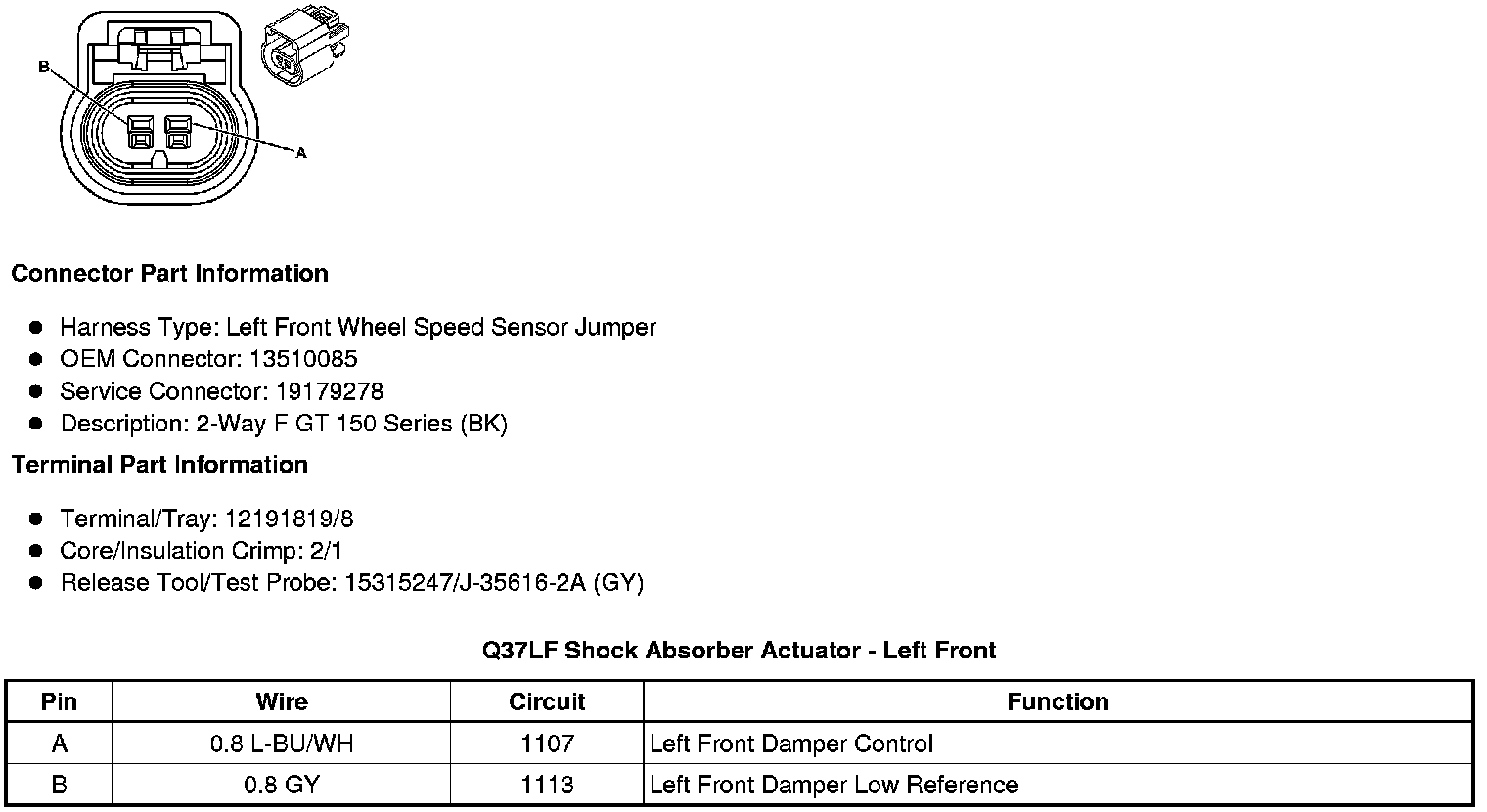

Q37LF Shock Absorber Actuator - Left Front

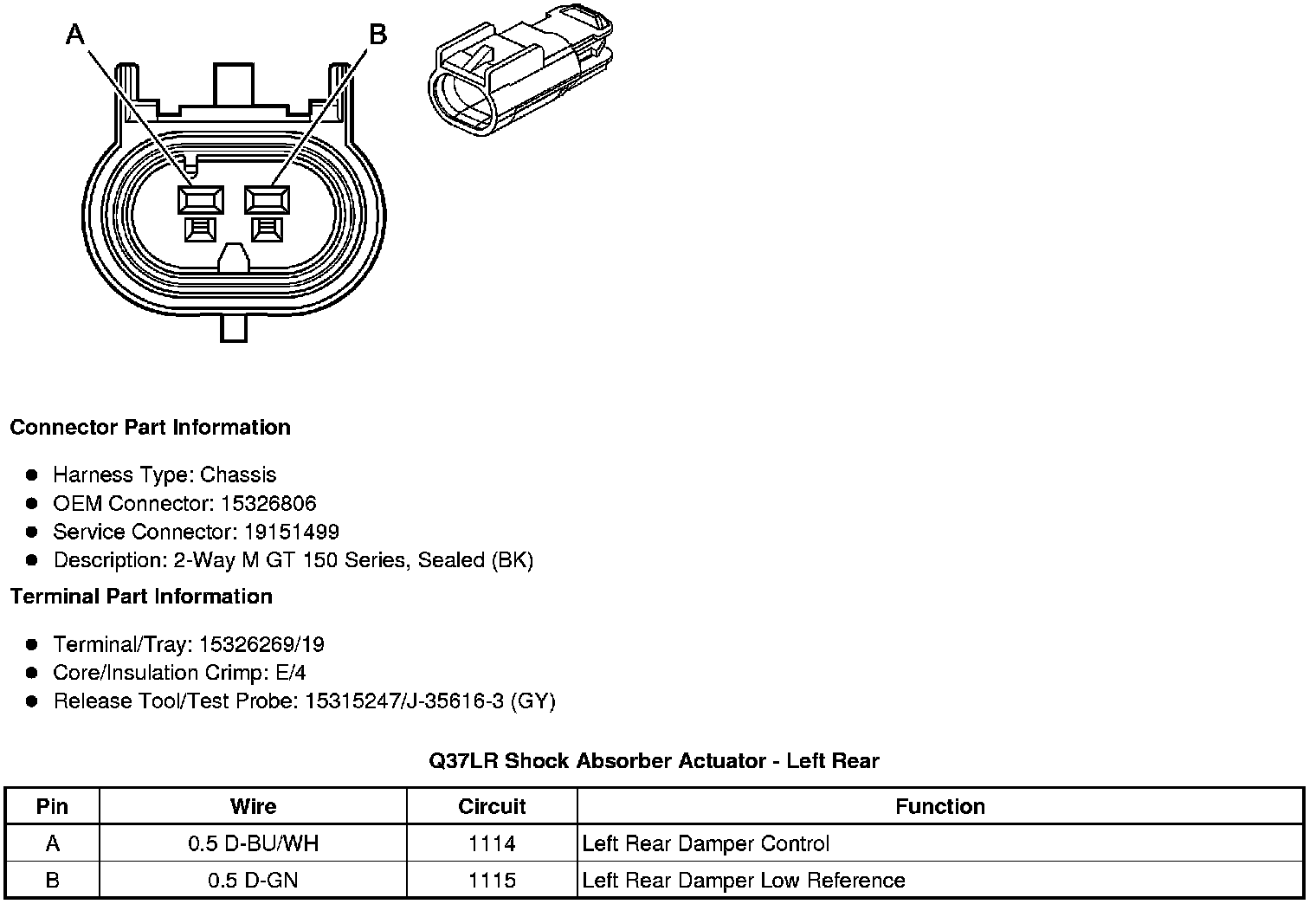

Q37LR Shock Absorber Actuator - Left Rear





Q37RF Shock Absorber Actuator - Right Front

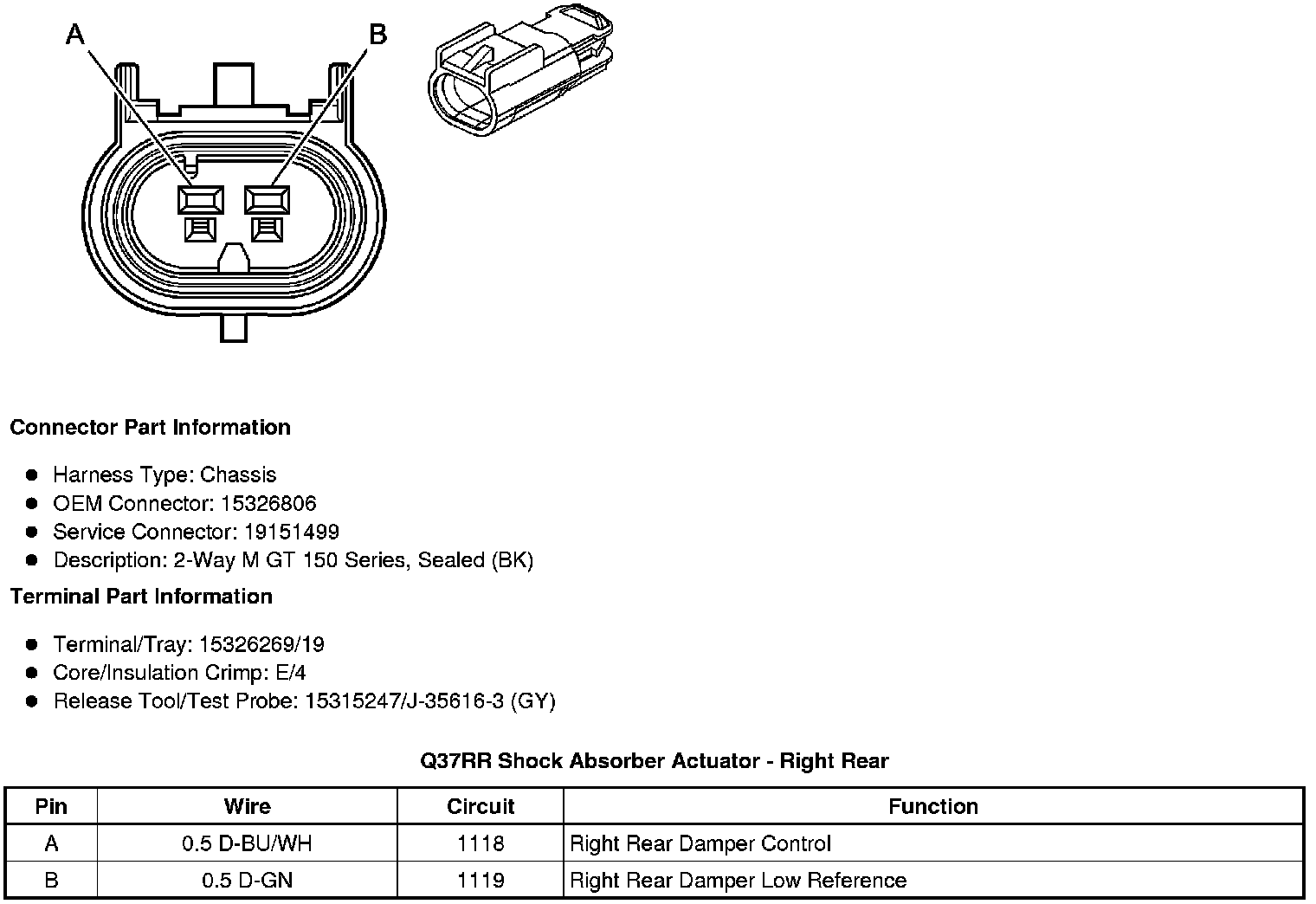

Q37RR Shock Absorber Actuator - Right Rear
