Less Blower & Compressor Control

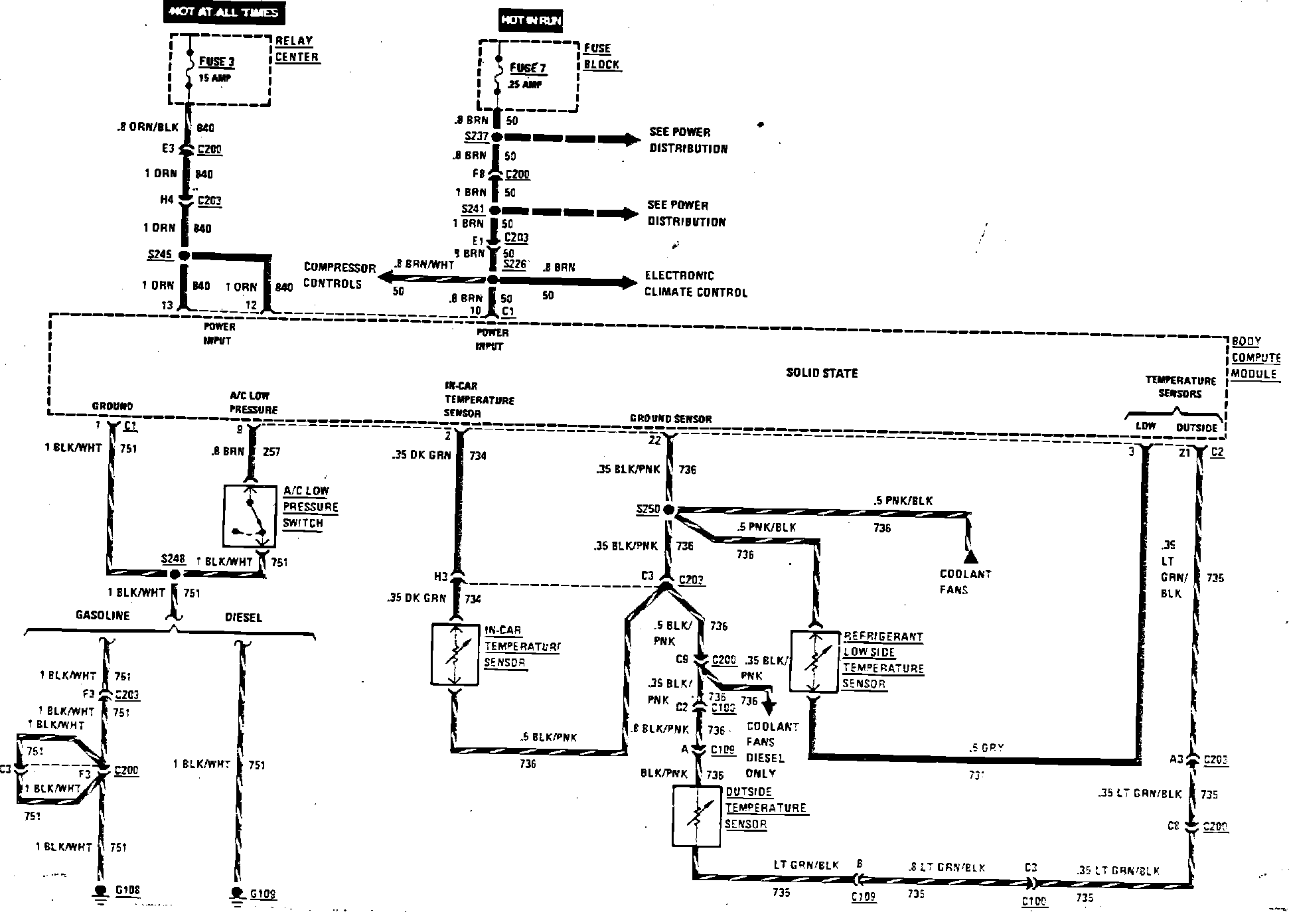

Electronic Climate Control Wiring Circuit:

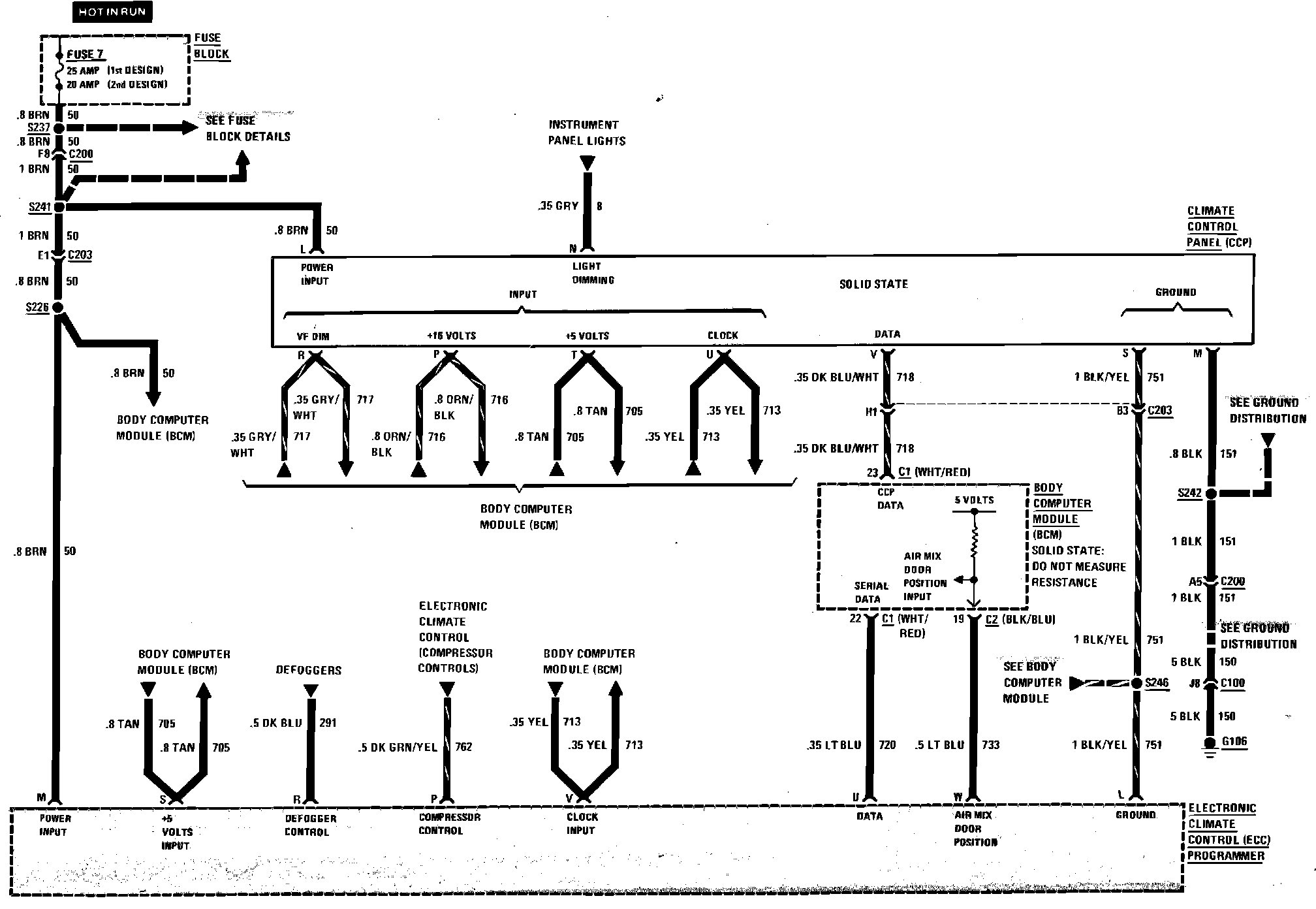

Electronic Climate Control Wiring Circuit:
