With Blower & Compressor Control

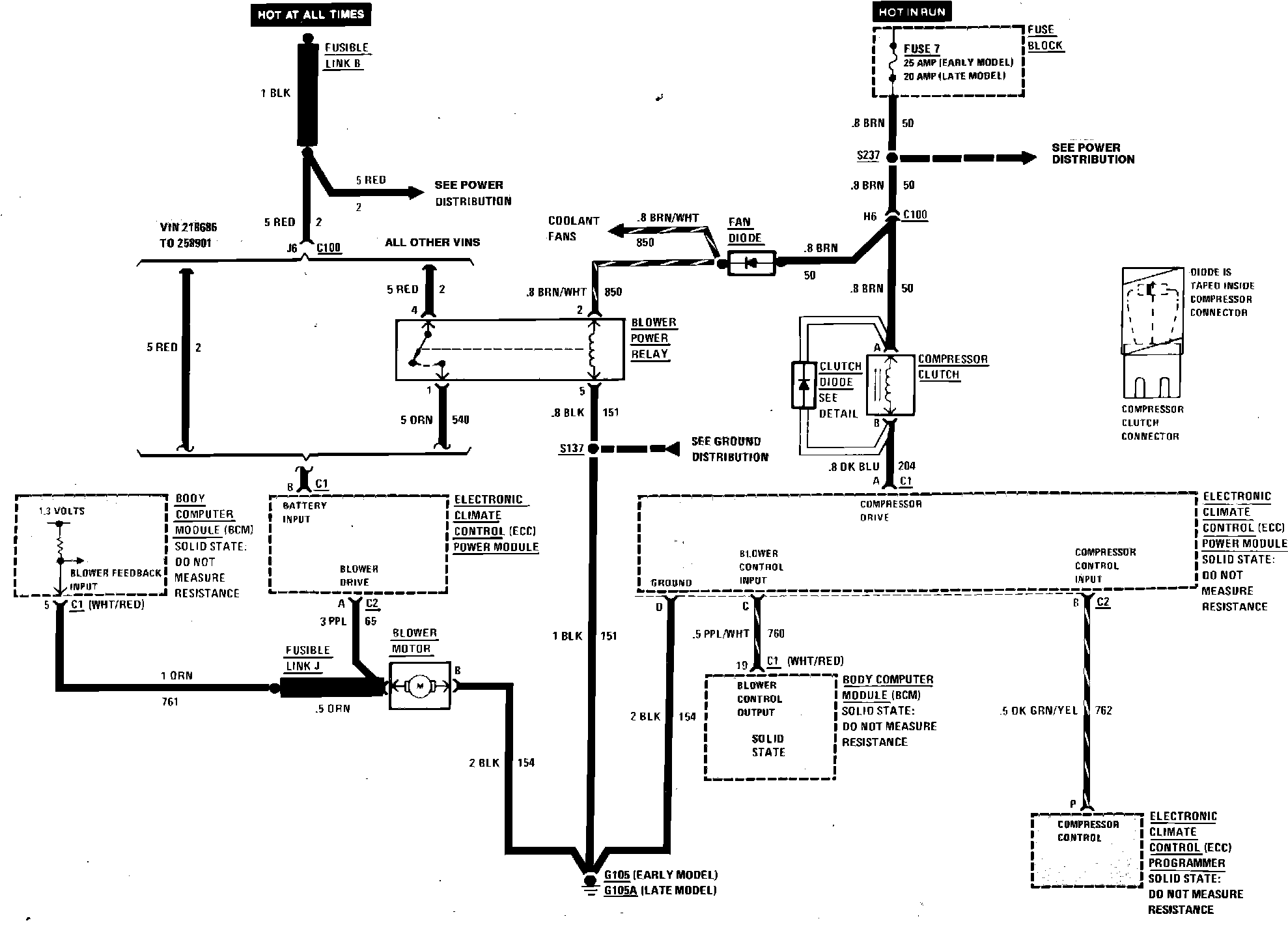

Electronic Climate Control (Blower & Compressor Control) Wiring Circuit:
