Cadillac
>>
1985
>>
DeVille V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Less Delco-Bose System
Less Delco-Bose System

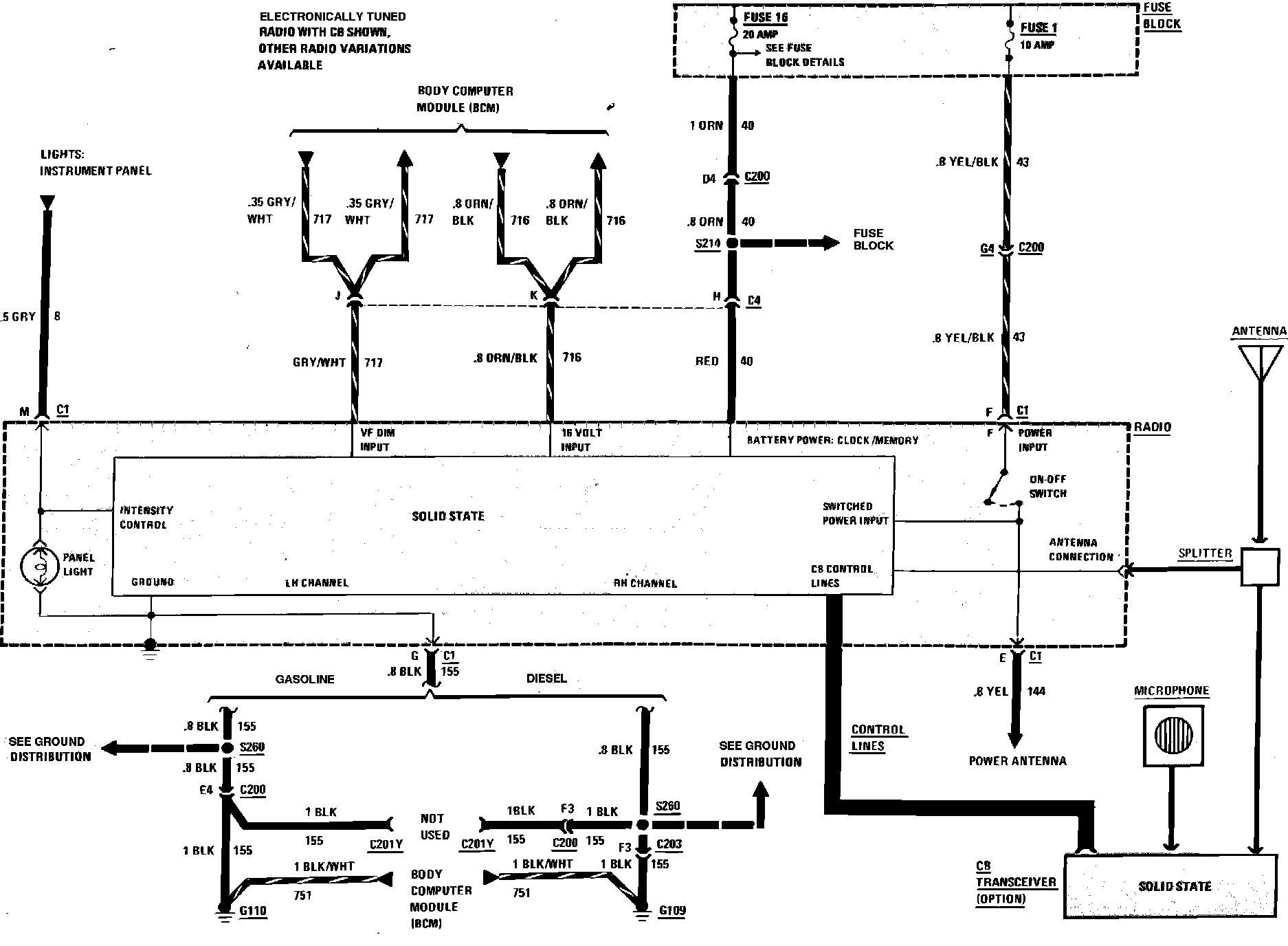

Radio Wiring Circuit, Less Delco Bose:
