Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1985
>>
Fleetwood FWD V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Controls
>>
ECM Power & Ground
ECM Power & Ground

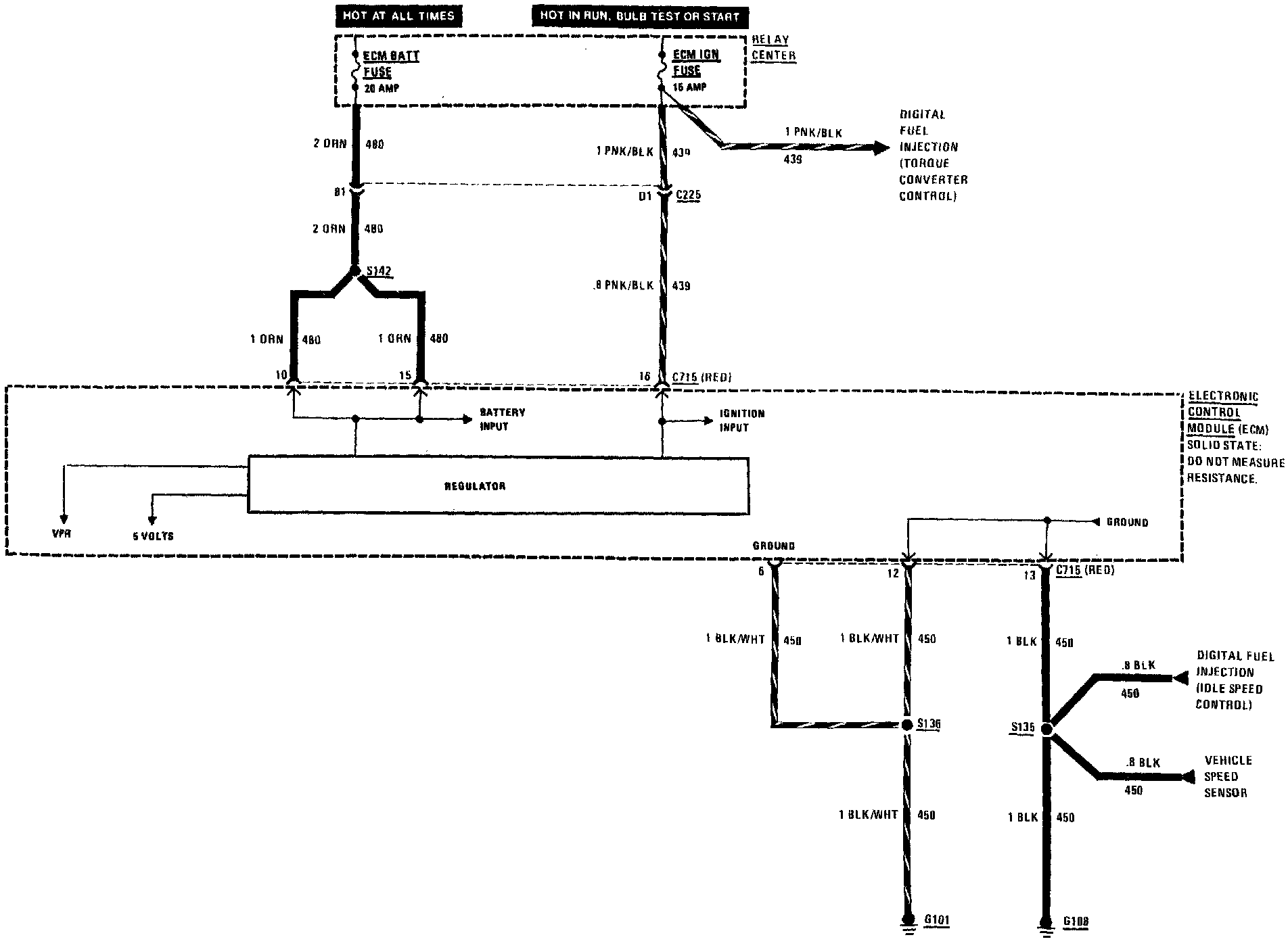

Digital Fuel Injection: ECM Power And Ground:
