System Check - Electronic Climate Control
System Check - Electronic Climate Control

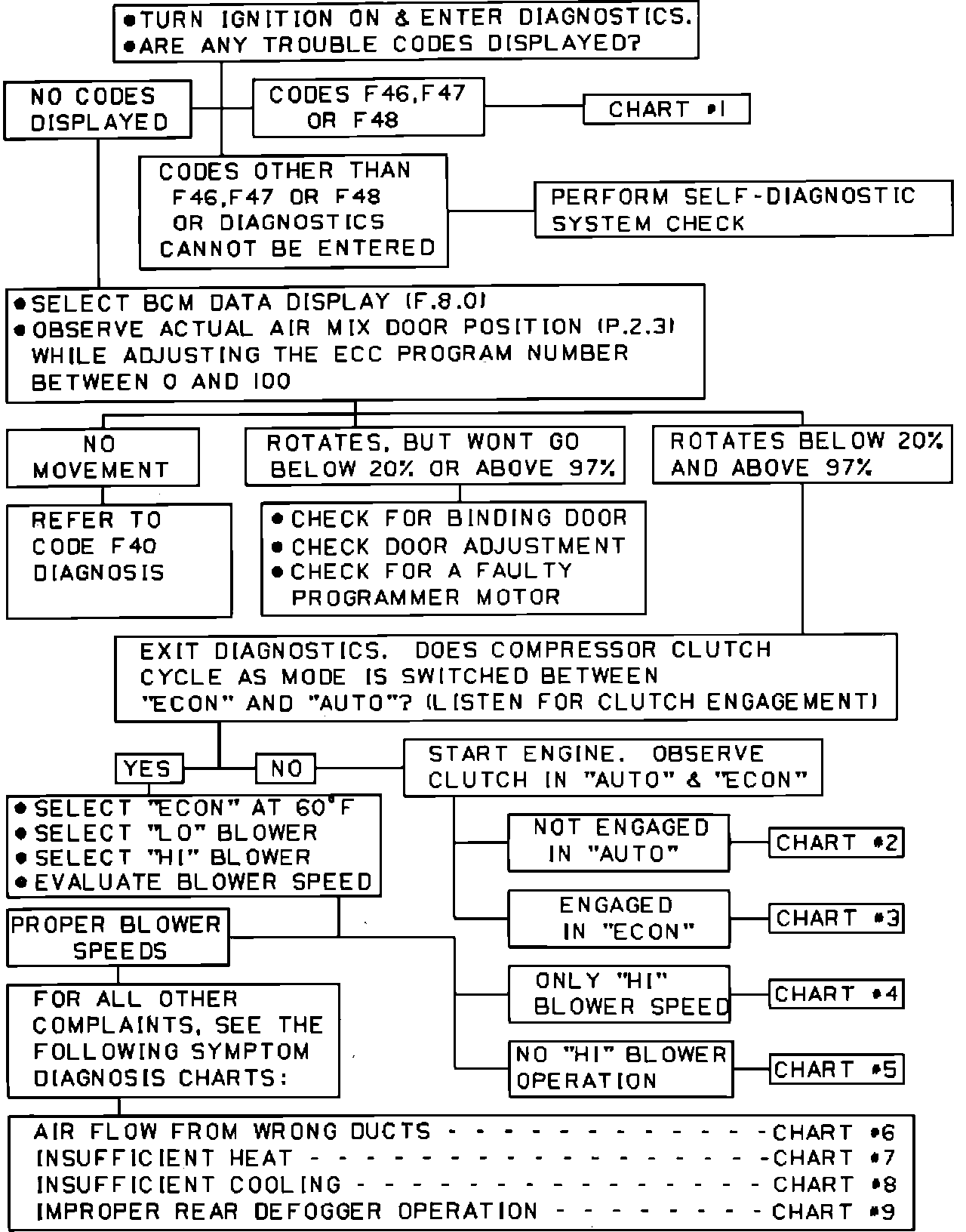

Fig. 6 Electronic climate control system chart:
