Brake Warning Indicator
Brake Warning Indicator

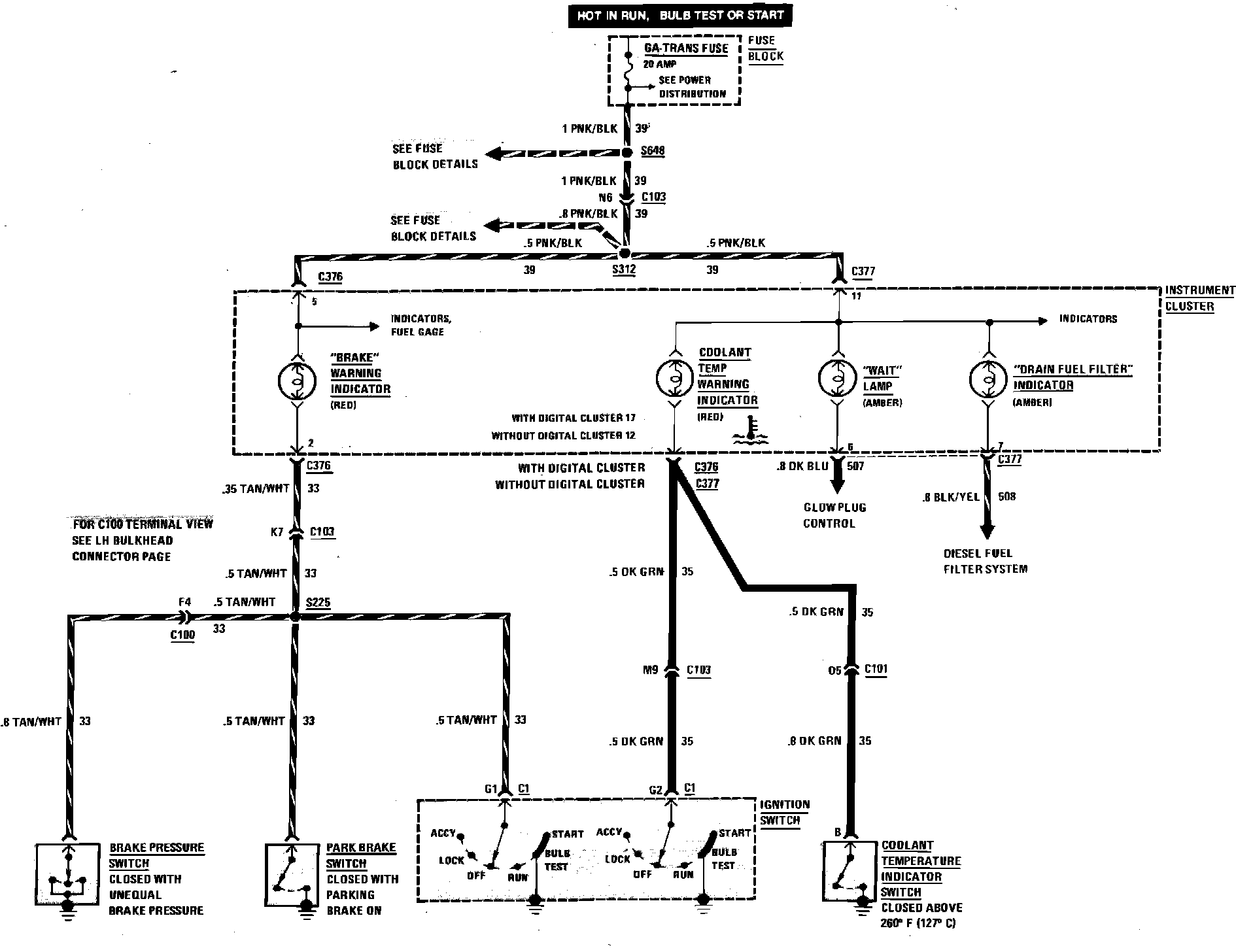

Brake Warning System, Coolant Temperature, Drain Fuel Filter & Wait Lamp Indicator Wiring Circuit:
