Cabin Temperature Sensor / Switch: Locations

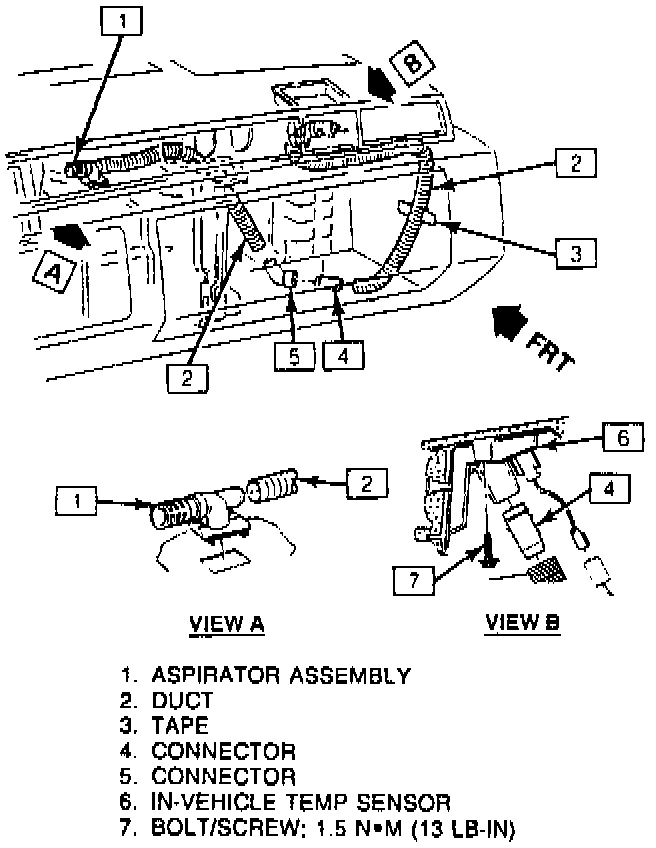

Component Locations:






Top right hand side of instrument panel, above glove box
