Home
>>
Cadillac
>>
1990
>>
Eldorado V8-273 4.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Controls
>>
Power & Grounds
Power & Grounds

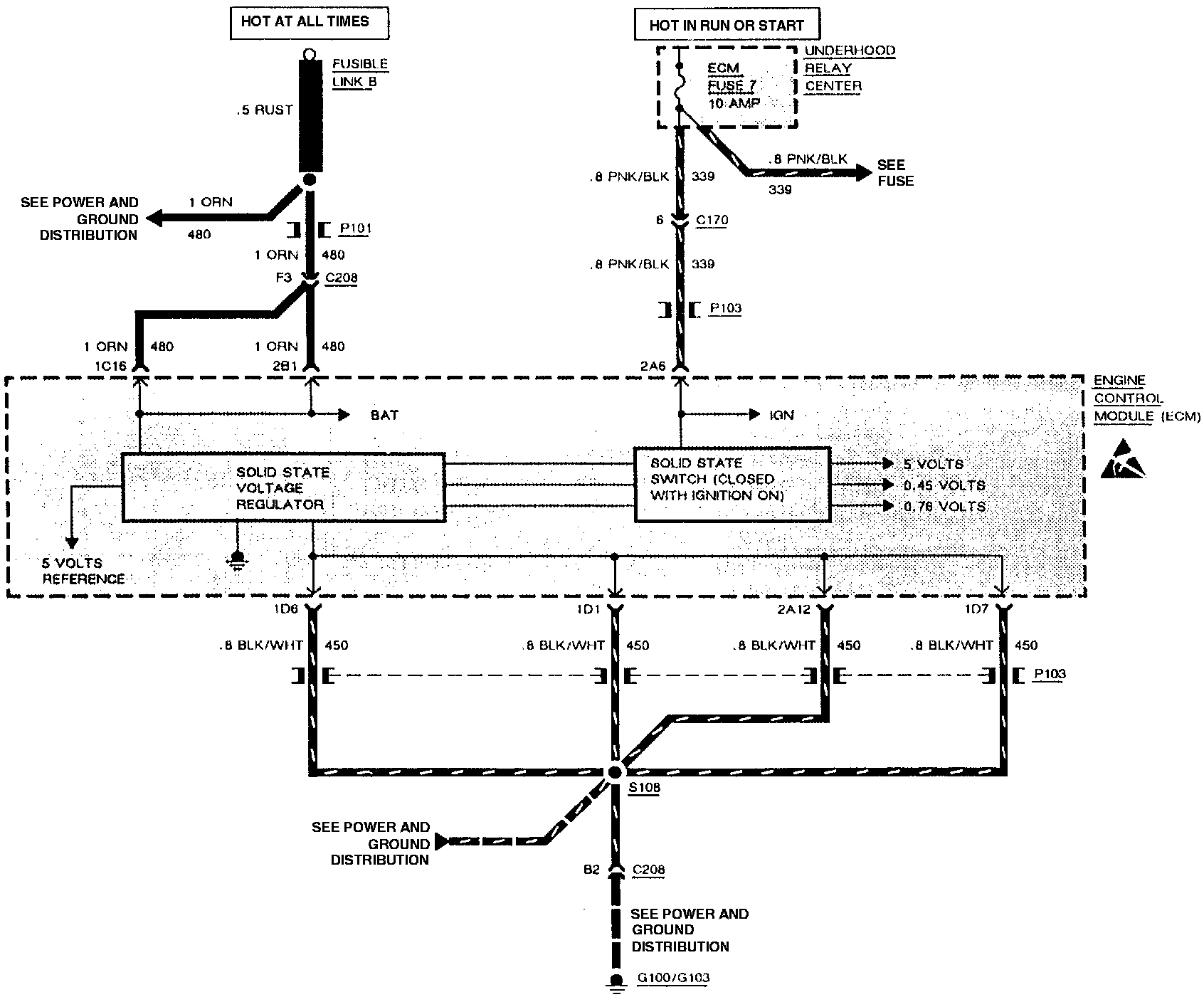

ECM Power And Grounds:
